Description
Overview of HPE ProLiant DL360 Gen9 Server

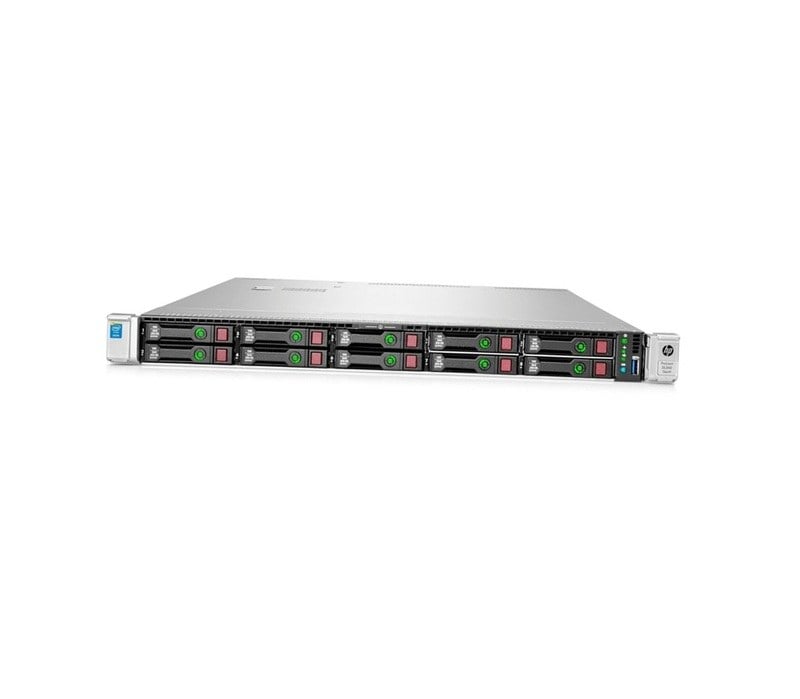

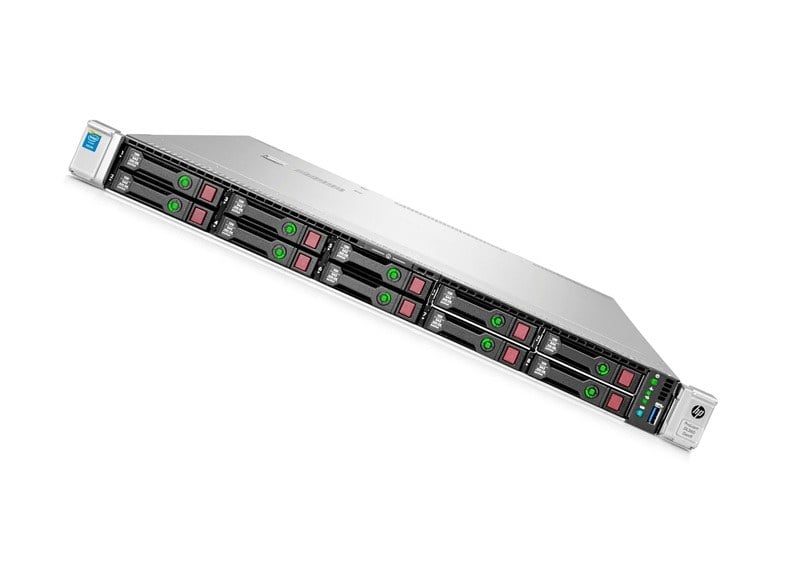

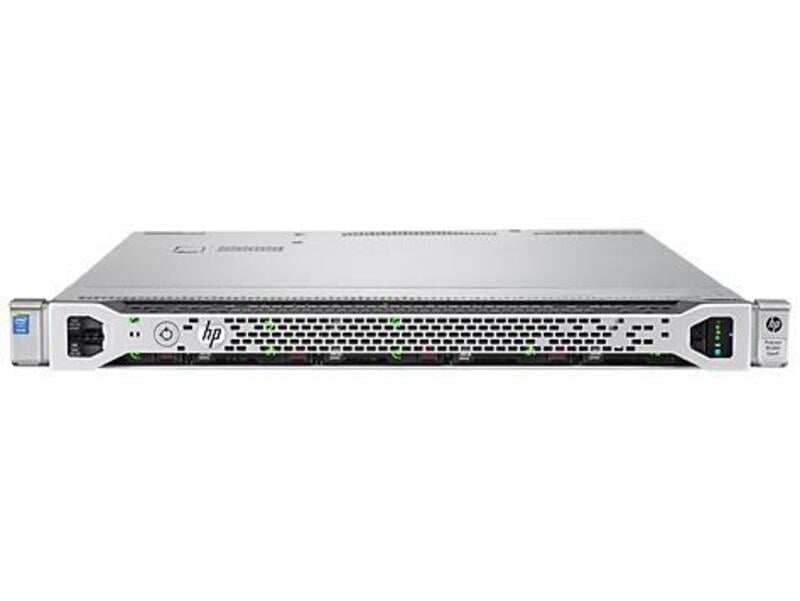

The 800082-S01 HPE ProLiant DL360 Gen9 is a server designed to meet the needs of businesses that require high-performance computing capabilities. It is equipped with powerful hardware components such as 2 Intel Xeon E5-2697 v3 processors, 64GB of DDR4 memory, and 8 hot-swappable Small Form Factor (SFF) hard drive bays. Additionally, the server is powered by dual 800W power supplies, making it a reliable option for businesses that require continuous uptime. In this article, we will delve into the technical specifications of this server and explore how it can benefit businesses.
Processor and Memory
The 800082-S01 HPE ProLiant DL360 Gen9 server is powered by two Intel Xeon E5-2697 v3 processors. Each processor has 14 cores and 28 threads, making a total of 28 cores and 56 threads in the server. The processors have a base clock speed of 2.6 GHz and a turbo frequency of up to 3.6 GHz. This means that the server can handle heavy workloads and run multiple applications simultaneously without slowing down.
The server comes with 64GB of DDR4 memory installed. DDR4 memory is the latest generation of Double Data Rate (DDR) memory and is faster and more efficient than its predecessor DDR3. The server has 16 DIMM slots, allowing for further expansion of the memory up to 768GB.
Storage
The 800082-S01 HPE ProLiant DL360 Gen9 server has eight hot-swappable Small Form Factor (SFF) hard drive bays, each of which can accommodate up to 2.5-inch SAS, SATA or SSD drives. This allows for up to 16TB of internal storage, making it an ideal option for businesses that require large amounts of data storage.
Networking
The server has four embedded Gigabit Ethernet ports and can support additional networking cards if required. Additionally, it features a flexible storage controller with support for RAID levels 0, 1, 10, and 5.
Power Supply
The server is powered by dual 800W power supplies, which provides redundancy and ensures continuous uptime. This means that even if one of the power supplies fails, the server will still be operational with the other power supply.
Operating System
The 800082-S01 HPE ProLiant DL360 Gen9 server can run a variety of operating systems including Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, and Citrix XenServer.
Management
The server features HPE iLO (Integrated Lights-Out) management, which allows administrators to manage the server remotely. With iLO, administrators can access the server’s console, perform remote management tasks, and monitor server health.
Finally, the 800082-S01 HPE ProLiant DL360 Gen9 server is a high-performance computing machine that is designed to meet the needs of businesses that require large amounts of computing power and storage. With its powerful hardware components, including two Intel Xeon E5-2697 v3 processors, 64GB of DDR4 memory, and 8 hot-swappable Small Form Factor hard drive bays, it is an ideal option for businesses that need to run multiple applications and handle heavy workloads. Additionally, the server’s dual 800W power supplies provide redundancy and ensure continuous uptime, making it a reliable option for businesses. With HPE iLO management, administrators can manage the server remotely and monitor server health, making it easy to maintain and troubleshoot.
Key Information
- Manufacturer: HPE
- Model Number or SKU # 800082-S01
- Product Type: Server
Processor & Chipset Information
- Max Turbo Speed : 3.6 Ghz
- Quickpath Interconnect: 9.60 Gt/s
- Number Of Cores : 14-core
- 64-bit Computing : Yes
- Compatible Processor Socket : Fclga2011-3
- Installed Qty : 2
- Max Supported Qty : 2
- Chipset Type : Intel C610 Series
Cache Memory :
- Cache Memory Type : Smart Cache
- Installed Size : 70 Mb
- Cache Per Processor : 35 Mb
Memory :
- Installed Size : 64 Gb / 384 Gb (max)
- Technology : Ddr4 Sdram – Advanced Ecc
- Memory Speed : 2133 Mhz
- Memory Specification Compliance : Pc4-17000
- Form Factor : Dimm 288-pin
- Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
- Configuration Features : 4 X 16 Gb
- Ram Supported : Pc4-17000 – 768 Gb – Load-reduced, Pc4-17000 – 384 Gb – Registered
Storage Controllers:
- Storage Controller Name : Smart Array P440ar
- Buffer Size : 2 Gb
- Disk Drive : 12gb/s Sas / 6gb/s Sata
- Sas Port Link Rate : 12gb/s Per Physical Link Supported
- Pcie Link Rate : Pci Express 3.0 X8 (pcie3 X8)
- Physical Drives : Up To 26 Drives
- Logical Drives Supported : Up To 64 Logical Drives
- Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Display & Graphics Controllers :
- Graphics Controller Type : Integrated Matrox G200
Network & Communication :
- Type : Integrated
- Ethernet Ports : 4 X Gigabit Ethernet
- Ethernet Controller : Hp 331i
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller : Integrated Lights-out 4
- Features : Wake On Lan (wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion/ Connectivity :
- Expansion Bays Total (free) :
- 1 External 5.25
- 8 (total) / 8 (free) X Hot-swap 2.5 Sff
- Expansion Slots Total (free) :
- 24 (total) / 22 (free) X Dimm 288-pin
- 2 (total) / 0 (free) X Cpu
- 1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
- 1 (total) / 0 (free) X Pcie 3.0 X8 – Low-profile
- 1 (total) / 1 (free) X Flexiblelom
- 1 (total) / 1 (free) X Microsd Card (internal)
Interfaces & Ports :
- 1 X Vga
- 1 X Serial
- 4 X Lan (gigabit Ethernet)
- 1 X Hp Ilo
- 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
Miscellaneous :
- Features :
- Administrator Password
- Power-on Password
- Keyboard Password
- Serial Port I/o Control
- Quicklock
- Uefi Bios
Compliant Standards :
- Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Ashrae, Cns 13438
Power Description :
- Device Type : Power Supply – Hot-plug
- Power Redundancy : Yes
- Power Redundancy Scheme : 1+1
- Installed Qty : 2
- Max Supported Qty : 2
- Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
- Power Provided : 800 Watt
- 80 Plus Certification : 80 Plus Platinum
I/O Expansions
- Number of Internal 2.5″ Bays 8
Display & Graphics
- Graphics Controller Manufacturer Matrox
- Graphics Controller Model G200
Power Description
- Input Voltage 120 V AC
- 230 V AC
- Maximum Power Supply Wattage 800 W
Miscellaneous
- Environmentally Friendly Yes
- Environmental Certification WEEE
- EU WEEE
Dimensions & Weigh
- Form Factor Rack
- Rack Height 1U
- Height 1.7 Inch
- Width 17.1 Inch
- Depth 27.5 Inch
- Weight (Approximate) 33.75 lBS
