Description
Key Features and Capabilities of the 1000-16I Adaptec HBA

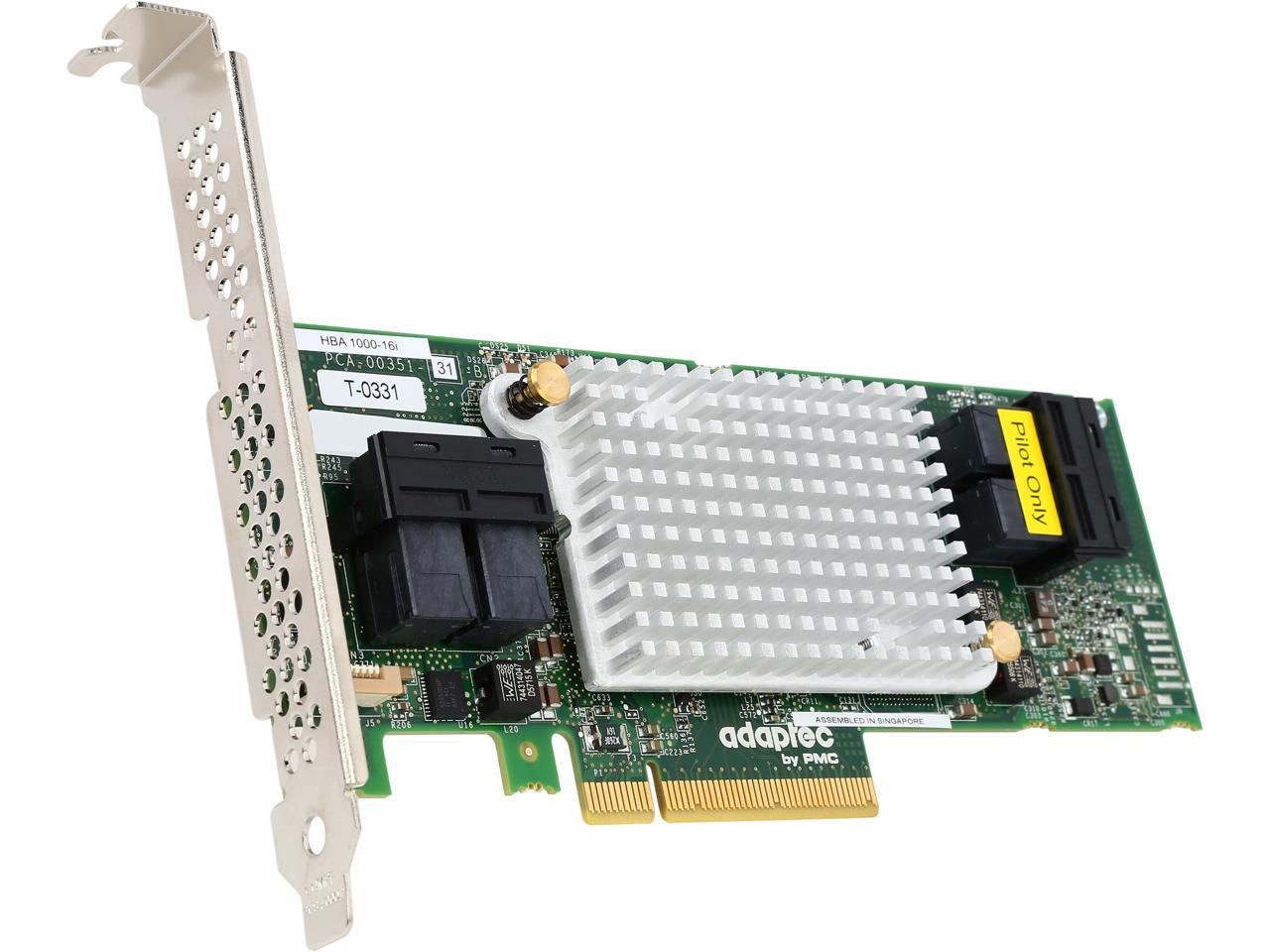

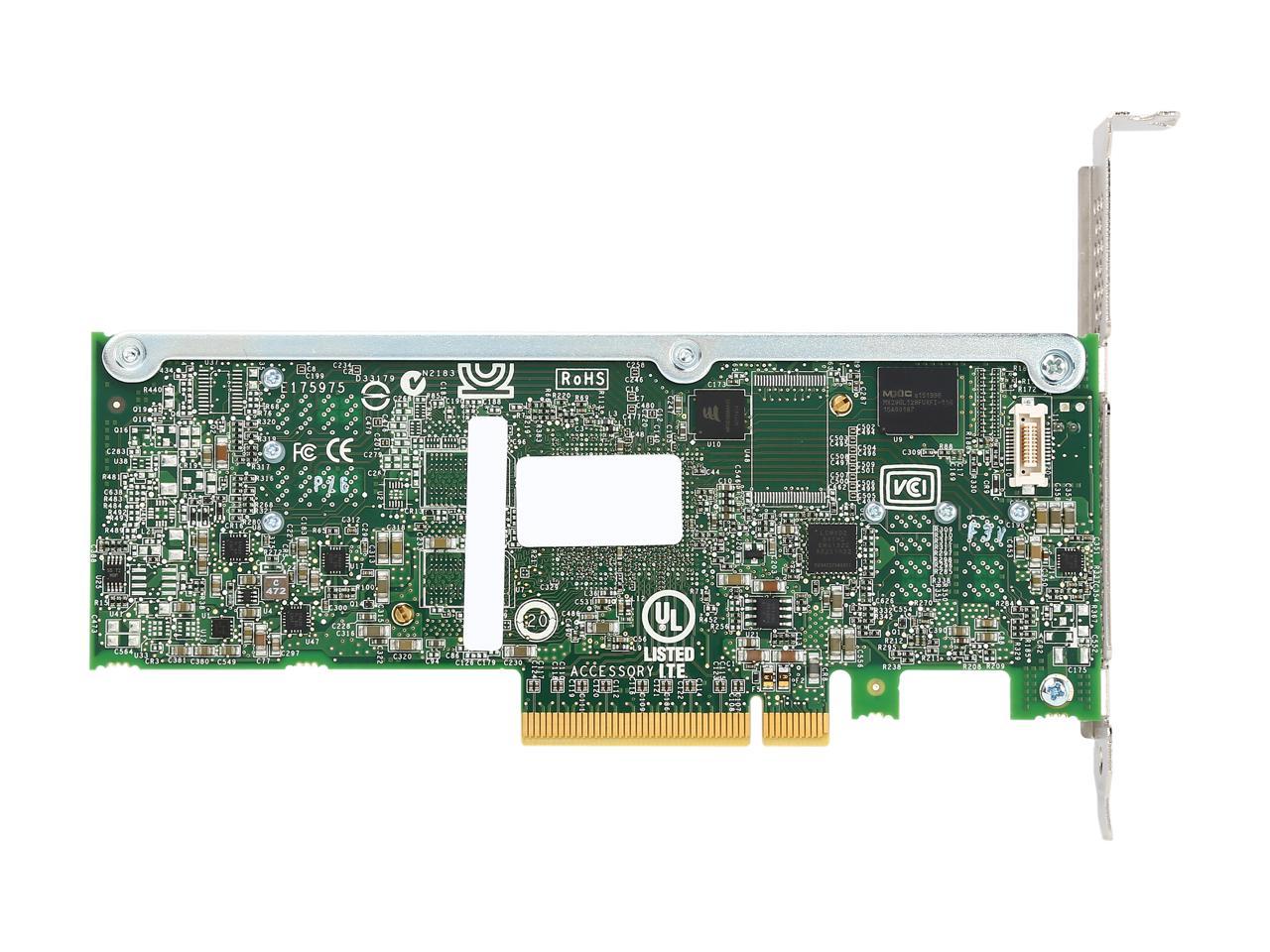

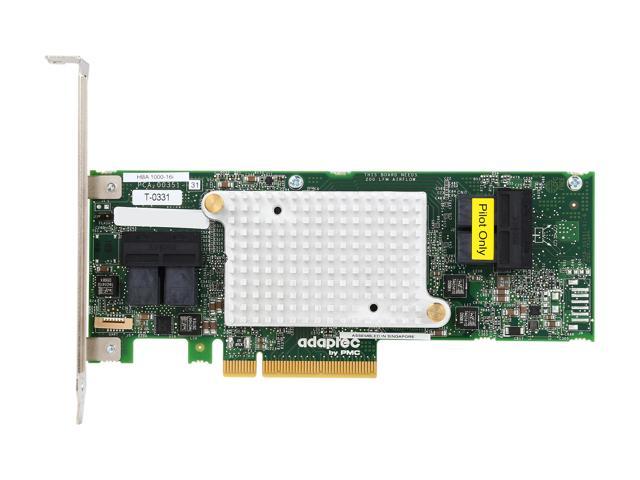

The 1000-16I Adaptec 12GB 16 Ports PCI Express 3.0 x8 SAS SATA HBA is a host bus adapter designed for use with server and storage systems. It offers a variety of features and capabilities to help businesses and organizations improve storage performance and scalability. Some key features and capabilities include:
- High-performance data transfer: With support for 12Gbps SAS and 6Gbps SATA drives, the 1000-16I Adaptec HBA provides high-performance data transfer speeds and high throughput, making it suitable for high-performance storage environments.
- Large scalability: With 16 ports, the 1000-16I Adaptec HBA provides a large number of SAS and SATA drive connections, which allows for the integration of a large number of drives in the storage array.
- RAID support: The HBA supports RAID 0, 1, 5, 6, 10, 50, and 60, which allows for flexible and customizable storage configurations, making it ideal for businesses and organizations that need to add or expand storage capacity.
- Easy management and monitoring: The 1000-16I Adaptec HBA comes with Adaptec’s MaxView Storage Manager, a web-based management tool that allows for easy management and monitoring of storage devices and the HBA itself.
- Compatible with most operating systems: The 1000-16I Adaptec HBA supports most operating systems, including Windows, Linux, and VMware, making it easy to integrate into existing storage environments.
- PCI Express 3.0 x8 interface: The HBA’s PCI Express 3.0 x8 interface provides additional bandwidth, which is needed for large data transfer requirements, and support for multiple logical drives.
Performance and Scalability for PCI-Express Adapter
The 1000-16I Adaptec 12GB 16 Ports PCI Express 3.0 X8 SAS SATA HBA is a high-performance host bus adapter (HBA) designed for use with servers and storage systems. It has 16 ports and supports SAS 12Gbps and SATA 6Gbps interfaces, providing fast data transfer speeds and high throughput.
In terms of performance, the Adaptec 1000-16I HBA has a low-profile form factor and supports PCI Express 3.0 x8 interface, which ensures high-speed data transfer and improved performance. It also supports advanced features such as end-to-end data protection and extended error handling, which help to prevent data loss and improve data integrity.
In terms of scalability, the Adaptec 1000-16I HBA supports up to 512 SAS or SATA devices per controller, which makes it ideal for large-scale storage environments. It also supports SAS expanders, which allows for the connection of additional SAS or SATA devices to the HBA.
The Adaptec 1000-16I HBA also comes with Adaptec’s RAID Code, a web-based management tool that allows for easy management and monitoring of storage devices and the HBA itself. This makes it easy to manage and scale storage environments, even in large and complex environments.
Compatibility and System Requirements of 16 Ports HBA
The 1000-16I Adaptec 12GB 16 Ports PCI Express 3.0 X8 SAS SATA HBA is a host bus adapter designed for use with various server and storage systems. It is compatible with a wide range of operating systems, including Windows, Linux, and VMware.
In terms of system requirements, the 1000-16I Adaptec 12GB 16 Ports PCI Express 3.0 X8 SAS SATA HBA requires a PCI Express 3.0 x8 slot for installation. It supports SAS and SATA drives, and it provides 12 Gbps data transfer speeds, which allows for high-performance data transfer and throughput.
It supports RAID 0, 1, 1E, 10, 5, 50, 6, 60, and JBOD (just a bunch of disks) which means that it can create different levels of RAID depending on the requirement. It also supports for multiple logical drives and has a maximum of 256 logical drives per controller.
The HBA also comes with Adaptec’s MaxView Storage Manager, a web-based management tool that allows for easy management and monitoring of storage devices and the HBA itself. This makes it easy to manage and scale storage environments, even in large and complex environments.
It is recommended to check the compatibility and system requirements of the specific server or storage system that the 1000-16I Adaptec 12GB 16 Ports PCI Express 3.0 X8 SAS SATA HBA will be used with to ensure that it is compatible and meets all necessary requirements.
General Information about this Adaptec 1000-16I
- Manufacturer: Adaptec
- Model Number or SKU# 1000-16I
- Product Name: Controller
- Product Type: Host Bus Adapter
Technical Specifications of Host Bus Adapter
The 1000-16I Adaptec 12GB 16 Ports PCI Express 3.0 X8 SAS SATA HBA is a host bus adapter designed for use with servers and storage systems. It has the following technical specifications:
- Interface: PCI Express 3.0 x8
- Port count: 16 ports
- Data transfer rate: Up to 12 Gbps per port
- Supported protocols: SAS, SATA
- RAID support: RAID 0, 1, 10, 5, 50, 6, 60
- Maximum number of devices supported: 256
- Operating system compatibility: Windows, Linux, VMware, and Solaris
- Bus mastering: Yes
- Command queuing: Yes
- RoHS compliant: Yes
- Form factor: Low-profile, half-length
- Power consumption: 22W
- Operating temperature: 0°C to 55°C
- Operating humidity: 20% to 80% non-condensing
- Dimensions: 6.6 x 2.5 inches
- Weight: 0.5 pounds
