Description
High Availability and Redundancy Features

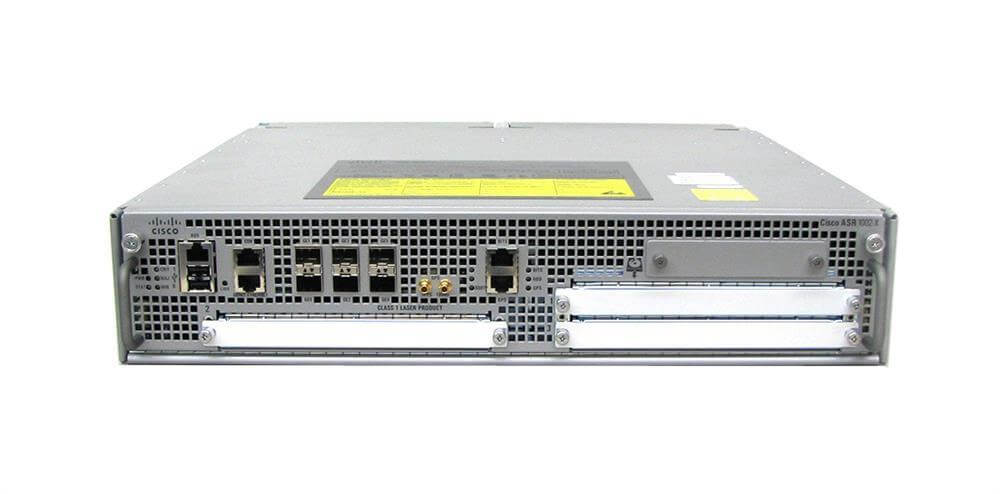

The Cisco ASR1002X-5G-K9 is a high-performance router that provides high availability and redundancy features to ensure that your network stays up and running even in the event of a failure.
- Redundant Power Supplies: The router supports dual redundant power supplies to ensure that the network remains up and running even if one power supply fails.
- Redundant Route Processor: The router has a redundant route processor to ensure that the network remains up and running even if the primary route processor fails.
- Hot Standby Router Protocol (HSRP): HSRP is a Cisco proprietary protocol that provides redundancy for the default gateway by allowing multiple routers to share a virtual IP address.
- Virtual Router Redundancy Protocol (VRRP): VRRP is a standard protocol that provides redundancy for the default gateway by allowing multiple routers to share a virtual IP address.
- Stateful Switchover (SSO) for Control Plane: SSO allows the control plane to switch over to the redundant route processor without any disruption to the data plane.
- Stateful Switchover (SSO) for Data Plane: SSO allows the data plane to switch over to the redundant route processor without any disruption to the data plane.
- Link Aggregation Control Protocol (LACP): LACP allows multiple physical links to be bundled together to form a single logical link, providing redundancy and load balancing.
- Flexible Netflow (FNF): FNF allows the router to collect and analyze network traffic, providing detailed visibility into network traffic patterns and enabling efficient troubleshooting.
Network Management and Monitoring Tools
The Cisco ASR1002X-5G-K9 is a high-performance router that is designed for use in enterprise networks. It comes with a variety of network management and monitoring tools that can help you manage and monitor your network effectively.
- Cisco IOS XE Software: The router runs on Cisco IOS XE software, which provides a variety of network management and monitoring tools, including command-line interface (CLI), Simple Network Management Protocol (SNMP), and syslog.
- Cisco Prime: Cisco Prime is a network management platform that provides a centralized view of your network. It allows you to monitor and manage your network devices, including the ASR1002X-5G-K9 router, from a single console.
- Cisco Network Assistant: Cisco Network Assistant is a network management tool that allows you to configure and monitor your network devices, including the ASR1002X-5G-K9 router, from a single console.
- Cisco DNA Center: Cisco DNA Center is a network management platform that provides a centralized view of your network. It allows you to monitor and manage your network devices, including the ASR1002X-5G-K9 router, from a single console.
- Cisco SmartNet: Cisco SmartNet is a network management service that provides remote access to Cisco technical support, software updates, and network management tools.
- Cisco NetFlow: Cisco NetFlow is a network monitoring tool that allows you to monitor network traffic and analyze network performance.
- Cisco Performance Routing (PfR): Cisco PfR is a network monitoring tool that allows you to monitor network traffic and analyze network performance.
Power and Environmental Requirements
The Cisco ASR1002X-5G-K9 is a high-performance router that has specific power and environmental requirements that must be met in order to function properly.
Power Requirements:
- The router requires a power supply voltage of 100-240 VAC and a frequency of 47-63 Hz.
- It has a power consumption of 715 watts maximum.
- The router supports the use of an internal power supply or an external power supply.
Environmental Requirements:
- The router should be operated in a temperature range of 32 to 104 degrees Fahrenheit (0 to 40 degrees Celsius) and a humidity range of 5 to 95% (non-condensing).
- It should be installed in an area with adequate ventilation to prevent overheating.
- The router should be protected from dust, moisture, and other environmental hazards.
- It should be stored in a temperature range of -22 to 158 degrees Fahrenheit (-30 to 70 degrees Celsius).
It’s important to note that the router should be installed and used in accordance with Cisco’s guidelines and recommendations to ensure proper function and longevity. It should also be inspected and serviced regularly by a qualified technician to maintain optimal performance.
Additionally, it is recommended to have a proper cooling system and power backup in place to ensure that the router operates within the specified temperature and humidity range.
Key Feature about this Cisco ASR1002X-5G-K9
- Manufacturer Cisco
- Manufacturer Part Number ASR1002X-5G-K9
- Product Series ASR 1000
- Product Model ASR 1002-X
- Product Name ASR1002-X, 5G, K9, AES License
- Product Type Router
Interfaces/Ports of Cisco ASR 1000 Series Router
- Powerline No
- Management Port Yes
I/O Expansions of Cisco Sec BNDL Router
- Number of Total Expansion Slots 9
- Expansion Slot Type Shared Port Adapter
- SFP (mini-GBIC)
Network & Communication of Cisco 9 Slots Router
- Ethernet Technology Gigabit Ethernet
- Network Technology 10/100/1000Base-T
- VoIP Supported Yes
Memory
- Standard Memory 4 GB
Power Description
- PoE (RJ-45) Port No
- Redundant Power Supply Supported Yes
Dimension and Weight
- Compatible Rack Unit 2U
- Form Factor Rack-mountable
- Height 3.5 Inch
- Width 17.2 Inch
- Depth 22 Inch
- Weight (Approximate) 38.25 lbs
