Description
Product Overview

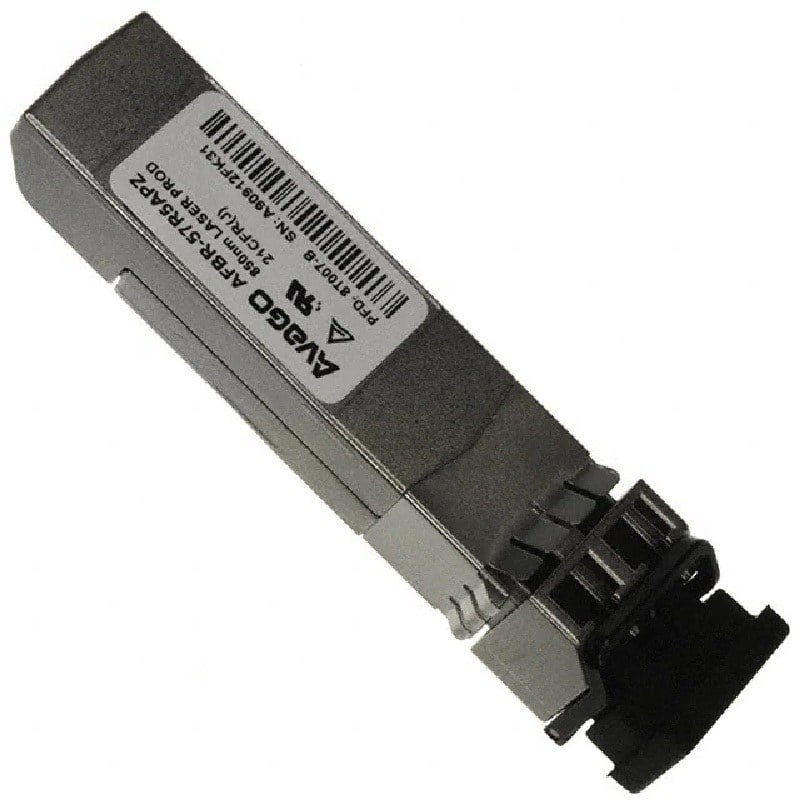

The AFBR-57R5APZ Avago 4GBPS SFP is a Small Form-Factor Pluggable (SFP) optical transceiver. It is designed to support data rates up to 4.25 Gbps and is compliant with the ROHS (Restriction of Hazardous Substances) directive. This transceiver uses an 850 nm VCSEL (Vertical-Cavity Surface-Emitting Laser) and can transmit data up to a distance of 150 meters over multi-mode fiber optic cables.
Specifications Optical Transceiver
- Data Rate: The transceiver supports data rates up to 4.25 Gbps, 2.125 Gbps, and 1.0625 Gbps.
- Wavelength: The transceiver uses an 850 nm VCSEL for transmission and reception of data.
- Transmission Distance: The transceiver can transmit data up to a distance of 150 meters over multi-mode fiber optic cables.
- Fiber Type: The transceiver is designed to work with multi-mode fiber optic cables.
- Connector Type: The transceiver uses an LC duplex connector for easy connectivity.
- Power Consumption: The transceiver consumes less than 1 watt of power during operation.
Features of 4GBPS SFP Transceiver Module
The AFBR-57R5APZ Avago 4GBPS SFP has the following features:
- Small Form-Factor Pluggable (SFP): The transceiver is designed in a small form-factor, making it easy to install and replace.
- High-Speed Data Transfer: The transceiver supports data rates up to 4.25 Gbps, making it ideal for high-speed data transfer applications.
- Multi-Mode Fiber Support: The transceiver is designed to work with multi-mode fiber optic cables, providing flexibility in installation.
- ROHS Compliant: The transceiver is compliant with the ROHS directive, ensuring that it is free from hazardous substances.
Applications
The AFBR-57R5APZ Avago 4GBPS SFP is used in various applications, including:
- Telecommunications: The transceiver is used in telecommunications to transmit and receive data over fiber optic cables.
- Data Centers: The transceiver is used in data centers to connect network switches, servers, and storage devices.
- Video Transmission: The transceiver is used in video transmission applications, such as broadcasting and surveillance systems.
- Industrial Automation: The transceiver is used in industrial automation applications to connect sensors and other devices.
Finally, the AFBR-57R5APZ Avago 4GBPS SFP is a high-speed optical transceiver designed for multi-mode fiber optic cables. It supports data rates up to 4.25 Gbps and can transmit data up to a distance of 150 meters. The transceiver is compliant with the ROHS directive, ensuring that it is free from hazardous substances. It is used in various applications, including telecommunications, data centers, video transmission, and industrial automation.
Main Specification about the Avago AFBR-57R5APZ
- Manufacturer: Avago
- Part Number or SKU# AFBR-57R5APZ
- Device Type: Optical Transceiver
Optical Specifications
- Wavelength: 850nm
- Fiber Type: MMF (Multi-Mode Fiber)
- Maximum Distance: 150m at 4.25Gbps, 300m at 2.125Gbps, 500m at 1.0625Gbps
- Output Power: -9.5dBm to -3dBm
- Receiver Sensitivity: -11.1dBm
Electrical Specifications
- Data Rate: 4.25Gbps, 2.125Gbps, 1.0625Gbps
- Interface: Duplex LC connector
- Power Supply Voltage: 3.3V
- Power Consumption: 1.0W maximum
