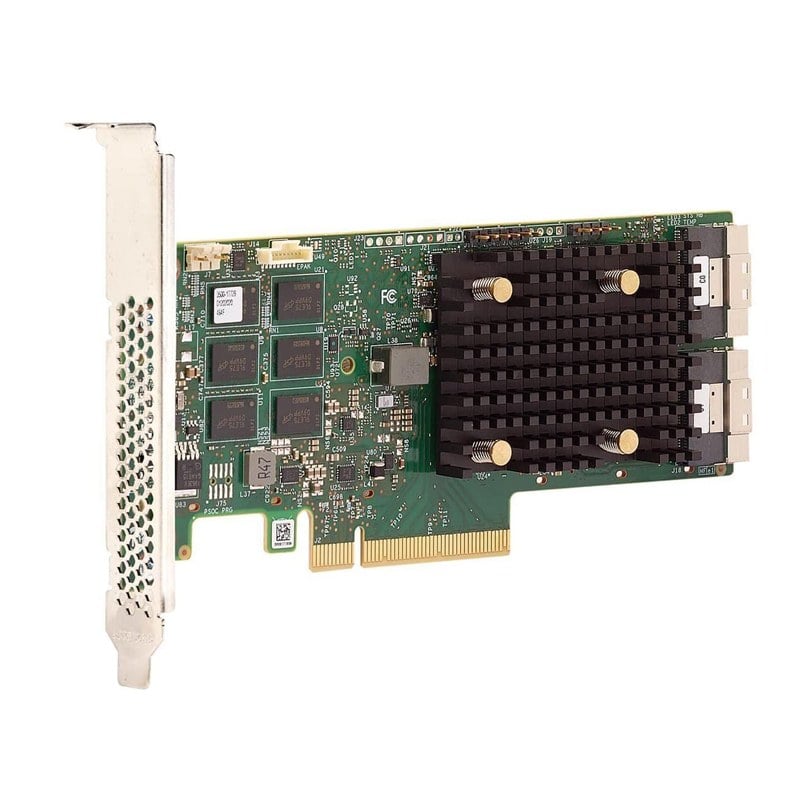

More Information for the Broadcom 05-50077-00 Raid Controller
In the rapidly evolving landscape of data storage and management, the Broadcom 05-50077-00 MegaRAID Controller stands out as a robust solution designed to meet the escalating demands of modern computing environments. This detailed exploration will shed light on the key features, specifications, and applications of this controller, focusing on its 16 Ports, SAS 12Gbps, SATA 6Gbps, and NVMe PCI-E 4.0 x8 capabilities.
Overview of Broadcom 05-50077-00 MegaRAID
The Broadcom 05-50077-00 MegaRAID Controller is a cutting-edge storage controller that plays a pivotal role in optimizing data storage and retrieval processes. It is engineered to provide high-performance storage connectivity with a particular emphasis on SAS, SATA, and NVMe devices. Let’s delve into the various aspects that make this controller a noteworthy addition to storage infrastructure.
Key Features
- 16 Ports: The 16 Ports in the Broadcom 05-50077-00 MegaRAID Controller signify a versatile connectivity option. These ports allow users to connect a multitude of storage devices, enhancing the overall storage capacity and flexibility of the system. Whether it’s hard disk drives (HDDs) or solid-state drives (SSDs), the 16 Ports offer ample room for expanding storage resources.
- SAS 12Gbps: Serial Attached SCSI (SAS) technology is a key highlight of this MegaRAID Controller. The 12Gbps (Gigabits per second) data transfer rate ensures rapid data transmission between the controller and connected devices. This high-speed SAS interface is crucial for applications that demand quick access to large volumes of data, such as database management and high-performance computing.
- SATA 6Gbps: In addition to SAS compatibility, the Broadcom 05-50077-00 MegaRAID Controller supports Serial ATA (SATA) devices with a speed of 6Gbps. SATA is a widely adopted interface for connecting storage devices, and the 6Gbps speed ensures efficient data transfer for various applications, including multimedia editing and general-purpose storage.
- NVMe PCI-E 4.0 x8: The integration of Non-Volatile Memory Express (NVMe) and PCI Express (PCI-E) 4.0 in the MegaRAID Controller signifies advanced storage capabilities. NVMe is a protocol designed for flash storage, offering low latency and high parallelism, while PCI-E 4.0 doubles the data transfer rate compared to its predecessor, providing a faster and more responsive storage solution.
Use Cases
- Enterprise Storage Solutions: The Broadcom 05-50077-00 MegaRAID Controller is well-suited for enterprise-level storage solutions where a combination of high capacity and performance is essential. Its 16 Ports enable the connection of multiple drives, making it suitable for large-scale data storage requirements commonly found in enterprises.
- Data Centers: In the dynamic environment of data centers, where rapid data access and storage scalability are critical, the MegaRAID Controller finds its application. The SAS 12Gbps and NVMe PCI-E 4.0 x8 features ensure that data centers can handle the increasing demands of virtualization, cloud computing, and big data analytics.
- High-Performance Computing (HPC) Clusters: HPC clusters often deal with massive datasets and require storage solutions that can keep up with the intense computational processes. The Broadcom 05-50077-00 MegaRAID Controller’s high-speed SAS and NVMe capabilities make it an ideal choice for HPC environments, contributing to faster data access and overall system performance.
- Media and Entertainment Production: In the realm of media and entertainment, where large files need to be quickly accessed and edited, the MegaRAID Controller’s SATA 6Gbps support comes into play. Video editing workstations and production servers can benefit from the high-speed SATA interface for seamless handling of high-definition content.
Data Transfer and Performance
Data Transfer and Performance refers to the speed and efficiency at which data is moved from one location to another, as well as the processing capabilities of a device or system. In the context of the 05-50077-00 Broadcom MegaRAID 16 Ports SATA 6GBPS SAS 12GBPS NVMe PCIE 4.0 x8, Data Transfer and Performance refers to the rate at which data can be transferred to and from storage devices connected to the adapter, as well as the overall processing speed and performance of the adapter.
This information can be important for determining the overall efficiency and suitability of the adapter for specific applications and data storage needs. Factors that can impact data transfer and performance include the number of connected storage devices, the type of storage devices, the RAID configuration, and the processing capabilities of the adapter.
RAID Configuration
RAID Configuration refers to the setup of a Redundant Array of Independent Disks (RAID) system, which is used to improve the data storage reliability, performance, and/or capacity of a system. In the context of the 05-50077-00 Broadcom MegaRAID 16 Ports SATA 6GBPS SAS 12GBPS NVMe PCIE 4.0 x8, RAID Configuration refers to the process of setting up a RAID system using the adapter and connected storage devices. This can include configuring the type of RAID (e.g. RAID 0, RAID 1, RAID 5), setting up the disk array, and defining how data is stored and accessed.
The RAID Configuration process is important for ensuring that data is protected and stored in the most efficient and reliable manner possible. The adapter supports multiple RAID levels and configurations, and the specific options available will depend on the number and type of storage devices connected to the adapter, as well as the specific requirements and goals of the user.
Power Management
Power Management refers to the techniques and strategies used to regulate the power consumption and power distribution of a device or system. In the context of the 05-50077-00 Broadcom MegaRAID 16 Ports SATA 6GBPS SAS 12GBPS NVMe PCIE 4.0 x8, Power Management refers to the techniques and strategies used to regulate the power consumption of the adapter and connected storage devices.
This can include features such as energy-saving modes, dynamic power management, and power-saving settings that can help to reduce power consumption and improve energy efficiency. The specific power management features and options available will depend on the specific model of the adapter, as well as the connected storage devices and the requirements of the user. Effective power management is important for reducing energy costs, improving system reliability, and extending the lifespan of hardware components.
General Information about this Broadcom 05-50077-00
- Manufacturer: Broadcom
- Part Number or SKU# 05-50077-00
- Product Type: SAS-SATA
- Product Name: Controller
Technical Specifications
- Port Count: 16 Internal
- Connectors: Two X8 Sff-8654
- Host Interface: X8 PCI-E Gen 4.0
- Storage Interface: 12GB/s SAS, 6GB/s SATA, Gen 4.0 PCI-E (NVMe)
- Raid On Chip Controller (roc): SAS3916
- Max Devices Per Controller: SAS/SATA: 240 Nvme: 24
- Cache Size: 8 Gb
- Cache Protection: Cachevault, Cvpm05
Raid Features
- Raid Levels 0, 1, 5, And 6
- Raid Spans 10, 50, And 60
- Jbod Mode With R0/1/10 And Jbod For Sds Environments
- Online Capacity Expansion (oce)
- Auto Resume After Loss Of System Power During Array Rebuild Or Oce
- Single Controller Multipathing
- Load Balancing
- Configurable Stripe Size Up To 1 Mb
- Fast Initialization For Quick Array Setup
- Check Consistency For Background Data Integrity
- SSD Support With Ssd Guard™ Technology
- Patrol Read For Media Scanning And Repairing
- 64 Virtual Drive Support
Management Utilities
- Lsi Storage Authority (LSA)
- Storcli (command-line Interface)
- Hii (UEFI Human Interface Infrastructure)
- Os Support: Microsoft Windows, Vmware Vsphere/ESXi, Red Hat Enterprise Linux, Suse Linux, Ubuntu Linux, Citrix XenServer, Centos Linux, Debian Linux, Oracle Enterprise Linux, Fedora, Freebsd. See for Details On Versions.
Finally, the Broadcom 05-50077-00 MegaRAID Controller stands out as a versatile and high-performance storage solution, catering to the evolving needs of modern computing environments. With its 16 Ports, SAS 12Gbps, SATA 6Gbps, and NVMe PCI-E 4.0 x8 capabilities, it addresses the demands of enterprise storage, data centers, high-performance computing, and media production. The installation process, coupled with RAID configuration options and performance benchmarks, underscores its suitability for a wide range of applications. As technology continues to advance, storage solutions like the MegaRAID Controller play a crucial role in ensuring efficient and reliable data management for businesses and professionals alike.
