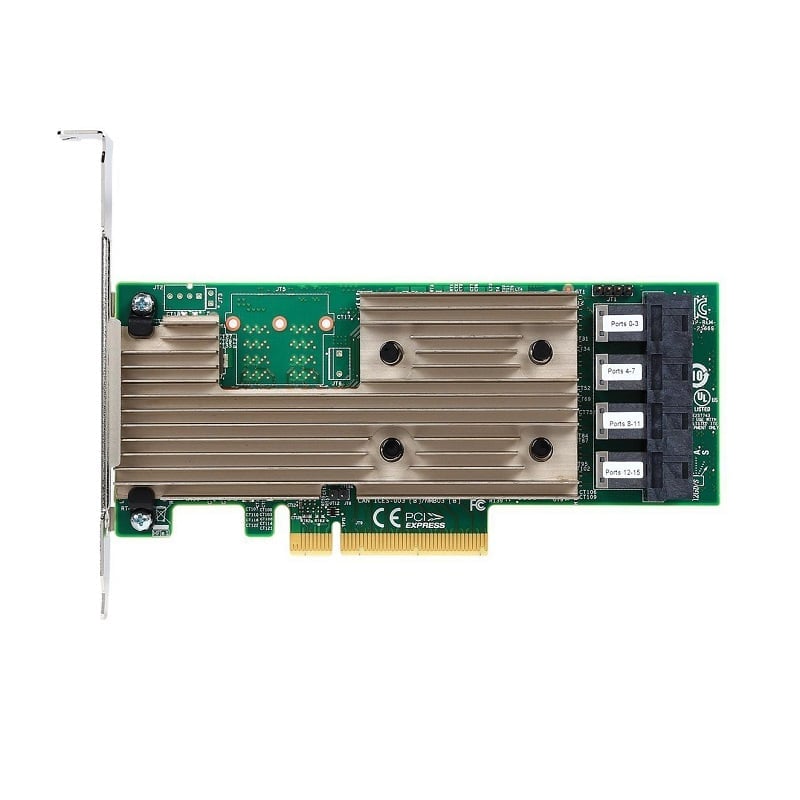

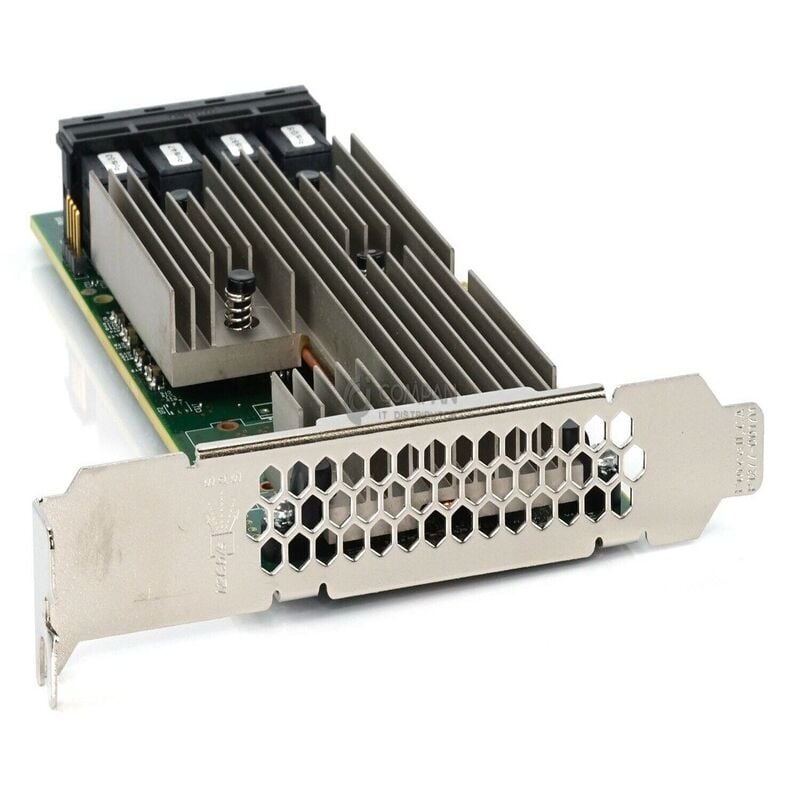

Product Overview of Data Control: Broadcom 9305-16I Non-Raid Controller Card
In today’s data-driven world, managing and controlling data is paramount. The “Broadcom 9305-16I Non-Raid Controller Card” is a powerful solution designed to handle data efficiently. With 12 Gigabytes per Second (Gbps) speeds and 16 internal Serial-Attached SCSI (SAS) ports, this controller card offers exceptional data control and storage management. In this comprehensive guide, we will explore the key features, technical specifications, and reasons why the Broadcom 9305-16I is a valuable asset for your data storage needs.
Features of the Broadcom 9305-16I Non-Raid Controller Card
Let’s start by understanding the fundamental aspects of this controller card.
PCIe 3.0 Interface for High-Speed Data Transfer
The Broadcom 9305-16I features a PCIe 3.0 interface. This interface ensures high-speed data transfer, making it ideal for data-intensive tasks and storage solutions. With PCIe 3.0, you can expect impressive data performance.
16 Internal SAS Ports for Connectivity
This controller card offers 16 internal SAS ports. These ports are used to connect and manage SAS drives within your storage system. Having 16 ports allows for flexible connectivity and scalable storage solutions.
12 Gbps Data Transfer Speed
The Broadcom 9305-16I is capable of data transfer speeds of 12 Gbps. This high-speed data transfer is essential for handling large datasets and ensuring rapid access to your stored information.
The Broadcom 9305-16I Non-Raid Controller Card Matters
Now that we’ve explored the basic specifications, let’s delve into why the Broadcom 9305-16I Non-Raid Controller Card is a crucial component of your data storage infrastructure.
High-Speed Data Transfer
With 12 Gbps data transfer speeds, this controller card ensures that your data is accessed and transferred swiftly, reducing latency and improving efficiency.
16 Internal SAS Ports
The 16 internal SAS ports allow you to connect a variety of storage drives and devices, making it highly versatile for storage management.
PCIe 3.0 Interface
The PCIe 3.0 interface ensures that data flows smoothly between your controller card and your system, maximizing data performance.
Non-Raid Functionality
The “Non-Raid” aspect is important because it means this controller card focuses on data storage and access without the complexity of RAID configurations. It simplifies storage management.
Key Features of the Broadcom 9305-16I Non-Raid Controller Card
Let’s take a closer look at the key features that set the Broadcom 9305-16I Non-Raid Controller Card apart as a valuable addition to your storage infrastructure.
High Data Transfer Speed
The 12 Gbps data transfer speed ensures that data flows swiftly, minimizing waiting times for data access and transfer.
Versatile Connectivity
With 16 internal SAS ports, this controller card provides the flexibility to connect various SAS drives and devices within your storage system.
PCIe 3.0 Interface
The PCIe 3.0 interface ensures that your data transfer is efficient and high-speed, reducing data bottlenecks.
Non-Raid Focus
The “Non-Raid” functionality simplifies storage management by bypassing the complexities of RAID configurations, making it an ideal choice for straightforward data storage.
Use Cases for the Broadcom 9305-16I Non-Raid Controller Card
To better understand where this controller card excels, let’s explore common scenarios where the Broadcom 9305-16I can be a valuable addition.
Enterprise Data Centers
In large data centers, the Broadcom 9305-16I can manage data efficiently, providing fast access and transfer speeds for a vast amount of stored information.
Cloud Storage Solutions
Cloud storage providers can utilize the Broadcom 9305-16I to ensure rapid data access for their customers, maintaining a seamless user experience.
Scientific Research
For scientific research institutions, this controller card can handle the high volumes of data generated by experiments and simulations, improving research productivity.
Content Streaming
Companies in the content streaming industry can rely on the Broadcom 9305-16I for quick data retrieval and distribution, ensuring a smooth streaming experience for users.
Surveillance Systems
Surveillance systems can benefit from the high-speed data transfer provided by this controller card, enabling real-time monitoring and storage of video footage.
Features and Benefits of PCI-E Card
- 12GB/s data transfer rate: The Broadcom LSI 9305-16I controller supports a data transfer rate of 12GB/s, allowing for fast and efficient data transfer within your system.
- 16 internal ports: This controller features 16 internal ports, providing ample connectivity options for your storage devices.
- PCI-E 3.0 interface: The controller is equipped with a PCI-E 3.0 interface, providing high-speed data transfer between the controller and the host system.
- SAS compatibility: The 9305-16I controller is compatible with SAS (Serial Attached SCSI) storage devices, providing a wide range of options for your storage needs.
- Non-RAID functionality: This controller is designed for non-RAID functionality, allowing for flexibility in your storage setup and configuration.
- Advanced data protection: The 9305-16I controller supports advanced data protection features such as data encryption and secure erase, ensuring the safety and security of your data.
- Easy installation and setup: The controller is easy to install and set up, allowing for quick and effortless integration into your system.
- Broadcom LSI quality: As a product of Broadcom LSI, the 9305-16I controller is built with the highest quality standards, ensuring reliability and durability for long-term use.
Performance and Scalability
The 9305-16I Broadcom LSI 12GBPS 16-Ports Internal PCI-E 3.0 SAS Non-Raid Controller is a high-performance and scalable controller that provides fast data transfer speeds and supports a wide range of storage devices. It features 16 internal SAS/SATA ports that support data transfer rates of up to 12GB/s, making it ideal for use in high-demand environments such as data centers and enterprise storage systems.
The controller also supports advanced features such as SAS/SATA data encryption, data compression, and data deduplication, which can help to improve performance and reduce storage costs. Additionally, it supports multiple RAID levels, including RAID 0, 1, 5, 6, and 10, allowing users to configure their storage systems to meet their specific needs.
In terms of scalability, the 9305-16I controller supports up to 256 SAS/SATA devices, allowing users to expand their storage capacity as their needs grow. It also supports multiple logical units (LUNs), which can be used to create multiple virtual storage devices within a single physical device.
Compatible Systems and Operating Systems
The 9305-16I Broadcom LSI 12GBPS 16-Ports Internal PCI-E 3.0 SAS Non-Raid Controller is compatible with a variety of systems and operating systems, including:
- Windows Server 2008 R2, 2012 R2, 2016, and 2019
- Red Hat Enterprise Linux 6 and 7
- SUSE Linux Enterprise Server 11 and 12
- VMware vSphere 6.0 and later
- Citrix XenServer 6.5 and later
- Proxmox VE 4.4 and later
General Information about the Broadcom 9305-16I
- Manufacturer: Broadcom
- Part Number or SKU# 9305-16I
- Device Type: SAS-SATA controller
Technical Information of SAS Controller Card
- Product Type: Host Bus Adapter
- Host Bus Type: X8 Lane PCI Express 3.0
- Physical Dimensions: 2.7 X 6.6
- Devices Supported: 1024 Non-raid SAS Devices Per Controller
- Internal Connectors: 4 Mini-SAS Hd Sff8643
- Internal Ports: 16
- Operating Temperature: 0°c To 55°c
- Operating Voltage: +12v +/-8%, 3.3v +/-9%
- Os Support: Microsoft Windows, Linux (Oracle, Suse, Red Hat), Solaris, Vmware, Freebsd, Centos, Canonical
- Cable Support: Passive Copper, Active Optical
- I/o Controller: Sas3224.
In summary, the Broadcom 9305-16I Non-Raid Controller Card is a powerful solution for data storage and management, offering 12 Gbps data transfer speeds, 16 internal SAS ports, a PCIe 3.0 interface, and a focus on non-RAID functionality. It’s a versatile choice for various storage applications, from enterprise data centers to cloud storage providers and scientific research institutions. The controller card exemplifies Broadcom’s commitment to providing efficient and reliable data storage solutions, making it a valuable asset for enhancing data control and performance.
