Description
Easy Integration and Management of PCI-E Raid Controller

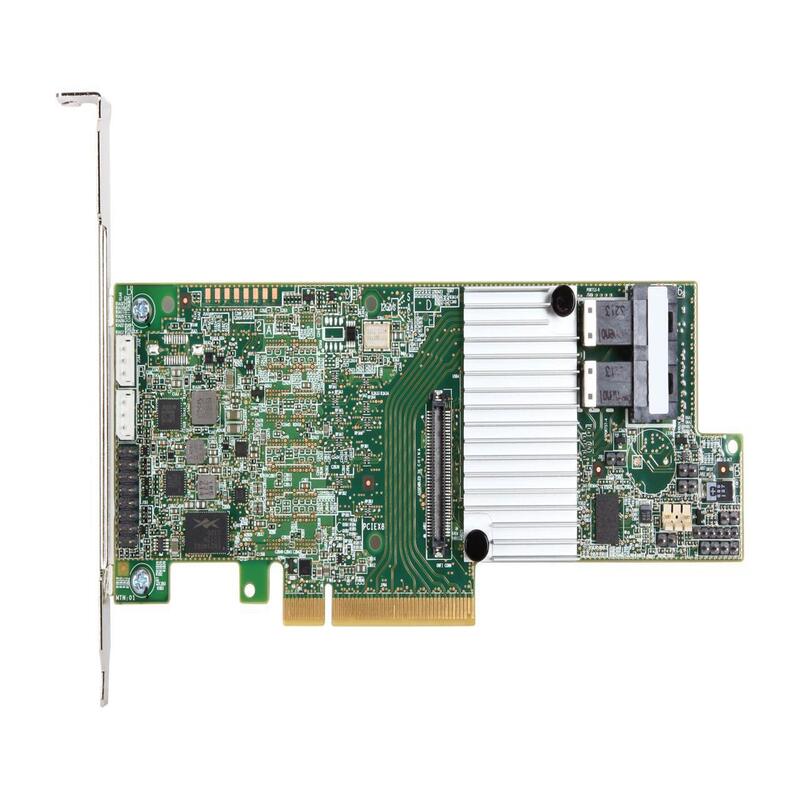

The LSI00415 Broadcom Megaraid 1GB 4-Ports SATA 6GBPS SAS 12GBPS PCI-E Raid controller is designed for easy integration and management in data centers and enterprise storage systems. Some of its key features include:
- High-speed data transfer: The controller supports high-speed data transfer rates of up to 12GB/s SAS and 6GB/s SATA, providing fast and efficient data access.
- RAID levels: The controller supports multiple RAID levels, including RAID 0, 1, 5, 6, and 10, providing flexibility and optimal data protection.
- Management software: The controller includes Broadcom’s MegaRAID Storage Manager software, which allows for easy management of the RAID array and monitoring of system health.
- Online RAID configuration: The controller allows for online RAID configuration, enabling users to change RAID levels and add or remove hard drives without shutting down the system.
- Automatic data recovery: The controller has an automatic data recovery feature that automatically rebuilds data on a failed hard drive, minimizing data loss and downtime.
- Advanced features: The controller includes advanced features such as global and dedicated hot spare support, RAID level migration and online capacity expansion, providing flexibility and scalability.
- Compatibility: The controller is compatible with a wide range of servers and storage systems, providing easy integration and scalability.
Advanced Features of Megaraid 1GB Controller
The LSI00415 Broadcom MegaRAID SAS 12Gbps RAID controller card is a high-performance and reliable solution for data protection and storage management. Some of its advanced features include:
- RAID levels: The controller supports multiple RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60, providing flexibility and optimal data protection.
- Online RAID configuration: The controller allows for online RAID configuration, enabling users to change RAID levels and add or remove hard drives without shutting down the system.
- Automatic data recovery: The controller has an automatic data recovery feature that automatically rebuilds data on a failed hard drive, minimizing data loss and downtime.
- Performance optimization: The controller includes advanced performance optimization features such as read-ahead and write-back caching, which improves system performance and responsiveness.
- Remote management: The controller supports remote management through web-based management, allowing users to monitor and manage the system remotely.
- High-speed connectivity: The controller supports high-speed connectivity with 4-ports of 12 Gbps SAS and 6 Gbps SATA, providing fast data transfer rates.
- Compatibility: The controller is compatible with a wide range of servers and storage systems, providing easy integration and scalability.
- Advanced data protection: The controller features advanced data protection features such as RAID recovery, global hot spare, and disk roaming, providing an additional layer of data security and availability.
High-Speed Data Transfer
The LSI00415 Broadcom Megaraid 1GB 4-Ports SATA 6GBPS SAS 12GBPS PCI-E Raid controller is designed for high-speed data transfer and performance. Some of its key features that enable high-speed data transfer include:
- PCI Express 3.0: The controller is built on the PCI Express 3.0 interface, which provides faster data transfer speeds and improved performance compared to previous generations of PCI Express.
- SAS 12GB/s and SATA 6GB/s: The controller supports SAS 12GB/s and SATA 6GB/s interfaces, providing high-speed data transfer rates for both SAS and SATA drives.
- RAID 0, 1, 5, 6, 10, 50, and 60: The controller supports a wide range of RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60, providing flexibility and optimal data protection.
- 1GB DDR3 memory: The controller comes with 1GB of DDR3 memory, which helps to improve data transfer speeds and performance by providing a large cache for data storage.
- Advanced performance optimization: The controller includes advanced performance optimization features such as read-ahead and write-back caching, which improves system performance and responsiveness.
- Battery-backed write cache: The controller has a battery-backed write cache, which enables data to be written to cache in case of power failure, ensuring data integrity and consistency.
- Large drive support: The controller supports large drive sizes of up to 64TB, providing scalability and flexibility for large data storage needs.
General Information about this Broadcom LSI00415
- Brand: Broadcom
- Part Number or SKU#: LSI00415
- Type: Controller
- Sub-Type: SAS-SATA
Technical Information LSI00415
- Broadcom 05-25420-03 12GB/S PCIE 3.0, 4-Port Internal SAS/SATA Raid Controller.
- Raid-On-Chip Controller: LSISAS3108 Dual Core Raid On Chip (Roc)
- Cache Protection : Optional Cachevault Flash Module (LSICVM02)
- Physical Dimensions : 6.6 X 2.536 (Low-Profile)
- Host Bus Type: X8 Lane PCI Express® 3.0
- Cache Memory : 1GB 1866MHZ DDRIII SDRAM
- Internal Ports: 4
- Data Transfer Rates: UP TO 12GB/S Per Port
- Devices Supported : UP TO 128 SAS AND/OR SATA Hard Drives And Ssds
- Internal Connectors : 1 HD MINI-SAS SFF8643 (Horizontal Mount)
- MTBF : >1,343,187 Hours
- Operating Temperature : Maximum Ambient: Controller Card: 55°C, With Optional Cachevault Accessory (Lsicvm02) 55°C
- Operating Voltage :+3.3V, +12V
