Description

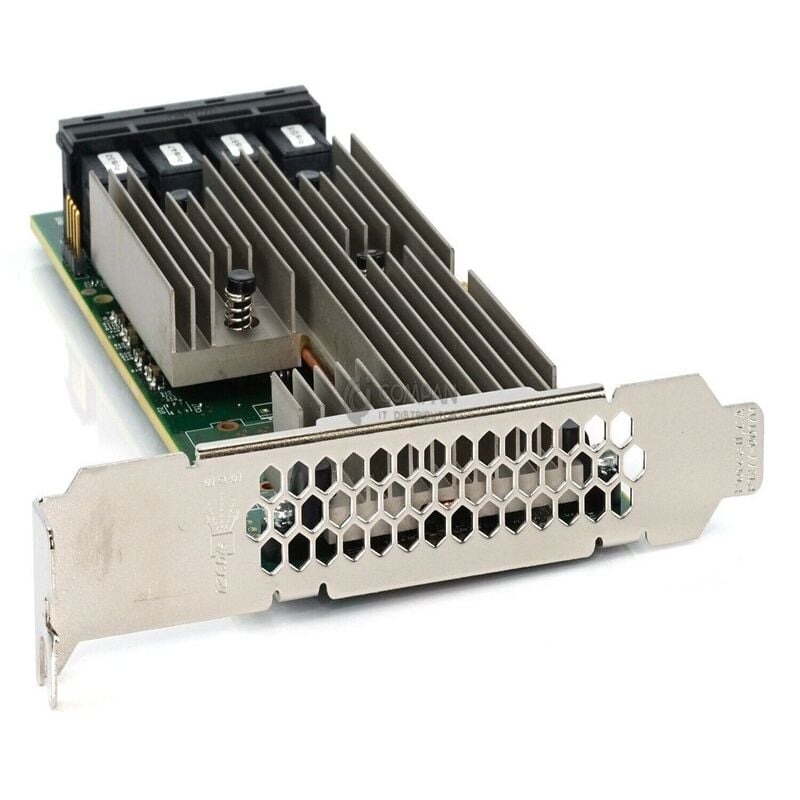

Overview of the 16-Ports Internal PCI-E 3.0 Non-Raid Controller
In the realm of data storage and management, the SAS9305-16I Serial-Attached SCSI (SAS) 12 Gigabytes Per Second (GBPS) 16-Ports Internal Peripheral Component Interconnect Express (PCI-E) 3.0 Non-Raid Controller Card holds a significant position. This description aims to provide a detailed understanding of this advanced hardware component, breaking down its key features, functions, and benefits. Whether you’re a tech enthusiast, IT professional, or someone exploring data storage solutions, this guide will shed light on the SAS9305-16I and its role in modern computing systems.
Brief of SAS 12GBPS Controller Serial-Attached SCSI (SAS)
SAS, or Serial-Attached SCSI, is a high-speed data storage interface that enables the connection of peripheral devices to a computer’s motherboard. It is the successor to the older Parallel SCSI technology, offering faster data transfer rates and improved performance. SAS is widely used in enterprise environments where robust and scalable storage solutions are required.
12 Gigabytes Per Second (GBPS)
The SAS9305-16I operates at a staggering data transfer rate of 12 Gigabytes Per Second (GBPS). This high speed is crucial for handling large volumes of data efficiently, making it suitable for applications where quick and reliable access to information is essential, such as data centers, server farms, and enterprise-level storage systems.
Understanding the SAS9305-16I Broadcom SAS 12GBPS Non-Raid Controller Controller Card Basics
The SAS9305-16I is a Non-Raid Controller Card, meaning it focuses on providing a direct and efficient connection between the motherboard and the attached storage devices without engaging in complex RAID (Redundant Array of Independent Disks) configurations. This makes it an ideal choice for users who prioritize simplicity and straightforward data management.
Peripheral Component Interconnect Express (PCI-E) 3.0
The SAS9305-16I utilizes the Peripheral Component Interconnect Express (PCI-E) 3.0 interface. PCI-E is a high-speed serial computer expansion bus standard that enables the connection of various hardware components to a motherboard. The choice of PCI-E 3.0 ensures that the controller card can take full advantage of the available bandwidth, optimizing data transfer speeds between the motherboard and connected storage devices.
16-Ports Internal
One of the standout features of the SAS9305-16I is its impressive 16 internal ports. These ports allow the connection of up to 16 SAS or SATA (Serial ATA) storage devices directly to the controller card. This extensive connectivity is beneficial for large-scale storage setups, providing flexibility and scalability to meet the demands of evolving data storage requirements.
X8 Lane Host Bus Adapter
The SAS9305-16I operates on an X8 Lane Host Bus Adapter configuration. The “X8” refers to the number of PCI-E lanes used by the card. In this case, the card utilizes eight lanes, maximizing the data transfer capabilities between the controller card and the motherboard. This design choice ensures efficient communication and minimizes potential bottlenecks, contributing to overall system performance.
Key Features of SAS9305-16IHigh Data Transfer Rates
The SAS9305-16I’s 12 GBPS data transfer rate is a standout feature, enabling rapid access to stored data. This is particularly crucial in environments where large datasets need to be processed quickly, such as in scientific research, financial analysis, or data-intensive applications.
Scalability
With 16 internal ports, the SAS9305-16I offers unparalleled scalability. Businesses and data centers can easily expand their storage capacity by adding more SAS or SATA devices to accommodate growing data volumes. This scalability ensures that the controller card remains a viable solution as storage needs evolve over time.
Non-Raid Configuration
The Non-Raid configuration of the SAS9305-16I simplifies data management for users who don’t require complex RAID setups. This makes the card an excellent choice for those seeking a straightforward and efficient storage solution without the added complexity of RAID configurations.
Compatibility
The SAS9305-16I is designed with compatibility in mind. It supports both SAS and SATA drives, providing flexibility for users with different storage requirements. This versatility makes it easier for individuals and organizations to integrate the controller card into their existing systems without the need for major hardware overhauls.
Reliability
Reliability is a paramount consideration in storage solutions, and the SAS9305-16I doesn’t disappoint. With its robust design and adherence to industry standards, the controller card ensures stable and dependable operation even in demanding computing environments.
Applications and Use CasesData Centers
In data center environments, the SAS9305-16I shines as a reliable and high-performance storage solution. Its scalability and speed make it well-suited for handling the vast amounts of data generated and processed in modern data centers.
Server Farms
Server farms, which host numerous servers working in tandem, benefit from the SAS9305-16I’s ability to efficiently manage and distribute data. The controller card’s 16 internal ports cater to the diverse storage needs of a server farm, ensuring seamless operation.
Enterprise Storage
Enterprises dealing with extensive data storage requirements find the SAS9305-16I advantageous. Its compatibility with SAS and SATA drives, coupled with its non-RAID configuration, makes it a versatile solution for organizations with diverse storage needs.
High-Performance Computing
In the realm of high-performance computing, where quick data access is crucial for complex calculations and simulations, the SAS9305-16I’s high data transfer rates contribute to overall system performance.
Performance and ReliabilityBenchmarking
To assess the performance of the SAS9305-16I, benchmarking tests can be conducted. These tests measure data transfer rates, input/output operations per second (IOPS), and other relevant metrics, providing users with a clear understanding of the card’s capabilities under different workloads.
Reliability Features
In addition to performance, the reliability of the SAS9305-16I is a crucial aspect. Error-checking mechanisms, data protection features, and other reliability-focused functionalities contribute to the overall stability of the storage subsystem in which the controller card is deployed.
RAID Support and Data Protection
The SAS9305-16I Broadcom Lsi 12GBPS 16-ports internal PCI-E 3.0 SAS non-raid controller does not support RAID functionality. This means that data protection features such as RAID 1, RAID 5, and RAID 6 are not available. However, the controller does support data protection through the use of backup software and other data protection methods. It is recommended to use hardware-based backup solutions such as tape drives or external hard drives to ensure data protection and disaster recovery. Additionally, it is important to have a comprehensive data backup and recovery plan in place to ensure the safety and availability of critical data.
General Information for the Broadcom SAS 12GBPS Non-Raid Controller
- Manufacturer: Broadcom
- Part Number or SKU# SAS9305-16I
- Device Type: SAS-SATA Controller
- Controller Type: Host Bus Adapter
Technical Information of SAS Controller Card
- Devices Supported: 1024 Non-raid SAS Devices Per Controller
- Internal Connectors: 4 Mini-SAS Hd Sff8643
- Host Bus Type: X8 Lane PCI Express 3.0
- Internal Ports: 16
- Operating Temperature: 0°c To 55°c
- Operating Voltage: +12v +/-8%, 3.3v +/-9%
- Os Support: Microsoft Windows, Linux (Oracle, Suse, Red Hat), Solaris, Vmware, Freebsd, Centos, Canonical
- Cable Support: Passive Copper, Active Optical
- I/o Controller: Sas3224.
In summary, the SAS9305-16I Serial-Attached SCSI 12Gbps Non-Raid Controller Card stands out as a versatile and high-performance solution for data storage and management. With its 12 GBPS data transfer rate, 16 internal ports, and non-RAID configuration, it caters to the diverse needs of data centers, server farms, enterprises, and high-performance computing environments. Understanding its key features, applications, installation, and maintenance requirements is essential for users looking to harness its capabilities effectively. As technology continues to advance, the SAS9305-16I remains a reliable component in the ever-evolving landscape of data storage solutions.
