Description

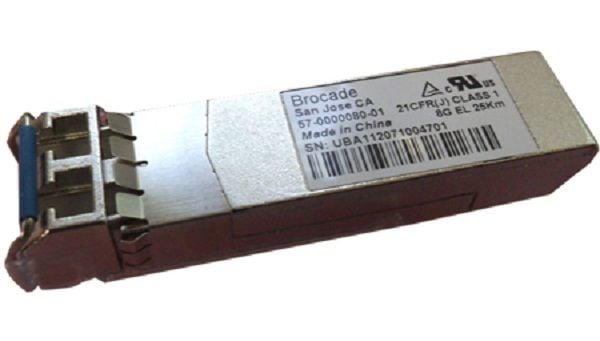

Product Overview for the 57-0000080-01
The Brocade 8GB Long Wave Extended 25km SFP Transceiver is a single-pack module that extends the reach of your existing network infrastructure. It is designed to be used with Brocade switches, directors, and routers, providing cost-effective connectivity solutions. This module is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA), and it provides a standard serial ID information via an I2C interface.
The Brocade 8GB Long Wave Extended 25km SFP Transceiver is designed to provide high-speed data transfers over extended distances. It is capable of transmitting data up to 25 kilometers, making it suitable for use in a variety of applications, including metropolitan area networks (MANs) and wide area networks (WANs).
This SFP transceiver module supports Fibre Channel (FC) protocol, which is commonly used for storage area networks (SANs) in data centers. The module also supports a data transfer rate of up to 8 Gbps, providing reliable and fast data transfers.
Compatibility and Interoperability
The Brocade 8GB Long Wave Extended 25km SFP Transceiver is compatible with a wide range of Brocade networking products, including switches, directors, and routers. The module is also interoperable with other third-party networking equipment that complies with the SFP MSA.
The SFP transceiver is designed to be hot-pluggable, which means that it can be replaced or installed while the host device is operating. This feature allows for easy and flexible network configurations without the need for downtime.
Applications
The Brocade 8GB Long Wave Extended 25km SFP Transceiver is suitable for a wide range of applications, including:
- Storage area networks (SANs)
- Metropolitan area networks (MANs)
- Wide area networks (WANs)
- Data centers
- Enterprise networks
The module provides a reliable and cost-effective connectivity solution for extending the reach of existing network infrastructures.
Benefits of using the Brocade 8GB Long Wave Extended 25km SFP Transceiver
There are several benefits to using the Brocade 8GB Long Wave Extended 25km SFP Transceiver, including:
- Extended Reach: The module allows for data transmission over longer distances, making it suitable for use in a variety of applications, including MANs and WANs.
- High-Speed Data Transfer: The module supports a data transfer rate of up to 8 Gbps, providing fast and reliable data transfers.
- Interoperability: The transceiver module is interoperable with a wide range of networking equipment that complies with the SFP MSA, providing flexibility in network configurations.
- Easy Installation: The hot-pluggable feature of the module allows for easy installation and replacement without the need for downtime.
Main Information about the Brocade 57-0000080-01
- Manufacturer: Brocade
- Model Number or SKU# 57-0000080-01
- Transceiver Type: Network Transceiver 8 Gigabit
Technical Specifications
- Connector Type: LC
- Data Transfer Rate: 8 Gbps
- Wavelength: 1310 nm
- Maximum Distance: 25 km
- Fiber Type: Single-mode
- Digital Optical Monitoring (DOM) Support: Yes
- Operating Temperature Range: 0°C to 70°C
