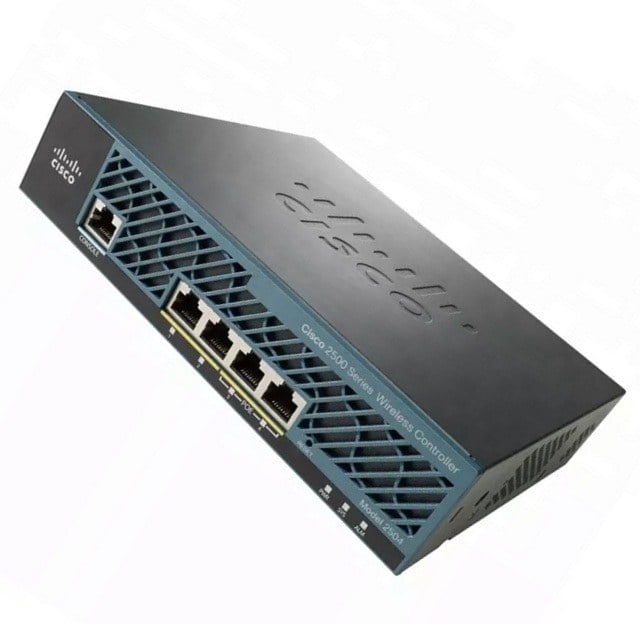

Product Overview of the Cisco AIR-CT2504-5-K9 Wireless LAN Controller
In this comprehensive guide, we will delve into the world of the Cisco AIR-CT2504-5-K9 Wireless LAN Controller, exploring its features, functions, and applications. Whether you’re an IT professional or just curious about networking equipment, this article aims to simplify complex technical information.
Understanding the Cisco AIR-CT2504-5-K9
- Wireless LAN Controller A Wireless LAN Controller, like the Cisco AIR-CT2504-5-K9, is a critical component in managing and controlling wireless access points within a network. It acts as a central hub for managing multiple access points, ensuring seamless connectivity, security, and network optimization.
- Key Features of Cisco AIR-CT2504-5-K9 The Cisco AIR-CT2504-5-K9 comes with several notable features, including support for up to five access points and the ability to efficiently manage wireless networks in various environments. It provides reliability and performance, making it a popular choice among IT professionals.
Hardware Specifications
Ports and Connectors The Cisco AIR-CT2504-5-K9 is equipped with 4 ports, which are 4X Network (RJ-45) ports. These ports are essential for connecting the controller to the network and the access points. They facilitate data transmission and ensure that the controller can communicate with other network devices.
- Rack-Mountable Design The controller is designed to be rack-mounted, which means it can be easily integrated into the existing network infrastructure. This design ensures that the controller takes up minimal space and can be neatly organized within a data center or network closet.
- Deployment and Management: Setting up the Controller Configuring the Cisco AIR-CT2504-5-K9 is a crucial step. This involves connecting it to the network, configuring basic settings, and ensuring that it can communicate with the wireless access points. The controller comes with user-friendly interfaces for this purpose.
- Managing Wireless Networks Once set up, the controller offers robust management capabilities. IT administrators can control access points, monitor network traffic, and configure settings from a centralized interface. This simplifies network management and troubleshooting.
- Scalability and Performance: Expanding Wireless Coverage The Cisco AIR-CT2504-5-K9 can support up to five access points, making it suitable for small to medium-sized networks. This scalability allows organizations to expand their wireless coverage as needed, without the hassle of replacing the controller.
- Ensuring Network Performance Network performance is critical in any wireless environment. The controller optimizes the use of available resources, manages client connections efficiently, and helps prevent network congestion. This results in a better user experience for connected devices.
- Security and Compliance: WPA/WPA2 Encryption Security is a top priority in wireless networking. The Cisco AIR-CT2504-5-K9 supports the latest security standards, including WPA and WPA2 encryption. This ensures that data transmitted over the network remains secure, protecting sensitive information from unauthorized access.
- Regulatory Compliance The controller complies with various regulatory standards, which is especially important for businesses operating in different regions. Compliance ensures that the wireless network meets legal requirements and industry standards.
More Information about Wireless Controller
- The Cisco AIR-CT2504-5-K9 is a wireless LAN controller that is designed to manage and optimize the performance of a wireless network. It supports a maximum of 50 access points and up to 2500 client devices, making it suitable for use in small to medium-sized businesses and enterprise environments.
- The AIR-CT2504-5-K9 supports a variety of wireless standards, including IEEE 802.11a/b/g/n/ac, and is compatible with a range of Cisco Aironet access points. It also provides a range of features to help improve the performance and security of the wireless network, including support for virtualization, Quality of Service (QoS), and Cisco CleanAir technology.
High Availability and Redundancy Options
The AIR-CT2504-5-K9 Cisco wireless controller module is a compact and scalable wireless LAN controller that provides centralized control, management, and security for up to 5 lightweight access points. Here are some high availability and redundancy options available for this wireless controller module:
- High Availability (HA) Pair: You can configure two AIR-CT2504-5-K9 controllers as an HA pair to provide redundancy and failover in the event of a controller failure. The HA pair operates in an active standby mode, where the active controller manages the wireless network traffic and configuration, while the standby controller monitors the active controller’s status and takes over in the event of a failure.
- Controller Redundancy: You can also configure multiple AIR-CT2504-5-K9 controllers in a redundant mode to provide load balancing and failover. The redundant controllers operate in an active-active mode, where they share the wireless network traffic and configuration, and take over in the event of a failure of one of the controllers.
- Power Redundancy: You can use a redundant power supply (RPS) to provide power redundancy for the AIR-CT2504-5-K9 controller module. The RPS provides backup power in the event of a power supply failure, ensuring continuous operation of the controller module.
- Link Redundancy: You can configure multiple uplink ports on the AIR-CT2504-5-K9 controller module to provide link redundancy and failover. This ensures that the wireless network remains operational in the event of a single uplink port failure.
- Virtual PortChannels (vPCs): If you have multiple AIR-CT2504-5-K9 controllers connected to a single switch, you can use vPCs to provide link redundancy and load balancing. This allows multiple uplink ports from each controller to be aggregated into a single logical link, providing increased bandwidth and redundancy.
Controller Software Upgrades and Backups
The AIR-CT2504-5-K9 Cisco Wireless Controller is a high-performance wireless networking device that provides centralized control and management of multiple wireless access points. Here are some tips for performing controller software upgrades and backups:
- Check compatibility: Before performing a controller software upgrade, check the compatibility of the new software with the existing hardware and software on your network. This information can be found in the release notes or documentation provided by Cisco.
- Plan the upgrade: Plan the upgrade carefully and ensure that all necessary backups are taken before proceeding. The upgrade process may involve downtime or network disruptions, so it is important to schedule the upgrade during a maintenance window.
- Backup configuration: Before performing the upgrade, take a backup of the controller configuration and store it in a safe place. This backup can be used to restore the configuration in case of any issues during or after the upgrade.
- Upgrade the software: Follow the upgrade instructions provided by Cisco to upgrade the software on the controller. This process typically involves downloading the new software from the Cisco website, uploading it to the controller, and then installing and activating the new software.
- Verify the upgrade: After the upgrade is complete, verify that the new software is working correctly and that all settings and configurations have been preserved. Test the wireless network to ensure that all access points are functioning properly and that all wireless clients can connect.
- Test the backup: Test the backup configuration by restoring it on a test controller or in a lab environment. This will help you verify that the backup is working correctly and can be used to restore the configuration in case of any issues.
General Information about this Cisco AIR-CT2504-5-K9
- Manufacturer: Cisco
- Model Number or SKU# AIR-CT2504-5-K9
- Product Type: 4 Ports Controller
- Product Name: Wireless LAN Controller
Technical Information of Wireless LAN Controller
- Total Number of Ports 4
- ISM Band No
- UNII Band No
- Wireless Security-
- TACACS
- RADIUS Authentication
- IEEE 802.1X
- TLS
- EAP-TLS
- AES
- SKIP
- CCMP
- SSH
- User-Based Security Model (USM)
- DES
- DES-CBC
- 3DES
- Features Quality of Service (QoS)
Interfaces / Ports of Wireless LAN Controller
- Ethernet Port: Yes
- Fast Ethernet Port: Yes
- Gigabit Ethernet Port: Yes
- 10 Gigabit Ethernet Port: No
- Network (RJ-11) No
- PoE (RJ-45) Port No
- VGA No
- Serial Port No
- USB No
- Powerline No
- Management Port Yes
Power Description
- Input Voltage 110 V AC
- Input Voltage 220 V AC
- Power Source Power Supply
In Summary, the Cisco AIR-CT2504-5-K9 Wireless LAN Controller is a powerful and versatile device used to manage wireless networks across various industries. Its hardware specifications, scalability, and security features make it an essential component for organizations looking to provide reliable and secure wireless connectivity. Whether you’re setting up a network in a large enterprise or a small cafe, understanding the capabilities of the Cisco AIR-CT2504-5-K9 is crucial for a successful wireless deployment.
By providing a simplified explanation of this technical device, we hope to empower IT professionals and enthusiasts to make informed decisions about their networking infrastructure.
