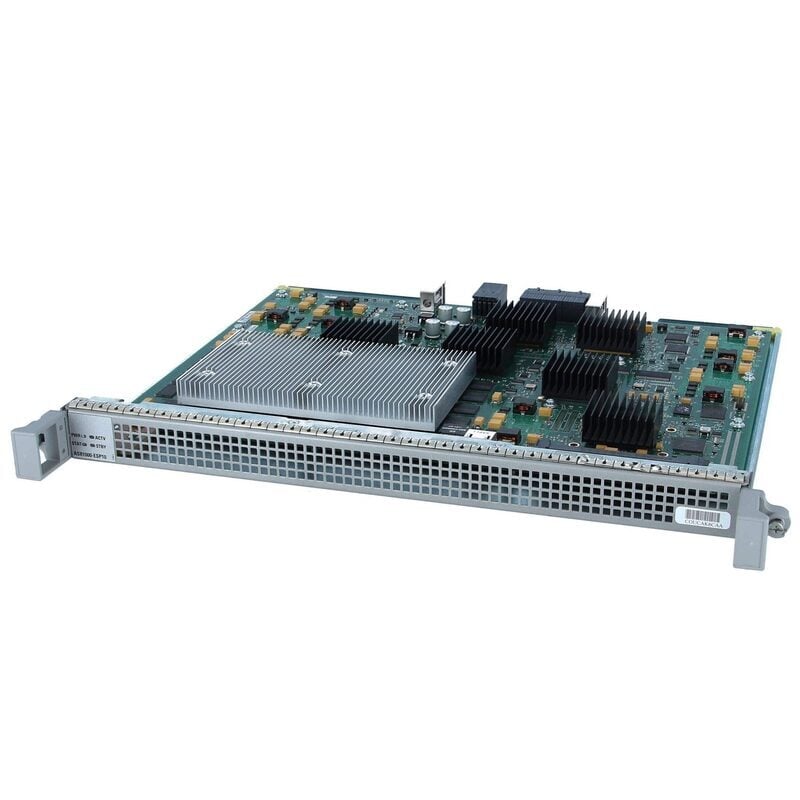

More Information for the Cisco ASR1000-ESP10 Control Processor
The Cisco ASR 1000 Series Embedded Services Control Processor, often referred to as ASR1000-ESP10, is a critical component within the Cisco ASR 1000 Series routers. This Embedded Services Control Processor plays a pivotal role in enhancing the performance, scalability, and functionality of these routers, making them suitable for a wide range of networking applications. In this detailed exploration, we will delve into the key features, specifications, and applications of the ASR1000-ESP10, shedding light on its significance in modern networking infrastructures.
Overview of Cisco ASR 1000 Series
The Cisco ASR 1000 Series routers are renowned for their high performance and versatility in addressing the demands of modern networking environments. These routers are designed to deliver exceptional performance in terms of throughput, reliability, and service integration. The ASR 1000 Series routers find applications in various scenarios, including enterprise edge, WAN aggregation, data center connectivity, and service provider edge.
Introduction to ASR1000-ESP10
The ASR1000-ESP10 is a specific type of Embedded Services Control Processor that is part of the ASR 1000 Series. It serves as the brains of the router, managing and controlling the various services and features offered by the router. The “ESP10” in its name indicates its specific model, with the number “10” representing its capabilities and scale.
Key Features of ASR1000-ESP10
- High Performance: One of the standout features of the ASR1000-ESP10 is its high-performance capabilities. It is equipped with advanced hardware and processing capabilities that enable it to handle high-speed data traffic and complex networking tasks efficiently.
- Scalability: The ASR1000-ESP10 is designed with scalability in mind, allowing it to adapt to the evolving needs of a network. This scalability is crucial for networks experiencing growth in terms of users, devices, and data traffic.
- Service Integration: As an Embedded Services Control Processor, the ASR1000-ESP10 plays a crucial role in service integration. It enables the seamless incorporation of various services and applications into the network architecture, such as security services, application optimization, and more.
- Flexibility: The flexibility of the ASR1000-ESP10 is a key asset, allowing it to support a diverse range of networking scenarios. Whether deployed at the network edge or in the core, it adapts to the specific requirements of the environment.
Technical Specifications
- Processor Architecture: The ASR1000-ESP10 features a robust processor architecture that includes multi-core processors, ensuring efficient handling of concurrent tasks. This architecture contributes to the overall speed and responsiveness of the router.
- Memory Capacity: With ample memory capacity, the ASR1000-ESP10 can store and process a large volume of data, configurations, and operational information. This is vital for maintaining optimal performance under varying workloads.
- Throughput: The throughput capacity of the ASR1000-ESP10 is a critical specification, indicating the amount of data that can be processed per unit of time. This high throughput is especially important for networks with demanding traffic requirements.
- Connectivity Options: The ASR1000-ESP10 supports various connectivity options, including multiple ports and interfaces. This versatility ensures compatibility with different network architectures and facilitates seamless integration into existing infrastructures.
Use Cases and Applications
- Enterprise Edge: In enterprise environments, the ASR1000-ESP10 can serve as a robust edge router, connecting the internal network to the wider external network. Its high throughput and scalability make it suitable for handling the diverse communication needs of a large organization.
- WAN Aggregation: When deployed in WAN aggregation scenarios, the ASR1000-ESP10 consolidates and manages traffic from multiple branch offices or remote locations. Its ability to handle high volumes of data traffic and provide reliable connectivity is crucial for optimizing WAN performance.
- Data Center Connectivity: The ASR1000-ESP10 plays a vital role in connecting data centers and ensuring seamless communication between servers, storage systems, and other infrastructure components. Its high-performance capabilities contribute to the efficiency of data center operations.
- Service Provider Edge: Service providers benefit from the ASR1000-ESP10 at the network edge, where it facilitates the delivery of various services to end-users. Its service integration capabilities make it a versatile choice for providers offering a range of services such as virtual private networks (VPNs), firewall services, and more.
Performance and Scalability
The Cisco ASR 1000 Series Embedded Services Processor (ESP10) is a high-performance network processing platform that provides advanced routing, security, and network services capabilities. It is designed to support the Cisco ASR 1000 Series routers, which are widely used in service providers and enterprise networks. The performance and scalability of the ASR1000-ESP10 are critical factors in ensuring the reliability and efficiency of the network.
- Performance: The ASR1000-ESP10 is equipped with powerful hardware components and software features that enable it to deliver high performance. It features two or four cores of the Cisco QuantumFlow Processor, which delivers high-speed packet processing capabilities. The processor also includes hardware-based security features such as cryptography engines, which help to secure network traffic while minimizing performance degradation.
- Scalability: The ASR1000-ESP10 is designed to be highly scalable, allowing service providers and enterprises to meet their growing network demands. It supports a wide range of interface options, including Gigabit Ethernet, 10 Gigabit Ethernet, and Fiber Channel interfaces. The ASR1000-ESP10 also supports the integration of multiple services such as security, quality of service (QoS), and network management. These features allow for flexible deployment and growth, ensuring that the network can support evolving business needs.
In conclusion, the ASR1000-ESP10 offers high performance and scalability, making it an ideal platform for service providers and enterprises that require a reliable and efficient network solution. The combination of hardware and software features provides a flexible and scalable platform for delivering advanced network services and security.
High Availability and Resilience
The ASR1000-ESP10 Cisco ASR 1000 Series Embedded Services Processor is designed for high availability and resilience, ensuring that network operations continue even in the event of component failures.
- Redundant power supplies: The ASR1000-ESP10 is equipped with redundant power supplies, which provide backup in the event of a failure in one of the power sources. This helps to ensure that network operations continue even if one of the power supplies fails.
- Hot-Swappable Modules: The ASR1000-ESP10 is designed with hot-swappable modules, allowing you to replace failed components without having to power down the device. This helps to reduce downtime and minimize network disruptions.
- Dual-Active Control Plane: The ASR1000-ESP10 features a dual-active control plane, which provides redundancy for the control plane. If one of the control plane processors fails, the other takes over, ensuring that network operations continue.
- Stateful Switchover: The ASR1000-ESP10 supports stateful switchover, which allows for the active control plane to be transferred to the standby control plane without any loss of network state information. This helps to reduce downtime and minimize network disruptions.
- Data Plane Resilience: The ASR1000-ESP10 features data plane resilience, which ensures that network operations continue even in the event of a data plane failure. The data plane is equipped with a fast recovery mechanism that helps to quickly restore network operations.
In conclusion, the ASR1000-ESP10 Cisco ASR 1000 Series Embedded Services Processor is designed with high availability and resilience in mind. The redundant power supplies, hot-swappable modules, dual-active control plane, stateful switchover, and data plane resilience
Powerful and Reliable
The ASR1000-ESP10 Cisco ASR 1000 Series Embedded Services Processor is a powerful and reliable network processing device designed for the ASR 1000 series routers. The ESP10 is the smallest and most cost-effective option among the ASR1000 series processors.
The ASR1000-ESP10 has a high-performance network processing engine with a clock speed of 1.2 GHz, providing a large number of packet-processing operations per second. It also includes 512 MB of memory, which is enough to handle a high volume of network traffic.
The ASR1000-ESP10 is equipped with the latest network security features such as advanced threat protection, firewall, and VPN services, ensuring secure and reliable network operations. The device also has a modular architecture, allowing the user to add or upgrade its capabilities as the network demands change.
In terms of reliability, the ASR1000-ESP10 has a redundant power supply that ensures continuous operation, even in case of a power failure. The device is designed for high availability and serviceability, providing fast and easy field replacement.
General Information about this Cisco ASR1000-ESP10
- Manufacturer: Cisco
- Part Number or SKU# ASR1000-ESP10
- Product Type: Control Processor
- Product Name: Cisco ASR1000-ESP10 Embedded Services Processor
Technical Specifications
- Device Type: Control Processor
- Enclosure Type: Plug-in Module
- RAM Installed (Max): 2 GB
- Remote Management Protocol: SNMP, Telnet
Performance
- Bandwidth: 10 Gbps
- Capacity:
- Ipv4 Routes: 1,000,000
- Ipv6 Routes: 250,000
- ACL Rules: 4,000
- IPSec VPN Tunnels: 10,000
- NAT Entries: 500,000
Features
- Firewall Protection
- NAT Support
- IPv6 Support
- Quality of Service (QoS)
Compatibility
- Designed for use with ASR 1002, 1004, and 1006.
In short, the Cisco ASR 1000 Series Embedded Services Control Processor, specifically the ASR1000-ESP10, stands as a crucial component in modern networking architectures. Its high performance, scalability, and service integration capabilities make it a versatile choice for a range of applications, from enterprise-edge networking to service provider deployments. Understanding its technical specifications, use cases, installation, and maintenance procedures provides network administrators with the knowledge needed to leverage its capabilities effectively, ensuring a robust and efficient network infrastructure. As networking technologies continue to evolve, the ASR1000-ESP10 remains a key player in meeting the demands of today’s dynamic and interconnected digital landscape.
