More Information for the Cisco ASR1002-X Ethernet Router
The ASR1002-X Cisco Chassis stands as a formidable player in the realm of networking solutions, specifically designed to meet the demanding requirements of modern enterprise networks. This comprehensive guide aims to provide an in-depth understanding of the ASR1002-X, focusing on its key features, specifications, and benefits. As a 9-slot Gigabit Ethernet router, this device offers unparalleled performance and scalability, making it an ideal choice for businesses seeking robust and reliable networking infrastructure.
Overview of ASR1002-X
The ASR1002-X is a high-performance router that belongs to Cisco’s ASR 1000 Series, known for its advanced capabilities and versatility. This router is designed to address the evolving needs of large-scale enterprise networks, data centers, and service provider environments. The “X” in ASR1002-X signifies its extended capabilities and enhanced features, distinguishing it as a powerful solution for handling complex networking tasks.
- Chassis Design and Form Factor: The ASR1002-X boasts a 2U rack-mountable chassis design, making it suitable for deployment in standard server racks. The 2U form factor ensures efficient use of rack space while delivering exceptional performance. This compact design is particularly advantageous for organizations with limited space in data centers or equipment rooms.
- Scalability with 9 Slots: One of the standout features of the ASR1002-X is its 9-slot configuration. This allows for significant scalability, enabling organizations to expand their network infrastructure as their needs grow. Each slot can accommodate various interface modules, enhancing flexibility and adaptability. The ability to add modules provides businesses with the flexibility to customize the router based on their specific requirements.
- Gigabit Ethernet Capabilities: The ASR1002-X is equipped with Gigabit Ethernet ports, facilitating high-speed data transfer within the network. Gigabit Ethernet has become the standard for modern networks, offering speeds of up to 1 gigabit per second. The inclusion of Gigabit Ethernet in the ASR1002-X ensures that the router can handle the increasing demands of data-intensive applications, multimedia streaming, and large file transfers.
Key Features
- Advanced Routing Capabilities: The ASR1002-X is designed to deliver advanced routing capabilities, making it well-suited for complex network architectures. It supports a variety of routing protocols, including Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), and Enhanced Interior Gateway Routing Protocol (EIGRP). These protocols are crucial for efficient and intelligent routing decisions in large-scale networks.
- Redundancy and High Availability: To ensure uninterrupted network operation, the ASR1002-X incorporates features that enhance redundancy and high availability. Dual power supplies and redundant components contribute to the router’s ability to withstand hardware failures without compromising network performance. This makes it a reliable choice for mission-critical applications where downtime is not an option.
- Security Features: Security is a top priority in any network environment, and the ASR1002-X is equipped with robust security features to safeguard against potential threats. It supports encryption protocols, firewall capabilities, and virtual private network (VPN) services, providing a comprehensive security framework. These features help protect sensitive data and ensure the integrity of the network infrastructure.
- Integrated Services with Cisco IOS XE Software: The ASR1002-X runs on the Cisco IOS XE software, a modern operating system that combines the best features of the traditional IOS with the benefits of a modular architecture. This allows for the integration of various services directly into the router, streamlining operations and reducing the need for additional hardware. Integrated services may include application visibility, optimization, and security features.
Use Cases
The versatility of the ASR1002-X makes it suitable for a wide range of use cases across different industries. Some notable implementations include:
- Enterprise Networks: Large enterprises with extensive networking requirements can leverage the scalability and performance of the ASR1002-X to support their diverse needs. Whether connecting multiple office locations or managing a complex network infrastructure, this router provides the necessary capabilities for seamless communication and data transfer.
- Data Centers: In data center environments where high-speed connectivity and low latency are critical, the ASR1002-X excels. Its 9-slot configuration allows for the integration of various modules, enabling data center operators to customize the router to meet specific connectivity and routing demands.
- Service Providers: Telecommunication service providers can benefit from the ASR1002-X’s ability to handle the demands of a large subscriber base. With support for advanced routing protocols and high-throughput Gigabit Ethernet, this router is well-suited for delivering reliable and scalable services to end-users.
High-Performance
The ASR1002-X is a Cisco router that has 6 built-in Gigabit Ethernet (GE) ports and dual power supplies. It is part of Cisco’s Aggregation Services Router (ASR) series, which is designed for high-performance routing in service provider environments. This part can handle high-speed data, voice, and video traffic and supports a variety of features such as Quality of Service (QoS), virtual routing, and VPNs. This model is suitable for use in service provider edge (SPE) and enterprise edge environments.
Reliability

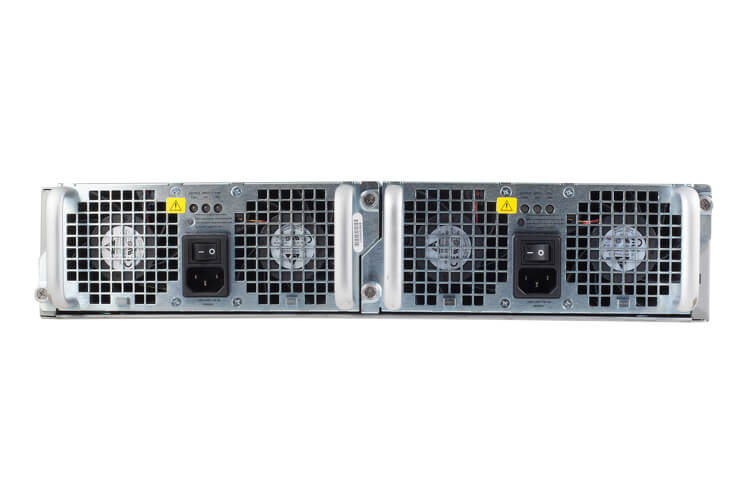

The ASR1002-X Cisco Router is designed for reliability in service provider environments. The dual power supplies provide redundancy in case one power supply fails, ensuring that the router continues to function and maintain network connectivity.
The ASR series routers also have advanced hardware and software features that contribute to their reliability, such as:
- Hot-swappable and redundant components: This allows for easy replacement of failed components without having to shut down the router, reducing downtime.
- High-availability features such as Virtual Router Redundancy Protocol (VRRP) and stateful switchover (SSO): These features allow for automatic failover in case of a hardware or software failure, further minimizing downtime.
- Advanced Quality of Service (QoS) and traffic management: This ensures that critical traffic is prioritized and that the router can handle large amounts of traffic without congestion.
- Comprehensive security features: This part includes firewall, VPN, and intrusion prevention features to protect against network attacks and unauthorized access.
General Information about this Cisco ASR1002-X
- Manufacturer: Cisco
- Part Number or SKU# ASR1002-X
- Product Series: ASR 1000
- Product Type: Router Chassis
Technical Specifications
- Total Number of Ports: 6 (Chassis Router)
- Compatible Rack Unit: 2U
- Form Factor: Rack-mountable, Desktop
- Connectivity Technology: Wired
- Ethernet Technology: Gigabit Ethernet
Performance for Router Chassis
- Bandwidth: 5 Gbps
- Encryption Throughput: 4 Gbps
- Network/Transport Protocol: IPSec
- Features: Firewall Protection, VPN Support
- Data Link Protocol: Gigabit Ethernet
- Status Indicators: Power, Active, Standby, Status
I/O Expansions of 6 Ports Router
- Number of Total Expansion Slots: 9
- Expansion Slot Types:
- Shared Port Adapter
- SFP (mini-GBIC)
Network & Communication
- Management Port: Yes
- VoIP Supported: No
Memory
- Standard Memory: 4 GB
- RAM: 16 GB (Max)
Power Description
- PoE (RJ-45) Port: No
- Redundant Power Supply Supported: Yes
In summary, the ASR1002-X Cisco Chassis stands as a versatile and powerful solution for organizations seeking a scalable and high-performance router for their network infrastructure. With its 9-slot configuration, Gigabit Ethernet capabilities, and advanced features such as redundancy, security, and integrated services, the ASR1002-X addresses the evolving demands of modern enterprise networks.
From its physical installation to configuration, troubleshooting, and ongoing maintenance, this guide has provided a comprehensive overview of the ASR1002-X, offering insights into its key features and use cases. As technology continues to advance, the ASR1002-X remains a reliable choice for businesses and service providers looking to build robust and efficient network architectures. With its commitment to innovation and quality, Cisco continues to be a leading player in the networking industry, and the ASR1002-X is a testament to the company’s dedication to providing cutting-edge solutions for the digital era.
