Description

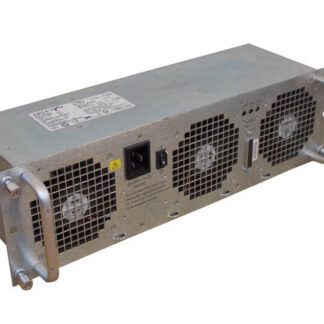

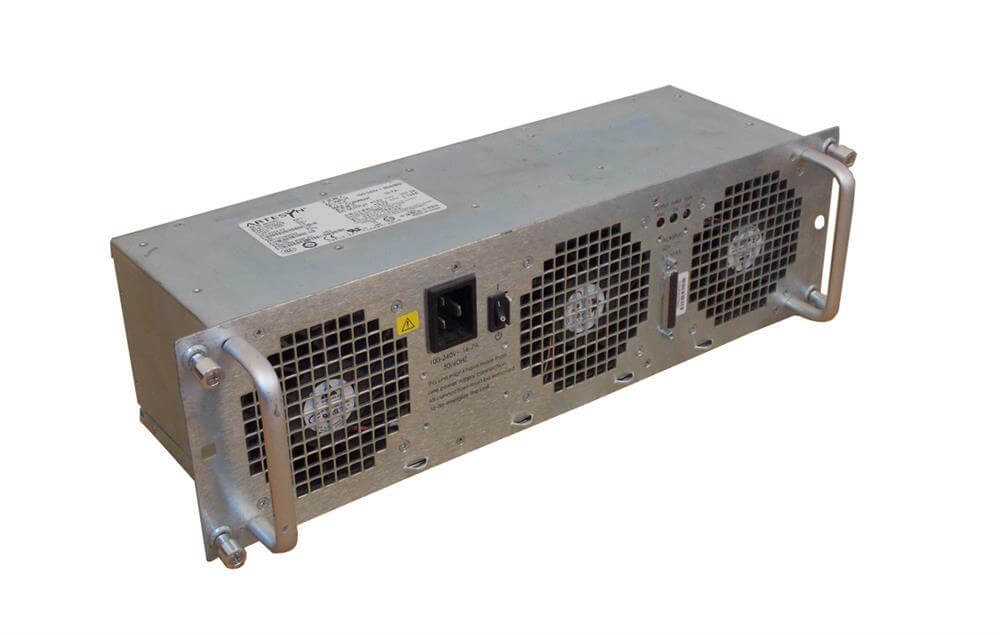

Product Overview of the Cisco ASR1006-PWR-AC Power Supply
The Cisco ASR1006-PWR-AC is a high-performance power supply module designed to ensure uninterrupted power for Cisco ASR 1006 routers. In this comprehensive guide, we’ll delve into the details of this power supply, covering its key features, benefits, technical specifications, and how it functions to provide reliable power to Cisco ASR 1006 routers.
Key Features of the Cisco ASR1006-PWR-AC
- High Power Output: The Cisco ASR1006-PWR-AC power supply is rated at 1280 Watts, making it capable of delivering substantial power to the router.
- Input Voltage Compatibility: This power supply is designed to work with a wide range of input voltages, including 110-220 Volts AC. This flexibility ensures that it can be used in various locations without the need for specific power infrastructure.
- Hot-Plug and Redundancy: One of the standout features of this power supply is its hot plug and redundancy capabilities. This means that it can be replaced or added without powering down the router, ensuring continuous operation. Redundancy is crucial for high-availability network setups, where uninterrupted connectivity is a priority.
Benefits of Using the Cisco ASR1006-PWR-AC Power Supply
- High Reliability: The Cisco ASR1006-PWR-AC power supply is designed for critical networking environments where reliability is of utmost importance. It ensures that the router remains operational even in the event of a power supply failure, thanks to its hot plug and redundancy features.
- Versatile Voltage Compatibility: The compatibility with both 110 and 220-volt AC input voltages allows network administrators to use this power supply in various locations without concerns about voltage differences.
- Ease of Maintenance: Hot-swappable components make maintenance tasks more straightforward. When a power supply needs replacement or an additional one is required, it can be done without disrupting the network’s operation.
The Cisco ASR1006-PWR-AC Power Supply
The Cisco ASR1006-PWR-AC power supply is a crucial component in a network setup. It ensures that the Cisco ASR 1006 router, a high-capacity edge router, has a stable and continuous power source. Let’s explore how it functions:
- Power Distribution: When connected to the router, the power supply module takes the incoming AC voltage (in the range of 110-220 Volts) and converts it to the appropriate voltage and current levels required to power the router’s various components.
- Hot-Plug Capability: The hot plug feature is a standout aspect of this power supply. In the event of a power supply failure or the need to add a redundant power supply, it can be done without powering down the router. This is a crucial feature in situations where network downtime is unacceptable.
- Redundancy Ensures Reliability: Redundancy is another key element. The Cisco ASR1006-PWR-AC can operate in a redundant configuration, where multiple power supplies work in parallel. If one power supply fails, the others continue to provide power, ensuring uninterrupted operation. This is particularly important in mission-critical networks.
Use Cases for the Cisco ASR1006-PWR-AC Power Supply
- Data Centers: Data centers require high reliability and uptime. The Cisco ASR1006-PWR-AC power supply is an ideal choice for data center installations, ensuring that core routers stay operational at all times.
- Telecommunication Networks: Telecommunication networks, which often serve as the backbone for various communication services, can benefit greatly from the redundancy and hot plug features of this power supply.
- Enterprise Networks: Large enterprises with extensive networking needs can rely on the Cisco ASR1006-PWR-AC to keep their routers running without interruption.
Technical Specifications and Requirements
The ASR1006-PWR-AC Cisco 1280 Watt Redundant AC Power Module is a hot-pluggable power supply module designed for the Cisco ASR 1006 Router. It provides redundant power to the router to ensure that it continues to function in the event of a power supply failure. Here are the technical specifications and requirements for the ASR1006-PWR-AC power module:
- Input Voltage: 100-240VAC, 50-60Hz
- Output Voltage: -48VDC
- Output Power: 1280W
- Efficiency: >90%
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -40°F to 158°F (-40°C to 70°C)
- Operating Humidity: 5% to 90% non-condensing
- Storage Humidity: 5% to 95% non-condensing
- Dimensions: 12.5 x 8.5 x 1.6 inches (31.8 x 21.6 x 4.1 cm)
- Weight: 8.8 lbs (4 kg)
- It’s important to note that the power module is designed to operate within these specified temperature and humidity ranges, so it’s important to ensure that the operating environment meets these requirements. Additionally, it’s important to note that the power supply requires a minimum cooling airflow of 200 LFM (Linear Feet per Minute) to ensure proper cooling.
- The ASR1006-PWR-AC power module is designed to be installed in the same chassis as the ASR 1006 Router. It can be installed in the power supply bay of the router and connected to the power cables. It’s important to ensure that the power module is securely seated in the bay and that the power cables are properly connected.
Power Output and Voltage Requirements
- The ASR1006-PWR-AC Cisco 1280 Watt Redundant AC Power Module is designed to provide redundant power to the Cisco ASR 1006 Router. The power module is a hot-pluggable module, which allows for easy replacement without shutting down the router.
- The power output of the ASR1006-PWR-AC power module is 1280 watts, which is sufficient to power the Cisco ASR 1006 Router.
- The voltage requirements for the ASR1006-PWR-AC power module are 100-240VAC input voltage, 50-60Hz. It’s important to verify that the power source meets these requirements before installing the power module. The power module also supports a wide range of input voltage (90VAC-264VAC), which makes it suitable for different geographical locations.
- It also supports an auto-ranging feature that automatically adjusts the output voltage to match the input voltage, so it can adapt to different power grid conditions.
General Information about this Cisco ASR1006-PWR-AC
- Manufacturer: Cisco
- Part Number or SKU# ASR1006-PWR-AC
- Product Type: Power Supply
- Product Name: 1280 Watt Redundant AC Power Module
Power Description of AC Power Module
- Output Power: 1275 Watt
- Input Voltage: 220 Volt AC
- Input Voltage: 110 Volt AC
In Summary, the Cisco ASR1006-PWR-AC 1280 Watt 110-220 Volt AC Plug-in Module Hot-Plug/Redundant Power Supply is a critical component in network setups where reliability and uptime are paramount. Its high power output, compatibility with various voltage inputs, hot plug capability, and redundancy make it an excellent choice for data centers, telecommunication networks, and large enterprises. This power supply ensures that Cisco ASR 1006 routers remain operational, even in the face of power supply failures. Its ease of installation and maintenance further contribute to its appeal to network administrators and IT professionals. For high-performance networking environments, the Cisco ASR1006-PWR-AC is a reliable and essential component.
