Description
Technical Specifications of Integrated Services Router

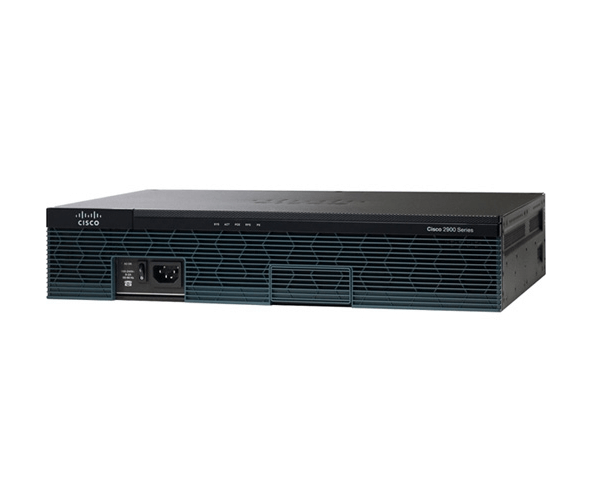

The Cisco 2911 Integrated Services Router (C2911-VSEC-CUBE/K9) has the following technical specifications:
- 3 integrated 10/100/1000 Ethernet ports
- 1 service module slot
- 2 WAN interface card slots
- 2 onboard digital signal processor (DSP) slots
- 2 USB ports
- 1 serial console port
- 1 auxiliary port
- 2 expansion module slots
- 1 ISM slot
- 1 PVDM slot
- 1 Cisco IOS Software image
- 1 security bundle (including VPN and firewall)
- 1 rack-mountable form factor
- Dual integrated power supplies
- support for Cisco IOS Software Release 15.x
- support for Cisco Unity Express, Cisco ISDN BRI S/T, and VICs
- support for Cisco Enhanced Power over Ethernet (ePoE)
Networking and Connectivity Options
The C2911-VSEC-CUBE/K9 Cisco 2911 Integrated Services Router is a versatile networking device that provides a wide range of connectivity options for businesses and organizations. The router has three ports, which can be used to connect to different types of networks, such as LANs, WANs, and the Internet.
- LAN Connectivity: The router has two Gigabit Ethernet ports that can be used to connect to local area networks (LANs). These ports can be used to connect to switches, hubs, and other network devices to create a network that can be used to share resources and data between users.
- WAN Connectivity: The router also has a WAN port that can be used to connect to wide area networks (WANs) such as the Internet. This port can be used to connect to a DSL or cable modem, or to a T1 or T3 line.
- VPN Connectivity: The C2911-VSEC-CUBE/K9 also supports virtual private network (VPN) connectivity, which allows remote users to securely connect to the network. This can be done through the use of VPN protocols such as IPSec or SSL.
- Voice Connectivity: The router also supports voice over IP (VoIP) connectivity, which allows users to make and receive phone calls over the Internet. This can be done through the use of a VoIP gateway or PBX system.
- Wireless Connectivity: The router also supports wireless connectivity through the use of an optional wireless LAN module. This allows users to connect to the network wirelessly, which can be useful in locations where running cables is difficult or impossible.
Security and Compliance Features
The C2911-VSEC-CUBE/K9 Cisco 2911 Integrated Services Router is a high-performance router that offers a range of security and compliance features to ensure the protection of network infrastructure and data. Some of the key security and compliance features include:
- Virtual Private Network (VPN) support: The router supports a variety of VPN protocols, including IPsec, SSL, and L2TP, to provide secure remote access and connectivity for remote employees and partners.
- Firewall and intrusion prevention: The router includes a built-in firewall and intrusion prevention system (IPS) to protect against unauthorized access and malicious attacks.
- Advanced threat protection: The router includes advanced threat protection features, such as Advanced Malware Protection (AMP) and Cisco’s Talos Intelligence, to detect and prevent advanced threats such as zero-day attacks and malware.
- Compliance support: The router supports compliance with industry regulations, such as PCI DSS, HIPAA, and SOX, to ensure compliance with data security and privacy requirements.
- Encryption: The router supports encryption for data in transit and at rest to protect sensitive information from being intercepted or accessed by unauthorized parties.
- Identity management: The router supports identity management features, such as Cisco Identity Services Engine (ISE), to control access to network resources based on user credentials and roles.
Key Feature about this Cisco C2911-VSEC-CUBE/K9
- Manufacturer Cisco
- Part Number or SKU# C2911-VSEC-CUBE/K9
- Product Series 2900
- Product Model 2911
- Product Name 2911 Integrated Services Router
- Product Type Router
Interfaces/Ports of Cisco 2900 Series Router
- Total Number of Ports 3
- Management Port Yes
I/O Expansions of Cisco 3 Ports Router
- Number of Total Expansion Slots 10
- Expansion Slot Type –
- HWIC
- PVDM
Network & Communication of Cisco Router
- Ethernet Technology Gigabit Ethernet
- Network Technology 10/100/1000Base-T
Memory
- Standard Memory 512 MB
Dimension and Weight
- Compatible Rack Unit 2U
- Form Factor Rack-mountable
- Wall Mountable
- Height 3.5 Inch
- Width 17.3 Inch
- Depth 12 Inch
- Weight (Approximate) 18 lbs
