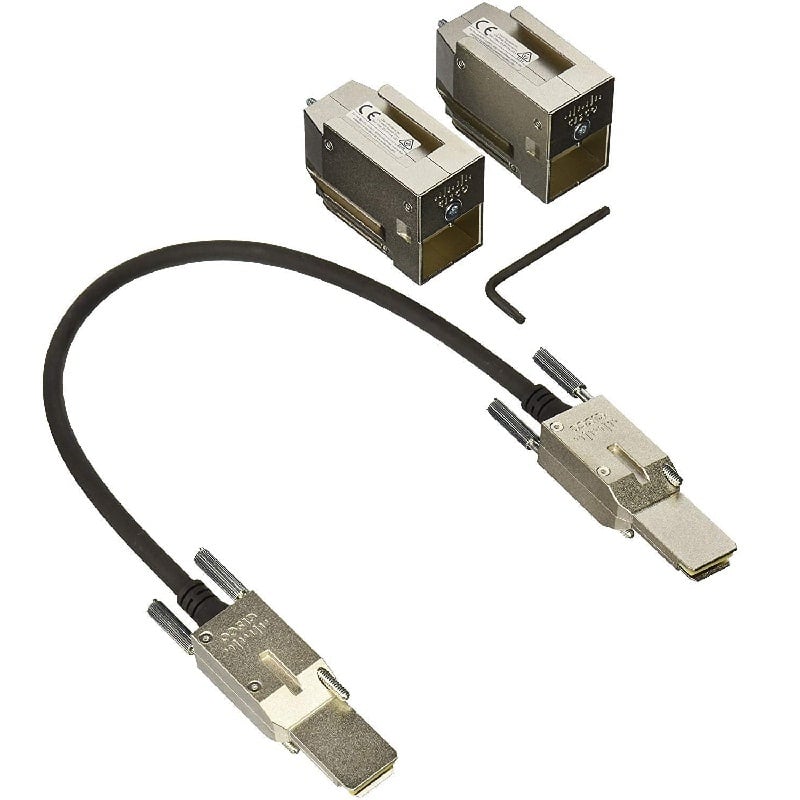

Understanding the Cisco C3650-STACK-KIT: An In-Depth Overview
The Cisco C3650-STACK-KIT is a potent upgrade kit designed for Catalyst 3650 Series Switches, enhancing their stacking capabilities and network performance. This detailed guide aims to elucidate the key features, technical specifications, and practical applications of the C3650-STACK-KIT, shedding light on its significance in networking infrastructure.
Key Features of Cisco C3650-STACK-KIT
Stacking Ports
The C3650-STACK-KIT is equipped with stacking ports, facilitating the connection and stacking of multiple Catalyst 3650 Series switches. Stacking enables network administrators to manage multiple switches as a single, unified entity, simplifying configuration and streamlining network operations.
High-Speed Data Transfer
With a staggering data transfer rate of 160 Gigabytes Per Second (GBPS), this upgrade kit enhances the inter-switch communication speed, ensuring rapid data transfer and synchronization between stacked switches.
Technical SpecificationsStacking Module
- Enhanced Stacking: The stacking module included in the C3650-STACK-KIT facilitates the physical stacking of Catalyst 3650 Series switches, allowing for improved scalability and streamlined network management.
Data Transfer Rate
- 160 GBPS Throughput: The upgrade kit’s 160 GBPS throughput ensures high-speed communication between switches within the stack, promoting efficient data transfer and minimizing latency.
Applications and BenefitsSimplified Network Management
By enabling stacking, the C3650-STACK-KIT simplifies network management by treating multiple switches as a unified entity. This consolidation streamlines configuration tasks, allowing administrators to apply changes uniformly across the entire stack.
Scalability and Flexibility
The stacking capability provided by the C3650-STACK-KIT offers scalability, allowing businesses to expand their network infrastructure seamlessly. New switches can be added to the stack, and the kit ensures efficient communication and power distribution among all switches in the stack.
Practical Use CasesEnterprise Networks
For enterprises requiring a scalable and manageable network infrastructure, the C3650-STACK-KIT proves beneficial. It simplifies network expansion and configuration, enhancing the efficiency of enterprise-grade networks.
Data Centers
In data center environments, the upgrade kit facilitates the creation of a robust and scalable network fabric. It enables efficient data transfer between switches, supporting the demands of high-performance computing and data storage.
Features and Benefits
The Cisco C3650-STACK-KIT Catalyst 3650 160GBPS module is a high-performance stacking module that offers a range of features and benefits for network administrators. Some of these features and benefits include:
- High-Speed Stacking: The Cisco C3650-STACK-KIT provides a high-speed stacking connection between Cisco Catalyst 3650 Series switches, enabling network administrators to create a single, highly available, and scalable network fabric. The module supports up to eight 10 Gigabit Ethernet (GbE) stacking ports and provides a stacking bandwidth of up to 160 Gbps.
- Redundancy: The module supports several redundancy features, including redundant stacking links and redundant power supplies. These features help ensure reliable operation and minimize network downtime.
- Advanced Network Management: The Cisco C3650-STACK-KIT supports advanced network management features, including Quality of Service (QoS), security, and network monitoring. These features enable network administrators to optimize network performance and security, while also providing detailed visibility into network traffic and usage.
- Easy Installation and Maintenance: The module is hot-swappable, which means that it can be replaced without powering down the switch or interrupting network traffic. This feature makes it easier to replace a faulty module or upgrade to a newer module without causing disruption to the network.
- Investment Protection: The Cisco C3650-STACK-KIT is designed to provide investment protection for organizations. The module is compatible with Cisco Catalyst 3650 Series switches, which means that organizations can easily expand their network infrastructure without having to replace existing equipment.
Applications of Cisco C3650-STACK-KIT
The Cisco C3650-STACK-KIT finds applications in various networking scenarios, making it a versatile solution. Here are some common applications:
- Enterprise Networks: Large enterprises with extensive networking needs can benefit from the enhanced performance, scalability, and redundancy provided by the Cisco C3650-STACK-KIT.
- Data Centers: Data centers often require high-speed and reliable networking solutions. Stacking modules are vital for ensuring smooth data transfer and robust network management.
- Educational Institutions: Universities and schools managing complex networks can leverage the Cisco C3650-STACK-KIT to streamline their operations and provide uninterrupted network services.
- Government Organizations: Government agencies dealing with sensitive data and the need for uninterrupted network services can benefit from the security and reliability of this upgrade kit.
- Small to Medium Businesses (SMBs): Even smaller businesses can benefit from the scalability and cost-efficiency of stacking modules to support their network growth.
Quality of Service (QoS) Features
The Cisco C3650-STACK-KIT Catalyst 3650 160GBPS Stacking Module offers a range of Quality of Service (QoS) features that help prioritize network traffic and ensure that critical applications receive the necessary bandwidth. Some of the QoS features include:
- Traffic Classification: The Cisco C3650-STACK-KIT supports several methods for classifying network traffic, including IP precedence, Differentiated Services Code Point (DSCP), and Protocol. This allows network administrators to assign different priorities to different types of traffic.
- Traffic Policing: The module supports traffic policing, which allows network administrators to control the rate at which traffic is sent or received on a particular port. This can be used to prevent network congestion and ensure that bandwidth is used efficiently.
- Traffic Shaping: Traffic shaping is a QoS technique that allows network administrators to control the amount of traffic sent or received on a particular port. This can be used to ensure that network traffic is evenly distributed across the network and that critical applications receive the necessary bandwidth.
- Congestion Avoidance: The Cisco C3650-STACK-KIT supports several techniques for avoiding network congestion, including Random Early Detection (RED) and Weighted Random Early Detection (WRED). These techniques monitor network traffic and adjust packet transmission rates to prevent congestion and ensure that critical applications receive the necessary bandwidth.
- Bandwidth Management: The module supports bandwidth management, which allows network administrators to allocate bandwidth to specific applications or users. This can be used to ensure that critical applications receive the necessary bandwidth and that network resources are used efficiently.
Main Specification about this Cisco C3650-STACK-KIT
- Manufacturer: Cisco
- Part Number or SKU# C3650-STACK-KIT
- Type: Networking
- Product Type: Stacking Module
Interfaces/Ports for Stacking Module
- Total Number of Ports 1
- Interfaces/Ports Details 1 x Stacking
- Ports Type: Stack port
Technical Information of StackWise Adapter
- Connectivity Technology: Wired
- StackWise-160 technology
- Application/Usage: Stacking
Performance
- Data Transfer Rate: 160 GBPS
- Form Factor Plug-in Module
Cable
- Connectivity Details Type: Stacking Cable
- Connectivity Details Length: 1.6 Feet
Compatibility
The following models of Cisco Catalyst 3650 Series Switches are compatible with each other:
- 3650-24PD-E, 3650-24PD-L, 3650-24PD-S, 3650-24PS-E, 3650-24PS-L, 3650-24PS-S, 3650-24PWD-S, 3650-24PWS-S, 3650-24TD-E, 3650-24TD-L, 3650-24TD-S, 3650-24TS-E, 3650-24TS-L, 3650-24TS-S, 3650-48FD-E, 3650-48FD-L, 3650-48FD-S, 3650-48FQ-E, 3650-48FQ-L, 3650-48FQ-S, 3650-48FS-E, 3650-48FS-L, 3650-48FS-S, 3650-48FWD-S, 3650-48FWQ-S, 3650-48FWS-S, 3650-48PD-E, 3650-48PD-L, 3650-48PD-S, 3650-48PQ-E, 3650-48PQ-L, 3650-48PQ-S, 3650-48PS-E, 3650-48PS-L, 3650-48PS-S, 3650-48TD-E, 3650-48TD-L, 3650-48TD-S, 3650-48TQ-E, 3650-48TQ-L, 3650-48TQ-S, 3650-48TS-E, 3650-48TS-L, 3650-48TS-S.
- These switches are also compatible with other Cisco Catalyst series switches, including the 3850 and 4500 series switches.
- The switches are compatible with various networking protocols and technologies, including IPv4, IPv6, OSPF, BGP, EIGRP, HSRP, GLBP, VRRP, VLAN, QoS, and ACL.
- The switches support various security features, such as IEEE 802.1X authentication, port security, and Private VLAN Edge.
- The switches are also compatible with Cisco DNA Center, a network management platform that provides automation, analytics, and assurance capabilities.
In summary, the Cisco C3650-STACK-KIT is a valuable upgrade kit designed to enhance the performance, scalability, and manageability of Catalyst 3650 Series switches. With features like a 160 GBPS stacking port, compatibility, and ease of installation, it offers significant benefits for a variety of networking scenarios, including enterprise networks, data centers, educational institutions, government organizations, and SMBs.
By following the installation and configuration steps, you can seamlessly integrate this kit into your network infrastructure, providing a robust and reliable solution for your networking needs. Whether you’re looking to boost network performance, improve redundancy, or streamline network management, the Cisco C3650-STACK-KIT is a worthwhile addition to your networking arsenal.
