Product Overview of the Cisco 3 Ports Management Gigabit Ethernet
In the realm of networking solutions, Cisco has consistently been at the forefront, delivering cutting-edge routers designed to meet the evolving demands of modern connectivity. One such standout product is the Cisco C3945-AX/K9 15 Slots Router, renowned for its robust architecture and versatile 3-port management system. In this detailed exploration, we will delve into the key features, specifications, and functionalities of the Cisco C3945-AX/K9, shedding light on its 15-slot design and the efficiency of its 3-port management system.

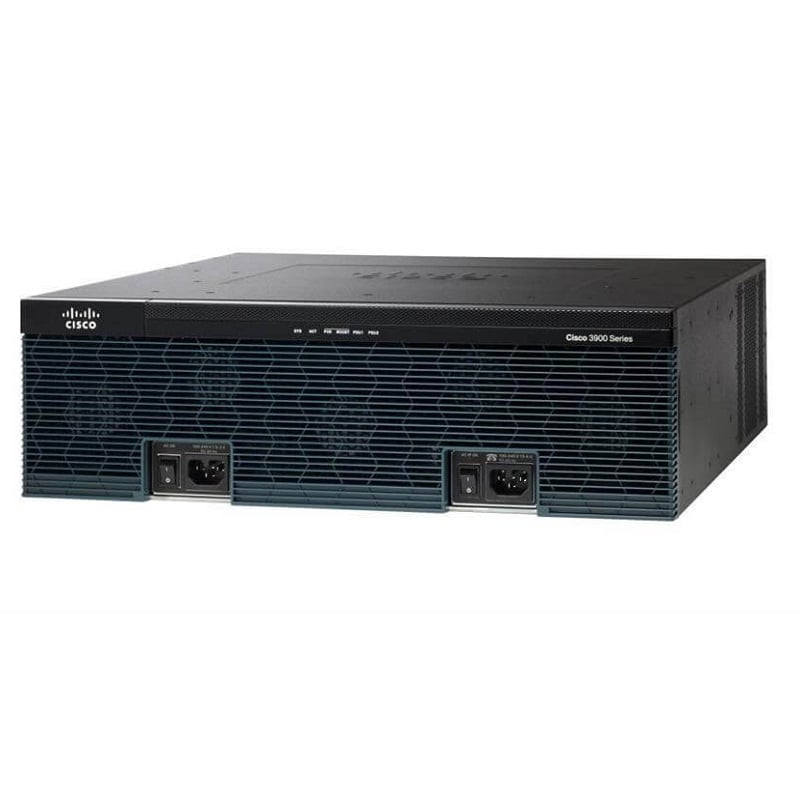

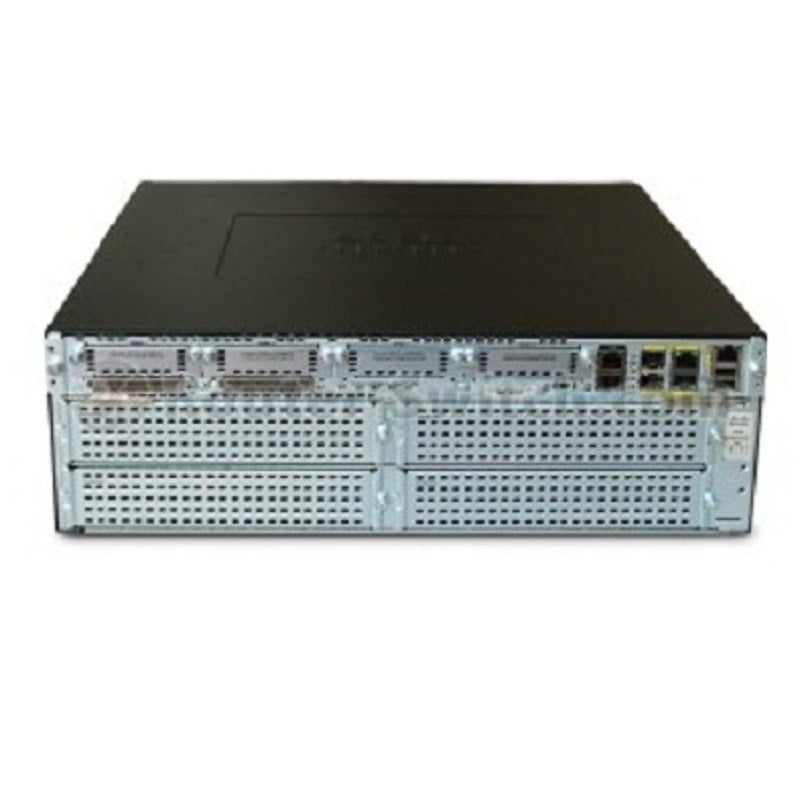

Cisco C3945-AX/K9 Router
The Cisco C3945-AX/K9 is a powerful router designed for enterprise-level networking. With its 15-slot chassis, this Ethernet router is equipped to handle the complex networking needs of large-scale organizations, providing a reliable backbone for data transmission and communication. Let’s explore the essential features that make the Cisco C3945-AX/K9 a standout choice in the realm of routers.
Chassis Design
The 15-slot chassis design of the Cisco C3945-AX/K9 is a testament to its scalability. Each slot is strategically positioned to accommodate various modules, allowing organizations to customize the router based on their specific requirements. This flexibility ensures that the router can adapt to the changing needs of the network infrastructure.
Processing Power
At the heart of the Cisco C3945-AX/K9 lies formidable processing power. The router is equipped with advanced processors capable of handling high data loads and complex networking tasks. This processing prowess is crucial for ensuring seamless data transmission and efficient network management.
Modular Architecture
The modular architecture of the Cisco C3945-AX/K9 is a key feature that enhances its adaptability. The router supports a wide range of modules, including interface cards, network modules, and integrated services modules. This modularity allows organizations to add or upgrade features as needed, extending the router’s lifespan and optimizing its performance.
Understanding the 3-Port Management System
A standout feature of the Cisco C3945-AX/K9 router is its 3-port management system, which plays a pivotal role in facilitating efficient network administration. This section will provide a detailed examination of the 3-port management system, highlighting its functions, benefits, and practical applications.
Port
The Cisco C3945-AX/K9 router is equipped with three distinct ports dedicated to management tasks. These ports are intelligently configured to streamline the administration of the network. The port configuration is designed for optimal performance, ensuring that network administrators can easily oversee and control the router’s functions.
Remote Capabilities
One of the key advantages of the 3-port management system is its support for remote management. Network administrators can securely access the router’s management interface from any location, enabling them to monitor and configure the network even when they are not physically present at the router’s location. This remote management capability enhances operational efficiency and reduces the need for on-site interventions.
Role-Based Access Control (RBAC)
Security is a top priority in modern networking environments, and the Cisco C3945-AX/K9 addresses this concern through its role-based access control (RBAC) system integrated into the 3-port management system. RBAC allows administrators to define and assign specific roles to individuals or groups, ensuring that only authorized personnel have access to critical network settings. This granular control enhances overall network security.
Traffic Analysis
The 3-port management system also facilitates comprehensive traffic monitoring and analysis. Administrators can leverage the router’s capabilities to track network usage, identify potential bottlenecks, and analyze data flow patterns. This visibility into network traffic is instrumental in optimizing performance, diagnosing issues, and planning for future scalability.
Applications and Use Cases
The Cisco C3945-AX/K9 15 Slots Router with its 3-port management system finds practical applications across various industries. In this section, we will explore specific use cases and scenarios where this router excels, showcasing its versatility and adaptability.
Enterprise Networks
Large enterprises with expansive and complex network infrastructures benefit significantly from the Cisco C3945-AX/K9 router. The 15-slot design allows for scalability, accommodating the diverse needs of enterprise-level networking. The 3-port management system simplifies network administration, making it easier for IT professionals to oversee and optimize the network.
Data Centers
Data centers, the nerve centers of modern businesses, demand robust and scalable networking solutions. The Cisco C3945-AX/K9 router’s 15-slot chassis is well-suited for data center environments where rapid data transfer and efficient management are paramount. The 3-port management system enhances control and visibility, contributing to the seamless operation of critical data center networks.
Service Providers
Telecommunication service providers handling a vast subscriber base require routers that can handle high traffic volumes and ensure reliable connectivity. The Cisco C3945-AX/K9, with its modular architecture and 3-port management system, is an ideal choice for service providers seeking a scalable and efficient solution to deliver uninterrupted services to their customers.
Performance and Reliability
High Throughput
The Cisco C3945-AX/K9 router is designed to handle high-throughput scenarios, ensuring that data can be transferred quickly and efficiently across the network. This is crucial for applications and services that demand low latency and rapid data exchange.
Redundancy and Failover
To enhance reliability, the router incorporates features such as redundancy and failover mechanisms. In the event of a hardware failure or network issue, these mechanisms ensure continuous operation by seamlessly switching to backup components or paths.
General Information about Cisco C3945-AX/K9
- Manufacturer: Cisco
- Part Number or SKU# C3945-AX/K9
- Product Series: 3900
- Product Model: 3945
- Product Type: Router
Interfaces/Ports for Router
- Total Number of Ports: 3
- USB: Yes
- Management Port: Yes
- Token Ring Port: No
- Serial V.35 Interface: No
- Number of Network (RJ-45) Ports: 3
I/O Expansions of Series-3900 Router
- Number of Total Expansion Slots: 15
- Expansion Slot Types:
- EHWIC
- PVDM
- ISM
- SFP (mini-GBIC)
Network & Communication of Slots-15 Router
- Network Technology: 10/100/1000Base-T
- Ethernet Technology: Gigabit Ethernet
- VoIP Supported: Yes
Management & Protocols
- VPN
- DMVPN
- Cisco IOS IPS
- Cisco IOS Content Filtering
- Flexible Packet Matching (FPM)
- Cisco Security Manager
- Cisco IOS Firewall
- Cisco IOS Zone-Based Firewall
- AAA
- PKI
- Intrusion-Prevention-System
- Cisco Security MARS
Memory
- Standard Memory: 1 GB
- Maximum Memory: 2 GB
- Memory Technology: DDR2 SDRAM
- Flash Memory: 256 MB
- Memory Card Supported: Compact Flash (CF) Card
Power Description
- Input Voltage: 110 V AC, 220 V AC
- Power Source: Power Supply
Miscellaneous
- Package Contents:
- 3945 Router
- SPE150 Module
- Certifications & Standards Safety:
- UL 60950-1
- CAN/CSA C22.2 No. 60950-1
- EN 60950-1
- AS/NZS 60950-1
- IEC 60950-1
- EMC:
- 47 CFR, Part 15
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI V-3
- CNS 13438
- EN 300-386
- EN 61000 (Immunity)
- EN 55024, CISPR 24
- EN50082-1
- Telecom:
- TIA/EIA/IS-968
- CS-03
- ANSI T1.101
- ITU-T G.823, G.824
- IEEE 802.3
- RTTE Directive
Overall, the Cisco C3945-AX/K9 15 Slots Router with 3 Ports is a versatile and powerful networking solution suitable for a wide range of applications. Its modular design, advanced features, and efficient management capabilities make it a valuable asset for businesses seeking a reliable and scalable networking infrastructure. Whether you’re upgrading an existing network or building a new one from scratch, the Cisco C3945-AX/K9 offers the flexibility and performance required for today’s dynamic business environment.
