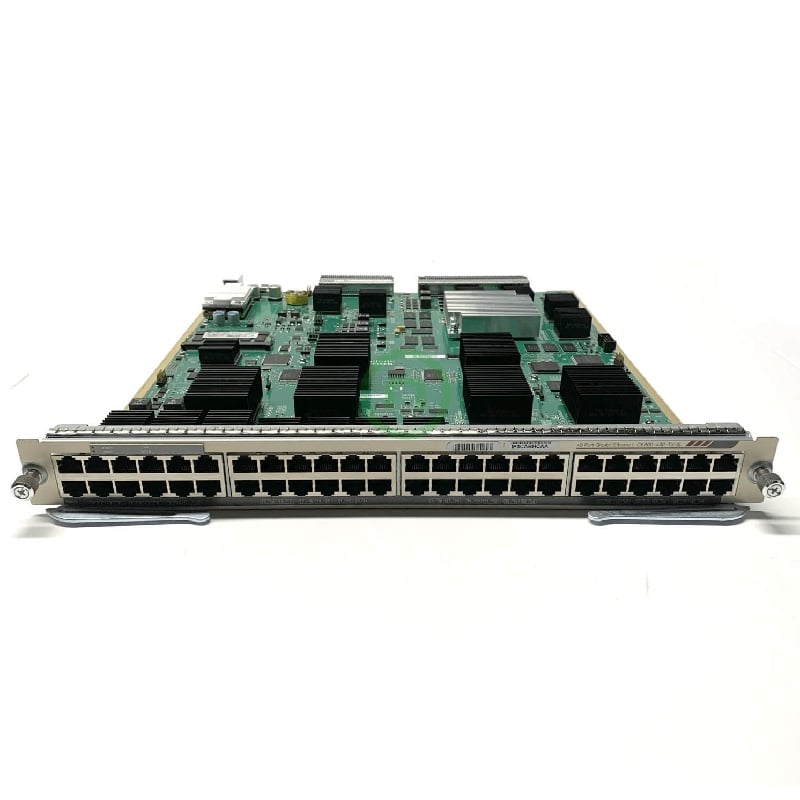

Product Overview of the Cisco 48 Ports Copper Module
In the fast-paced world of networking, having robust and efficient equipment is paramount. One such critical component is the Cisco C6800-48P-TX 48 Ports Copper Module Ethernet. This module plays a crucial role in enhancing network connectivity, providing 48 ports for copper-based Ethernet connections. In this detailed exploration, we will delve into the features, specifications, benefits, and applications of the Cisco C6800-48P-TX module.
Understanding the BasicsCisco C6800-48P-TX
The Cisco C6800-48P-TX is a network module designed to be installed in compatible Cisco switches, specifically those belonging to the Catalyst 6800 series. This module is equipped with a 48-ports Module, each supporting copper-based Ethernet connections. It is an integral part of Cisco’s portfolio of networking solutions, known for its reliability and high-performance capabilities.
Copper Ports in Focus
The 48 copper ports provided by the module make it a versatile solution for various networking scenarios. Copper ports are well-regarded for their durability and cost-effectiveness, making them suitable for a wide range of applications. These ports support Ethernet connectivity, which is the standard for wired networking in most environments.
Key FeaturesHigh Port Density
The Cisco C6800-48P-TX boasts a remarkable port density, with 48 copper ports packed into a single module. This high port count is beneficial for large-scale network deployments where numerous devices need to be connected.
Gigabit Ethernet Support
Each of the 48 ports supports Gigabit Ethernet, ensuring fast and reliable data transfer. This is particularly crucial in modern networks where bandwidth-intensive applications demand high-speed connectivity.
Power over Ethernet (PoE) Capability
One standout feature of the Cisco C6800-48P-TX is its Power over Ethernet (PoE) capability. This means that the module can deliver both data and electrical power to connected devices, such as IP cameras, VoIP phones, and other PoE-enabled devices. This simplifies cabling and reduces the need for additional power sources.
Hot-Swappable Design
The module is designed to be hot-swappable, allowing for easy installation or replacement without disrupting the overall network operation. This feature contributes to the module’s reliability and minimizes downtime during maintenance or upgrades.
Compatibility with Catalyst 6800 Series
The Cisco C6800-48P-TX is specifically designed for compatibility with Catalyst 6800 series switches. This ensures seamless integration with Cisco’s broader networking ecosystem, providing a consistent and reliable user experience.
Technical SpecificationsForm Factor
The module follows a standard form factor suitable for installation in Catalyst 6800 series switches. Its dimensions and design align with industry standards for network modules, facilitating easy integration into existing network infrastructures.
Data Transfer Rates
With support for Gigabit Ethernet, the Cisco C6800-48P-TX module can achieve data transfer rates of up to 1 gigabit per second per port. This high-speed connectivity is essential for meeting the demands of modern network applications.
Power Requirements
As a PoE-capable module, the Cisco C6800-48P-TX requires power to deliver both data and electrical power to connected devices. Understanding the power requirements is crucial for planning and maintaining a stable network environment.
Operating Temperature and Environmental Considerations
The module is designed to operate within specific temperature ranges and environmental conditions. Understanding these parameters is essential for ensuring optimal performance and longevity of the equipment.
Benefits of Cisco C6800-48P-TXEnhanced Connectivity
The primary benefit of the Cisco C6800-48P-TX is the substantial increase in connectivity it offers. With 48 copper ports, organizations can effortlessly connect a multitude of devices, fostering a more interconnected and efficient network.
Streamlined Power Delivery
The inclusion of Power over Ethernet capabilities streamlines the deployment of powered devices in the network. This not only simplifies cabling but also reduces the need for additional power sources, contributing to a more organized and cost-effective infrastructure.
Scalability
The module’s high port density and compatibility with Catalyst 6800 series switches make it a scalable solution. As network requirements grow, organizations can easily expand their connectivity by adding additional Cisco C6800-48P-TX modules without the need for a complete overhaul of the existing infrastructure.
Reliability and Redundancy
The hot-swappable design of the module enhances the overall reliability of the network. In the event of a module failure or the need for an upgrade, administrators can replace the module without affecting the entire network, minimizing downtime and ensuring continuous operations.
Applications in Real-World Scenarios
Enterprise Networks
The Cisco C6800-48P-TX is well-suited for enterprise-level networks where a multitude of devices, ranging from computers to printers and IP phones, need to be connected. The module’s high port density and PoE capabilities make it an ideal choice for these environments.
Surveillance Systems
In surveillance systems, where IP cameras play a crucial role, the PoE capabilities of the Cisco C6800-48P-TX come into play. The module can provide both data connectivity and power to these cameras, simplifying the installation and maintenance of surveillance infrastructure.
Voice over IP (VoIP) Deployments
The module’s support for Gigabit Ethernet and Power over Ethernet makes it a valuable component in VoIP deployments. It can seamlessly connect VoIP phones while providing the necessary power for their operation.
Educational Institutions
In educational institutions with a high density of users and devices, the Cisco C6800-48P-TX can facilitate robust network connectivity. From classrooms to administrative offices, the module’s scalability and reliability meet the diverse needs of educational environments.
Considerations Before Implementation
Network Planning
Before implementing the Cisco C6800-48P-TX module, thorough network planning is essential. This includes assessing the current network architecture, understanding the power requirements, and planning for future scalability.
Compatibility Checks
Ensuring compatibility with existing Catalyst 6800 series switches is crucial. Organizations should verify that their switches support the installation of the Cisco C6800-48P-TX module to guarantee seamless integration.
Power Budgeting
Given the PoE capabilities of the module, power budgeting is a critical consideration. Organizations need to calculate the total power requirements of connected devices to ensure that the module can adequately supply power without exceeding its limits
General Information about the Cisco C6800-48P-TX
- Manufacturer: Cisco
- Part Number or SKU# C6800-48P-TX
- Product Line: Catalyst
- Product Model: C6800
- Product Type: Expansion Module
Technical Details of the 48 Ports Module
- Application/Usage: Data Networking
- Form Factor: Plug-in module
Interfaces/Ports Details
- Total Number of Ports: 48
- Connector Type: RJ-45
- Port Type: Gigabit Ethernet LAN (48 x RJ-45)
I/O Expansions
- Number of Daughter Cards Supported: 1
Media & Performance
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: Gigabit Ethernet
- Data Transfer Rate: 1 Gbps
- Forwarding Performance: 60 MPPS
Networking Specification
- Connectivity Technology: Wired
- Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
- Capacity: Maximum frame size of 9216 bytes
- Remote Management Protocol: RMON, SMON
- Status Indicators: Link/Activity
Compliant Standards
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s
- Features
- Full duplex mode
- Spanning Tree Protocol (STP) support
- Quality of Service (QoS)
- Jumbo Frames support
- Deficit Weighted Round Robin (DWRR)
- 1.5MB packet buffer
Standard Protocols
- IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad
- Regulatory Compliance
- EMC Compliance:
- FCC Part 15 (CFR 47) Class A
- VCCI Class A with UTP, Class B with STP
- EN55022 Class A with UTP, Class B with STP
- CISPR 22 Class A with UTP, Class B with STP
- CE marking
- AS/NZS 3548 Class A with UTP, Class B with STP
- Safety Compliance:
- UL 1950
- CSA C22.2 No.950
- EN 60950
- IEC 950
- AS/NZS 3260
- IEC 825
- EN 60825
- 21CFR1040
Network Management
- ETHERLIKE-MIB (RFC 1643)
- IF-MIB (RFC 1573)
- Bridge MIB (RFC 1493)
- CISCO-STACK-MIB
- CISCO-VTP-MIB
- CISCO-CDP-MIB
- RMON MIB (RFC 1757)
- CISCO-PAGP-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-VLAN-BRIDGE-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- ENTITY-MIB (RFC 2037)
- HC-RMON
- RFC1213-MIB (MIB-II)
- SIMON-MIB
Processor/Memory Details
- RAM: 1 GB
Environmental Specifications
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 104 °F
- Humidity Range Operating: 10 – 90% (non-condensing)
Compatibility
- Compatible with Cisco Catalyst 6807-XL and 6500-E Switch Chassis.
Finally, the Cisco C6800-48P-TX 48 Ports Copper Module Ethernet is a powerful and versatile networking solution designed to enhance connectivity in various environments. From its high port density and Gigabit Ethernet support to its Power over Ethernet capabilities, this module addresses the evolving needs of modern networks. Whether deployed in enterprise settings, surveillance systems, VoIP environments, or educational institutions, the Cisco C6800-48P-TX delivers reliable performance and scalability. Before implementation, careful consideration of network planning, compatibility checks, and power budgeting is advised to ensure a seamless integration that maximizes the benefits of this advanced networking module.
