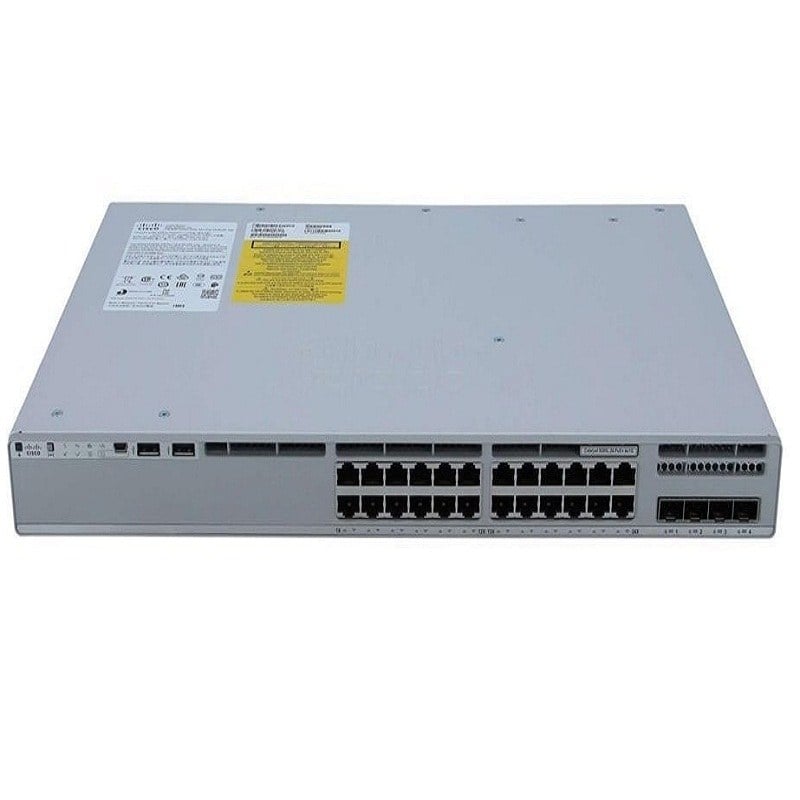

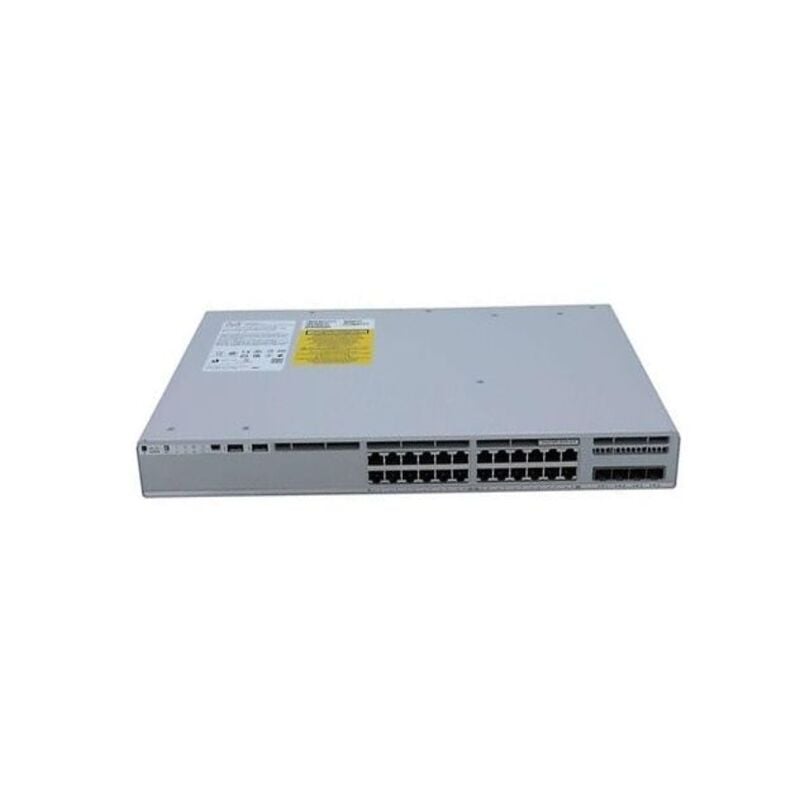

The Cisco Catalyst 9200 C9200L-24P-4G-E is a Layer 3 switch that is designed for enterprise networks, campus networks, and branch offices. It provides high-performance, secure, and energy-efficient access switching. Here is some detailed information about the switch:
- 24 ports Gigabit Ethernet and 4 Gigabit Ethernet uplink ports
- Supports Cisco DNA software and can be managed through the Cisco DNA Center
- Advanced security features such as TrustSec and Identity Services Engine (ISE) integration for identity-based networking
- Enhanced access security, threat mitigation, and compliance capabilities
- Support for Power over Ethernet Plus (PoE+) and can provide power to connected devices
- Low energy consumption and cooling efficiency
- Support for routing protocols such as OSPF, EIGRP, and BGP
- Support for Quality of Service (QoS) and access control lists (ACLs)
- Support for Link Aggregation Control Protocol (LACP) and Port Aggregation Protocol (PAgP)
- Support for Cisco EnergyWise technology for energy management of connected devices
- Support for IPv6, IPv4, and dual stack
This switch is suitable for enterprise networks, campus networks, and branch offices, providing advanced security and energy efficiency while also supporting routing protocols and Quality of Service.
Common Use Cases
The Cisco C9200L-24P-4G-E Catalyst 9200L Switch is well-suited for various use cases across different industries. Let’s explore some common scenarios where this switch can be effectively employed:
Business Networks
For businesses, the Cisco C9200L-24P-4G-E is an excellent choice to establish or upgrade a network infrastructure. It can provide power and data connectivity to a variety of devices, including IP phones, computers, printers, and wireless access points. In addition, its Layer 3 capabilities make it ideal for segmenting the network and ensuring efficient data routing.
Educational Institutions
Educational institutions often require network switches that can accommodate a large number of devices, such as computers in computer labs and wireless access points for campus-wide Wi-Fi coverage. The PoE+ support simplifies the deployment of these devices, while the Layer 3 routing capabilities help in managing different network segments for departments and classrooms.
Performance and Reliability
The Cisco Catalyst 9200 this model is a high-performance and reliable switch that is designed to provide a secure and energy-efficient network infrastructure for enterprise networks, campus networks, and branch offices.
In terms of performance, the switch supports data rates of up to 10/100/1000Mbps on its 24 Gigabit Ethernet ports and 4 Gigabit Ethernet uplink ports. It also supports advanced routing protocols such as OSPF, EIGRP, and BGP, which enables it to perform advanced routing functions such as load balancing and redundancy. Additionally, the switch supports Quality of Service (QoS) features such as Class-Based Weighted Fair Queuing (CBWFQ) and Low Latency Queuing (LLQ), which help to ensure that voice and video traffic receive priority over other types of traffic.
In terms of reliability, the switch supports features such as Link Aggregation Control Protocol (LACP) and Hot Standby Router Protocol (HSRP), which improve network reliability and availability. LACP allows multiple physical links to be bundled together to form a single logical link, providing redundancy and load balancing. HSRP allows multiple routers to work together to present the appearance of a single virtual router to the hosts on a LAN, this provides redundancy and failover.
Additionally, the switch is designed with an energy-efficient design that is compliant with the IEEE 802.3az standard, which helps to reduce power consumption and operating costs. It also supports the Energy Efficient Ethernet (EEE) which allows it to reduce power consumption during periods of low data activity.
All these features make the C9200L-24P-4G-E switch a high-performance and reliable network solution for enterprise networks, campus networks, and branch offices.
Cisco C9200L-24P-4G-E Catalyst 9200L Switch: Key Specifications
Now, let’s take a closer look at the Cisco C9200L-24P-4G-E Catalyst 9200L Switch and its key specifications:
24 Ports with Full Power Over Ethernet Plus (PoE+)
One of the standout features of this switch is its 24 ports, and all of them support Power Over Ethernet Plus (PoE+). PoE technology enables both data and electrical power to be transmitted over Ethernet cables, which simplifies the deployment of network devices like IP phones, wireless access points, and security cameras. With PoE+, you can power and connect these devices without the need for separate power sources, which reduces clutter and simplifies cable management.
24 x 10/100/1000 Ports
The Cisco C9200L-24P-4G-E comes with 24 ports that support various data transfer rates, ranging from 10 Mbps (megabits per second) to 1000 Mbps or 1 Gbps (gigabit per second). This versatility allows you to connect a wide range of devices, from legacy equipment to modern high-speed devices, ensuring compatibility in diverse network environments.
4 x 1G Fixed Uplinks
In addition to the 24 ports, this switch offers four 1 Gbps fixed uplink ports. These uplink ports provide connectivity to higher-level network segments, such as routers or other switches, to enable network expansion and interconnection with different parts of the network.
Rack-Mountable Design
The Cisco C9200L-24P-4G-E Catalyst 9200L Switch is designed to be rack-mounted. This means it can be installed in standard network equipment racks or cabinets, making it a suitable choice for data centers, server rooms, and network closets where space and cable management are critical considerations.
Layer 3 Capabilities
A significant feature of this switch is its Layer 3 capabilities. In networking, devices operate at different layers of the OSI model. A Layer 3 switch, also known as a multilayer switch, can perform routing functions, which is typically done by routers. This feature allows the Cisco C9200L-24P-4G-E to make routing decisions based on IP addresses, which is essential for connecting different subnetworks or VLANs (Virtual Local Area Networks).
Interface Provided for Digital Workplace
The Cisco Catalyst 9200 C9200L-24P-4G-E is a Layer 3 switch that provides several interfaces that can be used to support a digital workplace. Here are some of the key interfaces that are provided on this switch:
- Gigabit Ethernet ports: The switch has 24 Gigabit Ethernet ports and 4 Gigabit Ethernet uplink ports. These ports can be used to connect end devices such as PCs, servers, and IP phones to the network. The Gigabit Ethernet ports provide high-speed connectivity and support data rates of up to 1000Mbps.
- Cisco DNA Center: This switch can be managed and configured using Cisco DNA Center, which is a centralized network management platform that enables network automation, security, and analytics. This interface allows network administrators to easily manage and monitor the switch, and make changes to the network configuration as needed.
- Cisco Identity Services Engine (ISE) integration: This switch supports ISE integration, which allows for secure access control and compliance enforcement. The ISE interface provides a way to configure and manage access control policies based on user identity, which can help enhance security in the digital workplace.
- PoE+ support: This switch supports Power over Ethernet Plus (PoE+), which allows it to provide power to connected devices such as IP phones and wireless access points. This feature can help to simplify the deployment of these devices in the digital workplace, as they do not need to be connected to a separate power source.
- Layer 3 routing: This switch supports routing protocols such as OSPF, EIGRP, and BGP, which enables it to perform advanced routing functions such as load balancing and redundancy. This feature can help to improve network performance and availability in the digital workplace.
Configuration
- Access the Interface: Access the switch’s management interface using a web browser or command-line interface. Consult the switch’s documentation for the specific steps to access and configure it.
- VLAN Configuration: If needed, configure Virtual LANs (VLANs) to segment the network. VLANs are essential for efficient network management and security.
- Routing Configuration: If you plan to use the Layer 3 routing capabilities, configure routing settings and specify how data should be routed between different network segments.
- Security and Quality of Service (QoS): Implement security measures and Quality of Service settings to ensure data integrity and prioritize network traffic.
- Firmware Updates: Regularly check for firmware updates and apply them to ensure the switch operates with the latest features and security enhancements.
Healthcare Facilities
In healthcare environments, reliability and the ability to connect numerous medical devices are essential. The Cisco C9200L-24P-4G-E can power and connect medical equipment, such as bedside monitors and diagnostic devices, while the Layer 3 routing can help segment the network for patient data and administrative data, ensuring privacy and security.
Hospitality Industry
Hotels, resorts, and hospitality venues often require a robust network to provide Wi-Fi access to guests and manage various services. The PoE+ support allows for easy deployment of access points and IP-based services, while the Layer 3 capabilities enable effective network management for guest and administrative networks.
General Information about this Cisco C9200L-24P-4G-E
- Manufacturer: Cisco
- Model Number or SKU# C9200L-24P-4G-E
- Product Line: Catalyst
- Product Series: 9200
- Type: Networking
- Product Type: Layer 3 Switch
Interfaces/Ports of 24 Ports Switch
- Total Number of Network Ports 24
- Uplink Port Yes
- Modular Yes
- Stack Port Yes
- Port/Expansion Slot Details 4 x Gigabit Ethernet Uplink
- Port/Expansion Slot Details 24 x Gigabit Ethernet Network
Performance for Ethernet Switch
- Media Type Supported Optical Fiber
- Media Type Supported Twisted Pair
- Ethernet Technology Gigabit Ethernet
- Network Technology 10/100/1000Base-T
- Network Technology 1000Base-X
- Stacking bandwidth: 80 Gbps
- Total number of MAC addresses: 16,000
- Total number of IPv4 routes (ARP plus learned routes): 11,000 (8,000 direct routes and 3,000 indirect routes)
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- Multicast routing scale: 1,000
- QoS scale entries: 1,000
- ACL scale entries: 1,500
- Packet buffer per SKU: 6 MB buffers for 24- or 48-port Gigabit Ethernet models
- Flexible NetFlow (FNF) entries: 16,000 flows on 24- and 48-port Gigabit Ethernet models
- VLAN IDs: 1024
- Total Switched Virtual Interfaces (SVIs): 512
- Jumbo frames: 9198 bytes
I/O Expansions of Layer 3 Switch
- Number of Total Expansion Slots 4
- Expansion Slot Type SFP (mini-GBIC)
- Shared SFP Slot No
- Number of SFP Slots 4
Network & Communication
- Layer Supported 3
Power Description
- Power Source Power Supply
- Redundant Power Supply Supported Yes
Memory
- Flash Memory Installed: 4 GB
- RAM Installed: 2 GB
Features
- Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+),
- Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow,
- Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF),
- 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer,
- Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM),
- Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab,
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x,
- IEEE 802.1s, IEEE 802.3at
Protocols
- Networking Protocol: Gigabit Ethernet
- Networking Protocol: PoE+
- Remote Management Protocol: CLI
- Remote Management Protocol: RMON 1
- Remote Management Protocol: RMON 2
- Remote Management Protocol: SNMP 1
- Remote Management Protocol: SNMP 2c
- Remote Management Protocol: NETCONF
- Remote Management Protocol: SNMP 3
- Remote Management Protocol: RESTCONF
- Routing Protocol: EIGRP
- Routing Protocol: EIGRP for IPv6
- Routing Protocol: MSTP
- Routing Protocol: OSPF
- Routing Protocol: PIM-SM
- Routing Protocol: PIM-SSM
- Routing Protocol: Policy-based routing (PBR)
- Routing Protocol: RIP-1
- Routing Protocol: RIP-2
- Routing Protocol: RIPng
- Routing Protocol: VRRP
Environmental Parameters
- Humidity Range Operating: 5 – 90% (non-condensing)
- Min Storage Temperature: -40 °F
- Max Storage Temperature: 158 °F
- Humidity Range Storage: 5 – 90% (non-condensing)
In summary, the Cisco C9200L-24P-4G-E Catalyst 9200L Switch is a versatile and powerful networking device with features that make it suitable for a wide range of applications. Its support for Power Over Ethernet Plus (PoE+), high-speed data transfer, and Layer 3 routing capabilities make it an ideal choice for businesses, educational institutions, healthcare facilities, and the hospitality industry, among others.
When properly installed and configured, this switch can simplify network management, enhance connectivity, and accommodate the diverse needs of a modern network infrastructure. Its reliability, scalability, and efficient data routing capabilities make it a valuable asset in creating and maintaining robust network environments. Whether you’re building a new network or upgrading an existing one, the Cisco C9200L-24P-4G-E Catalyst 9200L Switch is a compelling solution to consider for your networking requirements.
