Description
Hardware Specifications of WAN Interface Card

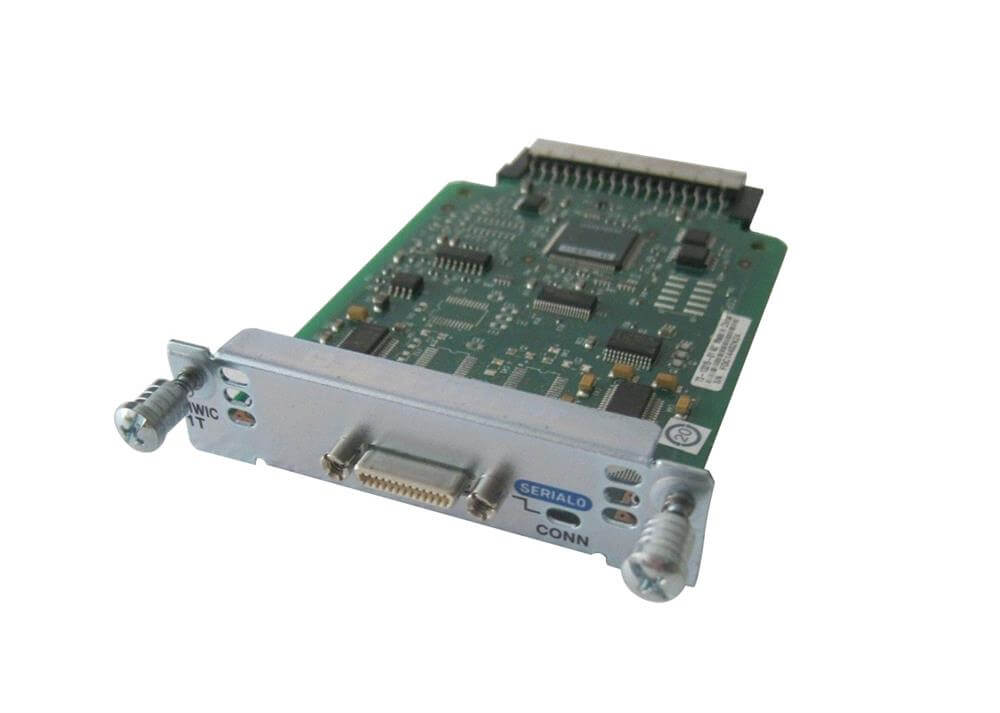

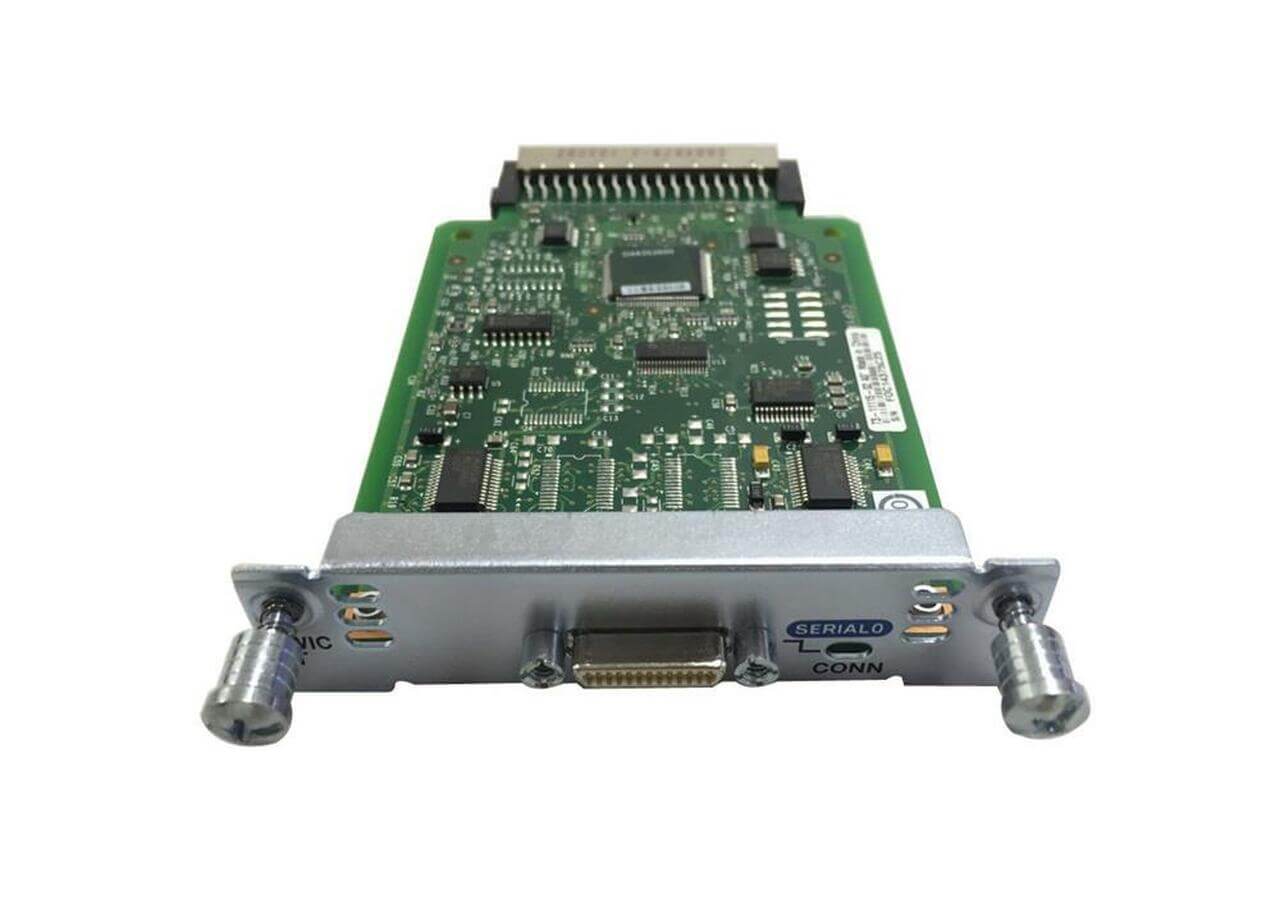

The HWIC-1T= Cisco 1 Ports Serial WAN Interface Card is a networking device that provides a serial interface for WAN connections. The hardware specifications of this device are as follows:
- Port(s): The HWIC-1T= WAN Interface Card has one serial port that supports asynchronous/synchronous data transfer at speeds up to 8 Mbps.
- Compatibility: The HWIC-1T= WAN Interface Card is compatible with Cisco 1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers.
- Dimensions: The HWIC-1T= WAN Interface Card has a height of 0.8 inches, a width of 3.1 inches, and a depth of 4.7 inches.
- Weight: The weight of the HWIC-1T= WAN Interface Card is 2.4 ounces.
- LED Indicators: The HWIC-1T= WAN Interface Card has LED indicators that display the status of the interface.
- Connector Type: The HWIC-1T= WAN Interface Card has a standard 60-pin High-Density D-Sub connector.
- Power Consumption: The HWIC-1T= WAN Interface Card consumes 1.25 watts of power.
- Temperature Range: The operating temperature range for the HWIC-1T= WAN Interface Card is 32°F to 104°F (0°C to 40°C).
- Humidity Range: The operating humidity range for the HWIC-1T= WAN Interface Card is 10% to 85% non-condensing.
- Regulatory Compliance: The HWIC-1T= WAN Interface Card complies with FCC Part 15, Class A, and EN55022 (CISPR22) Class A emission standards.
These hardware specifications make the HWIC-1T= WAN Interface Card a reliable and efficient device for serial WAN connections. The compact size and low power consumption of the device make it ideal for use in small to medium-sized networks. The LED indicators provide quick and easy status information, while the compatibility with various Cisco routers ensures seamless integration with existing network infrastructure.
Troubleshooting 1 Ports Serial WAN Access
The HWIC-1T= Cisco 1 Port Serial WAN Interface Card is a networking device that provides a serial connection for WAN access. If you are experiencing issues with your HWIC-1T= interface card, you can follow these troubleshooting steps to identify and fix the problem.
- Verify the physical connection: Make sure that the HWIC-1T= card is properly installed and connected to the appropriate WAN device. Check for any loose connections or damaged cables.
- Check the status of the HWIC-1T= card: Use the show interface command to check the status of the HWIC-1T interface. This will show you if the interface is up or down, and any errors or issues with the interface.
- Check the configuration of the HWIC-1T= card: Use the show running-config command to check the configuration of the HWIC-1T= card. Verify that the configuration is correct and matches the WAN device configuration.
- Check for errors in the log: Use the show logging command to check for any errors or warnings related to the HWIC-1T= card. Look for any messages related to the interface or the serial connection.
- Check for WAN device compatibility: Verify that the HWIC-1T= card is compatible with the WAN device you are connecting to. Check the documentation of the WAN device to ensure that it supports the HWIC-1T= card.
- Check for firmware and software updates: Check for any firmware or software updates for the HWIC-1T= card and the WAN device. Updating the firmware or software can often fix issues and improve performance.
- Test the serial connection: Use a loopback plug to test the serial connection. This will help you determine if the issue is with the HWIC-1T= card or the WAN device.
- Replace the HWIC-1T= card: If all else fails, consider replacing the HWIC-1T= card. It may be faulty or damaged and unable to function properly.
Remote Management and Monitoring Options
The HWIC-1T= is a 1-port serial WAN interface card produced by Cisco. It is designed to provide a reliable and efficient way of connecting serial devices to a network. Remote management and monitoring options for the HWIC-1T= are available to help network administrators to manage and monitor the card from a remote location.
Here are some remote management and monitoring options available for the HWIC-1T=:
- Cisco IOS command-line interface (CLI): The HWIC-1T= can be configured, managed, and monitored using the Cisco IOS CLI. This allows administrators to perform tasks such as configuring the card, viewing status information, and troubleshooting from a remote location.
- Simple Network Management Protocol (SNMP): The HWIC-1T= supports SNMP, which allows administrators to remotely monitor and manage the card using network management software such as Cisco Prime Infrastructure or other SNMP-based management systems.
- Cisco Configuration Professional (CCP): CCP is a graphical user interface (GUI) that provides an easy-to-use tool for configuring and managing the HWIC-1T=. It allows administrators to configure the card from a remote location using a web browser.
- Telnet and SSH: The HWIC-1T= can be accessed remotely using Telnet or SSH. This allows administrators to manage and configure the card from a remote location over a secure connection.
- Remote syslog: The HWIC-1T= can be configured to send syslog messages to a remote syslog server. This allows administrators to monitor the card for errors and alerts from a remote location.
- Embedded Event Manager (EEM): EEM is a powerful scripting tool that allows administrators to automate tasks and monitor events on the HWIC-1T=. This tool can be used to configure the card remotely and provide proactive alerts when issues occur.
In conclusion, the HWIC-1T= WAN interface card provides several remote management and monitoring options that allow network administrators to efficiently manage and troubleshoot the card from a remote location. The available options include Cisco IOS CLI, SNMP, CCP, Telnet and SSH, remote syslog, and EEM.
General Information
- Manufacturer: Cisco Systems, Inc
- MPN: HWIC-1T=
- Product Name: 1-Port Serial WAN Interface Card
- Product Type: HWIC
- SKU: HWIC-1T=
Technical Information
- Application/Usage: Wide Area Network
Interfaces / Ports
- Interfaces/Ports: 1 x Asynchronous/Synchronous Serial WAN
- Interfaces/Ports Details: 1 x Asynchronous/Synchronous Serial
Management & Protocols
- Management: SNMP
Weight & Dimension
- Height 0.8 Inch
- Width 3.1 Inch
- Depth 5.6 Inch
Miscellaneous
- Additional Information
- Synchronous maximum speed (per port): 8Mbps
- Asynchronous maximum speed (per port): 115.2 kbps
Compatibility
- Cisco 1841
- Cisco 2801
- Cisco 2811
- Cisco 2821
- Cisco 2851
- Cisco 3825
- Cisco 3845
