Description
More Information for the Cisco N55-D160L3-V2 2 Ports Expansion Module

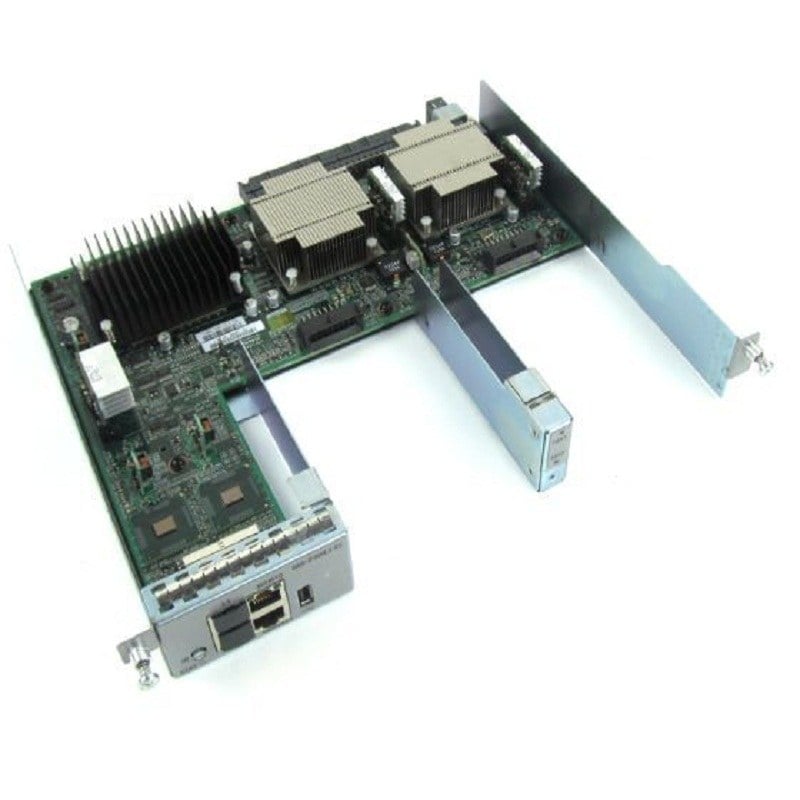

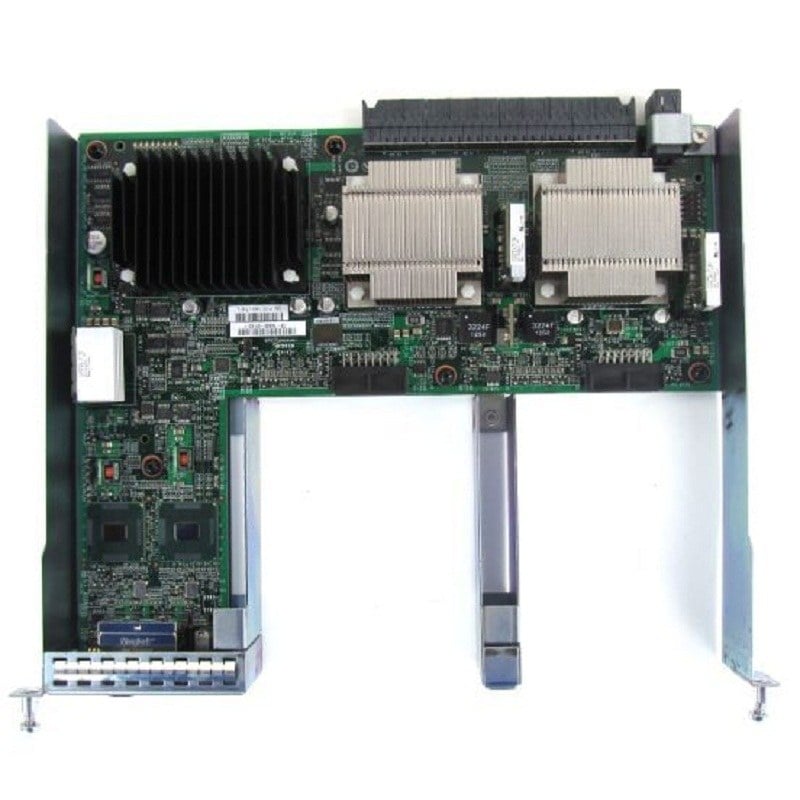

The Cisco N55-D160L3-V2 Nexus 5548 2 Ports Layer 3 2x RJ-45 Network Daughter Card Version 2 Expansion Module is a powerful and versatile networking solution designed to enhance the capabilities of the Cisco Nexus 5548 switch. In this comprehensive guide, we will delve into the various aspects of this expansion module, exploring its features, benefits, and how it contributes to the overall performance of a network infrastructure.
Overview of Cisco Nexus 5548 Switch
Before we dive into the specifics of the N55-D160L3-V2 expansion module, let’s provide a brief overview of the Cisco Nexus 5548 switch. The Nexus 5548 is a data center-class switch known for its high performance, scalability, and flexibility. It serves as a critical component in building modern and efficient network architectures.
The switch is designed to meet the demands of virtualized and cloud-based environments, making it suitable for a wide range of applications, from enterprise data centers to service provider networks.
Key Features
The N55-D160L3-V2 expansion module is a notable addition to the Cisco Nexus 5548 switch, bringing advanced Layer 3 capabilities and additional network connectivity options. Let’s explore its key features:
Ports and Connectivity
The expansion module provides two ports, facilitating Layer 3 connectivity.
Each port is equipped with RJ-45 connectors, a widely used standard for Ethernet networking.
Layer 3 Functionality
The inclusion of Layer 3 capabilities enables the switch to make routing decisions, adding intelligence to network traffic management.
Layer 3 functionality is essential for interconnecting different subnets and optimizing data flows within a network.
Network Daughter Card (NDC)
The module is categorized as a Network Daughter Card (NDC), emphasizing its role as an add-on component that expands the networking capabilities of the base switch.
NDCs are modular components designed to enhance the flexibility and adaptability of network devices.
Version 2 Upgrade
This is the second version of the N55-D160L3-V2 expansion module, indicating improvements and updates from its predecessor.
Version 2 likely includes enhancements in performance, security, and compatibility with the latest networking standards.
Use Cases
The N55-D160L3-V2 expansion module finds application in various scenarios where advanced Layer 3 capabilities and additional ports are required. Some prominent use cases include:
- Data Center Networking: In large data center environments, where virtualization and cloud technologies are prevalent, the N55-D160L3-V2 contributes to efficient network management and data traffic optimization.
- Enterprise Networks: Enterprises with complex networking needs benefit from the Layer 3 features, enabling better segmentation of their internal networks and improved routing capabilities.
- Service Provider Networks: Service providers can leverage the expansion module to offer advanced networking services to their customers, ensuring reliable and scalable connectivity.
Benefits of N55-D160L3-V2 Expansion Module
The integration of the N55-D160L3-V2 expansion module into a network infrastructure offers several benefits:
- Enhanced Routing Capabilities: With Layer 3 functionality, the expansion module enables the switch to make intelligent routing decisions, improving the efficiency of data transfers.
- Increased Network Flexibility: The addition of two Layer 3 ports provides more flexibility in designing and managing network topologies, accommodating diverse connectivity requirements.
- Improved Network Performance: The advanced features of the expansion module contribute to enhanced network performance, ensuring low latency and optimal data throughput.
- Scalability: The modular nature of the N55-D160L3-V2 allows for easy scalability, enabling organizations to expand their network capabilities as their needs evolve.
High Performance of Layer 3 Expansion Module
The Cisco Nexus N55-D160L3-V2 is a 2-port daughter card expansion module for the Cisco Nexus 5548P, 5548UP, 5596UP, and 5596T switches. It provides 2 ports of 40/100 GbE connectivity, which allows for high-bandwidth connections to servers and storage devices. The module supports both LAN (Local Area Network) and SAN (Storage Area Network) connectivity and is designed to improve the performance and scalability of data center networks.
The product supports Cisco’s Data Center Network Manager (DCNM) software, which provides advanced network management and monitoring capabilities. The module also supports Cisco’s Virtual Machine Fabric Extender (VM-FEX), which allows for efficient provisioning and management of virtual machines.
Exceptional Reliability
The Cisco Nexus N55-D160L3-V2 is a 2-port daughter card expansion module for the Cisco Nexus 5548UP switch. This module is designed to provide additional Ethernet ports for the switch, allowing for more network connections.
It is considered a reliable expansion module as it is built with the same high-quality standards as the rest of the Cisco Nexus product line. It is also designed to be fully compatible with the Nexus 5548UP switch and is supported by Cisco’s robust software and firmware ecosystem.
General Information about this Cisco N55-D160L3-V2
- Manufacturer: Cisco
- Part Number or SKU# N55-D160L3-V2
- Product Line: Nexus
- Product Series: Nexus 5548
- Product Name: Cisco Layer 3 Daughter Card
- Product Type: Expansion Module
Technical Specifications
- Number of Network Ports: 2
- Form Factor: Plug-in-Module
- Compatible Slots: 1 x Expansion Slot
- Construction: Original
- Device Type: Expansion Module

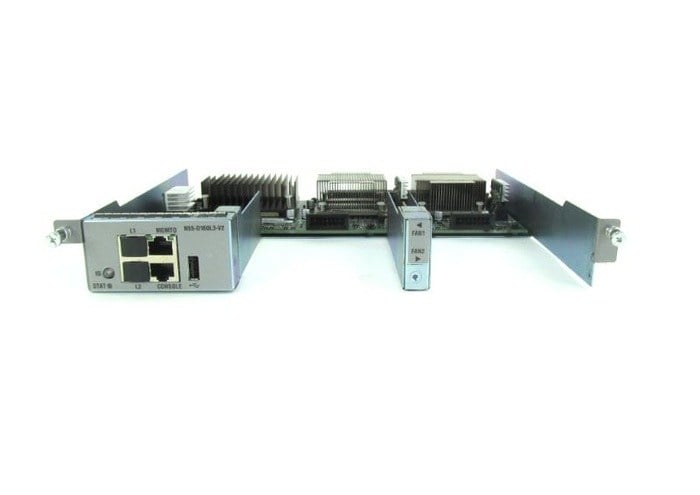

Interfaces/Ports of L3 Daughter Card
- Interfaces/Ports: 2 x LAN
- Interfaces/Ports Details: 2 x RJ-45 Network
- Interfaces/Ports Details: 1 x RJ-45 Console Management
- Interfaces/Ports Details: 1 x 4-pin Type A USB
- Interfaces/Ports Details: 1 x RJ-45 Network Management
Networking
- Connectivity Technology: Wired
- Performance Layer 3 Throughput: 160 Gbps
Expansion / Connectivity
- Interfaces: 2 x RJ-45, 1 x Management – RJ-45, 1 x Management – RJ-45, 1 x USB – 4 pin USB Type A
- Compatible Slots: 1 x Expansion Slot
Connectivity
- Compatible with Cisco Nexus 5548 Storage Solutions Bundle, 5548P, 5548UP, 5548UP Storage Solutions Bundle
In summary, the Cisco N55-D160L3-V2 Nexus 5548 2 Ports Layer 3 2x RJ-45 Network Daughter Card Version 2 Expansion Module is a valuable component that extends the capabilities of the Cisco Nexus 5548 switch. Its Layer 3 functionality, two RJ-45 ports, and modular design make it a versatile solution for various networking scenarios, from data centers to enterprise and service provider networks.
Understanding the key features, use cases, installation procedures, and benefits of this expansion module is crucial for network administrators and IT professionals seeking to optimize their infrastructure. As technology continues to evolve, having a reliable and adaptable networking solution like the N55-D160L3-V2 becomes increasingly essential for staying competitive and ensuring a robust and efficient network environment.
