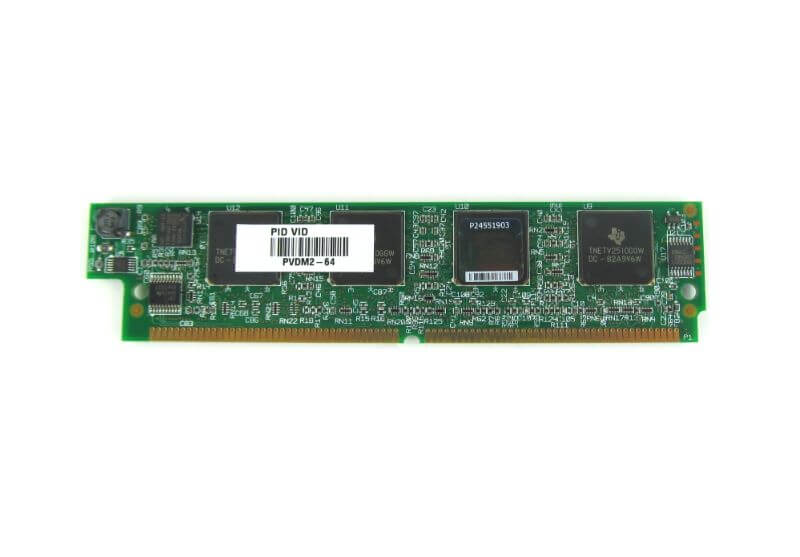

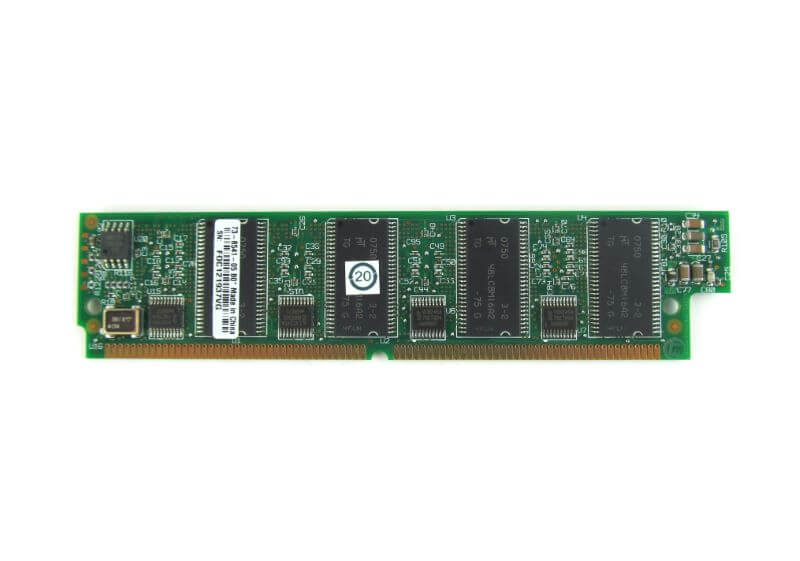

PVDM2-64 Cisco 64 Channel DSP Fax Module | Refurbished

Description

Product Overview for the Cisco PVDM2-64 Telephony Equipment Fax

The Cisco PVDM2-64 2800/3800 64-Channel Packet Fax/Voice DSP Module is a crucial component in Cisco’s networking solutions, designed to enhance the voice and fax capabilities of Cisco 2800 and 3800 series routers. In this comprehensive guide, we will delve into the key features, benefits, installation process, and use cases of this DSP module, shedding light on its significance in the realm of networking.

Understanding Cisco PVDM2-64

DSP, or Digital Signal Processor, modules play a pivotal role in handling voice and fax traffic in a network. The Cisco PVDM2-64 is specifically tailored for integration with Cisco 2800 and 3800 series routers, offering 64 channels for packet voice and fax support. This module is an integral part of Cisco’s commitment to providing robust and scalable solutions for communication needs.

Key Features

• 64-Channel Support: One of the standout features of the Cisco PVDM2-64 is its ability to support 64 channels, making it well-suited for handling a high volume of voice and fax traffic concurrently.
• Packet Voice Support: The module excels in supporting packet voice, ensuring the efficient transmission of voice data over IP networks. This is particularly crucial in modern communication systems that rely on IP technology.
• Fax Support: In addition to voice capabilities, the module is equipped to handle fax traffic, making it a versatile solution for businesses with diverse communication needs.
• Compatibility with 2800/3800 Series Routers: The Cisco PVDM2-64 is designed to seamlessly integrate with Cisco 2800 and 3800 series routers, ensuring optimal performance within the Cisco networking ecosystem.

Benefits of Cisco PVDM2-64

• Enhanced Communication Quality: By offloading voice and fax processing to dedicated DSP resources, the module contributes to improved communication quality. This is crucial for businesses that rely on clear and reliable voice communication.
• Scalability: The 64-channel support of the PVDM2-64 enables businesses to scale their communication infrastructure as their needs grow. This scalability is essential for accommodating the increasing demands of a growing organization.
• Resource Optimization: The module optimizes router resources by handling voice and fax processing independently. This segregation ensures that the router’s primary functions are not compromised, leading to a more efficient and responsive network.
• Cost-Effective Solution: Cisco PVDM2-64 provides a cost-effective solution for businesses seeking to enhance their voice and fax capabilities without the need for additional hardware or infrastructure investments. This makes it a viable choice for organizations with budget constraints.

Use Cases

The Cisco PVDM2-64 module finds application in various scenarios where efficient voice and fax communication are paramount. Here are some key use cases:

• Enterprise Telephony Systems: Businesses with large telephony systems can benefit from the PVDM2-64 module’s 64-channel support, ensuring that a high volume of concurrent voice calls can be handled seamlessly.
• Contact Centers: Contact centers, which often experience fluctuating call volumes, can leverage the scalability of the PVDM2-64 to meet their dynamic communication requirements.
• Unified Communications: In environments where integrated communication solutions are deployed, such as Cisco’s Unified Communications Manager, the PVDM2-64 contributes to the overall performance and quality of voice communication.
• Fax Server Integration: Organizations relying on fax communication can integrate the PVDM2-64 module to enhance the efficiency and reliability of fax transmissions over IP networks.

High Performance

The PVDM2-64 Cisco 64 Channel DSP Fax Module is a high-performing solution for fax over IP (FoIP) and voice over IP (VoIP) applications. The module provides 64 channels of DSP resources, allowing for simultaneous fax and voice calls on a single system.

One of the key features of the product is its support for T.38 fax relay, a standard protocol for real-time fax transmission over IP networks. This allows for high-quality fax transmission, even in low-bandwidth environments.

The module also supports G.711, G.726, and G.729 codecs for voice compression, ensuring clear and consistent voice quality. In addition, the PVDM2-64 is designed to work with Cisco’s CallManager and Unity Express, providing seamless integration and easy management.

Exceptional Reliability

The PVDM2-64 Cisco 64 Channel DSP Fax Module is considered to be a highly reliable solution for fax and voice-over IP (VoIP) applications. It is designed and manufactured by Cisco, a leading provider of networking equipment known for its high-quality products.

This module is compliant with industry standards and can be used with a variety of Cisco routers, ensuring compatibility with other networking equipment. It also has a built-in digital signal processing (DSP) feature, which allows for advanced fax and VoIP functions such as fax relay, fax pass-through, and modem relay.

Additionally, the part has a wide operating temperature range, making it suitable for use in a variety of environments. It also has a long-term warranty, providing added assurance of its reliability.

General Information about this Cisco PVDM2-64

• Manufacturer: Cisco
• Part Number or SKU# PVDM2-64
• Product Name: 64-channel Packet Fax/Voice DSP Module
• Product Type: Telephony

Technical Specifications for Cisco 64 Channel DSP Module

• Application/Usage: Voice
• Processor: 4 x Digital Signal Processor
• Product Description: Cisco Voice / Fax Module
• Device Type: Voice / Fax Module
• Enclosure Type: Plug-in Module
• Data Compression Protocol: G.711
• System Requirements: Cisco IOS 12.3(7)T

Environmental Conditions

• Operating Temperature: 32°F (0°C) to 104°F (40°C)
• Storage Temperature: -13°F (-25°C) to 158°F (70°C)
• Operating Humidity: 5% to 85% Non-condensing Relative Humidity
• Non-operating Humidity: 5% to 95% Non-condensing Relative Humidity

Miscellaneous Details

• Max Channels for High Complexity: 24
• Max Channels for Medium Complexity: 32
• Range of Channels for Flexi Complexity: 24 – 64
• High-complexity vocoders supported: G.711, G.726, G.729, G.723.1, G.728, GSM-EFR, and Fax Relay
• Medium-complexity vocoders supported: G.711, G.726, G.729a, GSM, and Fax Relay
• Flexi vocoders supported: G.711, G.726, G.729, G.723.1, G.728, and Fax Relay (number of channels depends on codec selected)

System Requirements for Supported Platforms

• IP Plus images and higher
• This module is used with the NM-HDV2 network module only

Supported Platforms and IOS Requirements

• 2600XM – 12.3(7)T
• 2691 – 12.3(7)T
• 3700 – 12.3(7)T

Memory Requirements for Supported Platforms

• 2600XM:
  • 64 MB DRAM
  • 32 MB Flash
• 2691:
  • 128 MB DRAM
  • 32 MB Flash
• 3700:
  • 128 MB DRAM
  • 32 MB Flash

Compatibility

• NM-HDV2
• NM-HDV2-1T1/E1

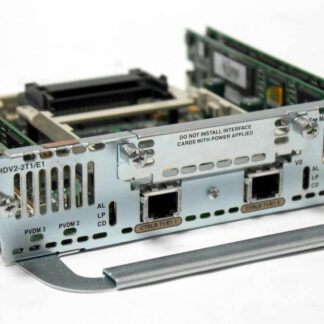

• NM-HDV2-2T1/E1

Outline, the Cisco PVDM2-64 2800/3800 64-Channel Packet Fax/Voice DSP Module stands as a testament to Cisco’s commitment to providing cutting-edge solutions for the evolving needs of modern networking. Its 64-channel support, compatibility with Cisco 2800 and 3800 series routers, and versatility in handling voice and fax traffic make it a valuable asset for businesses seeking to optimize their communication infrastructure. By understanding its key features, benefits, installation process, and use cases, network administrators can make informed decisions when integrating this DSP module into their Cisco-powered networks.
