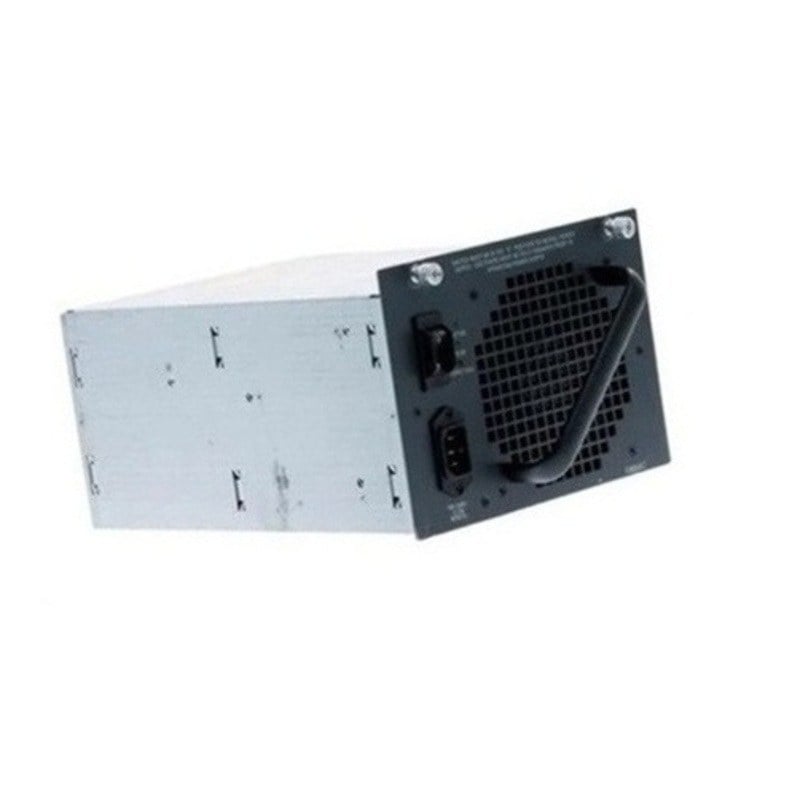

The PWR-C45-1300ACV is a Cisco Plug-in Module that plays a crucial role in powering network switches. Specifically, it is a 1300-watt switching Power Supply Unit (PSU) designed to deliver reliable and efficient power to Cisco Catalyst 4500 Series switches. In this comprehensive guide, we will delve into the key features, specifications, and functionalities of the PWR-C45-1300ACV, shedding light on its significance in network infrastructure.
Understanding Power Supply Modules
Before we dive into the specifics of the PWR-C45-1300ACV, let’s establish a foundational understanding of power supply modules in the context of networking equipment. Power supply modules are essential components within network devices that convert electrical power from a source into a format suitable for powering the internal components of the device. They play a pivotal role in ensuring the stable and continuous operation of networking equipment.
Key Features of PWR-C45-1300ACV
- Power Capacity (1300 Watts): The PWR-C45-1300ACV is designed with a power capacity of 1300 Watts, making it suitable for providing ample power to Cisco Catalyst 4500 Series switches. This high wattage capacity is essential for supporting the various components and modules within the switch, ensuring optimal performance.
- Switch Compatibility: This plug-in module is specifically tailored for compatibility with Cisco Catalyst 4500 Series switches. This targeted compatibility ensures seamless integration, optimal performance, and reliability when used in conjunction with the designated switch models.
- Switching Power Supply Technology: The PWR-C45-1300ACV utilizes switching power supply technology. Unlike traditional linear power supplies, switching power supplies are known for their efficiency and ability to regulate voltage with minimal energy loss. This technology contributes to reduced heat generation and overall energy efficiency.
- Hot Swappable: One notable feature of the PWR-C45-1300ACV is its hot-swappable capability. Hot-swappability allows for the replacement or removal of the power supply module without disrupting the operation of the connected switch. This feature enhances system reliability and facilitates maintenance activities without downtime.
Technical Specifications
To gain a deeper understanding of the PWR-C45-1300ACV, it’s essential to delve into its technical specifications, which provide insights into its capabilities and performance metrics.
- Input Voltage Range: The module supports a specified range of input voltages, ensuring flexibility in various power supply scenarios. Network administrators must be aware of this range to configure and optimize the power input.
- Output Voltage: Understanding the output voltage is pivotal in assessing the compatibility of the power supply with networking equipment. The 1300 watts of power are distributed across the output channels based on the specific voltage requirements of the connected devices.
- Efficiency Rating: The efficiency rating of the PWR-C45-1300ACV provides insights into how effectively it converts input power into usable output power. Higher efficiency ratings signify less energy wastage and, consequently, a more environmentally friendly and cost-effective solution.
- Form Factor: The physical dimensions and form factor of the module are crucial for determining its compatibility with the chassis or rack-mounted systems. Proper alignment and fitment ensure a seamless integration process.
- Temperature Range: Operating temperature range is a critical consideration for any networking equipment. The PWR-C45-1300ACV is engineered to operate within a specified temperature range, ensuring optimal performance in diverse environmental conditions.
Use Cases and Deployment Scenarios
Understanding how the PWR-C45-1300ACV fits into real-world networking scenarios is crucial for network architects and administrators. Let’s explore some common use cases and deployment scenarios for this Cisco plug-in module.
- Data Centers: In large-scale data center environments, where networking equipment operates around the clock, the PWR-C45-1300ACV can provide the necessary power to support high-performance switches, routers, and other critical networking infrastructure.
- Enterprise Networks: For enterprise-level networking setups, the module’s compatibility with Cisco devices makes it a suitable choice. Its hot-swappable design ensures minimal disruptions during maintenance or upgrades, catering to the reliability demands of enterprise networks.
- Telecommunication Infrastructure: Telecommunication networks require robust and reliable power solutions to ensure continuous connectivity. The PWR-C45-1300ACV’s high power output and efficiency make it well-suited for supporting the demanding requirements of telecommunication infrastructure.
- Network Edge Deployments: In scenarios where networking equipment is deployed at the network edge, such as in remote offices or branch locations, the PWR-C45-1300ACV can provide the necessary power in a compact and efficient form factor.
High-Performance
The PWR-C45-1300ACV is a high-performance power supply module that is designed to provide a stable and reliable source of power to Cisco routers and switches.
Some of the features that contribute to its high performance include:
- High output power: The power supply has a maximum output power of 1300 watts, which is capable of providing sufficient power to support the operation of high-performance Cisco routers and switches.
- High efficiency: The power supply is designed to be energy-efficient, which helps to reduce power consumption and minimize heat output. This can help to improve the overall performance of the device it is installed in by reducing the strain on the power supply and keeping internal temperatures low.
- Wide input voltage range: The power supply has a wide input voltage range, which means it can accept power from a variety of sources and can adapt to different levels of voltage. This can help to ensure that the device continues to operate even in the event of power fluctuations.
- Support for Power over Ethernet (PoE): The power supply supports PoE, which allows you to power your devices via Ethernet cables. This can be useful in cases where access to a power outlet is limited, and it can also reduce the number of cables and simplify the installation.
- Dual-redundant design: The power supply has a dual-redundant design, which means that it has two power supply units that can be used together or separately. This provides redundancy in case one of the power supply units fails, which can help to ensure that the device continues to operate in the event of a power supply failure.
General Information about this Cisco PWR-C45-1300ACV
- Manufacturer: Cisco
- Model Number or SKU# PWR-C45-1300ACV
- Product Type: Proprietary Power Supply
Power Description of Power Supply
- PSU Type: Switches Power Supply
- Input Voltage Type: AC
- Input Voltage Range: 240 V AC
- Output Voltage: 3.30 V
- Output Voltage: 12 V
- Output Voltage: -50 V
- Output Power: 1.30 kW
- Status Indicators: Good, Fail
Miscellaneous for AC Power Supply
- Integrated PoE: Up to 800W
- Output Power Redundant Mode (Data): 1000W + 40W
- Output Power Redundant Mode (PoE): 800W max per power supply
- Output Power Combined Mode (Data): 1667W
- Output Power Combined Mode (PoE): 1333W (max)
- Heat Dissipation: 1568 BTU/hour
AC-Input Voltage
- Low-line (120 VAC nominal): 85 VAC (min) to 132 VAC (max)
- High-line (230 VAC nominal): 170 VAC (min) to 264 VAC (max)
AC-Input Current
- 16 A @ 100 VAC
- 7 A @ 240 VAC
Power Supply Output Capacity
- 1300 W max
- 1050 W + 40 W redundant mode (data)
- 1667 W max in combined mode (data)
- 800 W max each in redundant mode (PoE)
- 1333 W max in combined mode (PoE)
Power Supply Output
- 84.7 A @ 12 V (data)
- 12.5 A @ 3.3 V (data)
- 16.7 A @ -50 V (PoE)
Compliant Standards
- FCC Class A certified, CSA, UL, CISPR 22 Class A, EN 60950, EN 61000-3-2, EN50082, EN55022, ICES-003, VCCI Class A ITE, EN 61000-3-3, EN55024
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 104 °F
- Min Storage Temperature: -40 °F
- Max Storage Temperature: 167 °F
- Humidity Range Operating: 10 – 90%
Compatibility
- Cisco Catalyst 4503
- Cisco Catalyst 4506
- Cisco Catalyst 4507R
In general, the PWR-C45-1300ACV Cisco Plug-in Module is a vital component in powering Cisco Catalyst 4500 Series switches. Its 1300 Watt Switching Power Supply Unit brings efficiency, reliability, and hot-swappable convenience to network infrastructure. Understanding its key features, specifications, installation procedures, and best practices for maintenance is essential for network administrators seeking to optimize the performance and reliability of their Cisco-powered networks. As technology continues to evolve, power supply modules like the PWR-C45-1300ACV play a crucial role in supporting the demands of modern network environments.
