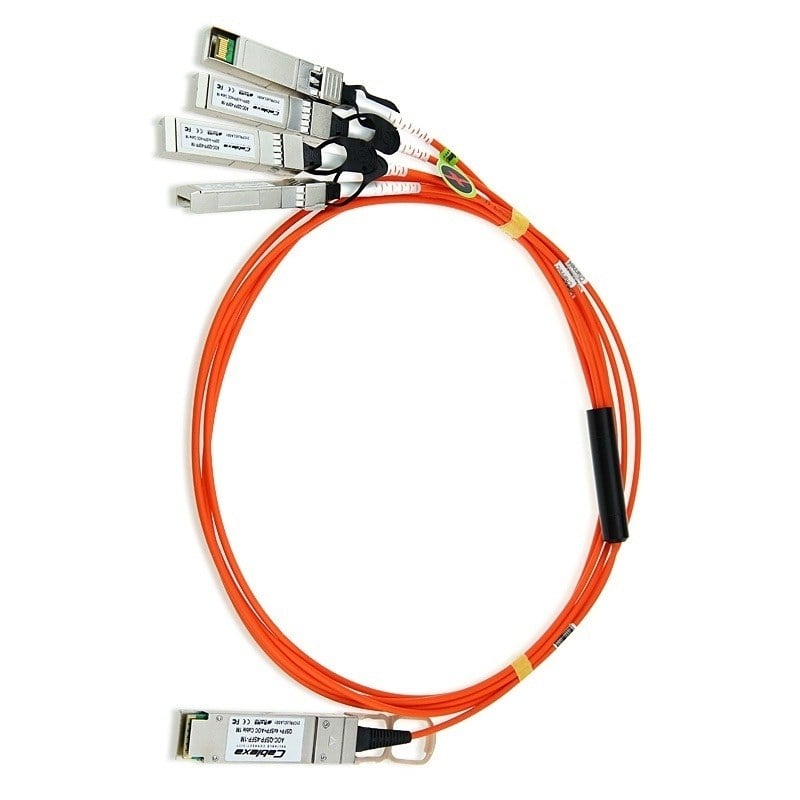

Understanding the Cisco 1 Meter Multi-Mode Fiber Active Optical Breakout Cable
In the world of networking and data transmission, the QSFP-4X10G-AOC1M is a crucial component that facilitates efficient communication over short distances. This guide aims to provide a comprehensive understanding of the QSFP-4X10G-AOC1M, a 1-meter Active Optical Breakout Cable that operates at 850 Nanometers (NM) wavelength and uses a Quad Small Form-factor Pluggable (QSFP) connector to break out into four Small Form-factor Pluggable (SFP+) connectors, specifically designed for Multi-Mode Fiber (MMF) applications.
Overview of QSFP-4X10G-AOC1M 1M Fiber Optic Network Cable
The QSFP-4X10G-AOC1M is a specialized optical cable designed for high-speed data transmission in networking environments. Let’s break down its key components and functionalities.
1x QSFP Connector
The “QSFP” in QSFP-4X10G-AOC1M stands for Quad Small Form-factor Pluggable. This connector type is known for its compact size and ability to transmit data at high speeds. The QSFP connector is widely used in data centers and high-performance computing environments.
4x SFP+ Connectors
The “4X10G” part of the model name indicates that this cable is capable of breaking out into four SFP+ connectors. SFP+ (Small Form-factor Pluggable Plus) connectors are commonly used for 10 Gigabit Ethernet and Fibre Channel applications. This breakout feature allows the cable to distribute data to multiple devices simultaneously.
Active Optical Cable (AOC)
The “AOC” in QSFP-4X10G-AOC1M signifies that this cable is an Active Optical Cable. Unlike passive cables, active cables have electronics built into the connectors, enabling signal regeneration for longer distances and better signal integrity. The use of AOC technology enhances the performance and reliability of the cable.
Multi-Mode Fiber (MMF)
The QSFP-4X10G-AOC1M is specifically designed for use with Multi-Mode Fiber (MMF). Multi-mode fiber is characterized by a larger core diameter, allowing multiple modes of light to propagate. MMF is ideal for short-distance transmissions, making it suitable for data centers and enterprise environments where high bandwidth over relatively short distances is required.
OM3 Multi-Mode Fiber (MMF) Technology
The QSFP-4X10G-AOC1M utilizes OM3 Multi-Mode Fiber (MMF) technology for efficient data transmission. OM3 fibers are designed to carry multiple light modes simultaneously, allowing for increased bandwidth and reliable performance over short to medium distances.
850 Nanometer (NM) Wavelength
The cable operates at a wavelength of 850 Nanometers. Wavelength is a crucial parameter in optical communication, as it determines the color of light used for transmission. In this case, the 850nm wavelength aligns with the optimal performance of Multi-Mode Fiber.
Applications and Use Cases
Understanding the specific applications and use cases for the QSFP-4X10G-AOC1M is essential for those considering its implementation in their network infrastructure.
Data Centers
In data center environments where high-speed, short-distance connections are essential, the QSFP-4X10G-AOC1M finds its primary application. Its ability to break out into multiple SFP+ connectors allows for efficient connectivity between servers, switches, and storage devices within the data center.
High-Performance Computing (HPC)
High-performance computing clusters often demand rapid data transfer between nodes. The QSFP-4X10G-AOC1M, with its active optical technology and multi-connector design, serves as a reliable solution for facilitating high-speed communication in HPC environments.
Enterprise Networks
Enterprise networks, especially those requiring quick and reliable connections between network components, can benefit from the QSFP-4X10G-AOC1M. Its design supports the demands of modern enterprise applications, ensuring seamless connectivity and data transmission.
Advantages of QSFP-4X10G-AOC1M
The QSFP-4X10G-AOC1M offers several advantages that contribute to its popularity in networking environments.
High Bandwidth
With support for 10 Gigabit Ethernet and the ability to break out into four separate connections, the QSFP-4X10G-AOC1M provides high bandwidth, making it suitable for data-intensive applications.
Plug-and-Play Convenience
The QSFP-4X10G-AOC1M is designed for ease of use. Its plug-and-play functionality simplifies the installation process, reducing downtime and ensuring a quick and hassle-free setup.
Active Optical Technology
The incorporation of active optical technology enhances signal integrity over longer distances, making it a reliable choice for applications where signal quality is paramount.
Multi-Mode Fiber Compatibility
Tailored for use with Multi-Mode Fiber, the QSFP-4X10G-AOC1M aligns with the needs of environments where short-distance, high-bandwidth communication is essential.
Features and Benefits
The QSFP-4X10G-AOC1M Cisco QSFP to 4 SFP+ Active Optical breakout Cable is designed for high-performance applications as it provides a high density of connections and high bandwidth capabilities.
First, the cable allows for a higher density of connections by converting a single QSFP+ port into four SFP+ ports. This means that more connections can be made in a given area, providing more flexibility and scalability in network connections.
Second, the cable supports speeds of up to 10 Gbps per SFP+ port, providing a total aggregate bandwidth of 40 Gbps. This high bandwidth capability allows for faster data transfer and reduced latency, making it well-suited for high-performance computing environments such as data centers where large amounts of data need to be quickly and efficiently transferred.
Third, the cable is an active optical cable which means that it uses optical signals for data transfer instead of electrical signals, this provides longer distance (up to 100m) and less power consumption which makes it ideal for data center environments.
Finally, the cable is hot-pluggable, meaning it can be inserted or removed while the device is still powered on. This allows for easy maintenance and upgrades, minimizing downtime and increasing the overall reliability of the network.
Reliability of Fiber Optic Cable
The QSFP-4X10G-AOC1M Cisco QSFP to 4 SFP+ Active Optical breakout Cable is designed to be highly reliable in a variety of network environments.
First, the cable uses active optical technology, which uses optical signals for data transfer instead of electrical signals. This provides a more stable and reliable signal over longer distances and in noisy environments, reducing the risk of signal loss or interference.
Second, the cable has a high bandwidth capability of up to 10 Gbps per SFP+ port, providing a total aggregate bandwidth of 40 Gbps. This allows for faster data transfer and reduces the risk of bottlenecks, which can cause delays and disruptions in network performance.
Third, the cable is hot-pluggable, meaning it can be inserted or removed while the device is still powered on. This allows for easy maintenance and upgrades, minimizing downtime and increasing the overall reliability of the network.
Fourthly, the cable is manufactured by Cisco which is a well-known brand in the networking industry known for their high-quality and reliable products.
General Information about the Cisco QSFP-4X10G-AOC1M 1 Meter Fiber Optic Cable
- Manufacturer: Cisco
- Part Number or SKU# QSFP-4X10G-AOC1M
- Product Type: Network Cable
Technical Information for Active Fiber Optical Breakout Cable
- Cable Type: Fiber Optic
- Cable Length: 3.28 ft (1Meter)
- Connector Type on First End: QSFP Network
- Connector on First End Details: 1 x QSFP Network
- Connector Type on Second End: SFP+ Network
- Connector on Second End Details: 4 x SFP+ Network
- Device Supported: Network Device
- Product Color: Beige
Performance of Breakout Cable
- Media Type: Multi-Mode Fiber (MMF)
- DAC Cable Type: OM3
- TX Wavelength: 850 nm
- RX Wavelength: 850 nm
- Transmitter Type: VSCEL Laser
- Receiver Type: PIN photodiode
- Maximum Distance: 1m
- Supported Data Rate: 2.125-41.2 GBPS
- DDM/DOM: Supported
Supported Applications
- 4 x InfiniBand QDR (32Gbps), 4 x InfiniBand DDR (16Gbps), 4 x InfiniBand SDR (8Gbps), 40G Ethernet (41.25Gbps), 10G Ethernet (10.31Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps)
Connectivity
- Connectivity Left Connector Type: QSFP
- Connectivity Right Connector Type: SFP+
- Right Connector Gender: Male
- Left Connector Gender: Male
- Connectivity Features: Breakout
- Cable Key Features: Active cable (signal regeneration)
Power Description
- Power: +3.3V single power supply
- Power Consumption: 1.5W
Reliability
- MTBF: 1 000 000 Hours
Compatibility Information
- Cisco Generic Expansion Module Cisco Catalyst 6800 Series Supervisor Engine 6T, 6800 Series Supervisor Engine 6T XL Cisco Nexus 2348TQ-E Fabric Extender, 3016Q, 3064-32T, 3064-E, 3064-T, 3064-X, 31108PC-V, 31108TC-V, 3132Q, 3132Q-V, 3132Q-X, 3132Q-XL, 3164Q, 3172PQ, 3172PQ-XL, 3172TQ, 3232C, 3264Q, 56128P, 56128P LAB, 56128P OSM PID, 5648Q, 5672UP, 5672UP-16G, 5696Q, 6001, 6001P, 6001T, 6004, 6004 24 x 40GE Ports/FCoE Bundle, 6004EF, 7000 F3-Series 12-Port 40 Gigabit Ethernet Module, 7000 M2-Series 6 Port 40 GbE with XL Option, 7700 F3-Series 24-Port 40 Gigabit Ethernet Module, 7700 M3-Series, 92160YC-X, 92304QC, 9236C, 9272Q, 93108TC-EX, 93108TC-FX, 93180LC-EX, 93180YC-EX, 93180YC-FX, 9332PQ, 9336C-FX2, 9372PX-E, LEM, X9432C-S, X9432PQ, X9536PQ, X9636PQ, X97160YC-EX, X9732C-EX, X9736C-FX Cisco ONE Nexus 31108PC-V, 3172PQ, 3172TQ, 3232C, 3264Q, 56128P, 5648Q, 5672UP-16G, 6001, 6004EF, 92160YC-X, 92304QC, 9236C, 9272Q, 93108TC-EX, 93108TC-FX, 93180LC-EX, 93180YC-EX, 93180YC-FX, 9332PQ Cisco UCS C4200 Rack Server Chassis
Finally, the QSFP-4X10G-AOC1M is a versatile and efficient solution for high-speed data transmission over short distances in networking environments. Its Quad Small Form-factor Pluggable design, active optical technology, and compatibility with Multi-Mode Fiber make it a reliable choice for data centers, high-performance computing, and enterprise networks.
Understanding its components, applications, advantages, and proper installation procedures is crucial for network administrators and IT professionals seeking to enhance their infrastructure with high-performance connectivity solutions. Regular maintenance and troubleshooting practices further contribute to the long-term reliability and effectiveness of the QSFP-4X10G-AOC1M in diverse networking scenarios.
