Product Overview of the Cisco Expansion Module
In the fast-paced world of networking, the demand for high-speed connectivity is ever-increasing. As businesses strive to enhance their data transfer capabilities and overall network performance, Cisco has been at the forefront, consistently delivering cutting-edge solutions. One such innovation is the Cisco SPA-1X10GE-L-V2 1 Port 10 Gigabit Expansion Module, a remarkable device designed to elevate networking experiences through its robust 10 Gigabit Ethernet capabilities.

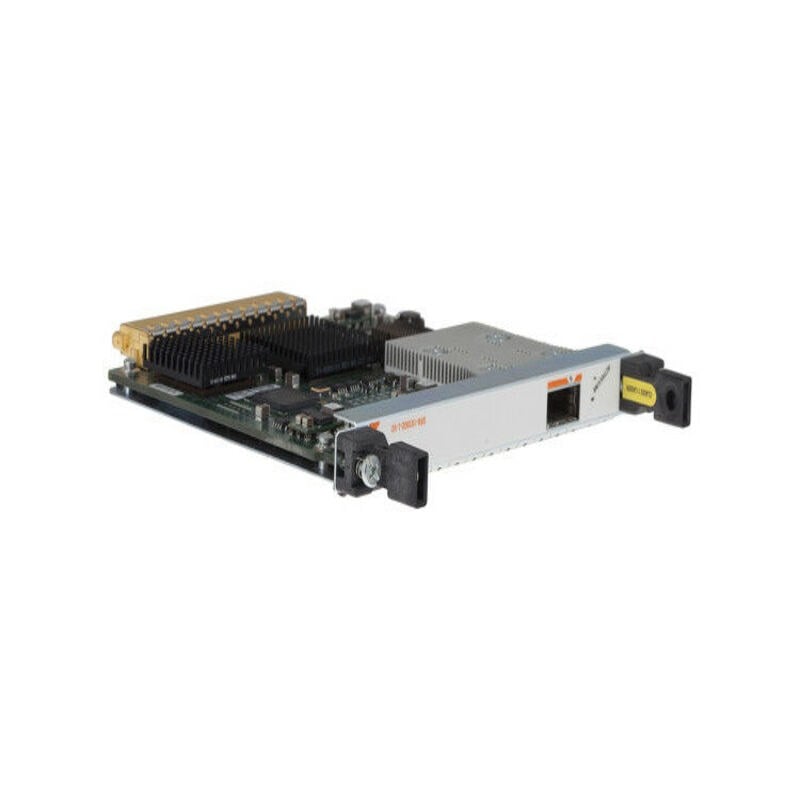

Introduction to Cisco SPA-1X10GE-L-V2
The Cisco SPA-1X10GE-L-V2 is a 1-Port Expansion Module that belongs to Cisco’s extensive portfolio of networking solutions. As a part of the SPA Interface Processors (SIPs) family, this module is engineered to meet the growing demands of high-speed data transfer in various networking environments.
Key FeaturesSingle Port Efficiency
The SPA-1X10GE-L-V2 is equipped with a single port, focusing on providing a dedicated and high-speed connection. This design ensures optimal performance for data-intensive applications and large-scale data transfers.
10 Gigabit Ethernet Standard
The module operates on the 10 Gigabit Ethernet standard, delivering ten times the speed of traditional Gigabit Ethernet. This ensures that data can be transmitted at unprecedented rates, meeting the requirements of modern, data-driven enterprises.
Versatile Compatibility
Cisco’s commitment to interoperability is evident in the SPA-1X10GE-L-V2. The module is compatible with a range of Cisco routing platforms, making it a versatile choice for businesses with diverse networking needs.
Hot Swappable Design
The hot-swappable nature of the module allows for convenient installation and replacement without disrupting the overall network operation. This feature enhances the module’s reliability and minimizes downtime during maintenance.
Understanding 10 Gigabit EthernetEvolution of Ethernet Standards
Ethernet, the foundational technology for local area networks (LANs), has undergone several advancements over the years to keep up with the escalating demand for speed and bandwidth. The evolution from traditional Ethernet to Gigabit Ethernet, and finally to 10 Gigabit Ethernet, represents a significant leap in networking capabilities.
Traditional Ethernet
The original Ethernet standard, established in the 1970s, operated at a speed of 10 megabits per second (Mbps). While revolutionary at the time, this speed quickly became insufficient as applications and data requirements grew.
Gigabit Ethernet
Gigabit Ethernet, introduced in the late 1990s, increased the speed to 1000 Mbps or 1 gigabit per second (Gbps). This advancement addressed the need for faster data transfer and became the standard for many years.
10 Gigabit Ethernet
With the rise of bandwidth-intensive applications, the industry adopted 10 Gigabit Ethernet, providing a further tenfold increase in speed to 10 Gbps. This standard is now prevalent in data centers, enterprise networks, and high-performance computing environments.
Benefits of 10 Gigabit EthernetEnhanced Performance
The primary advantage of 10 Gigabit Ethernet is its superior performance. It can handle larger volumes of data simultaneously, reducing latency and improving overall network efficiency.
Scalability
10 Gigabit Ethernet offers scalability, allowing businesses to expand their networks without sacrificing performance. This is crucial for accommodating the ever-growing data requirements of modern applications.
Support for Virtualization
Virtualization, a key technology in modern IT infrastructures, benefits significantly from the high bandwidth provided by 10 Gigabit Ethernet. It ensures the smooth operation of virtualized applications and services.
Future-Proofing
As technology continues to advance, future-proofing network infrastructure is essential. 10 Gigabit Ethernet provides a robust foundation for upcoming innovations, making it a wise investment for businesses looking to stay ahead.
Use Cases and Deployment Scenarios
Data Centers
In data center environments where massive amounts of data are processed and transferred, the Cisco SPA-1X10GE-L-V2 finds its place. It facilitates rapid data exchange between servers, storage systems, and other critical components.
Enterprise Networks
Large enterprises with extensive networking needs benefit from the module’s high-speed connectivity. Whether it’s supporting a multitude of devices or handling data-intensive tasks, the SPA-1X10GE-L-V2 ensures a seamless network experience.
High-Performance Computing (HPC)
High-performance computing relies on fast and reliable communication between nodes. The 10 Gigabit Ethernet capability of this Cisco module caters to the demanding requirements of HPC environments.
Service Provider Networks
Service providers dealing with a diverse range of clients and services appreciate the versatility of the SPA-1X10GE-L-V2. Its compatibility with various Cisco platforms makes it an asset in service provider networks.
General Information about the Cisco SPA-1X10GE-L-V2
- Manufacturer: Cisco
- Part Number or SKU# SPA-1X10GE-L-V2
- Product Type: Expansion Module
Technical Information for Expansion Module
- Application/Usage: Data Networking
- Total Number of Ports: 1 Port Module
Media & Performance of 1 Port Module
- Media Type Supported: Optical Fiber
- Fiber Mode Supported: Single-mode
Features and Functions for Ethernet Module
- Full-duplex operation
- 802.1Q VLAN termination
- 802.1ad QinQ termination (stacked VLAN processing)
- Jumbo frames support (9188 bytes)
- Support for command-line interface (CLI)-controlled online insertion and removal (OIR)
- 802.3x flow control
- Bridge protocol data unit (BPDU), Cisco Discovery Protocol, and VLAN Trunking Protocol (VTP) filtering
- Layer 2 Protocol (BPDU, Cisco Discovery Protocol, and VTP) Tunneling
- Layer 2 access-list (MAC address-based filtering)
- Up to 8000 VLANs per SPA with a limit of 4000 VLANs per port for 802.1q
- Up to 5000 MAC accounting entries per SPA
- Up to 2000 MAC address entries for destination MAC address filtering per SPA, and up to 1000 MAC address filtering entries per port
- Per-port byte and packet counters for policy drops, oversubscription drops, CRC error drops, packet sizes, and unicast, multicast, and broadcast packets
- Per-VLAN byte and packet counters for policy drops, oversubscription drops, and unicast, multicast, and broadcast packets
- Per-port byte counters for good bytes and dropped bytes
- Other software features supported: Ethernet over Multiprotocol Label Switching (EoMPLS), QoS, Hot Standby Router Protocol (HSRP), Virtual Router Redundancy Protocol (VRRP)
Environmental Specifications
- Storage temperature: -38 to 150°F (-40 to 70°C)
- Operating temperature, nominal: 32 to 104°F (0 to 40°C)
- Operating temperature, short term: 32 to 131°F (0 to 55°C)
- Storage relative humidity: 5 to 95% relative humidity
- Operating humidity, nominal: 5 to 85% relative humidity
- Operating humidity, short term: 5 to 90% relative humidity
- Operating altitude: -60 to 4000 meters
I/O Expansions of Ethernet Module
- Number of Total Expansion Slots: 1
- Expansion Slot Type: XFP
Management & Protocols
- Management:
- Host-system CLI
- Simple Network Management Protocol (SNMP)
- Inventory- and asset management-related MIBs
- Fault management MIBs
- Physical Interface Management MIBs
- Remote Monitoring (RMON)-MIB
- Cisco-class-based-QoS-MIB
- MPLS-related MIBs
- Ethernet MIB/RMON
Miscellaneous
- Compatibility: Cisco 7600 Series Router, Cisco 12000 Series Router, Cisco XR 12000 Series Router, Cisco CRS-1 Carrier Routing System
Compliance and Agency Approvals
- Safety
- UL 60950-1
- CSA C22 No. 60950-1
- EN 60950-1
- IEC 60950-1
- AS/NZS 60950
- EN 60825-1
- EN 60825-2
- 21 CRF 1040
- EMC
- CFR 47, FCC Part 15-Class A
- ICES 003-Class A
- CISPR 22 Class A
- EN 55022 Class A
- EN 300386 Class A
- AS/NZS Class A
- VCCI-Class B
- EN 50082-1
- EN 55024
- IEC/EN61000-4-2 Electrostatic Discharge Immunity (8-kV contact, 15-kV air)
- IEC/EN61000-4-3 Radiated Immunity (10 V/m)
- IEC/EN61000-4-4 Electrical Fast Transient Immunity (2-kV power, 1-kV signal)
- IEC/EN61000-4-5 Surge AC Port (4-kV CM, 2-kV DM)
- IEC/EN61000-4-5 Surge Signal Port (1-kV indoor, 2-kV outdoor)
- IEC/EN61000-4-5 Surge DC Port (1 kV)
- IEC/EN61000-4-6 Immunity to Conducted Disturbances (10 Vrms)
- IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m)
- IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations
- Telecom
- IEEE 802.3ae (10 Gigabit Ethernet interface SPA)
- Industry Standards
- The Cisco 1-Port 10-GE SPA is designed to meet the following requirements (some qualifications are currently in progress):
- SR-3580-Network Equipment Building Standards (NEBS): Criteria levels (Level 3 compliant)
- GR-63-CORE-NEBS: Physical protection
- GR-1089-CORE-NEBS EMC and safety
Finally, the Cisco SPA-1X10GE-L-V2 1 Port Expansion Module stands as a testament to Cisco’s commitment to providing cutting-edge networking solutions. With its 10 Gigabit Ethernet capabilities, single-port efficiency, and compatibility with various Cisco platforms, this module addresses the evolving needs of modern networking environments. Whether deployed in data centers, enterprise networks, high-performance computing environments, or service provider networks, the SPA-1X10GE-L-V2 excels in delivering high-speed and reliable connectivity. As businesses continue to embrace the era of digital transformation, Cisco remains a trusted partner, empowering them with the tools needed to navigate the demands of an interconnected world.
