Description
Product Overview of Cisco Catalyst 2960S-F24TS-S Switch

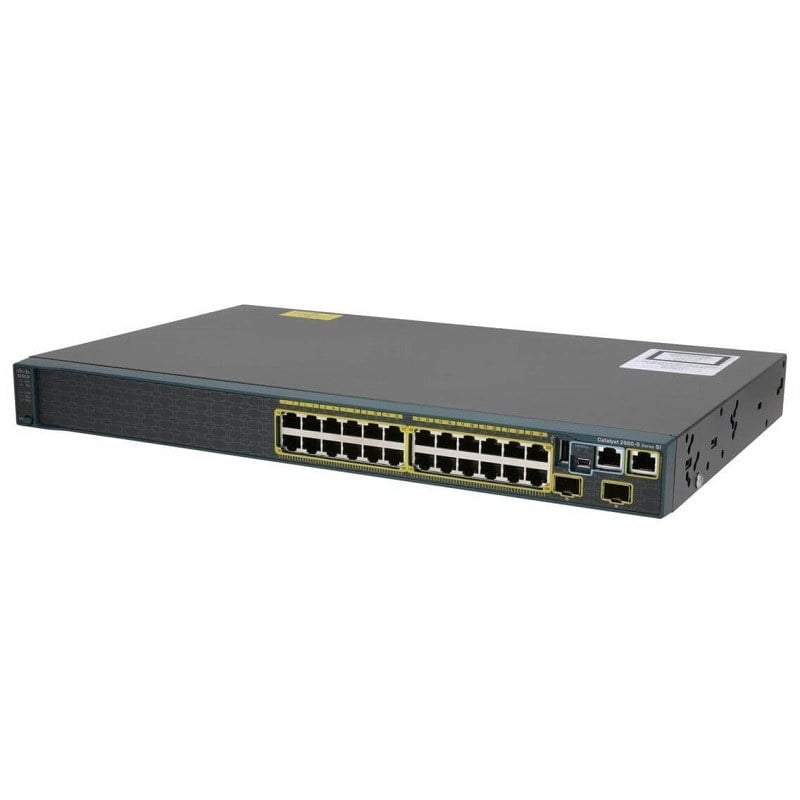

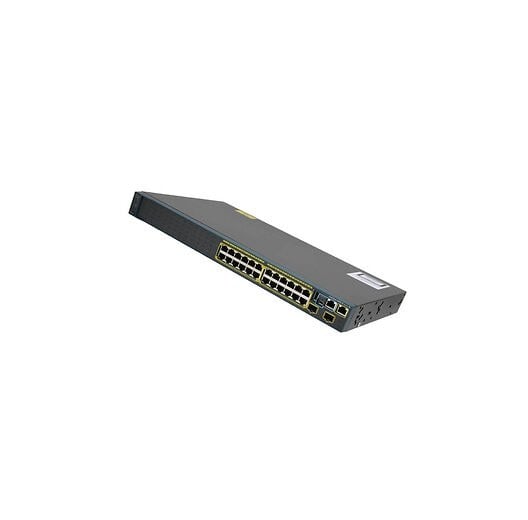

The Cisco WS-C2960S-F24TS-S Catalyst 2960S-F24TS-S is a type of network switch. It helps to connect devices in a computer network. This switch has 24 ports for connecting devices using Ethernet cables. It also has 2 Small Form-Factor Pluggable (SFP) ports. These ports are for connecting other types of network cables.
Understanding Network Switches
A network switch is like a traffic officer in a computer network. It directs data traffic between devices like computers, printers, and servers. The Cisco WS-C2960S-F24TS-S is a specific model of a network switch made by Cisco, a well-known company in the networking industry.
Features of Cisco WS-C2960S-F24TS-S Catalyst 2960S-F24TS-SPort Capacity
This switch has 24 ports. Ports are the places where devices connect to the switch. With 24 ports, it can connect up to 24 devices to the network.
Managed Switch
The Cisco WS-C2960S-F24TS-S is a managed switch. This means it can be controlled and configured to suit the needs of the network. Managed switches offer more flexibility and control over network traffic compared to unmanaged switches.
Layer Supported
This switch supports Layer 2 of the OSI model. The OSI model is a conceptual framework used to understand how networks operate. Layer 2 deals with data switching and data link layer functions.
Fast Ethernet
The switch supports Fast Ethernet technology. Fast Ethernet allows for faster data transfer speeds compared to older Ethernet standards. This is beneficial for networks that require high-speed data transfer.
Twisted Pair Ethernet Ports
The switch has Ethernet ports that use twisted pair cables for connectivity. Twisted pair cables are commonly used in Ethernet networks due to their reliability and cost-effectiveness.
Small Form-Factor Pluggable (SFP) Ports
In addition to the Ethernet ports, the Cisco WS-C2960S-F24TS-S has 2 Small Form-Factor Pluggable (SFP) ports. SFP ports allow for the connection of various types of networking cables, including fiber optic cables. This provides flexibility in network design and allows for longer-distance connections.
Common Uses of Cisco WS-C2960S-F24TS-S Catalyst 2960S-F24TS-SOffice Networking
This switch is commonly used in office environments to connect computers, printers, and other devices to the network. It provides a reliable and efficient way to manage network traffic within the office.
Data Centers
In larger-scale deployments, the Cisco WS-C2960S-F24TS-S can be used in data centers. Data centers require robust networking equipment to handle the high volume of data traffic generated by servers and storage systems. The managed capabilities of this switch make it suitable for such environments.
Educational Institutions
Educational institutions such as schools and universities often use switches like the Cisco WS-C2960S-F24TS-S to connect classrooms, labs, and administrative offices to the network. These switches help facilitate communication and collaboration among students, faculty, and staff.
Advantages of Using Cisco WS-C2960S-F24TS-S Catalyst 2960S-F24TS-SReliability
Cisco is known for producing reliable networking equipment, and the Cisco WS-C2960S-F24TS-S is no exception. It is built to withstand continuous use and provides stable connectivity for connected devices.
Scalability
With its 24 ports and support for managed configurations, the Cisco WS-C2960S-F24TS-S is scalable to accommodate growing network demands. Additional switches can be added and configured to expand the network as needed.
Security
Managed switches like the Cisco WS-C2960S-F24TS-S offer advanced security features to protect the network from unauthorized access and cyber threats. Features such as access control lists (ACLs) and VLAN support help enforce security policies within the network.
Performance
The Fast Ethernet support and Layer 2 capabilities of the Cisco WS-C2960S-F24TS-S ensure high performance for data transfer within the network. This is essential for applications that require low latency and fast response times.
Advanced Routing Capabilities
The WS-C2960S-F24TS-S Cisco Catalyst managed 24-port Ethernet switch supports a range of advanced routing capabilities, allowing it to be used in small to medium-sized networks. Some of the key advanced routing capabilities of the WS-C2960S-F24TS-S include:
- Routing Information Protocol (RIP) and Routing Information Protocol version 2 (RIPv2): The WS-C2960S-F24TS-S supports both RIP and RIPv2, which are distance-vector routing protocols that can be used to dynamically exchange routing information within a small network.
- Open Shortest Path First (OSPF) and OSPFv3: The WS-C2960S-F24TS-S supports both OSPF and OSPFv3, which are link-state routing protocols that are more efficient and scalable than distance-vector protocols. OSPFv3 is an IPv6 version of OSPF that can be used to support IPv6 addressing in the network.
- Border Gateway Protocol (BGP): The WS-C2960S-F24TS-S supports BGP, which is a routing protocol that is commonly used to connect multiple autonomous systems (AS) together. BGP is typically used in larger networks or in service provider environments.
- IPv4 and IPv6 Routing: The WS-C2960S-F24TS-S supports both IPv4 and IPv6 routing, allowing for the use of both IPv4 and IPv6 addresses in the network.
- Quality of Service (QoS): The WS-C2960S-F24TS-S also supports Quality of Service (QoS) which allows for the prioritization of different types of traffic, ensuring that critical applications have the bandwidth they need to function properly.
- Access Control Lists (ACLs): The WS-C2960S-F24TS-S supports standard and extended IP Access Control Lists (ACLs) that can be used to filter and control network traffic based on different parameters.
Access Control Lists (ACLs) for Security
Access Control Lists (ACLs) can be used to enhance the security of the WS-C2960S-F24TS-S Cisco Catalyst managed 24-port Ethernet switch. ACLs are used to control access to network resources by specifying which traffic is allowed or denied based on a set of predefined rules.
On the WS-C2960S-F24TS-S, ACLs can be applied to both inbound and outbound traffic on a specific port or VLAN. They can be used to filter traffic based on various criteria such as IP address, port number, and protocol. For example, an ACL can be used to block all incoming traffic from a specific IP address or range of addresses or to allow only certain types of traffic (e.g. HTTP or HTTPS) to pass through a specific port.
ACLs can also be used in conjunction with other security features such as port security and VLAN access control to provide a comprehensive security solution for the network.
The WS-C2960S-F24TS-S supports both standard and extended IP Access Control Lists (ACLs). Standard IP ACLs are applied on the basis of the source IP address of the packet only, while extended IP ACLs can be applied based on source and destination IP address, protocol, and port number. This allows for more granular control over network traffic and can help prevent unauthorized access to the network or specific resources.
Power Options and Redundancy
The WS-C2960S-F24TS-S Cisco Catalyst managed 24-port Ethernet switch provides several options for power and redundancy to ensure that the network remains up and running in the event of a power failure or other issues.
- Power Over Ethernet (PoE): The WS-C2960S-F24TS-S supports Power Over Ethernet (PoE), which allows the switch to provide power to connected devices over the Ethernet cable. This eliminates the need for separate power supplies and can help to reduce costs and improve the overall efficiency of the network.
- Redundant Power Supply: The WS-C2960S-F24TS-S supports a redundant power supply option, which ensures that the switch will continue to operate even if one of the power supplies fails. This helps to ensure that the network remains up and running in the event of a power failure.
- Link Aggregation Control Protocol (LACP): The WS-C2960S-F24TS-S supports Link Aggregation Control Protocol (LACP) which allows to bundling multiple physical links into one logical link, providing more bandwidth and redundancy.
- Spanning Tree Protocol (STP): The WS-C2960S-F24TS-S supports Spanning Tree Protocol (STP), which helps to prevent loops in the network by blocking redundant paths. This helps to ensure that the network remains stable and that traffic is delivered to its intended destination.
- Hot-swappable power supply: The WS-C2960S-F24TS-S also supports a hot-swappable power supply, which allows administrators to replace the power supply without shutting down the switch.
General Information about this Cisco WS-C2960S-F24TS-S
- Manufacturer: Cisco
- Model Number or SKU # WS-C2960S-F24TS-S
- Product Line: Catalyst
- Product Series: 2960-S
- Product Model: 2960S-F24TS-S
- Product Name: Catalyst 2960S-F24TS-S Switch
- Product Type: 24 Port Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports: 24
- Token Ring Port: No
- LRE Port: No
- Uplink Port: No
- Bypass: No
- Modular: No
- Management Port: No
- USB: Yes
- Stack Port: No
- Number of Network (RJ-45) Ports: 24
Media & Performance
- Media Type Supported: Twisted Pair
- Ethernet Technology: Fast Ethernet
- Network Technology: 10/100Base-TX
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: SFP
- Shared SFP Slot: No
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: No
In general, the Cisco WS-C2960S-F24TS-S Catalyst 2960S-F24TS-S is a versatile and reliable network switch suitable for various applications, from small office networks to large-scale data centers. With its robust features and scalability, it provides a solid foundation for building and managing modern computer networks. Whether used in businesses, educational institutions, or other organizations, this switch helps to ensure efficient and secure connectivity for connected devices.
