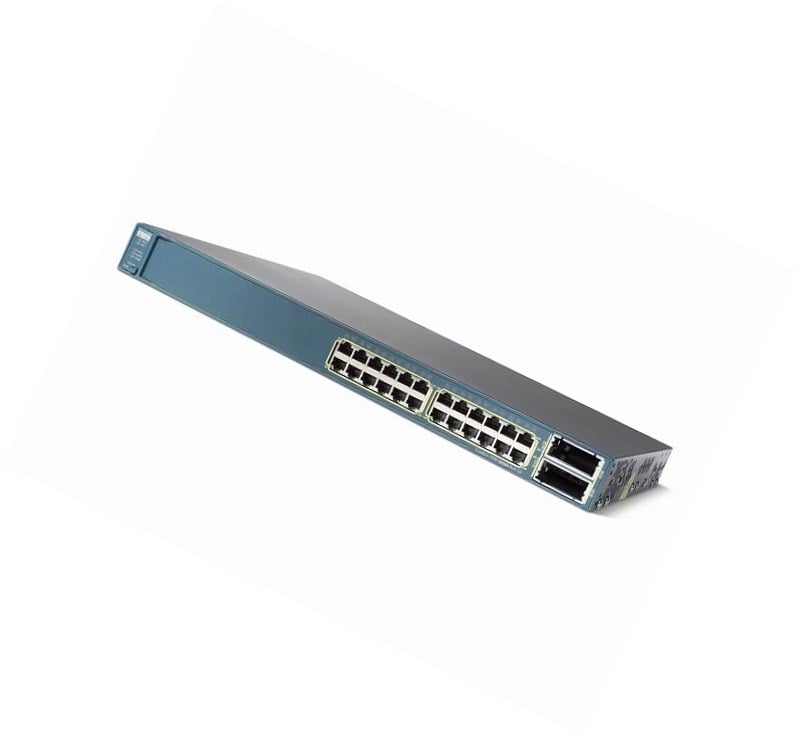

The WS-C3560E-24PD-S Cisco Catalyst 3560-E 24-Ports Multi-Layer Ethernet Switch is a high-performance, stackable switch that provides advanced security, quality of service (QoS), and energy efficiency capabilities for enterprise-class access and distribution deployments.
This switch has 24 Gigabit Ethernet ports and 4 SFP uplink ports, providing a high-speed connection for a wide variety of devices and applications. It also features advanced security features such as Access Control Lists (ACLs), Network Admission Control (NAC), and Cisco Identity Services Engine (ISE) support to protect against unauthorized access and network threats.
The switch also supports advanced QoS features, such as Class-Based Weighted Fair Queuing (CBWFQ) and Weighted Random Early Detection (WRED), which ensure that critical traffic is given priority and that network congestion is managed effectively. Additionally, the switch is Energy Efficient Ethernet (EEE) compliant, which helps to reduce power consumption and lower operating costs.
The model also supports Cisco StackWise Plus technology, allowing it to be stacked with other Cisco Catalyst 3560-E switches to create a single, logical unit with increased capacity and scalability. This makes it an ideal solution for large networks with high bandwidth and high-density requirements.
Hardware Features24 Ports for Network Connectivity
With 24 ports available, the WS-C3560E-24PD-S offers extensive network connectivity options. These ports enable the connection of various devices, such as computers, printers, and other networking equipment, providing a reliable and scalable network foundation.
Power Over Ethernet (PoE) Capability
One standout feature of this switch is its Power Over Ethernet (PoE) support. PoE allows the switch to deliver both data and electrical power over Ethernet cables to connected devices, such as IP cameras, VoIP phones, and wireless access points. This simplifies cabling infrastructure and provides flexibility in device placement.
Managed Switch CapabilitiesAdvanced Network Management
As a managed switch, the WS-C3560E-24PD-S offers advanced network management capabilities. Administrators can configure and monitor the switch, implement security protocols, and optimize network settings. This level of control is essential for tailoring the network to specific business requirements.
Layer 3 Routing Support
The switch supports Layer 3 routing, enabling it to make intelligent decisions based on IP addresses. This routing capability enhances network efficiency by allowing the switch to make forwarding decisions at the network layer, contributing to optimized data traffic flow.
Network PerformanceMulti-Layer Ethernet Support
The switch supports multi-layer Ethernet, ensuring efficient data transfer across different network layers. This capability is crucial for handling diverse network traffic types and ensuring seamless communication between devices.
PoE Benefits and ApplicationsSimplified Deployment of IP Devices
The PoE capability of the WS-C3560E-24PD-S simplifies the deployment of various IP devices. Instead of relying on separate power sources, devices can receive power over the same Ethernet cables used for data transfer. This is particularly advantageous in scenarios where power outlets are limited or difficult to access.
Ideal for IP Cameras and VoIP Phones
Businesses leveraging IP-based surveillance systems benefit from the PoE support as it eliminates the need for separate power sources for IP cameras. Similarly, VoIP (Voice over Internet Protocol) phones can be conveniently powered through the Ethernet cable, streamlining installation and reducing cable clutter.
Security FeaturesAccess Control Lists (ACLs)
To enhance network security, the switch supports Access Control Lists (ACLs). ACLs allow administrators to define rules for controlling traffic based on criteria such as source or destination IP addresses. This granular control helps in preventing unauthorized access and securing sensitive data.
Security with IEEE 802.1X
The implementation of IEEE 802.1X adds an extra layer of security by requiring authentication before allowing devices to connect to the network. This protocol ensures that only authorized devices gain access, mitigating the risk of unauthorized network access.
Use CasesBusiness and Enterprise Networks
The WS-C3560E-24PD-S is well-suited for businesses and enterprises requiring a robust and manageable network infrastructure. Its ample port count, PoE support, and advanced management features make it an ideal choice for creating and maintaining efficient networks in diverse business environments.
IP-Based Surveillance Systems
The PoE capability makes this switch particularly suitable for IP-based surveillance systems. It simplifies the deployment of security cameras by providing both power and data connectivity over a single Ethernet cable, facilitating flexible camera placement.
VoIP Phone Deployments
In environments where VoIP communication systems are in use, the WS-C3560E-24PD-S shines. The switch’s PoE support streamlines the deployment of VoIP phones, eliminating the need for separate power sources and contributing to a clean and organized cabling infrastructure.
Compliant Standards of Switch Module
This item is a Cisco Catalyst 3560E series switch. It has 24 Ethernet ports and supports Layer 3 switching, which allows for routing and forwarding of data at the network layer of the OSI model.
In terms of compliant standards, the WS-C3560E-24PD-S supports many industry standards, including:
- IEEE 802.3: for Ethernet
- IEEE 802.3u: for Fast Ethernet
- IEEE 802.3ab: for Gigabit Ethernet
- IEEE 802.3z: for Gigabit Ethernet over fiber
- IEEE 802.3x: for flow control
- IEEE 802.1D: for Spanning Tree Protocol (STP)
- IEEE 802.1w: for Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s: for Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.1Q: for VLAN tagging
- IEEE 802.1p: for priority tagging
- IEEE 802.3ad: for Link Aggregation Control Protocol (LACP)
- IEEE 802.1X: for authentication
This switch also supports Cisco EnergyWise technology which helps in managing and reducing energy consumption.
Power and Innovation of Ethernet Switch
The WS-C3560E-24PD-S Cisco Catalyst 3560-E 24-Ports Multi-Layer Ethernet Switch is a powerful and innovative network device that offers a wide range of features to help organizations optimize their networks and improve efficiency.
Power:
- The switch supports Power over Ethernet (PoE) which allows for power and data to be sent to devices over a single Ethernet cable. This can be useful for powering devices such as wireless access points, security cameras, and IP phones.
- The switch also has a high power budget of 715W which allows it to support a large number of PoE devices.
- The switch also offers high-performance switching capabilities with a data rate of up to 95Mpps (million packets per second) which allows for fast and efficient data transfer.
Innovation:
- The switch supports multi-layer switching which means it can handle both layer 2 and layer 3 data. This allows for more advanced network configurations and improved traffic management.
- The switch also supports advanced security features such as Access Control Lists (ACLs) and Quality of Service (QoS) which can help organizations protect their networks from threats and prioritize critical network traffic.
- The switch also supports Energy Efficient Ethernet (EEE) which can help organizations reduce their energy consumption by putting the switch into a low-power mode when it is not in use.
General Information about this Cisco WS-C3560E-24PD-S
- Manufacturer: Cisco
- Model Number or SKU# WS-C3560E-24PD-S
- Product Line: Catalyst
- Product Series: 3560-E
- Product Model: 3560E-24PD-S
- Product Name: Catalyst 3560-E 24-Port Multi-Layer Ethernet Switch with PoE
- Product Type: Layer 3 Switch
Interfaces/Ports
- Total Number of Network Ports: 24
- Number of Network (RJ-45) Ports: 24
Performance
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: X2
Network & Communication
- Layer Supported: 4
Miscellaneous
- Additional Information: IP Base software feature set (IPB)
In summary, the Cisco WS-C3560E-24PD-S Catalyst 3560E Series Switch is a versatile and powerful networking solution, offering a combination of extensive connectivity, advanced features, and Power Over Ethernet capabilities. Its Layer 3 support makes it suitable for complex network setups, while the PoE feature simplifies the deployment of various IP devices. Whether deployed in enterprise networks, surveillance systems, or educational institutions, this switch addresses the diverse requirements of modern networking scenarios.
