Description
Overview of the Catalyst WS-C4506-E Switch Chassis
The Catalyst WS-C4506-E is a type of Ethernet switch made by Cisco. This switch is designed to help computer networks function smoothly. It has features like Power over Ethernet (PoE) and the ability to handle different types of network cables, including optical fiber. In this description, we’ll explore the features and benefits of the WS-C4506-E switch in detail.
Understanding the WS-C4506-E 6 Slots Manageable Switch Chassis
The WS-C4506-E switch is a device used in computer networks. It’s called a “Catalyst” switch because it’s made by Cisco, a company famous for its networking products. This switch is designed to be installed in a rack, which is a frame that holds several electronic devices together.
Key Features of the WS-C4506-E Switch
- Expansion Slots: The WS-C4506-E has six expansion slots. These slots allow you to add more features or connectivity options to the switch. For example, you could add extra ports for connecting more devices to the network.
- 10/100/1000Base-T Ports: These ports on the switch support different speeds of Ethernet connections. The numbers 10, 100, and 1000 refer to the speed of the connection in megabits per second (Mbps). This means the switch can support devices that require different speeds of internet connection.
- Layer 3 Functionality: The WS-C4506-E switch operates at Layer 3 of the OSI model. This means it can make decisions based on IP addresses, allowing for more intelligent routing of network traffic. Layer 3 switches are essential for large networks with multiple subnets.
- Power over Ethernet (PoE): One of the standout features of the WS-C4506-E switch is its PoE capability. This means it can deliver power to connected devices, such as IP phones, wireless access points, and security cameras, over the same Ethernet cable used for data transmission. This simplifies installation and reduces the need for additional power outlets.
- Optical Fiber Support: In addition to traditional copper Ethernet cables, the WS-C4506-E switch also supports optical fiber connections. Optical fiber cables use light to transmit data, allowing for faster and more reliable connections over longer distances compared to copper cables.
- Rack-Mountable Design: The WS-C4506-E switch is designed to be mounted in a standard equipment rack. This allows for easy installation and organization of network equipment in a data center or network closet.
- Manageability: Cisco switches are known for their advanced management features. The WS-C4506-E switch can be configured and monitored remotely using management protocols such as SNMP (Simple Network Management Protocol) or through a web-based interface.
Applications of the WS-C4506-E Switch Chassis
- Enterprise Networks: The WS-C4506-E switch is well-suited for use in large enterprise networks. Its robust feature set and scalability make it capable of handling the demands of modern business environments.
- IP Telephony: With its PoE capability, the WS-C4506-E switch is ideal for powering IP phones in a VoIP (Voice over IP) deployment. This simplifies the cabling infrastructure and reduces costs associated with separate power sources for each phone.
- Wireless Networks: Wireless access points often require power and data connectivity. The WS-C4506-E switch can provide both, making it a key component of wireless network deployments.
- Surveillance Systems: Security cameras can be connected directly to the WS-C4506-E switch using PoE, eliminating the need for separate power sources at each camera location. This simplifies installation and reduces costs in surveillance system deployments.
Advanced Security Features
The WS-C4506E-S7L+96V+ is a Cisco Catalyst switch that supports advanced security features. These features include:
- Access control: The switch can be configured to control access to the network based on user credentials, IP addresses, and other attributes.
- Network segmentation: The switch can be configured to separate different parts of the network into different broadcast domains, reducing the risk of security threats spreading across the network.
- VLANs: The switch supports Virtual LANs (VLANs), which allow you to segment a single physical network into multiple virtual networks, providing a level of security and isolation between different parts of the network.
- Port security: The switch supports port security, which allows you to restrict the number of MAC addresses that can be learned on a given switch port, protecting unauthorized access.
- Spanning Tree Protocol (STP): The switch supports STP, which helps prevent loops in the network by ensuring that there is only one active path between any two network nodes.
- IEEE 802.1X authentication: The switch supports 802.1X authentication, which provides a secure method for user authentication and access control to the network.
- DHCP snooping: The switch supports DHCP snooping, which helps protect against rogue DHCP servers on the network by verifying the DHCP messages sent on the network.
- ARP inspection: The switch supports ARP inspection, which helps protect against ARP spoofing attacks by verifying ARP messages on the network.
These features provide a comprehensive security solution for the network, helping to protect against security threats and unauthorized access to the network.
High Availability and Redundancy Options
The WS-C4506E-S7L+96V+ is a Cisco Catalyst switch that provides a range of high availability and redundancy options to help ensure the reliability and availability of the network. Some of these options include:
- Link Aggregation Control Protocol (LACP): The switch supports LACP, which allows administrators to bundle multiple physical links together to form a single logical link, providing redundancy and increased bandwidth.
- Spanning Tree Protocol (STP): The switch supports STP, which helps prevent loops in the network by ensuring that there is only one active path between any two network nodes.
- Hot Standby Router Protocol (HSRP): The switch supports HSRP, which allows administrators to configure a group of routers to work together to present the appearance of a single virtual IP address, providing redundancy for default gateway services.
- Virtual Router Redundancy Protocol (VRRP): The switch supports VRRP, which allows administrators to configure a group of routers to work together to present the appearance of a single virtual IP address, providing redundancy for default gateway services.
- Redundant Power Supply (RPS): The switch supports RPS, which allows administrators to connect an external power supply to the switch, providing a redundant power source in case of a power failure.
- Non-Stop Forwarding (NSF)/Non-Stop Routing (NSR): The switch supports NSF/NSR, which allows the switch to continue forwarding packets even during a routing switchover, providing fast convergence and avoiding disruption to network traffic.
These features provide a robust solution for ensuring the reliability and availability of the network, helping to prevent downtime and maintain network performance. With these features, administrators can design a network that can recover quickly from failures, ensuring that business-critical applications and services remain available.
Benefits of Using the Catalyst Switch Chassis
- Scalability: The WS-C4506E-S7L+96V+ Catalyst Switch’s modular design allows for easy expansion as the network grows, ensuring scalability to accommodate evolving business needs.
- Performance: With high-speed Ethernet ports and Layer 3 routing capabilities, this switch delivers optimal performance for demanding network applications and workloads.
- Cost-Effectiveness: By consolidating network connectivity and power delivery into a single device, the WS-C4506E-S7L+96V+ Catalyst Switch helps reduce infrastructure costs and simplifies network management.
- Flexibility: The switch’s support for various Ethernet speeds and connectivity options offers flexibility in designing and deploying network infrastructures tailored to specific requirements.
- Reliability: Cisco’s reputation for reliability and quality assurance ensures that the WS-C4506E-S7L+96V+ Catalyst Switch delivers dependable network connectivity and uptime for critical business operations.
General Information about the Cisco WS-C4506E-S7L+96V+ Catalyst Chassis
- Manufacturer: Cisco
- Part Number or SKU# WS-C4506E-S7L+96V+
- Product Line: Catalyst
- Product Series: 4500E
- Product Model: 4506-E

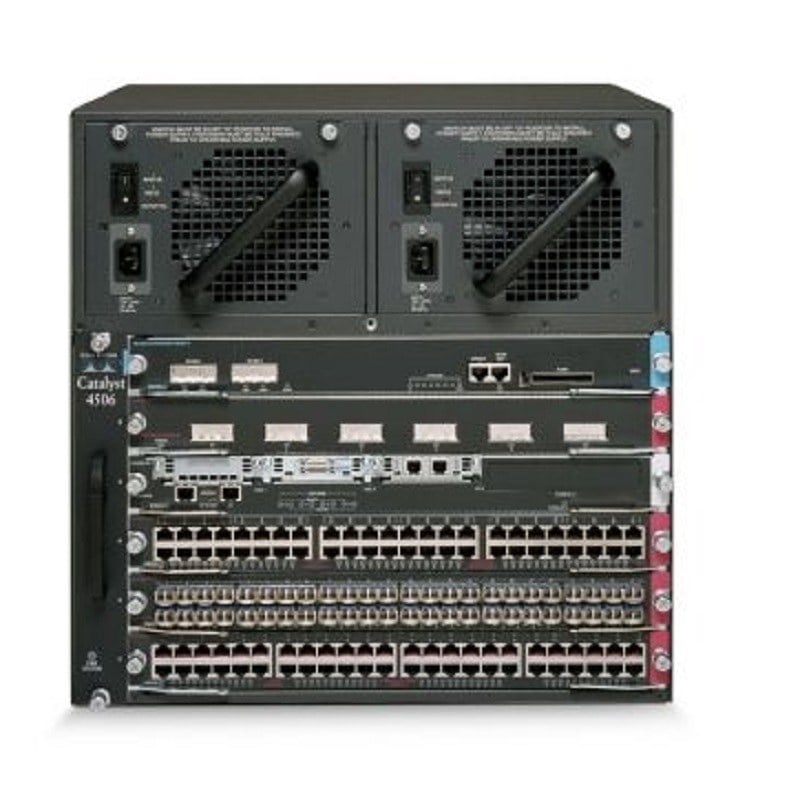

- Product Name: Catalyst WS-C4506-E Chassis
- Product Type: Switch Chassis
Performance of Manageable Switch Chassis
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
I/O Expansions
- Number of Total Expansion Slots: 6
- Expansion Slot Type: Supervisor Engine
- Expansion Slot Type: Line Card
Network & Communication
- Layer Supported: 3
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- Power Source: Power Supply
Finally, the Catalyst WS-C4506-E switch offers a robust set of features designed to meet the needs of modern computer networks. With its expansion slots, support for different types of network connections, PoE capability, and advanced management features, it’s a versatile solution for a variety of applications, from enterprise networks to IP telephony and surveillance systems. If you’re looking for a reliable and scalable Ethernet switch for your organization, the WS-C4506-E is worth considering.
