Description

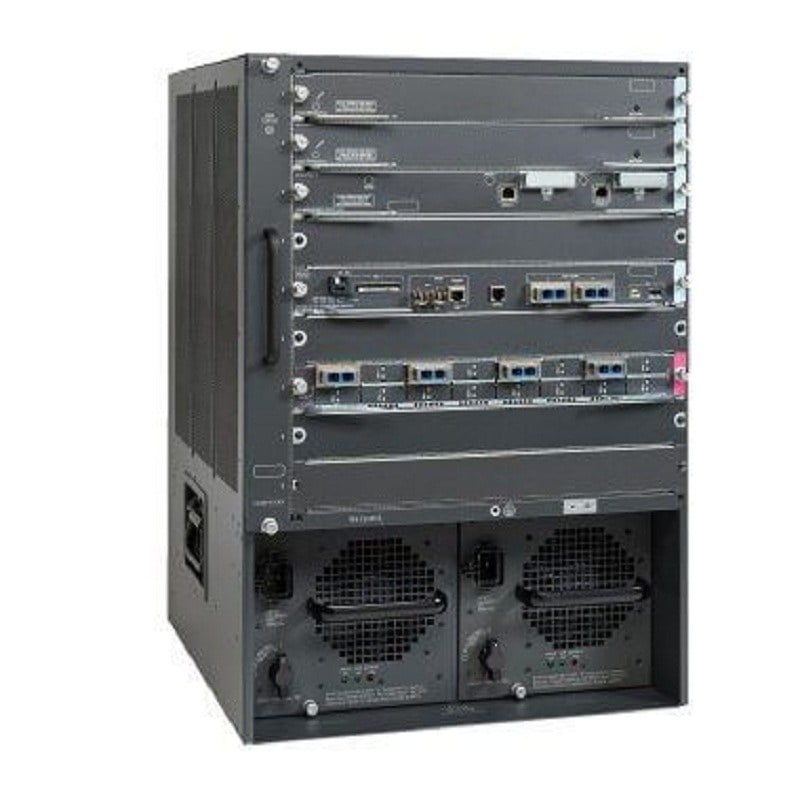

Product Overview of the Cisco WS-C6509-E Catalyst 6500
The WS-C6509-E is a type of networking hardware known as a chassis, specifically designed as the Catalyst 6500 Enhanced 9-slot chassis. This device is used to house various modules and components essential for building and managing networks.
Understanding the Basics
- Chassis: A chassis is like the skeleton or frame of a device, in this case, the Catalyst 6500. It provides a structure where different modules and parts can be inserted.
- 9-slot chassis: This indicates that the Catalyst 6500 has nine slots available for inserting different modules. These slots are spaces where you can add various components like line cards, supervisor engines, or other network modules.
- 15RU: The 15RU refers to the height of the chassis. RU stands for Rack Units, a measurement used in the networking industry to describe the height of equipment that fits into standard server racks.
Features of WS-C6509-E Catalyst 6500
- Enhanced Version: The “Enhanced” version signifies that this model may have upgraded features or improvements compared to its predecessor.
- No PS (Power Supply): This indicates that the chassis doesn’t come with a built-in power supply. The power supply module needs to be separately acquired and installed.
- No Fan Tray: Similarly, this chassis doesn’t include a fan tray for cooling. A separate fan tray module might be needed to maintain optimal operating temperatures.
Application and Usage
The WS-C6509-E Catalyst 6500 is widely used in large-scale networking environments like data centers, enterprises, or service provider networks. Its versatility in accommodating various modules makes it suitable for different networking needs.
Importance of WS-C6509-E Catalyst 6500
- Scalability: With nine available slots, it offers scalability, allowing users to expand and customize their network setups according to their requirements.
- Reliability: Known for its reliability, the Catalyst 6500 series is often preferred for critical networking operations due to its robust design and performance.
Considerations before Implementation
- Power Supply: As the chassis doesn’t come with a power supply, ensuring compatibility and acquiring the appropriate power supply module is crucial before installation.
- Cooling System: Without a fan tray, it’s essential to plan for proper ventilation and cooling to prevent overheating of the components.
Compatibility and Expansion Options
The WS-C6509-E Catalyst 6500 is compatible with various modules such as supervisor engines, interface modules, and other line cards that can enhance its functionality. This flexibility allows users to expand their networks based on evolving needs.
Detail Specifications
- This item Cisco Catalyst 6509 Network Switch Chassis is a high-performance switch designed for use in data centers and other large enterprise networks. It is a modular switch that supports up to 9 slots for line cards and interface modules, providing businesses with a high degree of flexibility and scalability.
- This model supports a wide range of protocols, including IPv4 and IPv6, making it easy to integrate with a variety of networks and devices. It also supports advanced features such as Quality of Service (QoS), Virtual LANs (VLANs), and Link Aggregation Control Protocol (LACP), allowing businesses to prioritize network traffic and create virtual networks.
- The switch is also designed to be highly reliable, with redundant power supplies and fans, which provide failover protection in the event of a hardware failure. It also supports the Cisco IOS Software, which provides a wide range of features, including advanced security and network management capabilities.
- In terms of security, this product supports advanced security features such as Cisco’s TrustSec, which provides end-to-end security and access control, and Cisco’s Security Group Access, which allows businesses to create security groups and assign different levels of access to different users.
- In summary, this item Cisco Catalyst 6509 Network Switch Chassis is a high-performance switch that is designed for use in data centers and other large enterprise networks. It is a modular switch that supports up to 9 slots for line cards and interface modules, providing businesses with a high degree of flexibility and scalability. The switch supports a wide range of protocols, and advanced features such as Quality of Service (QoS), Virtual LANs (VLANs), and Link Aggregation Control Protocol (LACP), and it is highly reliable with redundant power supplies and fans. It also supports advanced security features such as Cisco’s TrustSec, and Cisco’s Security Group Access, allowing businesses to create security groups and assign different levels of access to different users. This switch can be an ideal solution for large organizations that require a high degree of scalability and security in their network infrastructure.
Redundancy and Reliability
- Redundant Components: The chassis supports the use of redundant power supplies and fan trays for enhanced reliability.
- Hot-Swappable Modules: Many of the line cards and modules are hot-swappable, meaning they can be replaced without interrupting network operation.
Use Cases
Let’s explore some real-world use cases to understand how the Cisco WS-C6509-E can be applied in different scenarios.
Data Center Deployment
In a data center, the Cisco WS-C6509-E can serve as the core networking device. With its high-performance capabilities, scalability, and support for redundancy, it’s well-suited to handle the requirements of modern data centers. It can efficiently manage the flow of data between servers, storage systems, and other networking equipment, ensuring seamless operation of mission-critical applications.
Large Enterprise Networks
Large enterprises with extensive network infrastructures can benefit from the scalability of the WS-C6509-E. It can function as the central switch, connecting various departments, offices, and remote locations. Its compatibility with a wide range of line cards and modules allows for customization to meet the specific needs of the organization.
Service Provider Networks
Service providers often require high-speed interfaces and the ability to handle a large number of subscribers. The Cisco WS-C6509-E’s support for Gigabit Ethernet and 10 Gigabit Ethernet, along with its scalability, makes it an excellent choice for service provider networks. It can efficiently manage the traffic generated by numerous subscribers and deliver reliable services.
Campus Networks
Large educational institutions, government agencies, and corporations with sprawling campuses rely on robust networking solutions. The WS-C6509-E can be deployed as the core switch in campus networks, connecting various buildings and departments. Its high switching capacity and support for redundancy ensure network reliability and uptime.
Performance and Throughput Capabilities
- The WS-C6509-E Cisco Catalyst 6500 Enhanced 9-slot Chassis is a high-performance modular switch that is designed for enterprise-class deployment. It is built on the Cisco Catalyst 6500 series platform, which is known for its reliability, scalability, and high-performance capabilities.
- One of the main features of this product is its high-performance switching capabilities. It supports data rates of up to 480Gbps, providing businesses with fast and reliable connectivity for mission-critical applications. Additionally, it supports a wide range of Layer 2 and Layer 3 protocols, such as VLANs, Spanning Tree, OSPF, and BGP, which allows businesses to segment and manage their networks effectively.
- This product also supports advanced security features, such as Cisco’s IOS Firewall, which provides stateful firewall protection for all traffic passing through the switch. It also supports Cisco’s VPN technology, which allows businesses to encrypt data transmissions and protect sensitive information. Additionally, it supports various network access control protocols such as 802.1X and MAC filtering, which can help secure networks from unauthorized access.
- In terms of scalability, this product is designed to be highly scalable, with support for up to 9 line cards and 4 power supplies, which can be easily added or removed as needed. This allows businesses to expand their networks as they grow, making it easy to adapt to changing business needs.
- In conclusion, this product Cisco Catalyst 6500 Enhanced 9-slot Chassis is a high-performance modular switch that is designed for enterprise-class deployment. It supports data rates of up to 480Gbps, a wide range of Layer 2 and Layer 3 protocols, and advanced security features such as Cisco’s IOS Firewall and VPN technology. It also supports various network access control protocols, it is highly scalable and it’s built on the Cisco Catalyst 6500 series platform known for its reliability, scalability, and high-performance capabilities, making it a great solution for businesses that need a robust and secure network infrastructure.
Key Features and Benefits
This product Cisco Catalyst 6500 Enhanced 9-slot Chassis is a high-performance network switching platform that offers a range of features and benefits for businesses. Some of the key features and benefits include:
- High-density switching: This model supports up to 9 slot configurations, providing businesses with a high-density switching solution that can handle large amounts of data traffic.
- High-performance switching: This product supports data rates of up to 800Gbps, making it suitable for high-performance networks.
- Modularity: This product is designed to be highly modular, with a range of modules and cards available to support different types of network traffic, such as LAN, WAN, and data center traffic.
- Reliability: The WS-C6509-E is designed to be highly reliable, with features such as redundant power supplies and cooling systems to help ensure that the network remains up and running even in the event of hardware failures.
- Scalability: This item is designed to be highly scalable, allowing businesses to expand their networks as they grow, making it easy to adapt to changing business needs.
- Security: This product supports a range of advanced security features, such as Cisco’s IOS Firewall and VPN technology, which provide robust protection for the network against unauthorized access and data breaches.
- Energy efficiency: This model is designed to be energy-efficient, with features such as EnergyWise technology which allows businesses to monitor and manage energy consumption, reducing energy costs and protecting the environment.
- Compatibility: This item is designed to be compatible with other Cisco networking products, making it easy to integrate with existing Cisco networks.
General Information about this Cisco WS-C6509-E
- Manufacturer: Cisco
- Part Number or SKU# WS-C6509-E
- Product Line: Catalyst
- Product Series: 6500
- Type: Networking
- Product Type: Switch Chassis
Key Features of Catalyst 6500 Switch
- Interface: 6509-E Switch Chassis
- Form Factor: Rack-mountable
- Power Over Ethernet (PoE): No
Environmental Parameters of Switch Chassis
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 104 °F
- Humidity Range Operating: 10 – 90% (non-condensing)
- Min Storage Temperature: -4 °F
- Max Storage Temperature: 149 °F
I/O Expansions of 9-slot Chassis
- Number of Total Expansion Slots: 9
Network & Communication
- Layer Supported: 3
Compatibility
- Cisco Catalyst 6500 Series Supervisor Engine 32
- Cisco Catalyst 6500 Series Supervisor Engine 720-3B
- Cisco Catalyst 6500 Series Supervisor Engine 720-3BXL
- Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3C
- Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3CXL
- Cisco Catalyst 6500 Series Supervisor Engine 2T
In summary, the Cisco WS-C6509-E is a dependable and flexible networking solution that empowers organizations to build and maintain high-performance, reliable, and scalable networks. Its technical specifications and benefits make it a valuable asset for those seeking to meet the evolving needs of their networking infrastructure.
The Cisco WS-C6509-E Catalyst 6500 Enhanced Layer 3 9-Slot Chassis is a robust and versatile networking solution suitable for a wide range of applications. Its scalability, high-performance capabilities, redundancy support, and compatibility with various line cards and modules make it an excellent choice for data centers, large enterprises, service providers, and campus networks.
When considering the deployment of the WS-C6509-E in your network, it’s crucial to carefully plan and configure the hardware and software components to ensure optimal performance and reliability. With the right setup, this chassis can serve as the backbone of your network infrastructure, meeting the demands of modern networking environments.
