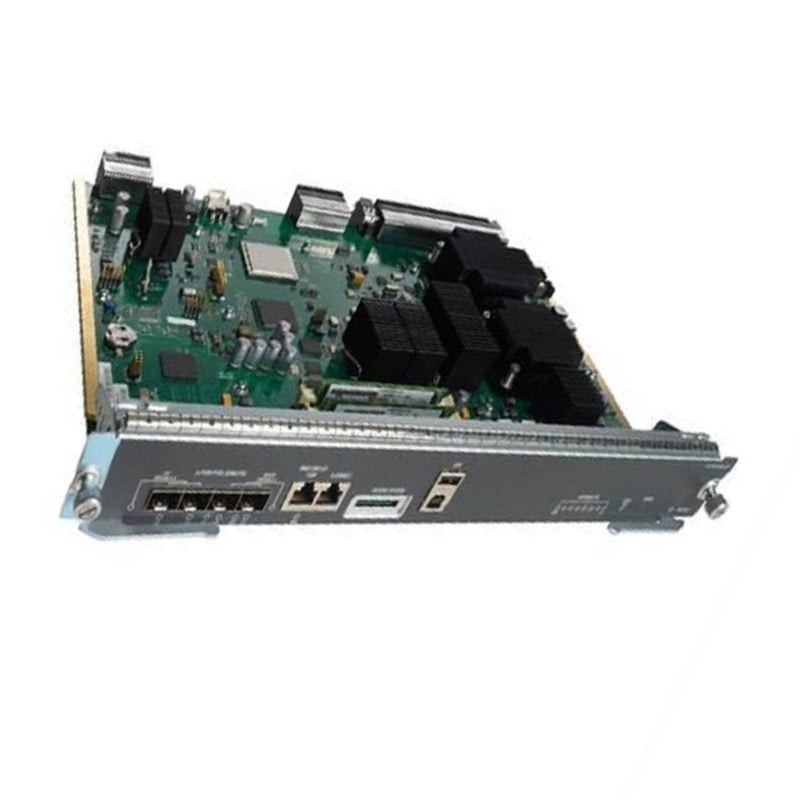

Product Overview of the Cisco WS-X45-SUP7L-E= Access Control
Cisco WS-X45-SUP7L-E= is a powerful network supervisor engine designed to enhance the performance and manageability of Cisco switches. This module provides advanced features, including 4 Ports Small Form-Factor Pluggable Plus (SFP+), 10/100/1000Base-T, and Asynchronous Console RS-232 Management. In this detailed exploration, we will delve into the key features, technical specifications, benefits, and common use cases of the Cisco WS-X45-SUP7L-E=.
Key FeaturesSmall Form-Factor Pluggable Plus (SFP+)
The Cisco WS-X45-SUP7L-E= comes equipped with 4 Ports Small Form-Factor Pluggable Plus (SFP+), offering high-speed connectivity. SFP+ modules enable the flexibility to use various optical and copper transceivers, allowing for versatile network configurations.
10/100/1000Base-T
With support for 10/100/1000Base-T, this supervisor engine facilitates seamless integration into networks with different data transfer rates. This feature ensures compatibility with various network environments, making it suitable for diverse deployment scenarios.
Asynchronous Console RS-232 Management
The Asynchronous Console RS-232 Management capability provides a reliable method for configuring and managing the supervisor engine. This ensures efficient control and monitoring of the network, enhancing overall system administration.
Supervisor Engine 7L-E Control Processor
The WS-X45-SUP7L-E= is powered by the Supervisor Engine 7L-E control processor, delivering robust processing capabilities. This processor is designed to handle the demands of modern networking tasks, ensuring efficient and responsive network operations.
BenefitsEnhanced Performance
The integration of Supervisor Engine 7L-E ensures superior processing power, contributing to enhanced overall network performance. This is crucial for handling the increasing demands of modern networking environments.
Versatility in Connectivity
The inclusion of 4 Ports SFP+ and 10/100/1000Base-T ports provides versatility in connectivity options. This flexibility allows organizations to adapt their network infrastructure to meet specific requirements.
Efficient Management
The Asynchronous Console RS-232 Management interface simplifies configuration and monitoring tasks. Network administrators can efficiently manage the supervisor engine, contributing to streamlined network administration.
Common Use CasesEnterprise Networking
The Cisco WS-X45-SUP7L-E= is well-suited for enterprise networking environments where high performance and reliability are paramount. Its versatile connectivity options make it adaptable to the diverse needs of large-scale networks.
Data Centers
In data center deployments, the WS-X45-SUP7L-E= excels in handling the substantial data transfer requirements. Its robust processing capabilities and high-speed ports make it a valuable component in data center networking infrastructure.
Network Upgrades
Organizations looking to upgrade their existing Cisco switches can benefit from the WS-X45-SUP7L-E=. Its advanced features provide a future-proof solution, ensuring compatibility with evolving network technologies.
Network Security & Access Control
The WS-X45-SUP7L-E= Cisco 4 Ports Supervisor Module provides advanced network security and access control features to help secure enterprise networks. Some of the key security features include:
- Port security: The module allows administrators to configure port-level security features such as MAC address locking and DHCP snooping, which prevent unauthorized access to the network.
- 802.1X authentication: The module supports 802.1X authentication, allowing administrators to authenticate users and devices before granting them access to the network.
- Access control lists (ACLs): The module supports ACLs, which allow administrators to define access control policies and enforce security policies at the network edge.
- Dynamic Host Configuration Protocol (DHCP) snooping: The module supports DHCP snooping, which helps prevent DHCP server spoofing attacks.
- Virtual LANs (VLANs): The module supports VLANs, which allow administrators to segment their networks into separate virtual networks for improved security and network management.
- Spanning Tree Protocol (STP) security: The module supports STP security features such as BPDU Guard and Root Guard, which help prevent unauthorized switches from being connected to the network.
- Cryptographic protocols: The module supports cryptographic protocols such as IPSec, SSL, and TLS, which provide secure communication between network devices.
General Information About this Cisco WS-X45-SUP7L-E=
- Manufacturer: Cisco
- Model Number or SKU# WS-X45-SUP7L-E=
- Product Type: Networking
- Interfaces Type: 4 Ports Control Processor
Technical Information
- Application/Usage: Data Networking
- Application/Usage: Network Management
Interfaces / Ports
- Interfaces/Ports Details: 1 x RJ-45 10/100/1000Base-T Network Management
- Interfaces/Ports Details: 1 x RJ-45 10/100/1000Base-T Asynchronous Console RS-232 Management
- Interfaces/Ports Details: 1 x Type A USB USB 2.0
I/O Expansions
- Expansion Slots: 2 x SFP (mini-GBIC)/SFP+ Uplink
- Expansion Slots: 1 x Secure Digital (SD) Card
- Expansion Slots: 2 x SFP (mini-GBIC) Uplink
Management & Protocols
- Management-
- CLI
- SNMP
Miscellaneous
- Compatibility-
- Cisco Catalyst 4500 E-series Switch
- Cisco Catalyst Switch Chassis-
- 4503-E
- 4506-E
- 4507R-E
- 4507R+E
- Cisco Catalyst 4500E Series Line Cards and Modules-
- WS-X4748-UPOE+E
- WS-X4748-RJ45-E
- WS-X4748-RJ45V+E
- WS-X4712-SFP+E
- WS-X4648-RJ45V-E
- WS-X4648-RJ45V+E
- WS-X4648-RJ45-E
- WS-X4606-X2-E
- WS-X4624-SFP-E
- WS-X4612-SFP-E
- Cisco Catalyst 4500 Classic Line Cards and Modules-
- WS-X4148-FE-BD-LC
- WS-X4124-FX-MT
- WS-X4148-FX-MT
- WS-X4124-RJ45
- WS-X4148-RJ
- WS-X4148-RJ21
- WS-X4248-RJ21V
- WS-X4224-RJ45V
- WS-X4248-RJ45V
- WS-X4248-FE-SFP
- WS-X4232-GB-RJ
- WS-X4302-GB
- WS-X4306-GB
- WS-X4506-GB-T
- WS-X4418-GB
- WS-X4448-GB-SFP
- WS-X4424-GB-RJ45
- WS-X4448-GB-RJ45
- WS-X4548-GB-RJ45
- WS-X4524-GB-RJ45V
- WS-X4548-GB-RJ45V
- WS-X4548-RJ45V+
- Environmentally Friendly: Yes
- Environmental Certification: RoHS-5
In short, the Cisco WS-X45-SUP7L-E= stands as a testament to Cisco’s commitment to delivering cutting-edge networking solutions. Its combination of high-speed connectivity, advanced management features, and a powerful control processor makes it a versatile choice for a variety of network environments. Whether deployed in data centers, enterprise networks, or network edge scenarios, the WS-X45-SUP7L-E= plays a pivotal role in ensuring reliable and efficient network operations.
For network administrators and engineers seeking a robust supervisor engine that balances performance and manageability, the Cisco WS-X45-SUP7L-E= proves to be a formidable choice. As technology continues to evolve, Cisco remains at the forefront, empowering organizations to build and maintain networks that meet the demands of the digital age.
