Description
Product Overview of the Cisco Service Module

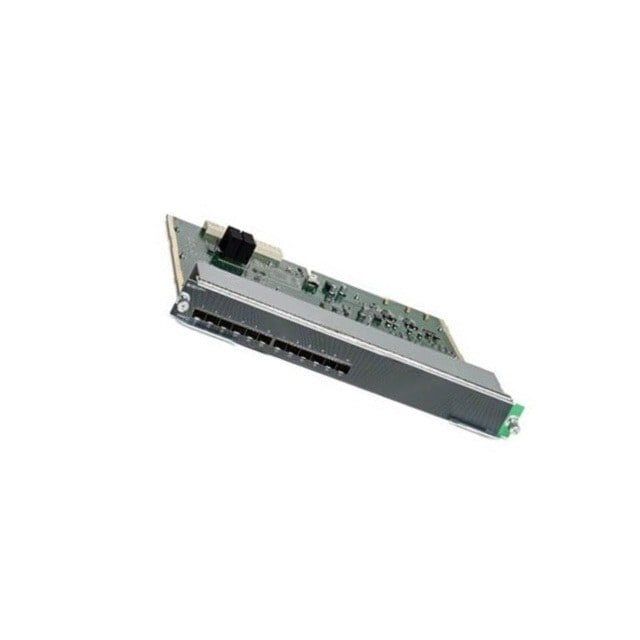

The Cisco WS-X4612-SFP-E is a service module designed for the Catalyst 4500 E-Series, a powerful and modular networking platform. With 12 ports supporting Gigabit Ethernet connectivity through Small Form-Factor Pluggable (SFP) modules, this service module enhances the capabilities of the Catalyst 4500 Series, providing flexibility and scalability for various network requirements.
Understanding Service Modules and Their Role
Service modules are integral components in modular network devices, providing additional functionalities to enhance the device’s capabilities. The WS-X4612-SFP-E service module, specifically designed for the Catalyst 4500 E-Series, extends the switch’s capabilities by offering multiple Gigabit Ethernet ports in a compact and interchangeable form factor.
Features of Cisco WS-X4612-SFP-E Service Module12 Ports Supporting Gigabit Ethernet
The WS-X4612-SFP-E boasts 12 ports, each supporting Gigabit Ethernet connectivity, facilitating high-speed data transfer across the network.
Small Form-Factor Pluggable (SFP) Compatibility
Utilizing SFP technology allows for flexibility in network connectivity, supporting a variety of SFP modules for different types of connections.
Importance of Gigabit Ethernet Connectivity in Networking
Gigabit Ethernet connectivity plays a crucial role in modern networking:
High-Speed Data Transfer
Gigabit Ethernet ensures rapid data transfer, allowing for efficient communication and reduced latency within the network.
Scalability
With Gigabit Ethernet, networks can easily scale to accommodate increasing data demands, supporting the growth of connected devices.
Versatile Connectivity
Gigabit Ethernet provides versatile connectivity options for various devices, enabling compatibility with a wide range of network equipment.
Benefits of Using Cisco WS-X4612-SFP-E Service ModuleScalability and Flexibility
The inclusion of 12 Gigabit Ethernet ports offers scalability and flexibility, allowing the network to adapt to changing requirements.
SFP Compatibility
The support for SFP modules enhances adaptability, enabling the use of different optical or copper interfaces based on specific networking needs.
Interchangeable Modules
The modular design allows for easy replacement and upgrade of individual SFP modules without affecting the entire service module.
Use Cases for Cisco WS-X4612-SFP-E Service ModuleEnterprise Networking
Ideal for enterprise networks requiring high-speed and scalable Gigabit Ethernet connectivity for various devices.
Data Centers
Suited for data centers where versatile connectivity and scalability are crucial for supporting the diverse range of applications and services.
Network Expansion
Useful for expanding network capabilities by adding additional Gigabit Ethernet ports to the existing Catalyst 4500 E-Series switch.
Detail Specifications
This item is a line card for the Cisco Catalyst 4500 E-Series switch. It is a module that can be inserted into the switch to provide additional ports for connecting devices to the network. The line card has 12 ports, which can be configured for various types of connectivity, such as Gigabit Ethernet or 10 Gigabit Ethernet.
One of the key features of this line card is that it supports SFP (small form-factor pluggable) transceiver modules, which allow for fiber optic connectivity. This means that the line card can be used to connect devices to the network using fiber optic cable, which can provide faster speeds and longer distances than copper cable.
The Cisco Catalyst 4500 E-Series switch is designed for use in enterprise-level networks, and the WS-X4612-SFP-E line card is well-suited for this type of environment. It can be used for a variety of applications, including data, voice, and video. Additionally, the line card supports advanced features such as Quality of Service (QoS), which can help to prioritize different types of network traffic, and Link Aggregation Control Protocol (LACP) which allows to bundle multiple physical interfaces together to form a single logical interface to increase bandwidth.
Features and Benefits
The WS-X4612-SFP-E Cisco Catalyst 4500 E-Series 12-Ports Line Card is designed for high performance and reliability in enterprise-level networks.
In terms of performance, the line card supports high-speed networking capabilities, such as Gigabit Ethernet and 10 Gigabit Ethernet. Additionally, it supports SFP transceiver modules, which can provide faster speeds and longer distances over fiber optic cable than copper cable.
The line card also offers advanced features such as Quality of Service (QoS), which can help to prioritize different types of network traffic, and Link Aggregation Control Protocol (LACP) which allows to bundle multiple physical interfaces together to form a single logical interface to increase bandwidth.
In terms of reliability, the line card is built to meet the demands of enterprise-level networks. It is designed to be highly available, with redundant power and cooling, and it supports advanced features such as network resiliency protocols like HSRP (Hot Standby Router Protocol) and VRRP (Virtual Router Redundancy Protocol) to provide automatic failover in case of failure.
Cisco’s E-Series line cards also have been designed to be highly scalable and modular, which means that additional line cards can be added as needed to support the growing number of devices on the network.
Furthermore, the model line card is part of the Cisco Catalyst 4500 E-Series switch, which is known for its ability to run multiple concurrent services, such as routing, switching, security, and wireless services on a single platform, providing a cost-effective solution for enterprise networks.
Compliant Standards
The model Cisco Catalyst 4500 E-Series 12-Ports Line Card is compliant with several industry standards, which help to ensure that it is compatible with a wide range of devices and networks.
One of the key standards that the line card is compliant with is IEEE 802.3, which is the standard for Ethernet. This standard defines the technical specifications for how Ethernet networks should operate, including things like data packet format and maximum transmission distances.
Another important standard that the line card is compliant with is IEEE 802.1Q, which is the standard for Virtual LANs (VLANs). This standard allows for the creation of multiple logical networks on a single physical network, which can help to improve security and network segmentation.
The line card is also compliant with the IEEE 802.3ad Link Aggregation Control Protocol (LACP) standard, which allows to bundling multiple physical interfaces together to form a single logical interface, this increases bandwidth and provides redundancy and high availability.
The line card also supports advanced Quality of Service (QoS) features, which are compliant with the IEEE 802.1p standard. This standard defines a method for prioritizing different types of network traffic, such as voice and video, to ensure that they are delivered with the appropriate level of service.
Additionally, the line card is also compliant with Energy Efficient Ethernet (EEE), a set of standards defined by IEEE that reduces power consumption during periods of low data activity.
By being compliant with these and other standards, the WS-X4612-SFP-E line card can be easily integrated into existing networks and used with a wide range of devices, helping to ensure that it will be a reliable and long-lasting addition to any enterprise-level network.
General Information about this Cisco WS-X4612-SFP-E
- Manufacturer: Cisco
- Model Number or SKU# WS-X4612-SFP-E
- Product Name: WS-X4612-SFP-E Line Card
- Product Type: Service Module
Technical Information
- Application/Usage: Data Networking
- Application/Usage: Optical Network
I/O Expansions
- Expansion Slots: 12 x SFP (mini-GBIC)
Environmental Conditions
- Operating temperature: 32° to 104°F (0° to 40°C)
- Storage temperature: -40° to 167°F (-40° to 75°C)
- Relative humidity: 10 to 90%, non-condensing
- Operating altitude: -60 to 3000m
Miscellaneous
- Compatibility-
- Cisco Catalyst 4500E Series Switches
In summary, the Cisco WS-X4612-SFP-E service module, featuring 12 ports supporting Gigabit Ethernet connectivity and compatibility with Small Form-Factor Pluggable (SFP) modules, stands as a valuable addition to the Catalyst 4500 E-Series. Its scalability, flexibility, and support for various SFP modules make it a versatile solution for enterprise networks, data centers, and network expansions. Cisco’s commitment to providing modular and adaptable networking solutions positions the WS-X4612-SFP-E service module as a reliable component for efficient and high-performance network configurations.
