Description
Product Overview of the Cisco Catalyst 6800 Series Module
The Cisco WS-X6816-10G-2T is a high-performance module designed for the Catalyst 6800 Series switches. Featuring 16 ports supporting 10 Gigabit Ethernet connections using hot-swappable fiber interfaces and equipped with the Distributed Forwarding Card 4 (DFC4), this module provides robust connectivity and efficient data handling capabilities within networking environments.
Understanding Module Ports and Capabilities
Modules like the WS-X6816-10G-2T serve as expansions for network switches, offering additional ports for connecting devices. This module features 16 ports, each supporting high-speed 10 Gigabit Ethernet connections using fiber interfaces, allowing for fast and reliable data transmission.
Features of Cisco WS-X6816-10G-2T Catalyst 6800 Series Module16 Ports Supporting 10 Gigabit Ethernet
The module offers 16 ports supporting high-speed 10 Gigabit Ethernet connections, ensuring seamless data transmission.
Hot-Swappable Fiber Interfaces
Utilizing hot-swappable fiber interfaces allows for easy installation and removal of fiber optic cables without disrupting network operations.
Distributed Forwarding Card 4 (DFC4)
Equipped with the DFC4, the module enhances forwarding and routing capabilities, optimizing data handling within the switch.
Importance of High-Performance Modules in Networking
Modules offer several advantages in networking environments:
Expanded Connectivity
Modules like the WS-X6816-10G-2T provide expanded connectivity options, accommodating more devices within the network.
High-Speed Data Transfer
With support for 10 Gigabit Ethernet connections, these modules facilitate high-speed data transfer, crucial for bandwidth-intensive applications.
Improved Network Performance
Advanced features like the DFC4 enhance forwarding and routing capabilities, improving overall network performance.
Benefits of Using Cisco WS-X6816-10G-2T Catalyst 6800 Series ModuleIncreased Connectivity Options
The 16 ports supporting 10 Gigabit Ethernet provide increased connectivity options for multiple devices.
Hot-Swappable Interfaces
Hot-swappable fiber interfaces ensure easy installation and maintenance without network interruptions.
Enhanced Data Handling
The inclusion of DFC4 enhances data forwarding and routing capabilities, optimizing data processing within the switch.
Use Cases for Cisco WS-X6816-10G-2T Catalyst 6800 Series ModuleData Centers
Ideal for data center environments requiring high-speed and reliable connectivity for servers and networking equipment.
High-Bandwidth Applications
Suitable for applications demanding high bandwidth, such as video streaming, large data transfers, and cloud computing.
Network Expansions
Useful for expanding the capacity and connectivity of existing networking setups.
Main Specifications
In addition to the features and benefits already mentioned, the Cisco WS-X6816-10G-2T 16-port expansion module has a number of other technical specifications that may be relevant, depending on the intended use case. Some of these include:
- Port speed and type: This Product has 16 10 Gigabit Ethernet ports and 2 40 Gigabit Ethernet uplink ports. This allows for high-speed connectivity and increased network capacity, allowing for large amounts of data to be transmitted quickly and efficiently.
- Layer 2 and Layer 3 support: This Product provides support for both Layer 2 and Layer 3 protocols, allowing for both switching and routing capabilities. This can be useful in environments where both types of functionality are needed.
- Jumbo frames support: This Product supports jumbo frames, which are Ethernet frames that can be larger than the standard maximum frame size of 1518 bytes. This can be beneficial for environments where large amounts of data need to be transmitted in a single frame, such as in a data center.
- Buffer size: This Product has 4MB buffer memory per port which allows the switch to handle large amounts of data at high speeds, improving network performance and helping to prevent data loss.
- Flow control: This Product supports IEEE 802.3x flow control, which can help to prevent network congestion by allowing devices to pause the transmission of data when the switch’s buffer is full.
- Power supply requirements: This Product requires a minimum of 350W of power, and supports both AC and DC power inputs.
Reliability
Reliability is an important aspect of any networking equipment, and the Cisco WS-X6816-10G-2T 16-port expansion module is designed to provide a high level of reliability when used with certain Cisco Catalyst 6800 Series Switches.
Here are some ways in which the Cisco part contributes to the reliability of the network:
- High-performance Switching: This Product is based on the Cisco Catalyst 6800 Series switching architecture, which is designed for high-performance, low-latency, and high-density 10 Gigabit Ethernet switching. This allows the switch to handle large amounts of data at high speeds while maintaining a stable and responsive network.
- Quality of Service (QoS): This Product supports Quality of Service (QoS), which allows you to prioritize different types of network traffic. This can help ensure that important network traffic, such as VoIP or video streaming, gets priority over other types of traffic, reducing potential lags or interruptions in service.
- Redundancy: With 2 40 Gigabit Ethernet uplink ports, This Product provides redundancy in case of failure of one uplink, allowing the network to remain operational.
- Power Efficiency: This Product is designed to be energy efficient, consuming less power per port than other similar devices. This can help to reduce power costs and improve the overall energy efficiency of the network, which can in turn contribute to a more stable and reliable network.
- Monitoring: This Product can be monitored via the web-based interface of the switch and it has LED status indicators that allow you to easily monitor the status of the device and know when any issue arises.
- Physical Characteristics: This Product is designed to be inserted into the Cisco Catalyst 6800 Series switch and it has a compact form factor, which also makes it easy to handle.
Resiliency and High Availability
Resiliency and High Availability are important features for networking equipment, as they help ensure that the network remains available and stable for users even in the event of a failure. The Cisco part 16-port 10 Gigabit Ethernet Fiber Module is designed to provide resiliency and high availability when used with the Cisco Catalyst 6500 Series Switches.
Here are some ways in which the Cisco product contributes to the resiliency and high availability of the network:
- Redundancy: This Product provides redundancy in case of failure of one port, allowing the network to remain operational. This can minimize downtime and ensure that users can continue to access the network.
- Increased Network Capacity: This Product increases the network capacity of the switch, allowing for more devices to be connected to the network and more data to be transmitted at once. This can be particularly useful in environments where a large number of devices need to be connected to the switch, such as in a data center or large enterprise.
- Quality of Service (QoS): This Product supports Quality of Service (QoS), which allows you to prioritize different types of network traffic. This can help ensure that important network traffic, such as VoIP or video streaming, gets priority over other types of traffic, reducing potential lags or interruptions in service.
General Information about this Cisco WS-X6816-10G-2T
- Manufacturer: Cisco
- Part Number or SKU # WS-X6816-10G-2T
- Product Series: 6800

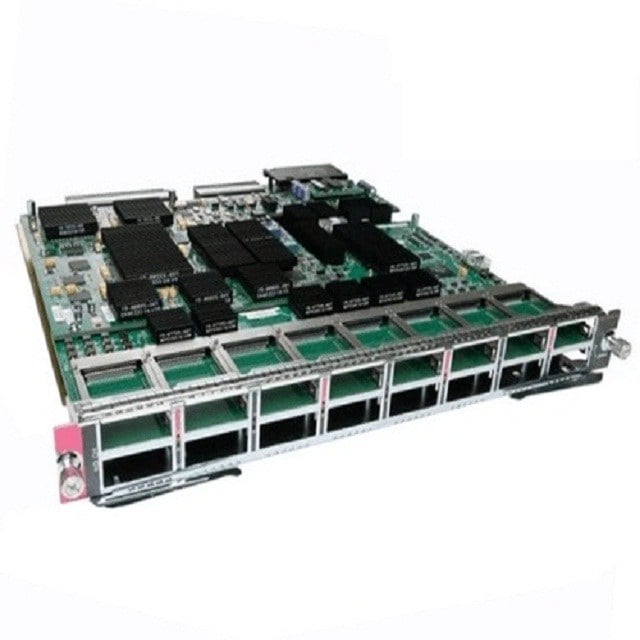

- Product Name: 16-Port 10 Gigabit Ethernet Fiber Module with DFC4
- Product Type: Expansion Module
Technical Information
- Application/Usage: Data Networking
- Application/Usage: Optical Network
I/O Expansions
- Expansion Slots: 16 x X2
- Daughter Cards: 1 x DFC4 DFC
Management & Protocols
- Management-
- RMON
- VLAN
- QoS
- MIB
Miscellaneous
- Compatibility
- Cisco Catalyst Switches:
- 6500 Series
- 6500-E Series
In summary, the Cisco WS-X6816-10G-2T Catalyst 6800 Series Module, featuring 16 ports supporting 10 Gigabit Ethernet connections with hot-swappable fiber interfaces and equipped with the Distributed Forwarding Card 4 (DFC4), stands as a robust solution for high-speed networking requirements. Its increased connectivity options, hot-swappable interfaces, and enhanced data handling capabilities make it suitable for data centers, high-bandwidth applications, and network expansions. Cisco’s commitment to reliable and scalable networking solutions positions the WS-X6816-10G-2T module as a crucial component in modern networking infrastructures.
