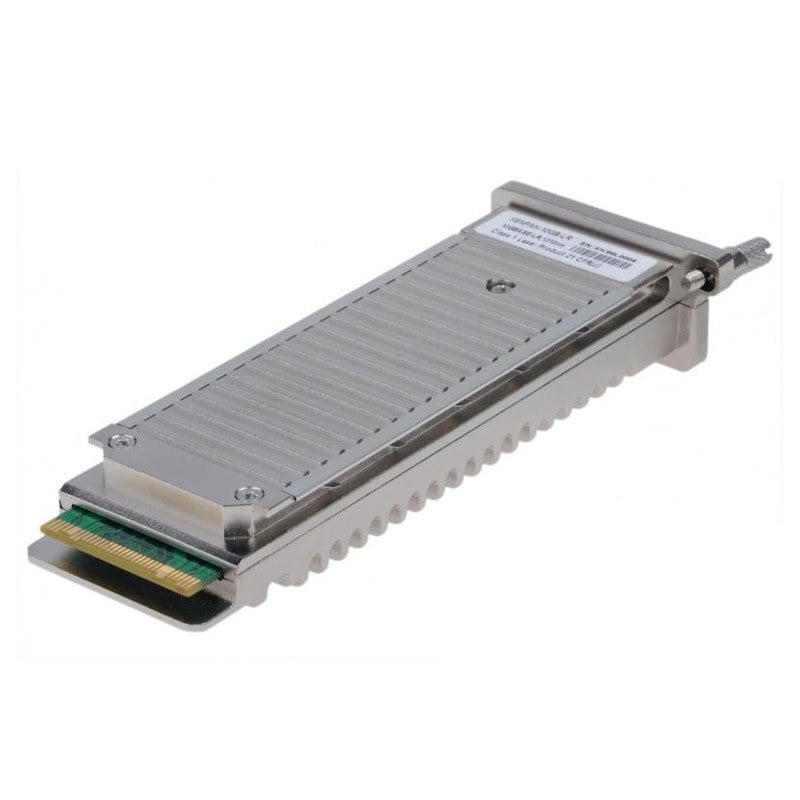

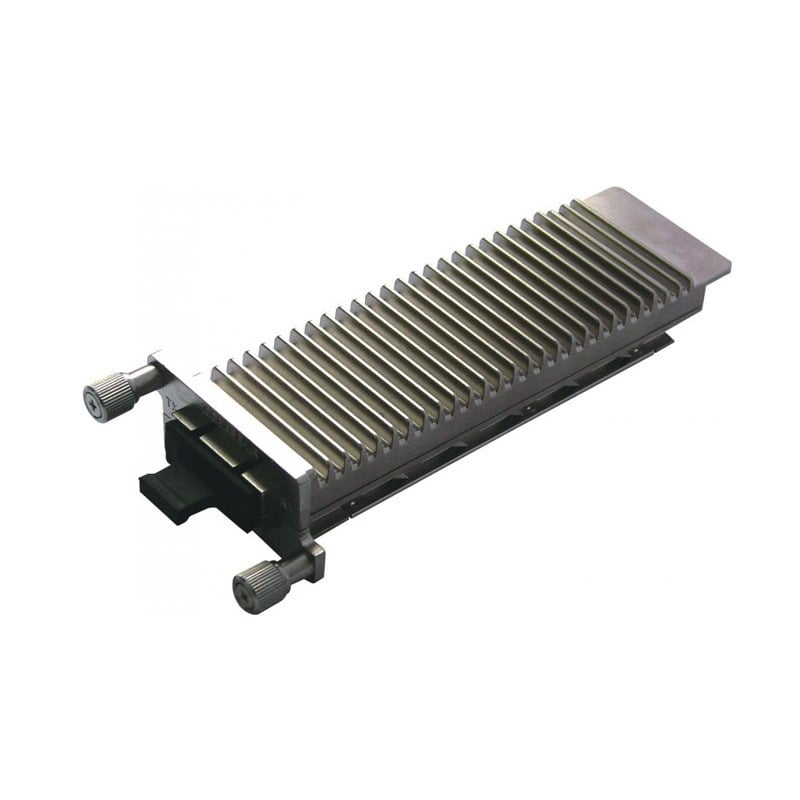

XENPAK-10GB-LR is a Cisco transceiver module that supports 10 Gbps data transfer over single-mode fiber optic cables. It uses the 10GBase-LR standard for the optical interface, which allows for a maximum distance of 10 kilometers (6.2 miles) between the transceiver and the receiving device. The XENPAK form factor is a hot-swappable, pluggable module that is compatible with Cisco switches and routers that support XENPAK transceivers. This module is specifically designed for use in single-mode fiber optic networks, and it uses a 1310nm wavelength to transmit data over long distances. The model transceiver is compliant with the MSA (Multi-Source Agreement) standards, which guarantees that it will work seamlessly with other vendors’ equipment and with other model modules from Cisco. It’s a cost-effective solution for enterprise and service provider networks that require high-speed data transfer over long distances.
- The demand for faster and more reliable data transmission has led to the development of advanced transceiver modules. One such module that has gained prominence is the Cisco XENPAK-10GB-LR, designed to facilitate 10 Gigabit Ethernet (10GbE) communication over Single-Mode Fiber (SMF). This article will delve into the intricacies of the Cisco XENPAK-10GB-LR, exploring its specifications, features, and applications.
Overview of Cisco XENPAK-10GB-LR
The Cisco XENPAK-10GB-LR is a transceiver module specifically engineered for high-speed data transmission in networking environments. It operates at a staggering speed of 10 Gigabytes Per Second (GBPS), making it suitable for bandwidth-intensive applications. This transceiver module adheres to the 10 Gigabytes (GB) Base-LR standard, which is crucial for long-distance data transmission.
Technical SpecificationsSpeed and Capacity
- 10 Gigabytes Per Second (GBPS): The XENPAK-10GB-LR is optimized for ultra-fast data transfer, supporting a speed of 10GBPS. This high data rate is ideal for applications requiring substantial bandwidth, such as data centers, enterprise networks, and telecommunications.
Fiber Compatibility
- Single-Mode Fiber (SMF): The transceiver module is designed to operate over Single-Mode Fiber, a type of optical fiber with a small core diameter. This enables the module to transmit data over longer distances with minimal signal attenuation, making it suitable for long-range connections.
Connectivity

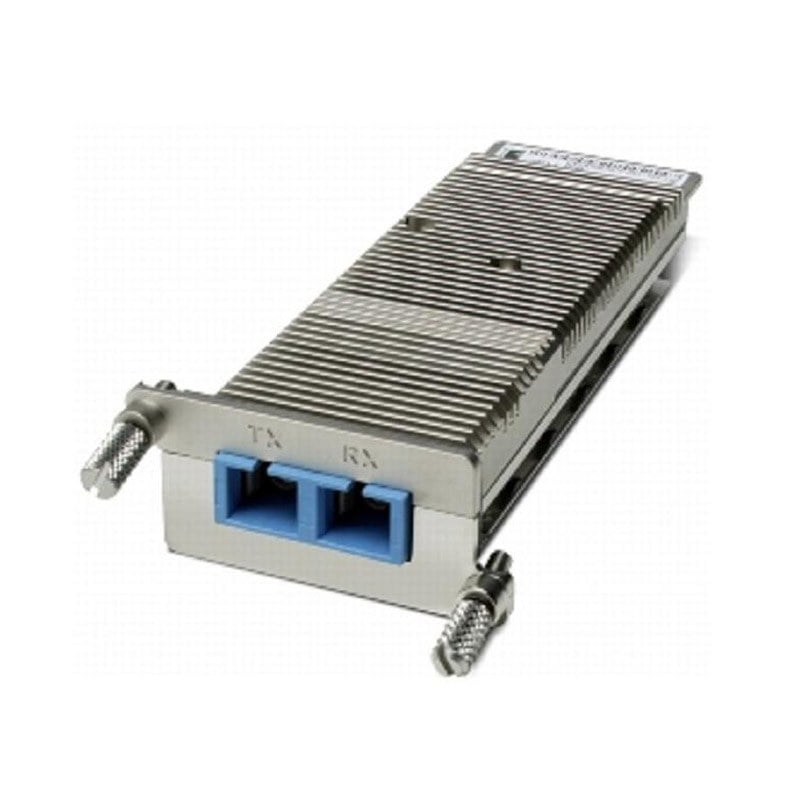

- Duplex Smart Carrier (SC) Connector: The XENPAK-10GB-LR is equipped with a Duplex SC Connector, a widely used fiber optic connector known for its simple push-pull mechanism and secure connections. The duplex configuration allows for simultaneous bidirectional communication, essential for full-duplex applications.
Key FeaturesLong-Reach Capability
- Base-LR Standard: The XENPAK-10GB-LR complies with the 10GBASE-LR standard, indicating its suitability for long-reach applications. This standard defines the parameters for 10GbE transmission over LR optics, ensuring compatibility and interoperability in network deployments.
Smart Design
- Hot-Pluggable: The hot-pluggable feature of the XENPAK-10GB-LR allows for easy installation and removal without the need to power down the entire system. This enhances the module’s flexibility and convenience in network maintenance and upgrades.
- Digital Diagnostics Monitoring (DDM): The inclusion of Digital Diagnostics Monitoring enables real-time monitoring of critical parameters such as temperature, voltage, and optical power. This feature enhances network reliability by providing insights into the health and performance of the transceiver module.
Performance and Reliability
- The model Cisco transceiver module is designed to provide high performance and reliability for 10 Gbps data transfer over single-mode fiber optic cables. It uses the 10GBase-LR standard for the optical interface, which allows for a maximum distance of 10 kilometers (6.2 miles) between the transceiver and the receiving device.
- In terms of performance, the module supports 10 Gbps data transfer rates and has a low power consumption to minimize heat generation. It also uses advanced error correction techniques to ensure high signal integrity and data accuracy.
- In terms of reliability, the XENPAK-10GB-LR transceiver module is designed with robust components and undergoes rigorous testing to ensure it can withstand harsh environmental conditions and meet the demands of high-traffic networks. It also features a hot-swappable design, which allows for easy replacement in the event of a failure, minimizing network downtime.
- Additionally, the module is compliant with the MSA (Multi-Source Agreement) standards which ensures that it will work with other vendors’ equipment and also with other model modules from Cisco.
Compliant Standards
The XENPAK-10GB-LR Cisco transceiver module is compliant with a number of standards to ensure compatibility and interoperability with other network equipment. Some of the key standards that the module complies with are:
10GBase-LR
- This is the standard for the optical interface of the module, which allows for a maximum distance of 10 kilometers (6.2 miles) between the transceiver and the receiving device.
IEEE 802.3ae
- This is the standard for 10 Gbps Ethernet, which the module supports.
MSA (Multi-Source Agreement)
- This is an industry agreement that ensures that the model transceiver is compatible with other vendors’ equipment and with other model modules from Cisco.
RoHS (Restriction of Hazardous Substances)
- This is a European Union directive that regulates the use of hazardous substances in electronic equipment. The model transceiver is compliant with RoHS, which means it does not contain any hazardous substances that are harmful to the environment.
TIA/EIA-942
- This is a standard for data center telecommunications infrastructure, the model transceiver is compliant with this standard which means it’s suitable for use in data center environments.
Main Information about this Cisco XENPAK-10GB-LR
- Manufacturer: Cisco
- Model Number or SKU# XENPAK-10GB-LR
- Type: Networking
- Product Type: Transceiver Module
Technical Feature of Transceiver Module
- Application/Usage: Data Networking
- Application/Usage: Optical Network
- Data Transfer Rate: 10 GBPS 10 Gigabit Ethernet
- Compatible with XENPAK MSA
- Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps
- Transmission Distance up to 10km on SMF
- DFB Laser at 1310nm
- Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
- Management and control via MDIO 2-wire interface
- Power Supply: +3.3V, APS(+1.2V)
- Diagnostic Optics Monitoring
- ROHS-compliant and Lead-Free
Interface and Ports of 10 Gigabit Transceiver
- Interfaces/Ports: 1 x 10GBase-LR
- Interfaces/Ports Details: 1 x SC Duplex 10GBase-LR Network
- Connectivity Media Single-mode Optical Fiber 10GBase-LR
Compatibility
- 7600 Series Router – WS-SUP32-10GB-3B
- 7600 Series Router – WS-X6704-10GE
- Catalyst 6500 Series – WS-SUP32-10GE-3B
- Catalyst 6500 Series – WS-SUP32-10GE-PISA
- Catalyst 6500 Series – WS-X6704-10GE
- Catalyst 3750 Series -WS-C3750G-16TD
Finally, the Cisco XENPAK-10GB-LR transceiver module stands as a robust solution for high-speed data transmission over Single-Mode Fiber in various networking environments. Its adherence to the 10GBASE-LR standard, coupled with features like hot-pluggability and Digital Diagnostics Monitoring, makes it a versatile and reliable choice for applications demanding both speed and reach. As networking technologies continue to advance, the Cisco XENPAK-10GB-LR remains a key player in enabling efficient and high-performance data communication.
