Description

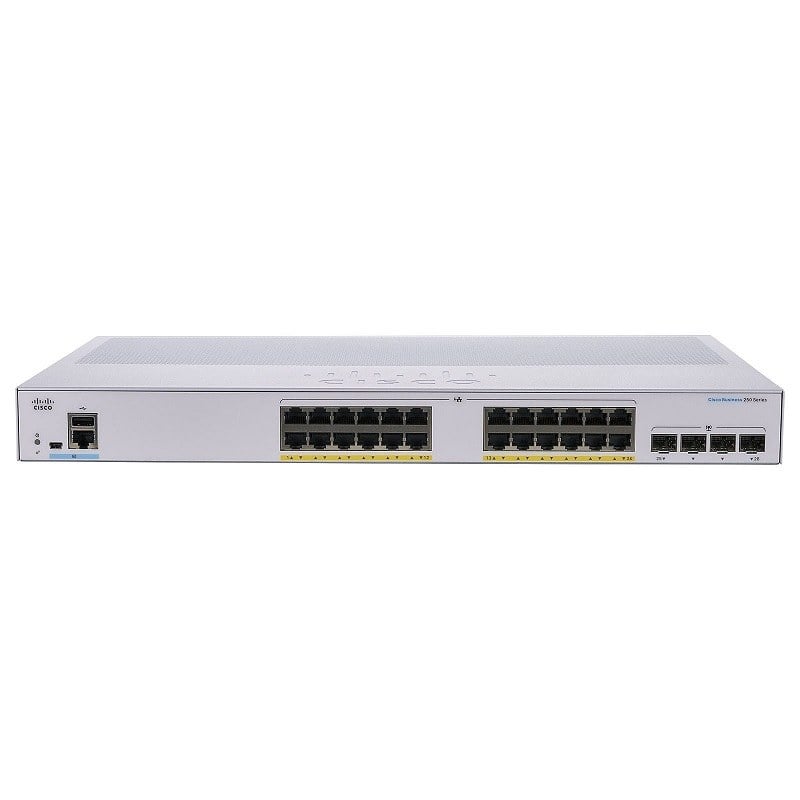

Understanding the CBS250-24P-4X-NA Business 250 Series Ethernet Switch
The CBS250-24P-4X-NA Business 250 Series Ethernet Switch is a powerful networking device designed to facilitate the management and distribution of Ethernet connections within a business environment. With its 24 ports of Gigabit Ethernet and support for Power over Ethernet Plus (PoE+), this switch offers enhanced capabilities for powering and connecting various network devices. Additionally, its support for 4 x 10 Gigabit Ethernet expansion slots provides flexibility for future scalability and high-speed connectivity.
Overview of Gigabit Ethernet
Gigabit Ethernet is a standard for transmitting Ethernet frames at a rate of one gigabit per second. It provides significantly faster data transfer speeds compared to traditional Ethernet, making it suitable for high-performance networking applications. With 24 ports of Gigabit Ethernet, the CBS250-24P-4X-NA switch can accommodate numerous devices while maintaining high-speed connectivity.
Power over Ethernet Plus (PoE+)
Power over Ethernet Plus (PoE+) is a technology that allows electrical power to be transmitted alongside data over Ethernet cables. This eliminates the need for separate power sources for devices such as IP cameras, VoIP phones, and wireless access points, simplifying installation and reducing clutter. The CBS250-24P-4X-NA switch supports PoE+, enabling it to power compatible devices directly through the Ethernet ports.
Manageability Features
The CBS250-24P-4X-NA switch offers a range of management features to streamline network administration. These include:
- Web-Based Management Interface: The switch can be configured and monitored using a web-based interface, providing an intuitive way to manage network settings and features.
- Command Line Interface (CLI): Advanced users can utilize the CLI to access additional configuration options and execute commands directly on the switch.
- SNMP Support: Simple Network Management Protocol (SNMP) support allows the switch to be integrated into network management systems for centralized monitoring and control.
- VLAN Support: Virtual LAN (VLAN) support enables the segmentation of the network into multiple virtual networks, improving security and efficiency.
Layer 2 Switching
The CBS250-24P-4X-NA switch operates at Layer 2 of the OSI model, which primarily deals with the data link layer. Layer 2 switching involves forwarding frames based on MAC addresses, allowing for efficient communication within the local network. By supporting Layer 2 switching, the switch ensures fast and reliable data transmission between connected devices.
Expansion Slot Options
In addition to its 24 Gigabit Ethernet ports, the CBS250-24P-4X-NA switch features four expansion slots for 10 Gigabit Ethernet connectivity. These expansion slots accommodate optional modules for optical fiber or twisted pair connections, offering flexibility to meet diverse networking requirements. Whether deploying high-speed fiber connections or leveraging existing copper infrastructure, the switch can adapt to various networking environments.
Optical Fiber and Twisted Pair Connectivity
Optical fiber and twisted pair are two common types of cabling used in networking:
- Optical Fiber: Optical fiber cables use light signals to transmit data over long distances with minimal loss of signal quality. They offer high bandwidth and immunity to electromagnetic interference, making them ideal for applications requiring reliable, high-speed connectivity.
- Twisted Pair: Twisted pair cables consist of pairs of insulated copper wires twisted together. They are widely used for Ethernet connections due to their affordability, flexibility, and ease of installation. Twisted pair cables support various Ethernet standards, including Gigabit Ethernet, and can be used for both short and medium-range communication.
Benefits of the CBS250-24P-4X-NA Business 250 Series Switch
The CBS250-24P-4X-NA switch offers several benefits for businesses seeking to enhance their network infrastructure:
- Scalability: With support for 24 Gigabit Ethernet ports and 4 x 10 Gigabit Ethernet expansion slots, the switch can scale to accommodate growing network demands.
- Flexibility: The switch’s support for both optical fiber and twisted pair connectivity options provides flexibility to integrate with existing network infrastructure or deploy new technologies as needed.
- Simplified Deployment: Power over Ethernet Plus (PoE+) support simplifies the deployment of powered devices such as IP cameras and wireless access points, reducing installation time and costs.
- Manageability: The switch’s management features, including web-based management, CLI, SNMP support, and VLAN capabilities, streamline network administration and monitoring tasks.
Reliability and Performance
Network Redundancy Features
To ensure high availability and minimize downtime, the CBS250-24P-4X-NA incorporates network redundancy features. These include support for Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP), which prevent network loops and enable rapid convergence in case of link failures. These features contribute to a more reliable and stable network infrastructure.
Quality of Service (QoS)
The switch supports Quality of Service (QoS) mechanisms, allowing administrators to prioritize certain types of traffic over others. This is particularly important in environments where different applications or services have varying bandwidth requirements. By implementing QoS, businesses can ensure that critical applications receive the necessary bandwidth, optimizing overall network performance.
Energy-Efficiency and Eco-Friendly Design
Energy-Efficient Ethernet (EEE)
The CBS250-24P-4X-NA switch incorporates Energy-Efficient Ethernet (EEE) technology, which reduces power consumption during periods of low network activity. This feature contributes to energy savings and aligns with environmentally conscious business practices. As businesses increasingly focus on sustainability, the switch’s energy-efficient design becomes a notable advantage.
Fanless Operation
The switch’s fanless design is another aspect that adds to its eco-friendly profile. By eliminating the need for cooling fans, the switch operates silently and consumes less power. This makes it suitable for deployment in noise-sensitive environments, such as offices or classrooms, where a quiet operation is preferred.
Firmware Upgrades and Remote Management
Regular firmware updates are essential for ensuring that the switch operates with the latest features and security patches. The CBS250-24P-4X-NA supports remote management, enabling administrators to perform firmware upgrades and configure settings without physically accessing the device. This remote management capability simplifies maintenance tasks and reduces the need for on-site interventions.
General Information for the Cisco 24 Ports Manageable Smart Switch
- Manufacturer: Cisco
- Model Number or SKU# CBS250-24P-4X-NA
- Product Series: 250
- Product Name 250 CBS250-24P-4X-NA Ethernet Switch
- Product Type: Ethernet Switch
Interfaces / Ports of CBS250-24P-4X Ethernet Switch
- Total Number of Network Ports: 24
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Expansion Slot
Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 10GBase-X
I/O Expansions
- Number of Total Expansion Slots: 4
- Expansion Slot Type: SFP+
- Shared SFP Slot: No
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 195 W
- Power Source:
- PoE+
- Power Supply
Outline, the CBS250-24P-4X-NA Business 250 Series Ethernet Switch offers a powerful solution for businesses seeking to optimize their network infrastructure. With its combination of Gigabit Ethernet ports, PoE+ support, Layer 2 switching, expansion slot options, and manageability features, the switch provides the performance, scalability, and flexibility required to meet the evolving needs of modern business networks. Whether deploying a new network or upgrading an existing one, the CBS250-24P-4X-NA switch delivers reliable connectivity and simplified management, making it an ideal choice for businesses of all sizes.
