Configuration and Management of the Dell PERC RAID Battery
The Dell PERC RAID Battery with Cable IBBU07 is designed to be easy to configure and manage. Here are the basic steps for configuring and managing the IBBU07 battery backup unit:
- Install the battery backup unit: The IBBU07 is a hot-swappable unit that can be installed without shutting down the server. Simply plug the unit into the RAID controller using the provided cable.
- Verify the battery status: Once the IBBU07 is installed, verify the battery status by checking the LED indicators on the unit. Green indicates that the battery is fully charged, amber indicates that the battery is partially charged, and red indicates that the battery is low.
- Set up battery management software: Dell provides software that can be used to manage the IBBU07 battery backup unit. Install the software on the server and configure it to monitor the battery status and alert you if the battery is running low.
- Test the battery backup: Once the battery backup unit is installed and configured, it is important to test it to ensure that it is working properly. This can be done by simulating a power outage or failure and verifying that the battery backup kicks in and maintains the cache memory.
- Replace the battery: Over time, the battery in the IBBU07 will lose its ability to hold a charge. When this happens, it is important to replace the battery to ensure that the battery backup unit remains effective. The IBBU07 is designed to be hot-swappable, so the battery can be replaced without shutting down the server.
Troubleshooting Common Issues with the Dell PERC RAID Battery
While the Dell PERC RAID Battery with Cable IBBU07 is designed to be a reliable and efficient battery backup unit, there are some common issues that may arise during use. Here are some troubleshooting tips for addressing these issues:
- Battery not charging: If the battery is not charging, first check that the battery is properly installed and the cable is connected securely. If the cable or connector is damaged, it may need to be replaced. You can also try resetting the battery by removing it from the RAID controller, waiting a few seconds, and then reinserting it.
- Battery not holding a charge: If the battery is not holding a charge, it may be at the end of its useful life and need to be replaced. Check the battery status using the LED indicators on the unit or the management software, and replace the battery if it is not holding a charge.
- Battery backup not working: If the battery backup is not working, check that the battery is properly installed and the cable is connected securely. If the battery is not holding a charge, it may need to be replaced. You can also check the battery backup settings in the RAID controller software to ensure that it is configured correctly.
- Overheating: If the battery is overheating, check that it is not installed in a location where it is exposed to high temperatures or direct sunlight. If the server is in a location with poor ventilation or air conditioning, it may be necessary to install additional cooling equipment.
- Communication errors: If the RAID controller is not communicating with the battery backup unit, check that the cable and connectors are clean and free of debris. You can also try resetting the battery backup unit by removing it from the RAID controller, waiting a few seconds, and then reinserting it.
Best Practices for Maintaining the Dell PERC RAID Battery with Cable IBBU07
Here are some best practices for maintaining the Dell PERC RAID Battery with Cable IBBU07:
- Regularly monitor the battery status: Check the battery status regularly using the LED indicators on the unit or the management software. This will allow you to detect any issues with the battery before they become a serious problem.
- Clean the connectors: Over time, dust and debris can accumulate on the connectors between the battery and the RAID controller. Clean the connectors regularly to ensure good connectivity and reduce the risk of communication errors.
- Replace the battery when necessary: The battery in the IBBU07 has a limited lifespan and will eventually need to be replaced. Check the battery status regularly and replace the battery when it no longer holds a charge.
- Keep the battery in a cool, dry location: The IBBU07 battery backup unit should be kept in a cool, dry location that is free from direct sunlight and high temperatures. This will help to prevent overheating and prolong the life of the battery.
- Test the battery backup regularly: It is important to regularly test the battery backup unit to ensure that it is working properly. This can be done by simulating a power outage or failure and verifying that the battery backup kicks in and maintains the cache memory.
- Use the management software: Dell provides software that can be used to manage the IBBU07 battery backup unit. Use this software to monitor the battery status, configure alerts, and detect any issues with the battery.

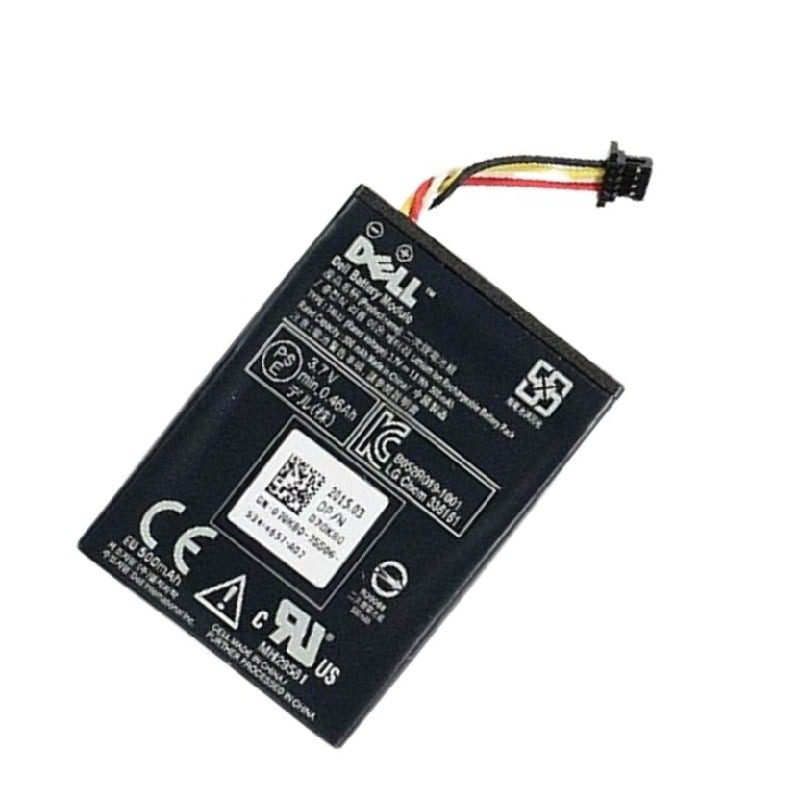

Specification about this Dell 00H21G
- Manufacturer: Dell
- Model Number or SKU# 00H21G
- Product Type: Raid Controller Battery
- Voltage Provided: 3.7 Volt
- Compatibility: Poweredge C1100/C2100/C8220
Compatibility
- PowerEdge R310
- PowerEdge R320
- PowerEdge R410
- PowerEdge R415
- PowerEdge R420
- PowerEdge R510
- PowerEdge R515
- PowerEdge R520
- PowerEdge R610
- PowerEdge R620
- PowerEdge R710
- PowerEdge R715
- PowerEdge R720
- PowerEdge R720xd
- PowerEdge R810
- PowerEdge R815
- PowerEdge R820
- PowerEdge T310
- PowerEdge T320
- PowerEdge T410
- PowerEdge T420
- PowerEdge T610
- PowerEdge T620
- PowerEdge T710
