More Information for the Dell 0770D8 4-Ports iSCSI Module

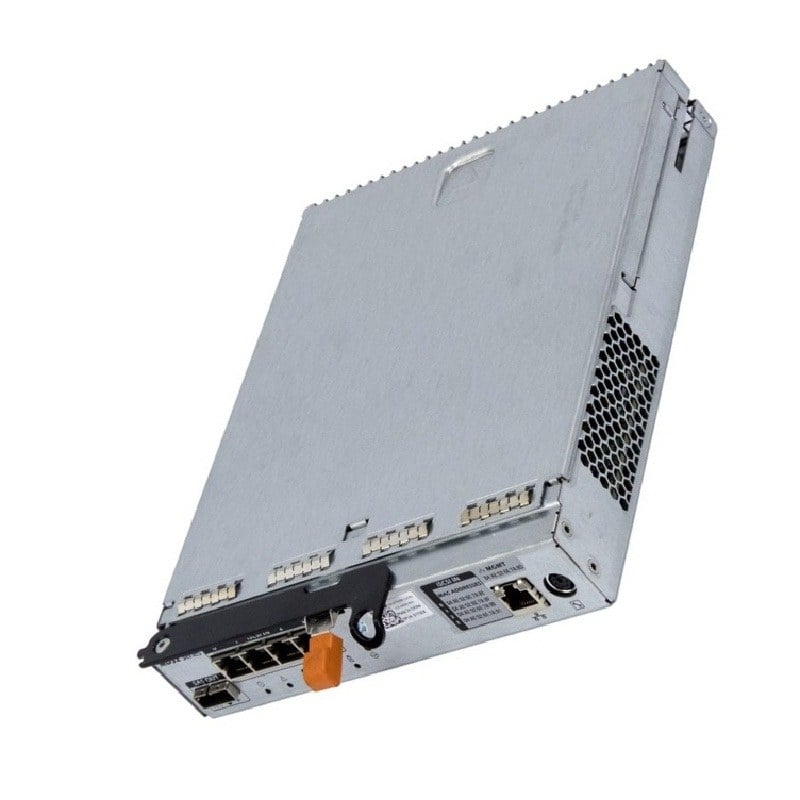

The 0770D8 Dell 4-Ports iSCSI Controller Module is a critical component designed for use with the PowerVault MD3200i storage system. In this detailed exploration, we will delve into the key features, functionalities, and benefits of the 0770D8 module, shedding light on its significance in enhancing the overall performance and capabilities of the PowerVault MD3200i.
Overview of the PowerVault MD3200i
Before we delve into the specifics of the 0770D8 module, it’s essential to understand the broader context of its application. The PowerVault MD3200i is a storage array designed by Dell, offering scalable and versatile storage solutions for businesses of various sizes. It is particularly known for its iSCSI (Internet Small Computer System Interface) connectivity, enabling efficient data transfer over IP networks.
Significance of iSCSI in Storage Systems
iSCSI has become a popular choice in storage systems due to its ability to transmit block-level data over IP networks. Unlike traditional Fibre Channel, iSCSI leverages existing Ethernet infrastructure, making it a cost-effective and flexible solution. The 0770D8 module plays a crucial role in enabling and optimizing iSCSI connectivity within the PowerVault MD3200i, ensuring efficient data transfer and storage management.
Key Features of the 0770D8 Dell 4-Ports iSCSI Controller Module
- Four-Port Configuration: One of the standout features of the 0770D8 module is its four-port configuration. This means that it supports four separate iSCSI connections simultaneously. This multi-port capability is instrumental in enhancing data throughput and system responsiveness, making it an ideal choice for scenarios where high-performance storage is paramount.
- Compatibility with PowerVault MD3200i: The 0770D8 module is specifically designed to seamlessly integrate with the PowerVault MD3200i storage array. This ensures not only optimal performance but also a hassle-free installation process. Users can simply slot in the module, and it will be automatically recognized by the PowerVault MD3200i, expanding its capabilities without requiring complex configurations.
- Redundancy and High Availability: In enterprise-level storage systems, redundancy and high availability are critical considerations. The 0770D8 module addresses this by providing redundancy in its design. In the event of a port failure or other issues, the remaining ports can continue to handle data transfer, minimizing the risk of downtime and data loss.
- RAID Support: The 0770D8 module supports RAID (Redundant Array of Independent Disks), a technology that enhances data protection and performance. Administrators can configure RAID levels based on their specific requirements, whether it’s prioritizing data redundancy, improved performance, or a balance of both.
- Hot-Swap Capability: Another noteworthy feature is the hot-swap capability of the 0770D8 module. This means that in the event of a module failure, it can be replaced without shutting down the entire system. This not only streamlines maintenance processes but also contributes to overall system reliability.
Benefits of Integrating the 0770D8 Module
- Improved Performance: With its four-port configuration and support for RAID, the 0770D8 module significantly improves the performance of the PowerVault MD3200i. This is particularly beneficial in scenarios where there are high demands for data transfer and storage access, such as in virtualized environments or data-intensive applications.
- Scalability: The ability to support multiple iSCSI connections simultaneously makes the 0770D8 module highly scalable. As storage needs grow, additional modules can be added to further enhance capacity and performance, ensuring that the PowerVault MD3200i can adapt to evolving business requirements.
- Reliability and Redundancy: The redundancy features of the 0770D8 module contribute to the overall reliability of the storage system. In mission-critical environments where data integrity is paramount, having a module that can seamlessly continue operations in the face of hardware issues is a significant advantage.
- Easy Maintenance: The hot-swap capability simplifies maintenance procedures, reducing the impact on operations. Administrators can replace a malfunctioning module without disrupting data access, minimizing downtime and ensuring that the storage system remains available and responsive.
Common Use Cases
- Virtualized Environments: In virtualized environments where multiple virtual machines access shared storage, the 0770D8 module’s multi-port configuration and high performance make it an ideal choice. It can handle the increased I/O demands associated with virtualization, ensuring smooth operation and responsiveness.
- Database Applications: Database applications often require fast and reliable storage solutions. The 0770D8 module’s support for RAID and multiple iSCSI connections makes it well-suited for database environments, where data integrity and quick access are paramount.
- Data Backup and Recovery: The redundancy features of the 0770D8 module make it suitable for use in data backup and recovery scenarios. In the event of a hardware failure, the system can seamlessly switch to alternative ports, minimizing the risk of data loss.
Performance and Reliability of 4 Ports ISCSI Module
The 0770D8 Dell 4-Ports ISCSI Controller Module for PowerVault MD3200i is designed to provide high performance and reliability for the storage array.
In terms of performance, the module provides four iSCSI ports that allow the MD3200i to connect to host servers over an Ethernet network, using the iSCSI protocol which is known for its high-performance data transfer capabilities. The support for multiple NICs and Jumbo frames further enhances the performance, as it allows for more efficient use of network bandwidth and faster data transfer rates. Additionally, the iSCSI boot feature allows hosts to boot from the storage array, providing an efficient solution for organizations that want to leverage the MD3200i as a boot volume for their servers.
In terms of reliability, the controller module provides advanced features such as support for multiple NICs, Jumbo frames, and iSCSI boot, which helps to ensure high availability and data protection. The MD3200i is also designed with redundant components and hot-swappable drives to provide high availability and protection against hardware failure.
The Dell 4-Ports ISCSI Controller Module for PowerVault MD3200i is designed to provide high performance and reliability by providing high-speed data transfer, advanced data protection and management features, and redundant components and hot-swappable drives.
General Compatibility
The 0770D8 Dell 4-Ports ISCSI Controller Module is designed to be compatible with the Dell PowerVault MD3200i storage array. The module provides four iSCSI ports that allow the MD3200i to connect to host servers over an Ethernet network, using the iSCSI protocol. The module is designed as a plug-in module that can be installed in the MD3200i to add iSCSI connectivity. The module supports multiple NICs, Jumbo frames, and iSCSI boot, which allows it to be integrated into a wide range of IT environments.
In terms of the host servers, the controller module is compatible with most servers that support iSCSI protocol, this includes servers running on Windows, Linux, and VMware environments.
In terms of storage, the MD3200i is designed to work with SAS and SATA hard drives, providing flexibility in terms of storage capacity and performance. The MD3200i also supports SAS expanders, which allows it to support up to 256 SAS or SATA devices.
The Dell 4-Ports ISCSI Controller Module for PowerVault MD3200i is designed to be compatible with a wide range of IT environments and servers that support iSCSI protocol, and it also supports SAS and SATA hard drives and SAS expanders.
General Information about this Dell 0770D8
- Manufacturer: Dell
- Part Number or SKU# 0770D8
- Product Type: Storage Controller
- Product Name: Controller
Technical Specifications
- Device Type: Controller Module
- Ports: Quad Port
- Interface Types: SAS (Serial Attached SCSI), Ethernet RJ45, PS2, SFF-8087, SFF-8088
- Form Factor: 3.5in x 1.0in LFF Hard Drive
- Electrical Interface: Ethernet Gigabit – 1Gbps
- On-board Cache: 2GB
- Support: RAID 0, 1, 5, 6, 10
- Bays/Ports/Slots: 4
- Wattage/VA: 600W
- Voltage: 110-240V Multi
- Expansion Connectivity: 1x SFF-8088
- Remote Management: 1x 1GBASE-T
Compatibility
- DELL PowerVault MD3200i
- DELL PowerVault MD3220i
In summary, the 0770D8 Dell 4-Ports iSCSI Controller Module for PowerVault MD3200i is a key component that enhances the capabilities of the PowerVault storage array. Its four-port configuration, compatibility with the MD3200i, redundancy features, and hot-swap capability make it a valuable addition for organizations seeking high-performance and reliable storage solutions. Whether deployed in virtualized environments, database applications, or data backup scenarios, the 0770D8 module plays a crucial role in ensuring optimal storage performance and data integrity. As technology continues to evolve, the 0770D8 module remains a relevant and effective solution for meeting the growing storage needs of businesses across various industries.
