Description
Product Overview

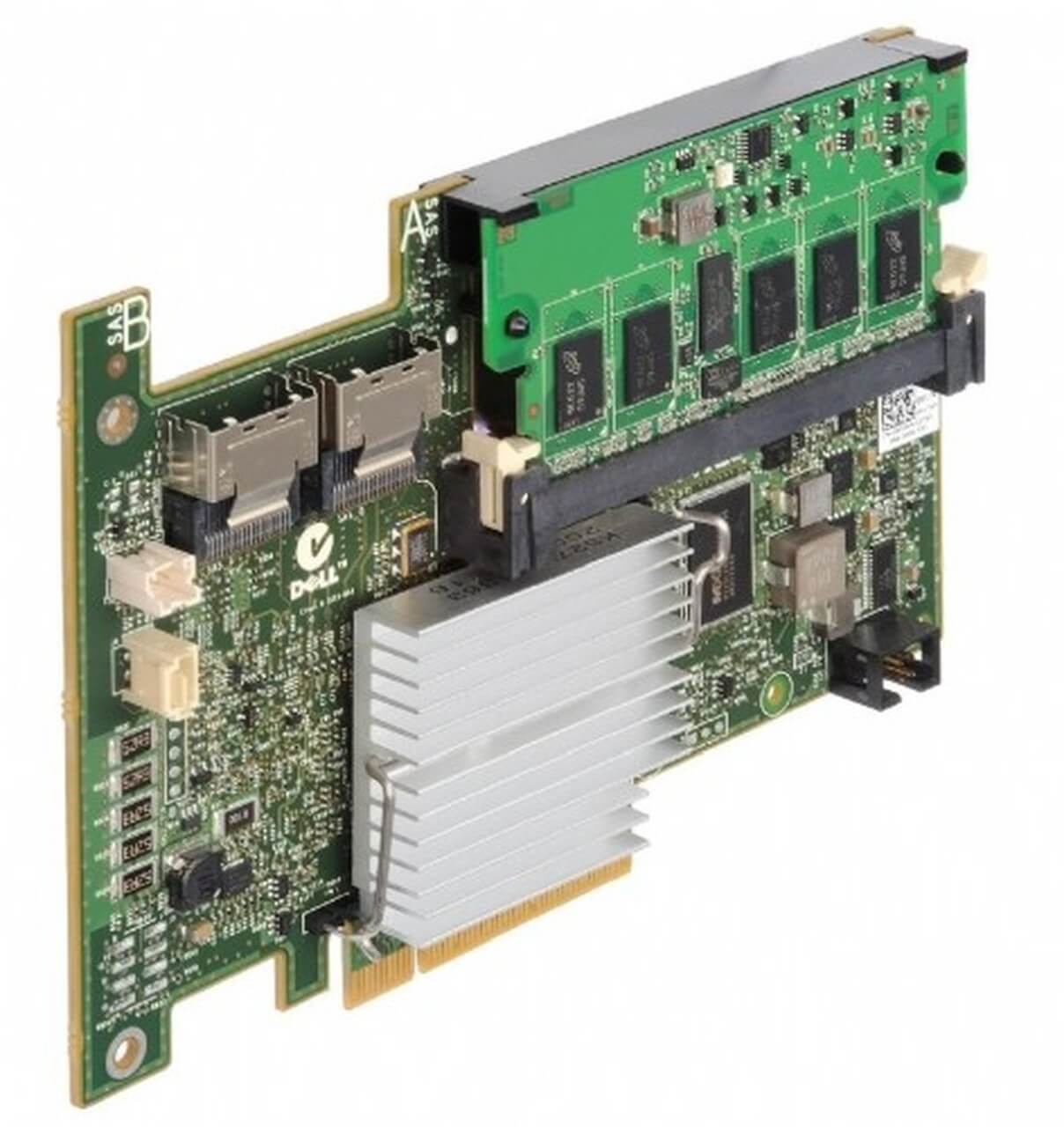

Dell 0CNXVV PERC H700 SAS PCI-Express Integrated Raid Controller with 512MB NV Cache is a hardware component that provides a RAID (Redundant Array of Independent Disks) solution for Dell PowerEdge servers. This controller is designed for enterprise-level performance and reliability, allowing businesses to store and manage their data effectively.
Hardware RAID vs. Software RAID
Hardware RAID solutions use a dedicated controller to manage the RAID array. The controller is a physical device that is installed in the server, and it manages the RAID array independently of the server’s operating system. Hardware RAID solutions are generally more expensive than software RAID solutions, but they offer better performance and reliability.
Software RAID solutions, on the other hand, use the server’s operating system to manage the RAID array. This solution is less expensive than hardware RAID, but it can be slower and less reliable.
Dell 0CNXVV PERC H700 SAS PCI-Express Integrated Raid Controller
The Dell 0CNXVV PERC H700 SAS PCI-Express Integrated Raid Controller is a hardware RAID solution that provides enterprise-level performance and reliability. This controller is designed to work with Dell PowerEdge servers and supports SAS and SATA hard drives.
The PERC H700 controller is equipped with a 512MB NV cache, which provides fast read and write speeds for improved performance. The NV cache is a type of non-volatile memory that stores data even when the power is turned off, ensuring that data is not lost in the event of a power failure.
The PERC H700 controller supports RAID levels 0, 1, 5, 6, 10, 50, and 60, providing businesses with a wide range of RAID solutions to choose from. RAID 0 provides improved performance by striping data across multiple hard drives. RAID 1 provides data redundancy by mirroring data across two hard drives. RAID 5 provides both performance and data redundancy by striping data across multiple hard drives and using parity to protect against data loss. RAID 6 provides even greater data protection by using two parity blocks to protect against data loss. RAID 10, 50, and 60 are more advanced RAID solutions that provide even greater performance and data protection.
Compatibility
The Dell 0CNXVV PERC H700 SAS PCI-Express Integrated Raid Controller is designed to work with Dell PowerEdge servers, including the PowerEdge R710, R610, R510, R410, T710, T610, and T410. It is also compatible with select third-party servers.
Summary, the Dell 0CNXVV PERC H700 SAS PCI-Express Integrated Raid Controller with 512MB NV Cache is a high-performance and reliable hardware RAID solution for Dell PowerEdge servers. This controller provides businesses with a wide range of RAID solutions to choose from, including RAID 0, 1, 5, 6, 10, 50, and 60. The controller is equipped with a 512MB NV cache, providing fast read and write speeds for improved performance. Installing the controller is a straightforward process, and it is compatible with select third-party servers.
General Information about the Dell 0CNXVV
- Brand: Dell
- Part Number or SKU# 0CNXVV
- Type: Controller
- Sub- Type: PERC H700
Technical Features
- Category:Dell Controller
- Sub-Category:RAID Controller
- Generation:PCI-Express
- Products ID:474468
- Device Type:Storage Controller (RAID) – Plug-in Card
- Interface Type:PCI Express x8
- Host Interface:6Gb/s SAS
- Internal/External Connectors:2 Internal
- Cache:512MB Non-Volatile (NV)
- Channel Qty:8
- Max Storage Devices Qty:16
- RAID Level:RAID 0 1 5 6 10 50 60
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
