Description
Key Features of the Controller
- 16-port Internal Configuration: The controller features 16 internal SAS ports that provide high-speed data transfer capabilities.
- 12GBps Data Transfer Speed: The controller supports a data transfer rate of up to 12GBps, making it ideal for high-performance storage applications.
- PCI-E 3.0 Interface: The controller utilizes a PCI-E 3.0 interface for high-speed connectivity to the server or workstation.
- Non-Raid Configuration: The controller does not support Raid configurations, making it ideal for those who require simple and direct storage connectivity.
- Advanced Error Correction: The controller includes advanced error correction features that provide increased data reliability and protection.
- Compatibility with Dell Systems: The controller is specifically designed for use with Dell systems and has been tested and certified to work with a range of Dell workstations and servers.
- Advanced Management Capabilities: The controller provides advanced management capabilities that enable users to easily monitor and manage storage devices connected to the controller.
- SAS Connectivity: The controller features SAS connectivity, providing high-speed and reliable connectivity to SAS-based storage devices.
Performance and Speed
The Dell 2HG8V 9305-16i is a high-performance, 12GBPS SAS internal controller designed for use in high-speed storage applications. With 16 internal ports, this controller provides maximum connectivity for storage arrays and other storage devices.
The PCI-E 3.0 interface provides high-speed data transfer capabilities, ensuring that data is transmitted quickly and efficiently. This controller is designed for use with non-RAID storage configurations, so users have complete control over their storage arrangements.
In terms of performance, the Dell 2HG8V 9305-16i delivers exceptional speeds and reliability. With a maximum data transfer rate of 12GBPS, this controller can handle even the most demanding storage applications. Additionally, the controller is designed to provide a low-latency, high-speed connection, ensuring that data is transferred quickly and efficiently, reducing the overall time required for data access and retrieval.
PCI-E 3.0 Compatibility
The Dell 2HG8V 9305-16i 12GBPS 16-port Internal PCI-E 3.0 SAS Non-Raid Controller is a high-performance SAS controller designed for internal storage connectivity in Dell PowerEdge servers.
Compatibility: This controller is compatible with the following Dell PowerEdge servers:
- PowerEdge R640
- PowerEdge R540
- PowerEdge R440
- PowerEdge R330
- PowerEdge R630
- PowerEdge R730
- PowerEdge R730xd
- PowerEdge R930
- PowerEdge T640
Operating Systems: The Dell 2HG8V 9305-16i 12GBPS 16-port Internal PCI-E 3.0 SAS Non-Raid Controller is compatible with a variety of operating systems, including:
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2
- Microsoft Windows Server 2008
- Microsoft Windows Server 2003
- Red Hat Enterprise Linux 7.x
- Red Hat Enterprise Linux 6.x
- SuSE Linux Enterprise Server 12 SP3
- VMware ESXi 6.x
- VMware ESXi 5.x
This controller supports both 32-bit and 64-bit versions of the above operating systems.
General Information about this Dell 2HG8V
- Manufacturer: Dell
- Part Number or SKU# 2HG8V
- Device Type: Non-Raid Controller
- Internal Ports: 16 Port
Technical Information for Dell PCI-E Adapter
- Host Bus Type: X8 Lane PCI-E 3.0
- Physical Dimensions: 2.7 X 6.6
- Devices Supported: 1024 Non-raid SAS Devices Per Controller

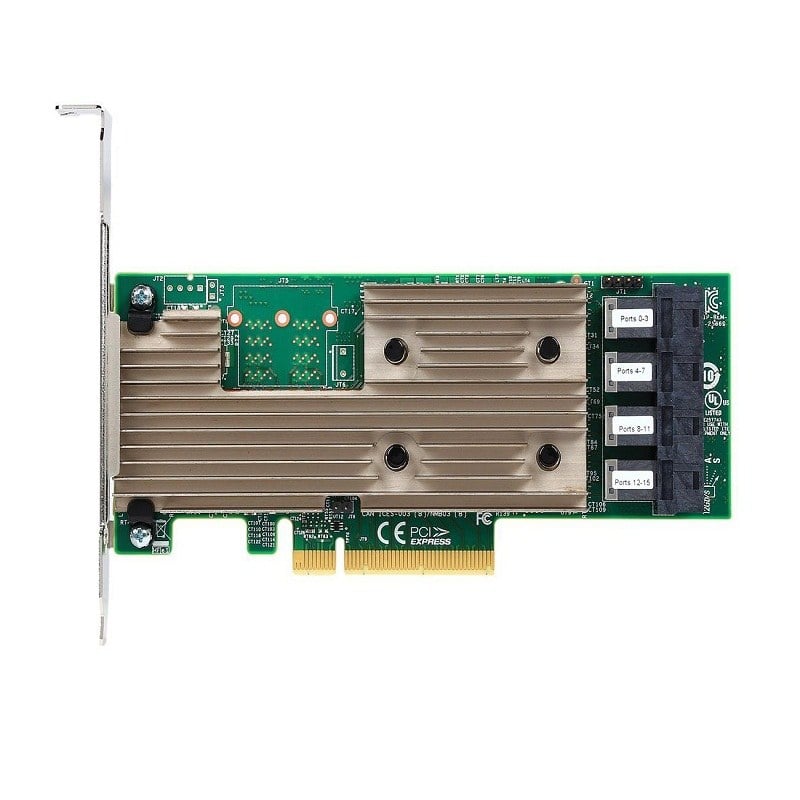

- Internal Connectors: 4 Mini-SAS HD SFF8643
- Operating Temperature: 0°c To 55°c
- Operating Voltage: +12v +/-8%, 3.3v +/-9%
- Os Support: Microsoft Windows, Linux (oracle, Suse, Red Hat), Solaris, Vmware, Freebsd, Centos, Canonical
- Cable Support: Passive Copper, Active Optical
- I/o Controller: Sas3224
