Description

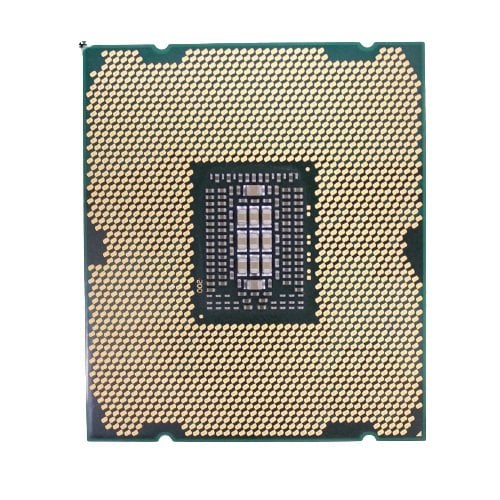

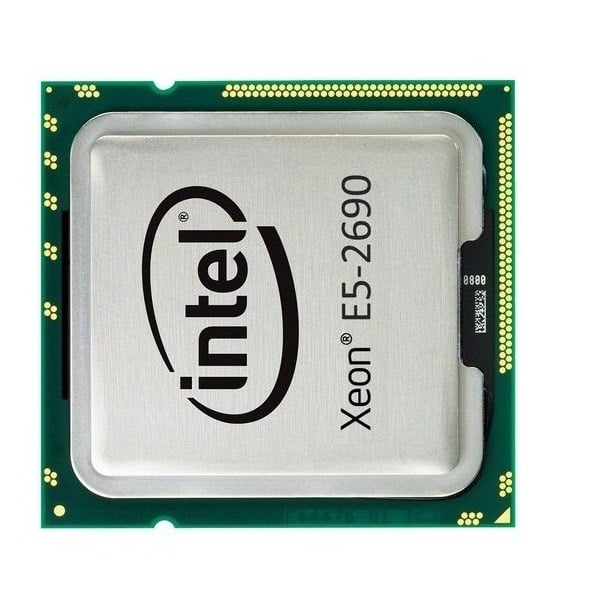

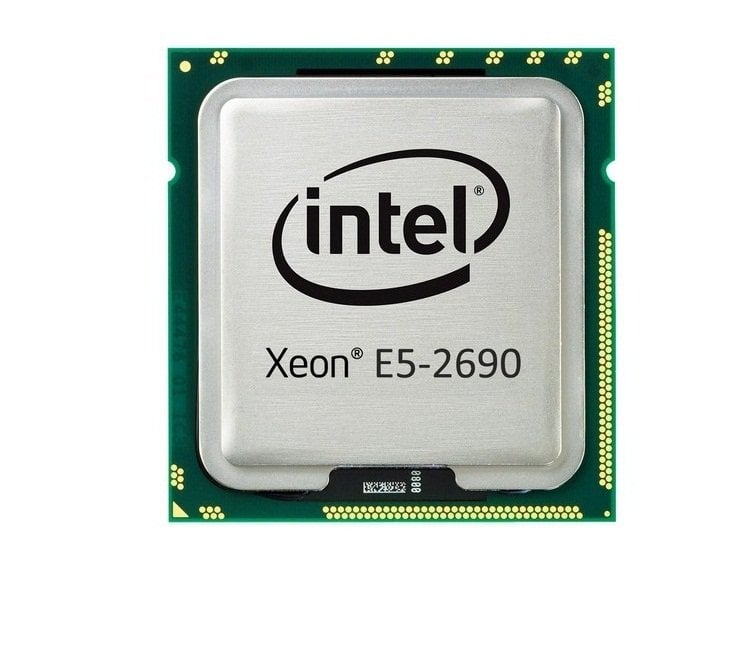

Overview of the Dell Intel Xeon 8-Core E5-2690 Processor
The Dell Intel Xeon 8-Core E5-2690 Processor is a high-performance processor designed for use in enterprise-level servers and workstations. It is based on the Intel Xeon E5-2690 v2 microarchitecture and is built on a 32nm process. This processor features 8 cores and 16 threads, and has a base clock speed of 2.9GHz with a maximum turbo frequency of 3.8GHz. It also has 20MB of SmartCache and supports 8 GT/s QPI (QuickPath Interconnect) links. The processor has a TDP (thermal design power) of 135W and requires a Socket FCLGA-2011 for installation. The Dell Intel Xeon E5-2690 v2 is well suited for use in virtualization, data center, and cloud computing environments, as well as in applications that require a large amount of processing power and memory.
Performance and benchmarking of the Dell Intel Xeon 8-Core E5-2690 Processor
The Dell Intel Xeon 8-Core E5-2690 Processor is known for its high performance and is considered to be one of the most powerful processors in its class. Its 8 cores and 16 threads allow for efficient multitasking and parallel processing, making it well-suited for use in demanding applications such as data center, cloud computing, and virtualization environments.
In benchmarking tests, the Dell Intel Xeon E5-2690 v2 has shown to perform well, scoring high in multi-threaded performance and floating-point operations. In Cinebench R15, it scores around 2000 cb points. In PassMark, it scores around 17000 points.
It also has a high memory bandwidth, thanks to its support for 8 GT/s QPI (QuickPath Interconnect) links, which allows for fast communication between the processor and other components in the system. The 20MB SmartCache also contributes to the processor’s performance by allowing for faster access to frequently used data.
However, it is important to note that the performance of the Dell Intel Xeon E5-2690 v2 will also depend on the rest of the system’s components, such as the memory and storage, as well as the operating system and software being used.
Comparison with similar processors in the market
The Dell Intel Xeon 8-Core E5-2690 Processor is a high-performance processor that is comparable to other processors in the Intel Xeon E5-2600 v2 family, such as the Intel Xeon E5-2680 v2 and the Intel Xeon E5-2670 v2.
In comparison to the Intel Xeon E5-2680 v2, the Dell Intel Xeon E5-2690 v2 has a slightly higher base clock speed of 2.9GHz, but a slightly lower maximum turbo frequency of 3.8GHz. The E5-2680 v2 has a base clock speed of 2.8GHz and a maximum turbo frequency of 3.6GHz. Both processors have the same number of cores and threads (8 cores and 16 threads), the same SmartCache size (20MB), and the same TDP (135W).
In comparison to the Intel Xeon E5-2670 v2, the Dell Intel Xeon E5-2690 v2 has a slightly higher base clock speed of 2.9GHz, but a slightly lower maximum turbo frequency of 3.8GHz. The E5-2670 v2 has a base clock speed of 2.5GHz and a maximum turbo frequency of 3.3GHz. Both processors have the same number of cores and threads (8 cores and 16 threads), the same SmartCache size (25MB), and the same TDP (115W).
In terms of performance, the Dell Intel Xeon E5-2690 v2 is considered to be slightly more powerful than the E5-2680 v2 and the E5-2670 v2, thanks to its higher base clock speed and larger SmartCache. However, the performance difference between these processors may not be significant for most applications and use cases.
Additionally, there are newer processors in Intel Xeon Scalable Family like Intel Xeon Gold 6248 and Intel Xeon Platinum 8268 which are more powerful than the Intel Xeon E5-2690 v2 and have better power efficiency and can be considered as an alternative to this processor.
Ultimately, the choice between the Dell Intel Xeon E5-2690 v2 and similar processors will depend on the specific needs and requirements of the application or environment in which it will be used.
PRODUCT FEATURES:
Product Type
: Server Processor
Product Manufacturer
: Dell
Manufacturer Part Number
: 319-0798
Product Model
: E5-2690
Processor Core
: 8-Core
Clock Speed
: 2.9 Ghz
Max Turbo Frequency
: 3.8 Ghz
Quickpath Interconnect(Qpi) Speed
: 8.0 Gt/S
Instruction Set
: 64-Bit
Instruction Set Extensions
: Avx
Cache Memory Detail:
• L3 Cache
: 20 Mb
Lithography : 32 Nm
Max Thermal Design Power (Tdp) : 135 W
Compatible Processor Socket : Fclga-2011
• Turbo Boost Technology
: 2.0
• Hyper-Threading Technology
• Vpro Technology
• Virtualization Technology(Vt-X)
• Virtualization Technology For Directed I/O(Vt-D)
• Extended Memory 64 Technology
• Enhanced Speedstep Technology
• Trusted Execution Technology
• Thermal Monitoring Technologies
• Demand Based Switching
• Aes New Instructions
• Execute Disable Bit
• Flex Memory Access
• Idle States
