Description

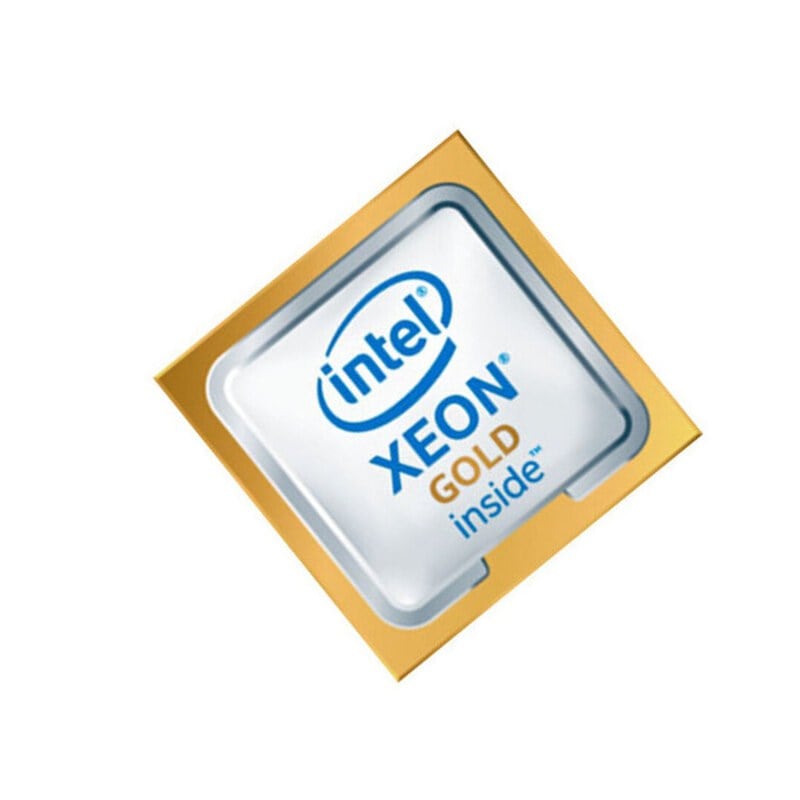

Product overview of the Dell 338-BLUX
The Dell 338-BLUX Xeon 14-Core Gold 5120 2.2GHz 19.25MB L3 Cache UPI Processor is a powerful CPU designed for high-performance computing tasks. It is part of the Intel Xeon Scalable Processor family, which is designed for use in data centers, cloud computing environments, and other applications that require high levels of computing power. In this article, we will take an in-depth look at the features and specifications of the Dell 338-BLUX Xeon 14-Core Gold 5120 processor.
Processor Architecture
The Dell 338-BLUX Xeon 14-Core Gold 5120 processor is based on the Skylake architecture, which is the sixth-generation Intel Core processor architecture. It features 14 cores and 28 threads, which means that it can execute up to 28 simultaneous computing tasks. This makes it ideal for applications that require high levels of parallel processing power, such as scientific simulations, data analytics, and machine learning.
Clock Speed and Cache
The processor has a base clock speed of 2.2 GHz, which can be boosted up to 3.2 GHz using Intel’s Turbo Boost Technology. This means that the processor can dynamically adjust its clock speed to match the workload, providing the best possible performance while maintaining energy efficiency.
The Dell 338-BLUX Xeon 14-Core Gold 5120 processor also features a 19.25 MB L3 cache, which is a type of memory that stores frequently accessed data. The larger the cache, the faster the processor can access frequently used data, which can significantly improve performance in many applications.
Socket and Thermal Design Power
The processor uses the LGA 3647 socket, which is designed for use in high-performance computing systems. The socket supports quad-channel DDR4 memory and Intel’s Advanced Vector Extensions 512 (AVX-512) instruction set, which is optimized for applications that require heavy floating-point calculations.
The Dell 338-BLUX Xeon 14-Core Gold 5120 processor has a thermal design power (TDP) of 105 watts, which is the maximum amount of power that the processor can dissipate under normal operating conditions. This means that the processor requires adequate cooling to prevent it from overheating and causing damage to the system.
Applications
The Dell 338-BLUX Xeon 14-Core Gold 5120 processor is ideal for applications that require high levels of computing power, such as scientific simulations, data analytics, and machine learning. It is also suitable for use in virtualization and cloud computing environments, where multiple virtual machines need to be run simultaneously.
In Summary,The Dell 338-BLUX Xeon 14-Core Gold 5120 2.2GHz 19.25MB L3 Cache UPI Processor is a powerful CPU designed for high-performance computing tasks. It features 14 cores and 28 threads, a base clock speed of 2.2 GHz, and a 19.25 MB L3 cache. It uses the LGA 3647 socket and has a thermal design power of 105 watts. This processor is ideal for applications that require high levels of computing power, such as scientific simulations, data analytics, and machine learning, as well as virtualization and cloud computing environments.
General Information about this Dell 338-BLUX
- Manufacturer:Dell
- Part Number or SKU# 338-BLUX
- Type:Processor
- Product Model :Gold 5120
Technical Information of 14-Core Processor
- Max Turbo Frequency : 3.20GHz
- Ultrapath Interconnect(upi) Speed :10.4Gigabit
- No. Of UPI Links :2
- Instruction Set :64-BIT
- Instruction Set Extensions :Intel® Sse4.2, Intel® Avx, Intel® Avx2, Intel® Avx-512
Cache Memory Detail
- L3 Cache :19.25MB
- lithography :14nm
- Max Thermal Design Power (tdp) :105w
- Compatible Processor Socket : Fclga3647
Memory Specifications
- Max Memory Size (dependent On Memory Type) : 768GB
- Memory Types : Ddr4-2400
- Maximum Memory Speed : 2.40GHZ
- Max No. Of Memory Channels : 6
- Ecc Memory Supported : Yes
