Description
Benefits of using ECC Registered RAM
ECC (Error-Correcting Code) Registered RAM is a type of memory module that provides several benefits over non-ECC memory, including:
- Error detection and correction: ECC RAM can detect and correct memory errors that may occur during data transfer between the CPU and RAM. This is achieved through the use of parity checks, which ensure that the data being read from the memory is the same as the data that was originally written to it. If an error is detected, the ECC RAM can automatically correct it, ensuring data integrity and preventing system crashes or data loss.
- Improved system stability: Since ECC RAM can detect and correct memory errors, it can improve system stability and reliability. This is especially important in servers, workstations, and other mission-critical systems that require high levels of uptime and reliability.
- Higher memory capacity: ECC Registered RAM can support higher memory capacities than non-ECC memory. This is because ECC RAM uses a buffering mechanism that reduces the electrical load on the memory controller, allowing it to support more memory modules and higher memory densities.
- Reduced memory conflicts: Since ECC Registered RAM uses a buffering mechanism, it can reduce memory conflicts and improve memory performance. This is because the buffering mechanism can reduce the electrical noise on the memory bus, allowing for more stable data transfers and faster access times.
- Improved performance in multi-tasking environments: ECC Registered RAM can improve performance in multi-tasking environments where multiple applications are running simultaneously. This is because the buffering mechanism can reduce memory conflicts and improve the overall performance of the system.
Different systems and motherboards
The 370-AARY Dell 16GB 1066mhz PC3-8500 CL7 ECC Registered DDR3 SDRAM 240-Pin RAM module is compatible with several different systems and motherboards. However, it’s important to ensure that the motherboard and system are capable of supporting the memory type, speed, and capacity of the RAM module.
Here are some of the factors to consider when selecting the 370-AARY Dell RAM module for different systems and motherboards:
- Memory type: The 370-AARY Dell RAM module uses DDR3 SDRAM technology. Therefore, the motherboard and system should support DDR3 memory.
- Memory speed: The 370-AARY Dell RAM module has a speed of 1066mhz, so the motherboard and system should support this speed or a compatible speed.
- Memory capacity: The 370-AARY Dell RAM module has a capacity of 16GB, so the motherboard and system should support this capacity or be capable of handling multiple memory modules with a combined capacity of 16GB.
- Memory voltage: The 370-AARY Dell RAM module has a voltage of 1.5V, so the motherboard and system should support this voltage or a compatible voltage.
- Memory configuration: The 370-AARY Dell RAM module uses ECC Registered technology, so the motherboard and system should support this type of memory configuration.
It’s also important to consult the motherboard manual or specifications to ensure that the RAM module is compatible with the system’s memory slots and configuration. Some motherboards may have specific requirements or limitations when it comes to memory capacity, speed, or configuration.
Installing and configuring
Installing and configuring the 370-AARY Dell 16GB 1066mhz PC3-8500 CL7 ECC Registered DDR3 SDRAM 240-Pin RAM module is a straightforward process, but it’s important to follow the correct procedures to ensure that the module is installed properly and is working at its optimal performance. Here are the steps to install and configure the RAM module:
- Turn off the computer: Before installing the RAM module, shut down the computer and unplug it from the power source.
- Locate the RAM slots: Open the computer case and locate the RAM slots on the motherboard. Most motherboards have multiple slots, so you need to identify an empty slot that’s compatible with the 370-AARY Dell RAM module.
- Remove any existing RAM: If there are any existing RAM modules in the slot, gently press down on the clips on either side of the slot to release the module, and then carefully remove it.
- Insert the RAM module: Hold the 370-AARY Dell RAM module by its edges and align the notches on the module with the notches on the slot. Press down firmly on both sides of the module until you hear a click, indicating that the module is securely installed.
- Power on the computer: Once the module is installed, put the computer case back together and plug in the power cord. Turn on the computer and let it boot up normally.
- Verify the installed RAM: To verify that the RAM module is installed and recognized by the computer, go to the System Properties or Task Manager and check the amount of installed memory. It should show the correct amount of RAM, which is 16GB for the 370-AARY Dell module.
- Configure the RAM in BIOS: If necessary, enter the BIOS (Basic Input/Output System) and configure the RAM settings. Most motherboards automatically detect and configure the RAM settings, but you may need to manually adjust the speed, voltage, or timing settings for optimal performance.
- Benchmark the RAM: To test the performance of the installed RAM module, run a benchmarking program that tests the memory bandwidth, latency, and other performance metrics. This will help you determine if the RAM module is working at its optimal performance.

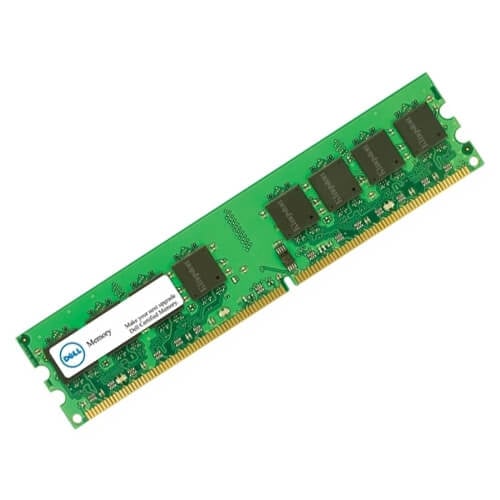

General Information
- Manufacturer: Dell
- Manufacturer Part Number: 370-AARY
- Type: Memory (RAM)
- Sub-Type: PC3-8500
- Product Name: 16GB DDR3 SDRAM Memory Module
Technical Information
- Storage Capacity: 16GB
- Memory Technology: DDR3 SDRAM
- Number Of Modules: 1 X 16GB
- Memory Speed: 1066mhz DDR3-1066/PC3-8500
- Data Integrity Check: Ecc
- Signal Processing: Registered
