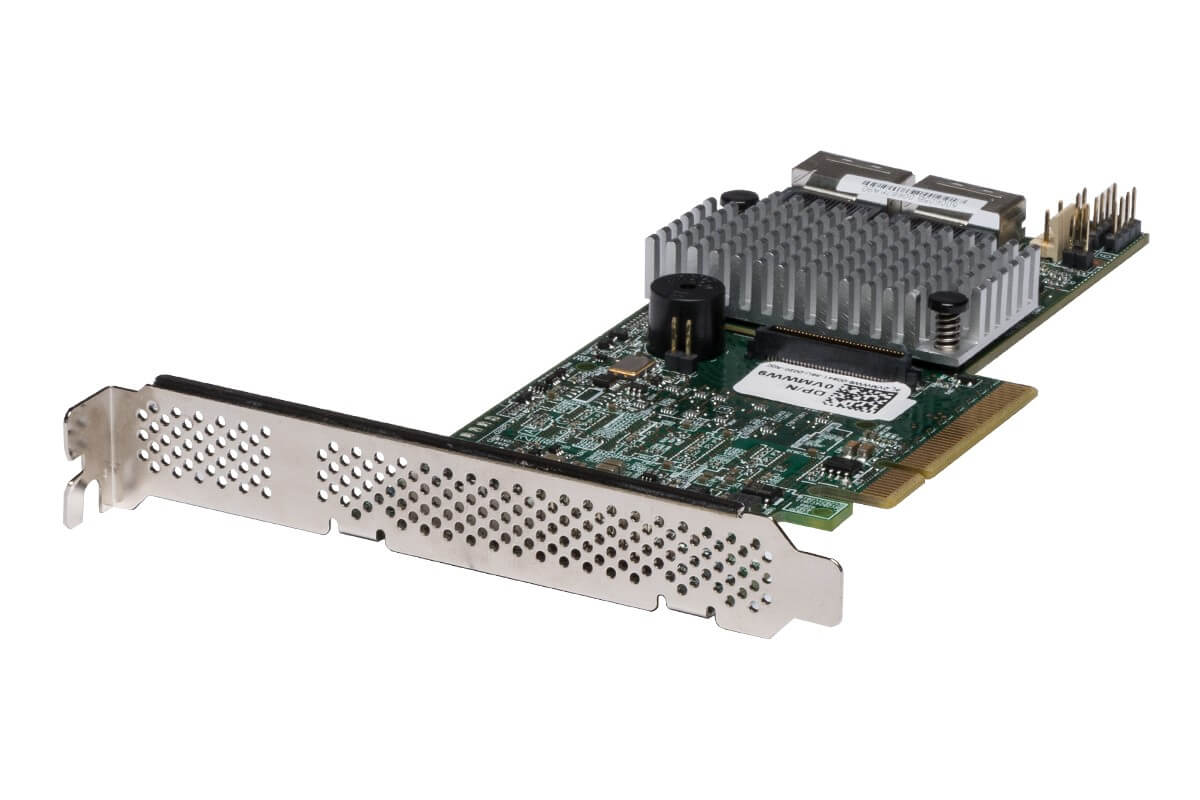

403-BBEL Dell 6GBPS Megaraid SAS 8-Port PCI-E 3.0 X8 SAS SATA Host Bus Adapter with Low Bracket | New Bulk Pack

The Dell 403-BBEL is a Host Bus Adapter (HBA) that provides connectivity between storage devices and a computer system. This specific model supports up to eight SAS or SATA devices, and it uses the PCI-E 3.0 x8 interface to communicate with the host system. The HBA is designed to work with Dell PowerEdge servers, but it may be compatible with other systems as well. The 6GBPS Megaraid SAS technology provides high-speed data transfer rates and RAID functionality, allowing for increased data protection and availability.

Hardware Features

The Dell 403-BBEL is a low-profile HBA, which means that it is designed to fit into a computer system with limited space. The HBA comes with a low bracket, which allows it to be installed in a half-height PCIe slot. It also includes a full-height bracket for use in a standard PCIe slot. The HBA features eight SAS/SATA ports, which support both 6Gbps and 3Gbps devices. The HBA supports SAS expanders, which allows for the connection of more than eight devices. The HBA also includes a Mini-SAS HD connector for external storage devices.

Performance Features

The Dell 403-BBEL uses the Megaraid SAS technology, which provides hardware RAID functionality. This allows for increased data protection and availability, as well as improved performance. The HBA supports RAID levels 0, 1, 5, 6, 10, 50, and 60. The HBA also includes a RAID-on-Chip (ROC) processor, which offloads RAID calculations from the host system, improving performance. The HBA supports up to 128 SAS or SATA devices when used with SAS expanders. The HBA provides high-speed data transfer rates of up to 6Gbps, which allows for fast data access and transfer.

Compatibility

The Dell 403-BBEL is designed to work with Dell PowerEdge servers, but it may be compatible with other systems as well. The HBA is compatible with operating systems such as Windows Server, Red Hat Enterprise Linux, and VMware ESXi. The HBA also supports Dell’s OpenManage Storage Management (OMSM) software, which allows for easy management and monitoring of storage devices. The HBA is certified to work with Dell PowerEdge servers and is backed by Dell’s support and warranty.

Summary, the Dell 403-BBEL 6GBPS Megaraid SAS 8-Port PCI-E 3.0 X8 SAS SATA Host Bus Adapter with Low Bracket is a high-performance HBA that provides connectivity between storage devices and a computer system. The HBA features eight SAS/SATA ports, supports up to 128 devices when used with SAS expanders, and provides hardware RAID functionality. The HBA uses the Megaraid SAS technology, which allows for high-speed data transfer rates and improved data protection and availability. The HBA is designed to work with Dell PowerEdge servers, but it may be compatible with other systems as well. The HBA is backed by Dell’s support and warranty, and it is certified to work with Dell PowerEdge servers.
