Description
Product Information of 405-AAEG Dell PERC H730

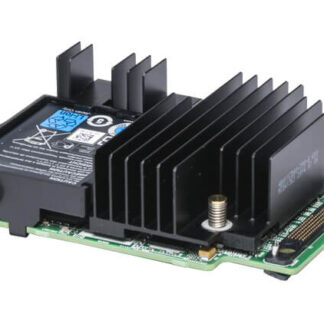

The 405-AAEG Dell PERC H730 is a RAID controller that provides high-performance and reliability for storage systems in enterprise-level applications. It supports SAS (Serial Attached SCSI) and SATA (Serial ATA) drives and has a cache memory of 1GB NV (Non-Volatile) cache. This article will explain in detail what the 405-AAEG Dell PERC H730 RAID controller is and its features.
RAID Controller and its function
A RAID controller is a hardware device that manages multiple hard drives or solid-state drives (SSDs) as a single logical unit. It is used in servers and storage systems to improve data reliability, increase storage capacity, and enhance performance. RAID stands for Redundant Array of Independent Disks, and it uses multiple disks in different configurations to achieve these goals.
The function of a RAID controller is to manage the data flow between the host computer and the hard drives. It provides an interface between the operating system and the drives, and it can perform various operations, such as data protection, data mirroring, and data striping.
Features of the 405-AAEG Dell PERC H730 RAID Controller
The 405-AAEG Dell PERC H730 RAID controller is a high-performance device that provides several features to enhance data reliability and performance. Here are some of its key features:
- SAS and SATA support The 405-AAEG Dell PERC H730 RAID controller supports both SAS and SATA drives, allowing users to mix and match drives to meet their storage needs. SAS drives are typically used in high-performance applications, while SATA drives are used in lower-end applications. With the 405-AAEG Dell PERC H730, users can choose the drive type that best suits their requirements.
- 1GB NV cache The 405-AAEG Dell PERC H730 RAID controller has a cache memory of 1GB NV cache. This memory is non-volatile, which means that it retains its data even when the system is powered off. The cache memory is used to store frequently accessed data, which can be quickly retrieved by the controller, improving system performance.
- 12Gbps SAS and 6Gbps SATA The 405-AAEG Dell PERC H730 RAID controller supports both 12Gbps SAS and 6Gbps SATA interfaces. These interfaces provide high-speed data transfer rates, allowing data to be transferred quickly between the drives and the controller.
- RAID support The 405-AAEG Dell PERC H730 RAID controller supports several RAID configurations, including RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 50. These configurations provide different levels of data protection and performance, depending on the user’s requirements.
- Integrated Dell Remote Access Controller (iDRAC) The 405-AAEG Dell PERC H730 RAID controller comes with an integrated Dell Remote Access Controller (iDRAC). iDRAC provides remote management capabilities, allowing users to monitor and manage the system from a remote location. This feature is especially useful in large data centers or for users who need to manage multiple systems.
- Compatibility The 405-AAEG Dell PERC H730 RAID controller is compatible with several Dell servers, including the PowerEdge R730, R730XD, R630, T630, and others. It can also be used with other servers that support PCIe 3.0.
Finally, the 405-AAEG Dell PERC H730 RAID controller is a high-performance device that provides several features to enhance data reliability and performance. It supports both SAS and SATA drives, has a cache memory of 1GB NV cache, and supports several RAID configurations.f
General Information about the Dell 405-AAEG
- Product manufacturer : Dell
- Part Number or SKU# 405-AAEG
- Product Type : SAS Controlar
Technical Information
- Interface Support : 12GB/S SAS, 6GB/S SATA
- Pci Support : PCI-E 3.0
- Sas Connections : 2×4 Internal
- Cache Memory : 1GB NV
- Raid Levels : 0,1,5,6,10,50,60
- Max Drive Support : 32
- Raid Support : Hardware
- Data Transfer Rate : 1.2GB/S
- Dimensons D X H : 16.76CM X 6.44CM
