Description
High-Speed 10Gbps SFP+ Connectivity
High-speed 10Gbps SFP+ connectivity refers to the ability of a network to support fast data transfer rates using 10Gbps SFP+ technology. SFP+ (Small Form-Factor Pluggable Plus) is a type of optical transceiver module that provides high-speed connectivity over fiber optic cabling. With 10Gbps SFP+ connectivity, organizations can transfer data at rates of up to 10 gigabits per second, providing fast and reliable network connectivity for demanding applications and services.
10Gbps SFP+ connectivity is an important consideration for organizations that need to support high-speed, low-latency network infrastructure. This technology provides several benefits, including:
- Increased bandwidth: With 10Gbps SFP+ connectivity, organizations can transfer data at faster rates, providing more bandwidth for demanding applications and services.
- Improved performance: 10Gbps SFP+ connectivity provides fast, reliable, and low-latency network connectivity, which can improve overall network performance and reduce the time and effort required to manage the network.
- Increased reach: SFP+ modules can support distances of up to 10 kilometers, making it an ideal solution for organizations that need to connect devices and services over long distances.
- Improved security: SFP+ modules can support encryption technologies, such as Fibre Channel over Ethernet (FCoE) and Internet Protocol Security (IPSec), which can help organizations improve their overall security posture.

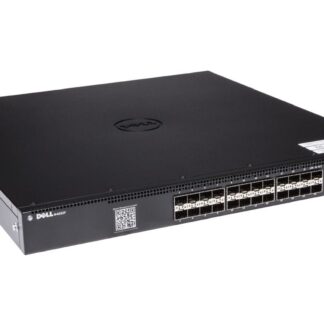

The Dell N4032F 24 Ports 10Gbps SFP+ Ethernet Switch provides organizations with 24 ports of high-speed 10Gbps SFP+ connectivity, enabling organizations to connect multiple devices and services to the network and support fast data transfer rates. In addition, the switch provides advanced features, such as energy-efficient design, advanced security, and Quality of Service (QoS) support, to help organizations improve network performance and security.
Virtual LAN (VLAN) Support
Virtual LAN (VLAN) is a networking technology that allows organizations to divide a single physical network into multiple virtual networks. VLANs provide several benefits, including:
- Increased security: VLANs can be used to segment network traffic, helping organizations to isolate sensitive data and improve their overall security posture.
- Improved network performance: By dividing a single physical network into multiple virtual networks, organizations can reduce network congestion and improve network performance.
- Enhanced network flexibility: VLANs can be used to create virtual networks that can be easily reconfigured to meet changing business requirements.
VLANs are implemented through the use of VLAN tags, which are added to network frames to identify the VLAN to which the frame belongs. Network switches are used to route traffic between VLANs, and switch ports can be configured to belong to one or more VLANs.
The Dell N4032F 24 Ports 10Gbps SFP+ Ethernet Switch provides support for VLANs, enabling organizations to divide their network into multiple virtual networks and improve overall network security and performance. The switch supports multiple VLAN modes, including port-based, tag-based, and protocol-based VLANs, providing organizations with a flexible and scalable solution for their network needs.
In addition, the switch provides support for advanced VLAN features, such as VLAN trunking and tagging, enabling organizations to connect multiple switches and extend their virtual network infrastructure. This helps organizations to increase network availability and support growing business needs.
Scalable Networking Solutions
Scalable networking solutions refer to network infrastructure that can grow and adapt to changing business requirements, without becoming a bottleneck or requiring significant reconfiguration. Scalable networking is critical for organizations that need to support growing user populations, increasing network traffic, and changing business requirements.
The Dell N4032F 24 Ports 10Gbps SFP+ Ethernet Switch provides scalable networking solutions for organizations of all sizes. The switch features 24 SFP+ ports, which provide high-speed 10Gbps connectivity, and are easily upgradeable to support increasing network traffic. In addition, the switch supports multiple link aggregation protocols, including Link Aggregation Control Protocol (LACP) and static link aggregation, which enables organizations to increase network bandwidth by combining multiple physical links into a single logical link.
The switch also provides support for advanced features, such as Quality of Service (QoS), enabling organizations to prioritize network traffic and ensure that critical applications receive the bandwidth they need. The switch also provides robust security features, including Access Control Lists (ACLs), which can be used to restrict access to specific network resources.
General Information
- Manufacturer Name: Dell
- MPN: 463-7698
- Type: Switch
- Switch Type: 24 Port
- SKU: 463-7698
Networking
- Enclosure Type: Rack-mountable 1U
- Subtype: 10 Gigabit Ethernet
- Ports: 24 x 10 Gigabit SFP+
Performance
- Switching fabric bandwidth: 640 Gbps Forwarding performance: 476 Mpps
- MAC Address Table Size: 131072 entries
- Routing Protocol: OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, MLDv2, MLD
- Remote Management Protocol: SNMP 2, SNMP, RMON, HTTP, SSH
- Encryption Algorithm: AES, SSL, TLS 1.0
- Authentication Method: RADIUS, TACACS+, LDAP
- RAM: 2 GB
- Flash Memory: 256 MB
Power
- Power Device: Internal power supply – hot-plug
- Installed Qty: 2 (installed) / 2 (max)
- Power Redundancy: Yes
- Power Provided: 460 Watt
- Power Consumption Operational: 176 Watt
Dimensions & Weight
- Width: 17.1 Inch
- Depth: 18.1 Inch
- Height: 17.1 Inch
- Weight: 21.14 lbs
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 122 °F
- Min Storage Temperature: -4 °F
- Max Storage Temperature: 158 °F
