Description

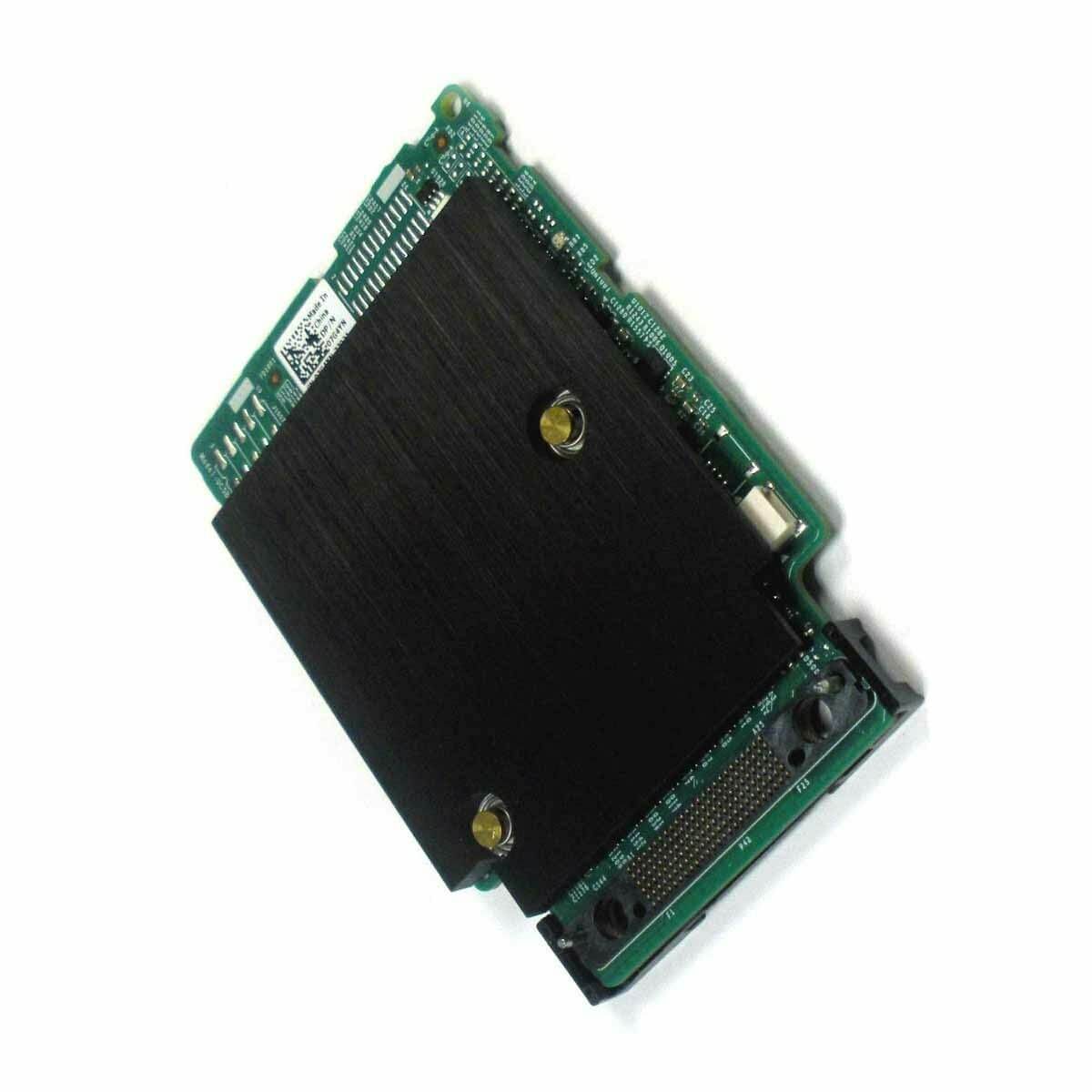

Product Overview for the Dell 7G4YN PCI-E Raid Controller
The 7G4YN Dell PERC H330 Mini Blade SAS is a cutting-edge Raid Controller designed to enhance storage capabilities in server environments. This powerful controller supports both SAS (Serial Attached SCSI) with a blazing 12Gbps data transfer rate and SATA (Serial ATA) with a substantial 6Gbps speed. Its integration via PCI-E 3.0 ensures high-performance connectivity in server systems. In this comprehensive guide, we will delve into the key features, specifications, benefits, and installation process of the 7G4YN Dell PERC H330 Mini Blade SAS Raid Controller.
Key Features
- SAS and SATA Support: The 7G4YN Dell PERC H330 Mini Blade SAS Raid Controller supports both SAS and SATA drives. SAS provides higher data transfer rates, making it suitable for high-performance applications, while SATA drives are more cost-effective and widely used for general storage purposes.
- 12Gbps SAS Data Transfer Rate: One of the standout features of this Raid Controller is its support for SAS drives with a remarkable 12Gbps data transfer rate. This ensures swift and efficient data access, making it ideal for demanding server environments where speed is crucial.
- 6Gbps SATA Data Transfer Rate: In addition to the high-speed SAS support, the controller also accommodates SATA drives with a respectable 6Gbps data transfer rate. This versatility allows users to choose the type of drive that best fits their performance and budgetary requirements.
- PCI-E 3.0 Interface: The 7G4YN Dell PERC H330 Mini Blade SAS Raid Controller utilizes the PCI Express 3.0 interface. This third-generation interface provides increased bandwidth and faster data transfer rates compared to its predecessors, ensuring optimal performance and efficiency.
Specifications
- Form Factor: The Mini Blade form factor of the 7G4YN Dell PERC H330 makes it compact and suitable for blade server configurations. Its small size allows for efficient use of space within the server chassis.
- RAID Levels: This Raid Controller supports various RAID levels, including RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 50. This flexibility allows users to configure the storage system based on their specific needs, balancing performance, and data redundancy.
- Cache Memory: The controller is equipped with cache memory to enhance data transfer speeds and overall system performance. The size of the cache memory may vary, and users can choose the configuration that aligns with their performance requirements.
- Battery Backup Unit (BBU) Support: For data protection and integrity, the 7G4YN Dell PERC H330 Mini Blade SAS Raid Controller supports Battery Backup Units. These units provide power to the controller’s cache memory during a power outage, ensuring that data in transit is not lost and maintaining the integrity of the storage system.
Benefits
- Improved Performance: The 12Gbps SAS data transfer rate, combined with the PCI-E 3.0 interface, results in significantly improved storage performance. This is particularly advantageous in scenarios where quick access to data is critical, such as in enterprise-level applications.
- Versatility in Drive Support: The ability to support both SAS and SATA drives provides users with the flexibility to choose storage solutions that align with their performance and budgetary considerations. Whether prioritizing speed or cost-effectiveness, the controller accommodates various storage needs.
- RAID Configuration Options: The support for multiple RAID levels allows users to configure the storage system based on their specific requirements. From maximizing performance with RAID 0 to ensuring data redundancy with RAID 1 or RAID 10, the controller provides a range of options to meet diverse use cases.
- Space-Efficient Design: The Mini Blade form factor ensures that the controller takes up minimal space within the server chassis. This is particularly beneficial in environments where space is a premium, such as in blade server configurations.
PCI-E 3.0 Interface
PCI-Express (PCI-E) 3.0 is a computer interface standard that is commonly used for high-speed data transfer between a computer’s central processing unit (CPU) and peripheral devices such as a RAID controller. The 7G4YN Dell PERC H330 Mini Blade RAID controller uses a PCI-E 3.0 interface to connect to the computer and provide high-speed data transfer.
PCI-E 3.0 provides several advantages over older interface standards, such as PCI-E 2.0. One of the main advantages is increased bandwidth, which allows for faster data transfer rates. PCI-E 3.0 has a maximum bandwidth of 8 GT/s (Giga transfers per second) compared to PCI-E 2.0’s maximum bandwidth of 5 GT/s. This means that the Dell PERC H330 Mini Blade RAID controller with a PCI-E 3.0 interface can transfer data at a faster rate than one with a PCI-E 2.0 interface.
Another advantage of PCI-E 3.0 is improved power efficiency. PCI-E 3.0 uses a more efficient encoding scheme, which reduces the amount of power required for data transfer. This can help to reduce power consumption and extend the battery life of mobile devices that use the Dell PERC H330 Mini Blade RAID controller.
PCI-E 3.0 interface provides high-speed data transfer, and improved power efficiency and it’s an industry standard which makes it a future-proof solution, this is the reason why Dell’s 7G4YN PERC H330 Mini Blade RAID controller uses PCI-E 3.0 interface.
RAID Levels Supported
The 7G4YN Dell PERC H330 Mini Blade RAID controller supports several RAID levels, which are different methods of configuring multiple disk drives to provide data redundancy and protection. The RAID levels supported by the Dell PERC H330 include:
- RAID 0: Also known as “striping,” this RAID level divides data across multiple drives to improve performance. However, RAID 0 does not provide any data redundancy, so if one drive fails, all data will be lost.
- RAID 1: Also known as “mirroring,” this RAID level copies data from one drive to another, providing complete data redundancy in case one drive fails.
- RAID 5: This RAID level uses a technique called “striping with parity,” in which data is striped across multiple drives, and parity information is also written to one or more drives. If one drive fails, the parity information can be used to reconstruct the data on the failed drive.
- RAID 6: Similar to RAID 5, RAID 6 uses two sets of parity information, providing added protection against data loss if two drives fail.
- RAID 10: A combination of RAID 1 and RAID 0, RAID 10 strips data across multiple drives and also mirrors data to another set of drives.
- RAID 50: A combination of RAID 5 and RAID 0, RAID 50 strips data across multiple drives and also uses parity information to protect against data loss.
- RAID 60: A combination of RAID 6 and RAID 0, RAID 60 strips data across multiple drives and also uses two sets of parity information to protect against data loss.
It’s important to note that different RAID levels have different requirements in terms of the number of drives that are needed and the amount of storage capacity that is available, so it’s important to carefully consider the specific needs of your application before selecting a RAID level for your Dell PERC H330 Mini Blade RAID controller.
Scalability and Expandability
The 7G4YN Dell PERC H330 Mini Blade RAID controller has several features that provide scalability and expandability for growing storage needs.
One way the Dell PERC H330 supports scalability is through the ability to support multiple RAID arrays. This means you can create multiple RAID groups and assign different RAID levels to each group, depending on your specific storage needs. This allows you to easily add or remove drives from a RAID group without affecting the other groups.
Another way the Dell PERC H330 supports scalability is through the ability to support multiple enclosures. This allows you to expand your storage capacity by adding additional enclosures, each of which can contain multiple drives.
In terms of expandability, the Dell PERC H330 supports online capacity expansion, which allows you to add new drives to an existing RAID group without having to take the RAID group offline. This allows you to expand the capacity of your RAID group while still maintaining access to your data.
The Dell PERC H330 also supports online RAID level migration, which allows you to change the RAID level of a RAID group without having to take the RAID group offline. This allows you to easily adjust the RAID level of your RAID group to meet changing storage needs.
General Information about this Dell 7G4YN
- Manufacturer: Dell
- Part Number or SKU# 7G4YN
- Product Type: SAS-SATA
- Product Name: Controller
Technical Specifications
- Series: PowerEdge Series 9 Controllers
- Cache Memory Size: None
- Write Back Cache: None
- RAID Support: Hardware RAID
- Supported RAID Levels: 0, 1, 5, 10, 50
- Max Drives Supported: 8
- Bracket: Not applicable
- Form Factor: Mini Blade
- PCI Support: PCI-Express 3.0
- Connectors: System Board
- Interface Support: 12Gbps SAS, 6Gbps SATA
Outline, the 7G4YN Dell PERC H330 Mini Blade SAS Raid Controller stands as a powerful solution for enhancing storage capabilities in server environments. With support for high-speed SAS drives, versatile SATA drive compatibility, and a range of RAID configuration options, this controller caters to the diverse needs of modern data storage. The compact Mini Blade form factor ensures efficient use of space in server configurations, making it a suitable choice for environments where spatial considerations are crucial. By following the outlined installation process, users can seamlessly integrate this controller into their server systems, unlocking improved performance and flexibility in storage management.
