Description
Dual Rank vs. Single Rank RAM
Dual rank and single rank are terms used to describe the organization of memory modules in a computer.
Single rank RAM is organized with a single group of memory chips on each side of the module’s PCB (Printed Circuit Board). This means that the memory controller can communicate with all the chips on the module in a single pass, which can result in faster memory access times.
Dual rank RAM, on the other hand, is organized with two groups of memory chips on each side of the module’s PCB. This means that the memory controller needs to make two passes to access all of the memory chips on the module. While dual rank RAM has more memory chips than single rank RAM, the additional chips can lead to increased electrical load and potentially slower performance.
In general, single rank RAM is faster and more compatible with a wider range of systems, but may be more expensive. Dual rank RAM, on the other hand, can be a more cost-effective option, but may not work optimally with all systems.
It’s worth noting that not all memory modules are labeled as either single rank or dual rank, and that some systems may be more sensitive to memory organization than others. When upgrading your system’s memory, it’s important to consult your system’s documentation or manufacturer to ensure compatibility and optimal performance.
CL17 ECC and its Benefits
CL17 ECC is a type of memory specification that is commonly used in server and workstation systems. “CL” stands for “CAS Latency,” which refers to the time it takes for the memory controller to access data from the memory module. ECC, or “Error Correcting Code,” is a type of error detection and correction technology that can help to prevent data corruption or loss.
The benefits of CL17 ECC memory include:
- Improved Data Integrity: ECC memory can detect and correct errors in the memory data, which helps to prevent system crashes and data corruption. This is especially important in mission-critical systems where data integrity is essential.
- Higher Reliability: The error correction capabilities of ECC memory can increase system reliability by reducing the likelihood of memory-related errors.
- Enhanced System Performance: CL17 ECC memory can offer higher performance than non-ECC memory in some cases, as the memory controller can access data more quickly and reliably.
- Improved Scalability: ECC memory can be used in large-scale server and workstation deployments, where system reliability and data integrity are critical.
However, it’s worth noting that CL17 ECC memory can be more expensive than non-ECC memory, and not all systems require ECC memory. When upgrading your system’s memory, it’s important to consult your system’s documentation or manufacturer to determine if ECC memory is necessary or recommended.
Troubleshooting Common Issues
When installing or upgrading RAM, there are a few common issues that may arise. Here are some troubleshooting steps to follow:
- Ensure Compatibility: Make sure that the RAM you’ve purchased is compatible with your system’s motherboard and existing RAM. Check the manufacturer’s documentation or website to confirm compatibility.
- Check Installation: Verify that the RAM is installed correctly in the appropriate slots, and that the locking tabs are securely in place.
- Remove and Reinsert: If the RAM is not working properly, try removing and reinserting it to ensure a good connection.
- Test Each Stick: If you’ve installed multiple RAM sticks, test each one individually to see if one of them is faulty. This can help to isolate the problem.
- Test with Diagnostic Software: Run diagnostic software such as Memtest86+ or Windows Memory Diagnostic to check for errors or compatibility issues. These programs can help to identify faulty RAM or other memory-related issues.
- Update BIOS: Check for BIOS updates for your system, as some updates may improve RAM compatibility or performance.
- Seek Professional Help: If the above steps do not resolve the issue, it may be necessary to seek professional help from a computer technician or the manufacturer’s support team.
By following these troubleshooting steps, you can diagnose and resolve common RAM-related issues and ensure that your system is running smoothly.
General Information
- Brand: Dell
- Manufacturer part number: A9216186
- Type: Memory (RAM)
- Sub-Type: PC4-19200

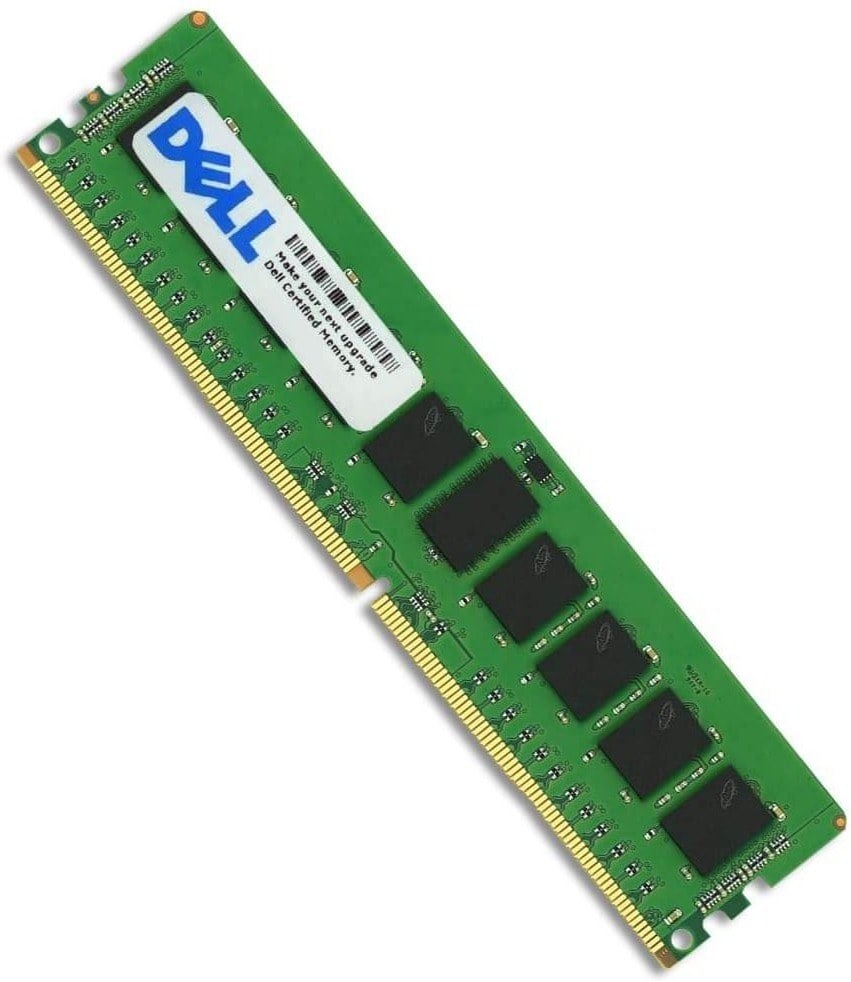

- Product name: 8GB DDR4 SDRAM Memory Module
Technical Information
- Memory Size: 8GB
- Memory Technology: DDR4 SDRAM
- Number Of Modules: 1 X 8GB
- Memory Speed: 2400 Mhz
- Memory Standard: DDR4-2400/PC4-19200
- Signal Processing: Unbuffered
- Error Checking: Ecc
- Cas Latency: Cl17
- Pin Count: 260-Pin
- Voltage: 1.2v
- Form Factor: Sodimm
