Description

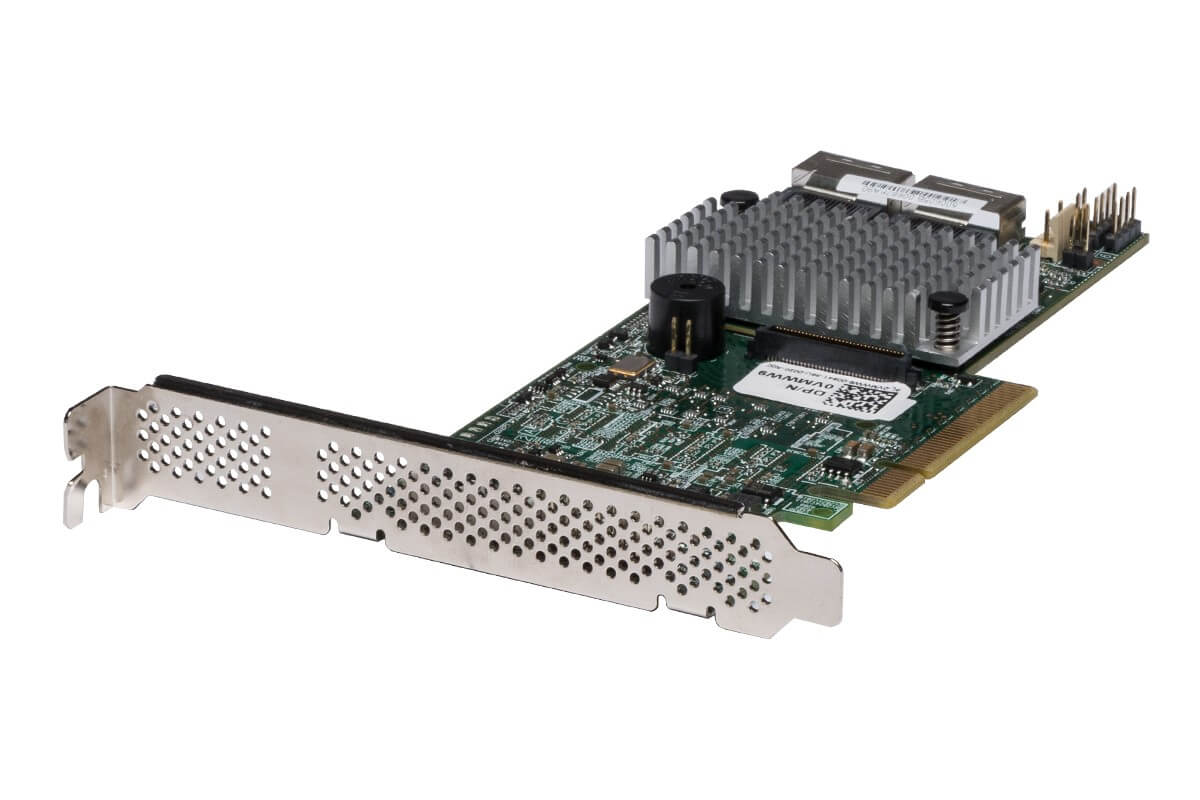

Product overview of DPFV1 Dell 6GB Megaraid SAS 9271-8I 8-Port
The DPFV1 Dell 6GB Megaraid SAS 9271-8I is a Host Bus Adapter (HBA) designed for enterprise-level storage solutions. It provides a reliable and high-performance connection between servers and storage devices, allowing for seamless data transfer and management. In this article, we will provide a detailed explanation of the key features and benefits of the DPFV1 Dell 6GB Megaraid SAS 9271-8I 8-Port PCI-E 3.0 X8 SAS SATA Host Bus Adapter With Low Bracket.
A Host Bus Adapter (HBA)
A Host Bus Adapter (HBA) is a device that enables communication between a host system (such as a server) and storage devices (such as hard drives or solid-state drives). The HBA acts as an intermediary between the host and storage devices, allowing the host to access and manage data stored on the devices. HBAs typically use a high-speed interface such as SAS or SATA to provide fast and reliable data transfer.
Key Features of the DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA
The DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA is designed for use in enterprise-level storage solutions, and offers a number of key features that make it a reliable and high-performance option.
8-Port PCI-E 3.0 X8 SAS SATA
The DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA features 8 ports that support both SAS and SATA interfaces. This allows for a wide range of storage devices to be connected to the HBA, providing flexibility and scalability for storage solutions. The HBA also uses PCI-E 3.0 X8 interface, which provides high-speed data transfer and low latency.
Support for RAID Levels
The DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA supports a wide range of RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60. RAID (Redundant Array of Independent Disks) is a technology that allows multiple hard drives to be combined into a single logical unit for improved performance and data protection. With support for a wide range of RAID levels, the DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA can be used in a variety of storage configurations.
Cache Memory
The DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA features 1GB cache memory, which provides improved performance for data-intensive applications. The cache memory helps to reduce latency and improve overall data transfer speeds, making it an ideal option for enterprise-level storage solutions.
Support for Multiple Operating Systems
The DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA is compatible with a wide range of operating systems, including Windows, Linux, and VMware. This makes it a flexible option for use in a variety of server and storage configurations.
Low-Profile Bracket Included
The DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA comes with a low-profile bracket included, which makes it easier to install in systems with limited space. The low-profile bracket allows the HBA to be installed in small form factor systems, providing greater flexibility for storage solutions.
Benefits of the DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA
The DPFV1 Dell 6GB Megaraid SAS 9271-8I HBA offers a number of benefits for enterprise-level storage solutions
General Information about the Dell DPFV1
- Brand: Dell
- Model Number or SKU# DPFV1
- Type: Controller
- Sub-Type: SAS-SATA
Technical Information
- Product Type: SAS Controller
- Host Interface: PCI Express 3.0 X8
- Data Transfer Rate: 768 MBPS Per Port
- Interfaces: Serial Attached SCSI (SAS), Serial ATA/600
- Raid Supported: Yes
- Raid Levels: 0, 1, 10, 50, 60, 5, 6
- Data Backup Type: Battery Backup
- Standard Memory: 1 GB DDR3 SDRAM
- Ports: 2 X SFF-8087 6GB/S SAS – Mini-Sas Internal
- Form Factor: Low-Profile Plug-In Card
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
