Description
Management and Monitoring

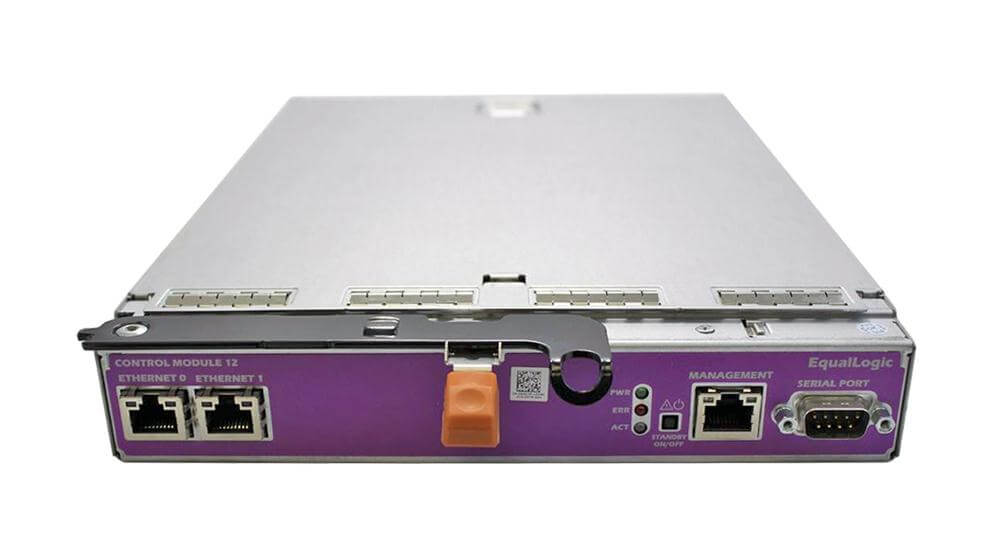

The GPRM4 Dell Equallogic Type 12 Controller for PS4100 can be managed and monitored using the following tools:
- Dell EqualLogic Group Manager: It is a web-based management tool that enables you to configure, manage, and monitor multiple EqualLogic arrays from a single interface.
- Dell SupportAssist: It is a software application that provides automated monitoring, alerts, and remote support services for Dell servers, storage, and networking devices.
- Dell OpenManage Storage Management: It is a software application that provides a centralized management interface for Dell storage devices. It enables you to perform tasks such as provisioning, monitoring, and reporting.
- SNMP: The controller also supports Simple Network Management Protocol (SNMP) which allows for remote monitoring and management of the device using SNMP-compatible network management tools.
Data Transfer Rate and Performance
The GPRM4 Dell SAS-SATA Equallogic Type 12 Controller for PS4100 has a data transfer rate of up to 600 MBps, which refers to the maximum amount of data that can be transferred between the controller and its connected devices (such as hard drives or solid state drives) in one second.
In terms of performance, the GPRM4 controller is designed to provide high-speed, reliable data access and storage capabilities for small to mid-sized enterprise applications. It supports a range of RAID levels (0, 1, 5, 6, 10, and 50) to optimize data protection and availability, and the 1GB storage controller cache helps to improve performance by allowing frequently accessed data to be stored in memory for faster access.
The controller is also compatible with Dell’s EqualLogic PS4100 series storage arrays, which offer additional performance and scalability features such as automatic load balancing, tiered storage, and thin provisioning. Overall, the GPRM4 controller is designed to deliver a balance of performance and reliability for mission-critical storage environments.
Supported Devices and Compatibility
The GPRN4 Dell EqualLogic Type 12 Controller is compatible with the following storage arrays:
- Dell EqualLogic PS4100
- Dell EqualLogic PS4100E
- Dell EqualLogic PS4100X
- Dell EqualLogic PS4100XV
The controller supports both SAS and SATA interface-based hard drives and solid-state drives (SSDs) for use with the compatible storage arrays.
General Information
- Brand: Dell
- MPN : GPRN4
- Type: Controller
- Sub-Type: SAS-SATA
Technical Information
- Product Type: RAID Controller
- Form Factor: Module
- Controller Memory: 4 GB
- Port(s): SAS
