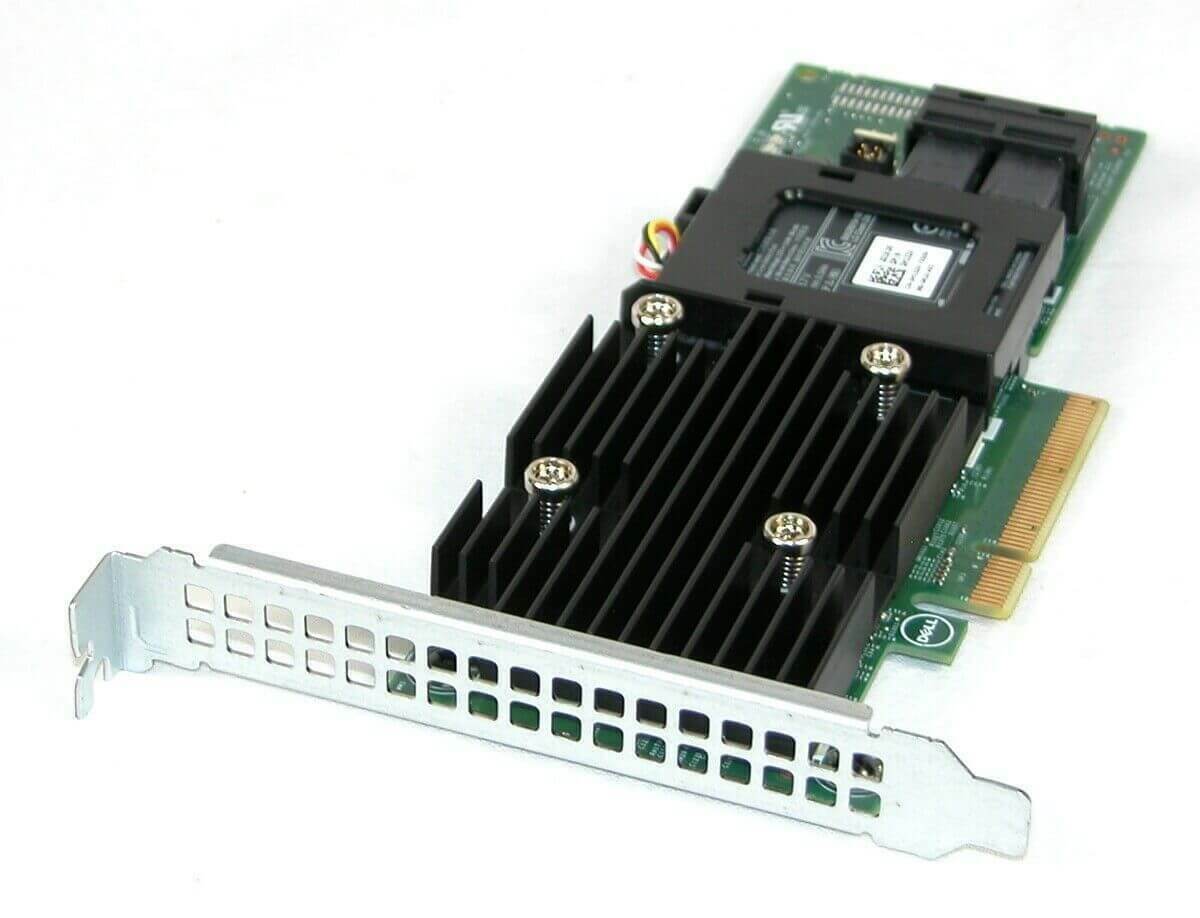

Product Overview for the Dell J14DC Raid Controller Card
In the realm of data storage and management, RAID (Redundant Array of Independent Disks) controllers play a pivotal role. The J14DC Dell Perc H730P PCI-E 3.0 SAS Raid Controller with 2GB Cache Low Profile is a noteworthy example, boasting advanced features designed to enhance data reliability, performance, and overall system efficiency. In this comprehensive exploration, we will delve into the key aspects of this RAID controller, shedding light on its specifications, functionalities, and how it can benefit your computing environment.
Key Features and Specifications
- PCI-E 3.0 Interface: The J14DC Dell Perc H730P utilizes the PCI Express (PCI-E) 3.0 interface, a high-speed connection standard that ensures optimal data transfer rates between the RAID controller and the host system. This feature is crucial for maintaining the integrity and speed of data transactions, especially in environments where large volumes of data are processed regularly.
- SAS Connectivity: SAS (Serial Attached SCSI) technology is employed in this RAID controller to facilitate reliable and high-performance data transfer. SAS enables the connection of multiple hard drives in a scalable and efficient manner, offering advantages such as faster data access and increased bandwidth. This makes the J14DC Dell Perc H730P suitable for demanding applications that require robust storage solutions.
- RAID Levels Support: One of the standout features of the J14DC Dell Perc H730P is its support for various RAID levels. RAID configurations provide different levels of data protection, performance, and capacity. This RAID controller supports RAID levels 0, 1, 5, 6, 10, 50, and 60, allowing users to choose the most suitable configuration based on their specific needs. Whether prioritizing speed, redundancy, or a balance of both, the flexibility of RAID levels accommodates diverse storage requirements.
- 2GB Cache: Cache memory plays a critical role in enhancing the performance of a RAID controller. The J14DC Dell Perc H730P comes equipped with a 2GB cache, serving as a temporary data storage buffer. This cache memory helps accelerate read and write operations, resulting in improved overall system responsiveness. The 2GB cache capacity is particularly beneficial in scenarios where quick access to frequently used data is essential.
- Low Profile Design: The low-profile design of the J14DC Dell Perc H730P makes it suitable for systems with space constraints. This feature ensures compatibility with a wide range of server configurations, including those with compact form factors. The ability to install the RAID controller in low-profile systems enhances its versatility, making it an ideal choice for various computing environments.
Performance and Reliability
- Accelerated Data Access: With its PCI-E 3.0 interface and 2GB cache, the J14DC Dell Perc H730P excels in accelerating data access. The combination of high-speed connectivity and ample cache memory minimizes latency, enabling faster retrieval of stored information. This is particularly advantageous in applications where quick data access is paramount, such as database management and real-time processing.
- Robust Data Protection: The support for multiple RAID levels in the J14DC Dell Perc H730P contributes to robust data protection. RAID configurations like RAID 1 (mirroring) and RAID 5 (striping with parity) ensure redundancy and fault tolerance, reducing the risk of data loss in the event of a disk failure. This is crucial for mission-critical systems where data integrity is non-negotiable.
- Enhanced I/O Performance: The SAS connectivity of the J14DC Dell Perc H730P enhances I/O (Input/Output) performance, allowing for efficient communication between the RAID controller and connected storage devices. This results in smoother data transfer operations, minimizing bottlenecks and optimizing the overall responsiveness of the storage subsystem. Improved I/O performance is particularly beneficial in scenarios with high data throughput requirements, such as video editing or virtualization.
Use Cases and Applications
- Enterprise Servers: In enterprise server environments where reliability, performance, and scalability are paramount, the J14DC Dell Perc H730P finds its niche. Its support for various RAID levels, high-speed SAS connectivity, and ample cache make it suitable for handling the demanding workloads of enterprise applications, including database management, virtualization, and business-critical operations.
- Data Centers: Data centers, with their emphasis on efficient data storage and retrieval, benefit from the J14DC Dell Perc H730P’s advanced features. The RAID controller’s compatibility with Dell servers and robust RAID configurations make it a valuable component in data center infrastructure. The low-profile design is especially advantageous in data centers where space optimization is crucial.
- Workstations: For workstations requiring fast and reliable storage solutions, the J14DC Dell Perc H730P offers a compelling option. Its accelerated data access enhanced I/O performance, and support for RAID configurations make it suitable for content creation, video editing, and other resource-intensive tasks. The low-profile design ensures compatibility with a variety of workstation setups.
Advanced Features of PERC H730 Controller
The Dell Perc H730P PCI-Express 3.0 SAS Raid Controller with 2GB Cache Low Profile (J14DC) is a high-performance RAID controller that offers advanced features to improve the reliability and performance of the storage array. Some of its advanced features include:
- RAID level migration: Allows the RAID level of a virtual disk to be changed without losing data.
- Global hot spare: Allows a spare drive to be designated as a global hot spare, which can automatically replace a failed drive in any RAID group.
- Automatic rebuild: Automatically rebuilds data on a hot spare drive when a drive in a RAID group fails.
- Online Capacity Expansion (OCE): Allows for the expansion of a virtual disk’s capacity without having to take it offline.
- Copy Back: Allows for the movement of data from one drive to another within a RAID group.
- Fast initialization: Quickly initializes new drives to improve performance.
- Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T): Monitors the health of the drives and alerts the user to potential problems.
- Background initialization: Initializes new drives in the background, improving performance.
- CacheCade Pro 2.0: Allows for the creation of a read-only SSD cache, improving read performance.
- Remote management: Allows for remote management of the RAID controller through the Dell OpenManage software.
Performance and Data Protection
The Dell Perc H730P PCI-Express 3.0 SAS Raid Controller with 2GB Cache Low Profile (J14DC) is a high-performance and feature-rich RAID controller that offers a variety of benefits in terms of performance and data protection.
In terms of performance, the controller supports data transfer rates of up to 12 Gb/s, which allows for fast data transfer and improved performance. The 2GB cache memory ensures that data is protected during power failure, which helps to minimize data loss. The PCI-Express 3.0 interface also provides high-speed data transfer and low latency.
In terms of data protection, the controller supports multiple RAID levels, including RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50 and RAID 60. RAID 0 provides high performance and capacity, but no data protection. RAID 1 provides data protection through data mirroring, RAID 5 provides data protection through parity striping, RAID 6 provides data protection through dual parity striping, RAID 10 provides data protection through mirroring and striping, RAID 50 provides data protection through striping across multiple RAID 5 sets, and RAID 60 provides data protection through striping across multiple RAID 6 sets. This allows for flexibility in terms of data protection and performance, depending on the specific requirements of the application.
The controller also comes with Dell OpenManage Storage Manager software that provides advanced features such as online RAID level migration, global hot spare, and automatic rebuild. This allows for easy and efficient management of the storage array and helps to minimize the risk of data loss.
Compatibility and Connectivity
The Dell Perc H730P PCI-Express 3.0 SAS Raid Controller with 2GB Cache Low Profile (J14DC) is a high-performance RAID controller that is compatible with a wide range of Dell server systems. It can be connected to a server through its internal PCI Express 3.0 x8 interface.
The RAID controller supports SAS and SATA hard drives and solid-state drives (SSDs), and it can connect to up to 16 devices at the same time. It supports RAID levels 0, 1, 5, 6, 10, 50, and 60, which provides flexibility in terms of data protection and performance.
The Dell Perc H730P PCI-Express 3.0 SAS Raid Controller with 2GB Cache Low Profile also supports SAS data transfer rates of up to 12 Gb/s, which allows for faster data transfer and improved performance. It also has a battery-backed cache memory of 2GB for data protection during power failure.
The RAID controller is compatible with Dell PowerEdge R430, R530, R630, R730, R730XD, R830, R930, T430 and T630 server models. It is also compatible with Dell EMC PowerEdge R440, R540, R740, R740XD, R840, and R940 server models.
General Information about this Dell J14DC
- Manufacturer: Dell
- Part Number or SKU# J14DC
- Product Name: Controller
- Product Type: PERC H730
Technical Information J14DC
- Interface Support : 12GBPS SAS, 6GBPS SATA
- PCI Support: PCI-E 3.0
- SAS Connections: 2×4 Internal
- Cache Memory: 2GB NV
- Raid Levels: 0,1,5,6,10,50,60
- Max Drive Support: 32
- Raid Support: Hardware
Outline, the J14DC Dell Perc H730P PCI-E 3.0 SAS Raid Controller with 2GB Cache Low Profile stands out as a robust and versatile solution for storage management in diverse computing environments. Its combination of high-speed connectivity, RAID-level support, cache memory, and user-friendly features make it a valuable asset for enterprises, data centers, and workstations alike. Whether you prioritize data protection, performance optimization, or space efficiency, the J14DC Dell Perc H730P addresses these needs comprehensively, contributing to an enhanced storage infrastructure and overall computing experience.
