Description
Overview of the Dell 10GB Powerconnect Switch

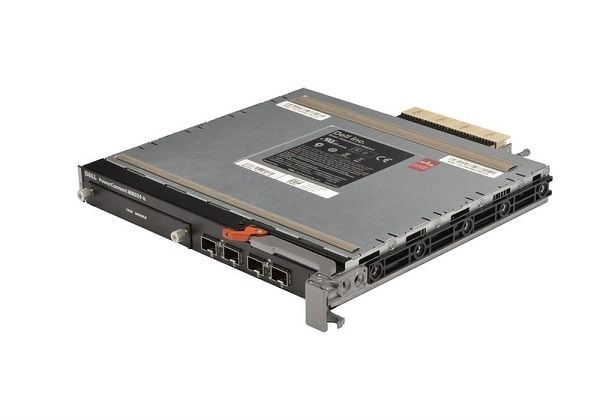

The M8024-K Dell 10GB Powerconnect Switch is a high-density, 10-gigabit Ethernet switch that provides exceptional performance and reliability. It is designed to meet the needs of data center environments that require high bandwidth and low latency. The switch is built on a modular chassis that can accommodate up to 24 ports, making it highly scalable and flexible. Each port on the switch can operate at either 1-gigabit or 10-gigabit speeds, providing users with the flexibility to choose the right speed for their application.
Key Features for 10GB Powerconnect Switch
The M8024-K Dell 10GB Powerconnect Switch has several key features that make it a powerful tool for managing network traffic. These features include:
- High-Performance Fabric: The switch uses a high-performance fabric that provides low latency and high bandwidth, enabling it to handle large amounts of traffic without slowing down.
- Modular Design: The switch has a modular design that allows users to customize their network configuration to meet their specific needs. The chassis can accommodate up to 24 ports, and users can add or remove modules as needed.
- Virtual Link Trunking (VLT): VLT is a feature that enables users to create a high-availability, loop-free network topology. This feature provides redundancy and ensures that there are no single points of failure in the network.
- Quality of Service (QoS): QoS is a feature that allows users to prioritize traffic based on its importance. This feature ensures that critical traffic, such as VoIP or video conferencing, is given priority over less important traffic.
- Multicast Filtering: Multicast filtering is a feature that enables users to filter out unnecessary multicast traffic, reducing network congestion and improving network performance.
Benefits of Powerconnect Switch
The M8024-K Dell 10GB Powerconnect Switch offers several benefits to users, including:
- High Performance: The switch is designed for high performance and low latency, making it ideal for data center environments that require large amounts of bandwidth and low latency.
- Scalability: The modular design of the switch allows users to scale their network as needed, adding or removing modules as required.
- Customizable: The switch is highly customizable, allowing users to configure their network to meet their specific needs.
- Reliability: The switch is built to be reliable, with features like VLT that ensure high availability and redundancy.
- Easy to Manage: The switch is easy to manage, with an intuitive graphical user interface (GUI) that makes it simple to configure and monitor network traffic.
Applications of the M8024-K Dell 10GB Powerconnect Switch
The M8024-K Dell 10GB Powerconnect Switch is ideal for a range of applications, including:
- Data Centers: The switch is designed for data center environments that require high-performance networking.
- Large Enterprises: The switch is ideal for large enterprises that require a scalable and reliable network infrastructure.
- Virtualization: The switch is well-suited for virtualized environments, providing low latency and high bandwidth for virtual machine traffic.
- High-Performance Computing (HPC): The switch is ideal for HPC environments that require high-bandwidth networking to support applications like
Main Specification about the Dell M8024-K
- Manufacturer: Dell
- Part Number or SKU# M8024-K
- Device Type: Switch
- Switch Type: Network Switch 10 Gigabit
Technical Information
- Switching capacity: 480 Gbps
- Forwarding rate: 357 Mpps
- Latency: < 2.2 ?s (64-byte packets)
- Jumbo frame support: Up to 9018 bytes
- VLAN support: Up to 4096 VLANs supported
- Link aggregation: Up to 16 link aggregation groups with up to 8 ports per group
- Spanning Tree Protocol (STP) support: IEEE 802.1D, IEEE 802.1w, IEEE 802.1s
- Quality of Service (QoS) support: 8 hardware queues per port, 802.1p tagging, DiffServ (DSCP)
- Security features: MAC address filtering, SNMPv3, RADIUS and TACACS+ authentication, SSHv2 and SSL encryption
- Management: CLI, SNMP, Telnet, HTTP, HTTPS, RMON, SSHv2, SSL
