Description
Product Details

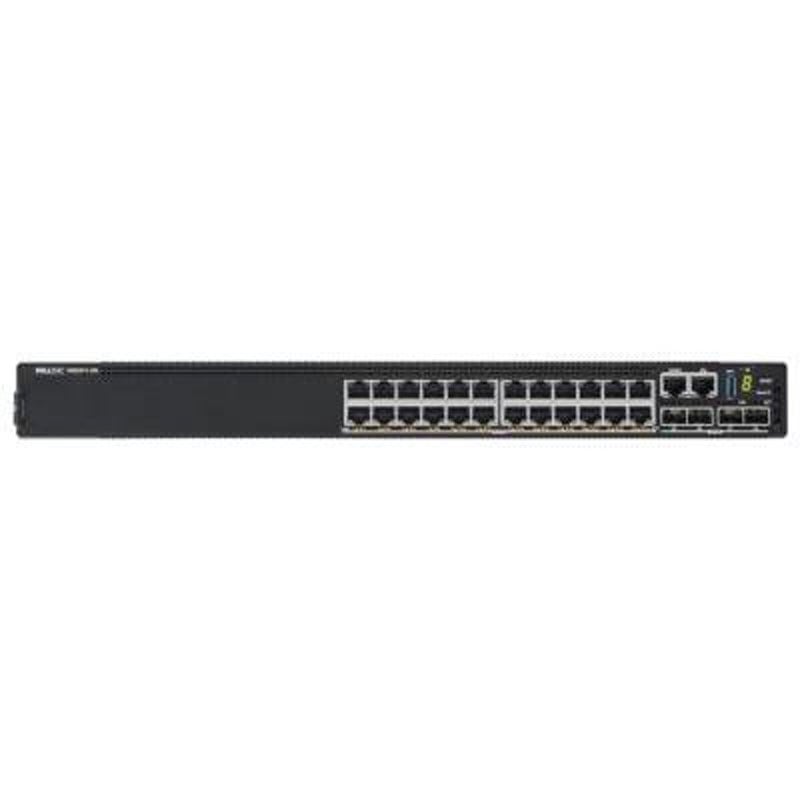

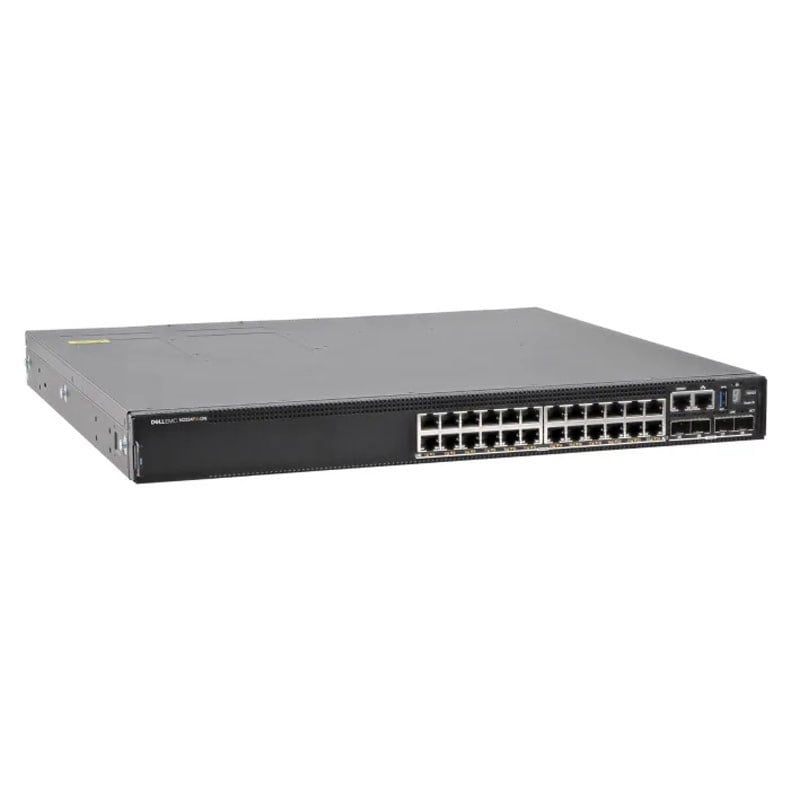

The Dell N3024EP-ONF EMC 24-Ports PoE+ L3 2x 10G SFP+ and 2x Combo Gigabit SFP Switch is a network switch that is designed for medium to large-sized businesses. It comes with 24 ports that support Power over Ethernet (PoE+) and two 10G SFP+ ports. Additionally, it has two combo Gigabit SFP ports, making it ideal for businesses that require high-speed connectivity.
Port Overview
The Dell N3024EP-ONF switch comes with 24 ports that support PoE+. PoE+ is a technology that allows network switches to transmit power and data over the same Ethernet cable. This means that you can connect PoE+ devices such as IP cameras, access points, and VoIP phones to the switch without the need for a separate power source. The switch can provide up to 30 watts of power per port, making it suitable for high-power devices.
In addition to the 24 PoE+ ports, the Dell N3024EP-ONF switch has two 10G SFP+ ports. These ports provide high-speed connectivity for network devices that require large amounts of bandwidth, such as servers or storage devices. With 10G SFP+ ports, businesses can transfer large files, run virtual machines, and perform backups quickly and efficiently.
The switch also has two combo Gigabit SFP ports. These ports can be used as either Gigabit Ethernet ports or SFP ports. Gigabit Ethernet ports allow businesses to connect devices that require high-speed connectivity, such as desktop computers, laptops, or printers. SFP ports, on the other hand, allow businesses to connect to fiber optic networks or extend the reach of their network.
Layer 3 Features
The Dell N3024EP-ONF switch is a Layer 3 switch, which means that it can provide routing functionality. This allows businesses to segment their network and improve performance. The switch supports static routing, which means that administrators can manually configure the routing table. This can be useful for businesses that have a small number of subnets and do not require dynamic routing.
The switch also supports dynamic routing protocols, such as OSPF and BGP. Dynamic routing protocols allow network devices to automatically discover the best path for data to travel. This can be useful for businesses that have a large number of subnets or need to route traffic between different locations.
Quality of Service (QoS)
The Dell N3024EP-ONF switch supports Quality of Service (QoS), which allows businesses to prioritize traffic on their network. QoS is useful for businesses that have a large number of devices and need to ensure that critical applications, such as VoIP, are given priority over non-critical traffic, such as file transfers.
The switch supports multiple QoS policies, including strict priority, weighted round-robin, and class-based queuing. With these policies, businesses can allocate bandwidth to different types of traffic and ensure that critical applications always have sufficient bandwidth.
Security Features
The Dell N3024EP-ONF switch comes with a range of security features that can help protect businesses from cyber threats. The switch supports 802.1X authentication, which requires users to provide login credentials before they can access the network. This can prevent unauthorized access to the network and ensure that only authorized users can connect.
The switch also supports Access Control Lists (ACLs), which allow administrators to control access to network resources based on IP address, port number, or protocol. ACLs can be useful for businesses that need to restrict access to sensitive data or limit the use of certain applications.
General Information about this Dell N3024EP-ONF
- Manufacturer: Dell
- Part Number or SKU# N3024EP-ONF
- Product Type: Ethernet Switch
Technical Information of Dell 24 Ports Switch
- Enclosure Type: Rack-Mountable 1U
- Sub Type: Gigabit Ethernet
- Ports: 24 X 10/100/1000 (Poe+) + 2 X 10 Gigabit SFP+ + 2 X Combo Gigabit SFP
- Performance: Switching Fabric Bandwidth: 212 GBPS Forwarding Performance: 158 MPPS Stacking Bandwidth: 21 GBPS
- Mac Address Table Size: 32k Entries
- Routing Protocol: Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
- Remote Management Protocol: Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Http, Tftp, Ssh-2
- Encryption Algorithm: Md5, Aes, Ssl, Tls
- Authentication Method: Radius, Tacacs+, Secure Shell V.2 (ssh2)
- Ram: 2 GB
- Flash Memory: 1 GB
- Compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax
- Features: Control of Flow, Mdi/mdi-x Switch, Auto-negotiation, Support for Arp, VLAN, Port Mirroring, and Diffserv Round Robin Weighted (wrr) Queuing, Support for IPv6, Rapid Spanning Tree Protocol (rstp), Multiple Spanning Tree Protocol (mstp), Access Control List (acl), Quality of Service (qos), Stp Root Guard, Broadcast Storm Control Support for IPv4, Lldp, Network Access Control (nac), Neighbor Discovery Protocol (ndp), Tagged Vlan, Redundant Fans, Management Information Base (mib), Energy Efficient Ethernet, Dynamic Vlan Support (gvrp), Dual Firmware Images, Protocol-based Vlans Support
Power for this Dell Ethernet Switch
- Power Redundancy: Optional
- Power Redundancy Scheme: 1+1 (with Optional Power Supply)
- Power Device: Internal Power Supply – Hot-plug
- Installed Qty: 1 (installed) / 2 (max)
